Wireless Indoor Siren Flashing LED Light 120dB Sound Security Siren User Manual

1. Introduction and Overview

The YISEELE Y-2 Wireless Indoor Siren is designed to provide a loud audible alarm and a flashing LED light for home security alarm systems. It is intended for indoor use and operates on 12V DC power, offering a simple and quick installation process. The siren's shell is constructed from ABS flame-retardant material, ensuring durability and safety.

This device functions as an output component, connecting to the main engine of a compatible alarm system to enhance its alert capabilities with a powerful 120dB sound and visual strobe.

Image: Front view of the YISEELE Y-2 Wireless Indoor Siren. The device features a white, sleek casing with a prominent red dome at the top, which houses the flashing LED light. This siren is designed to be a visible and audible deterrent.

2. Package Contents

Upon opening the package, please verify that all the following items are included:

• 1 x Wireless Indoor Siren (YISEELE Y-2)
• 1 x 12V DC Charger/Power Adapter
• Installation Parts Package (e.g., screws, wall plugs)

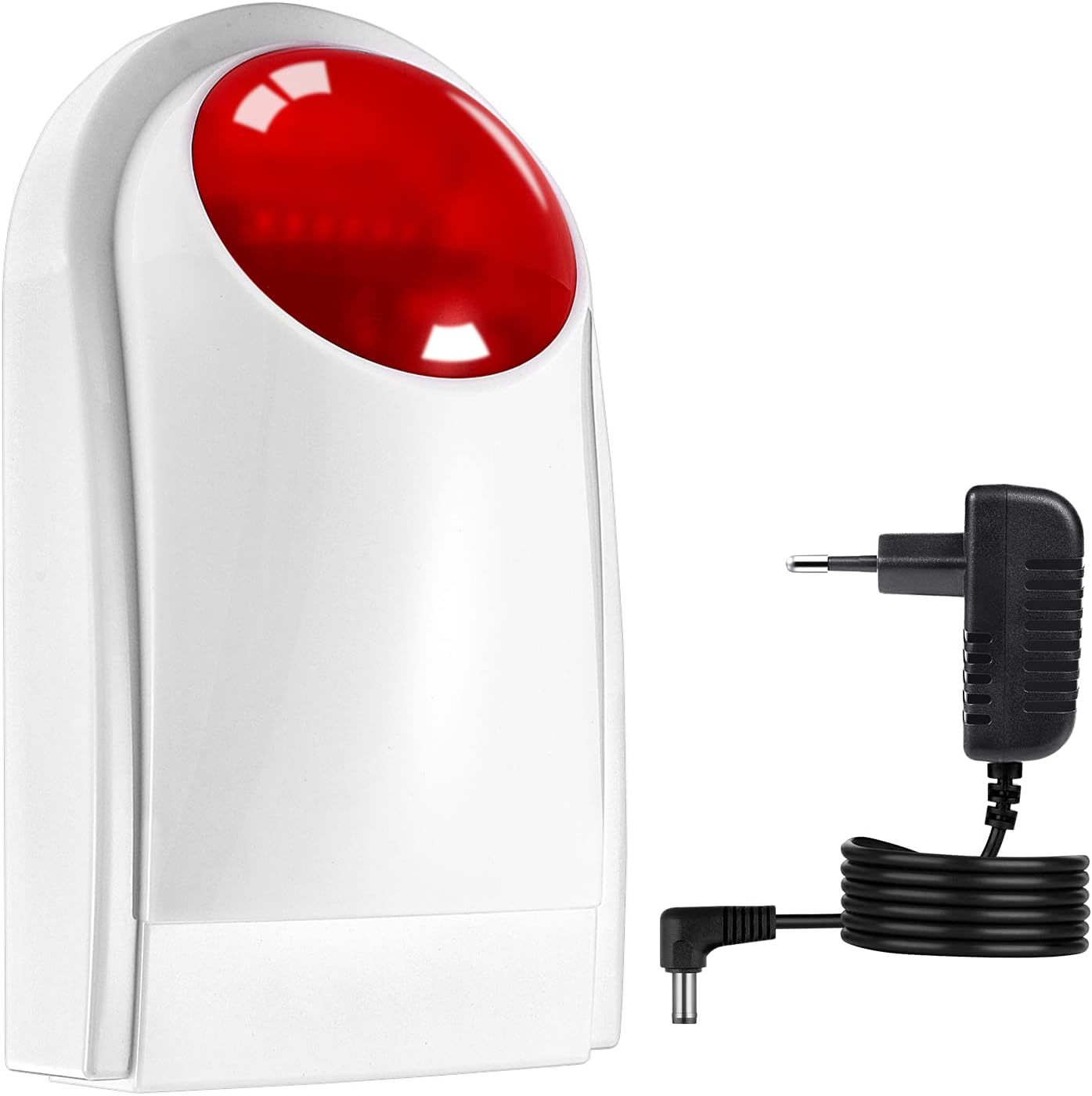

Image: The YISEELE Y-2 Wireless Indoor Siren is displayed alongside its included 12V DC power adapter. This image illustrates the primary components provided in the product package, highlighting the siren unit and its essential power supply.

3. Product Features

• High Sound Output: Produces a loud 120dB alarm sound to effectively alert occupants and deter intruders.
• Flashing LED Light: Integrated strobe light provides a visual alert in conjunction with the audible alarm.
• Indoor Use: Specifically designed for indoor environments.
• 12V DC Compatibility: Operates on a standard 12-volt direct current power supply.
• Durable Construction: Alarm shell is made of ABS flame-retardant material for enhanced safety and longevity.
• Easy Installation: Designed for quick and straightforward setup, including direct drilling for secure mounting.
• System Integration: Can be connected to the main engine of a compatible home security alarm system.

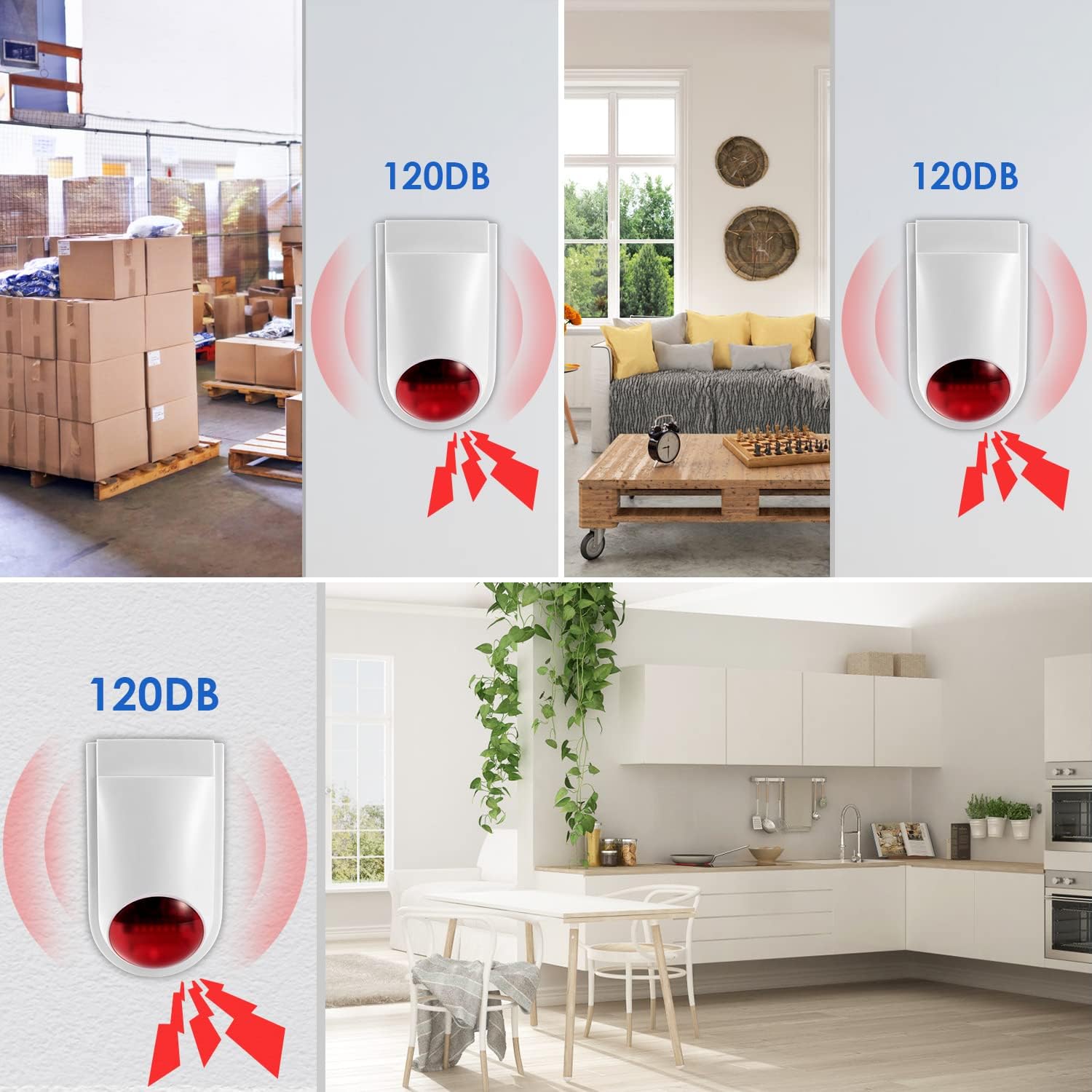

Image: A collage showing the YISEELE Y-2 siren placed in different indoor environments, such as a warehouse, living room, and kitchen. Red concentric circles emanate from the siren in each scene, visually representing the 120dB sound output and its ability to cover various indoor spaces.

4. Setup and Installation

Follow these steps for proper installation of your YISEELE Y-2 Indoor Siren:

1. Unpack and Inspect: Carefully remove all components from the packaging. Inspect the siren and power adapter for any signs of damage.
2. Choose Installation Location: Select an indoor location that is central to the area you wish to protect and within reach of a power outlet and your alarm system's main engine. Ensure the surface is suitable for wall mounting.
3. Mount the Siren: The siren is designed for wall mounting. Use the provided installation parts (screws, wall plugs) to securely attach the siren to the chosen wall. It can be directly drilled for a firmer installation.
4. Connect Power: Plug the 12V DC charger into the siren's power input port. Then, plug the charger into a standard electrical outlet.
5. Connect to Alarm System: Connect the siren to the alarm system's main engine via its alarm outlet. Refer to your specific alarm system's manual for details on connecting external sirens. The siren will activate upon receiving a signal from the connected alarm system.

Image: A side view of the YISEELE Y-2 Wireless Indoor Siren, showing the power input port at the bottom and the connected 12V DC power adapter. This image helps visualize how the power supply connects to the siren unit during installation.

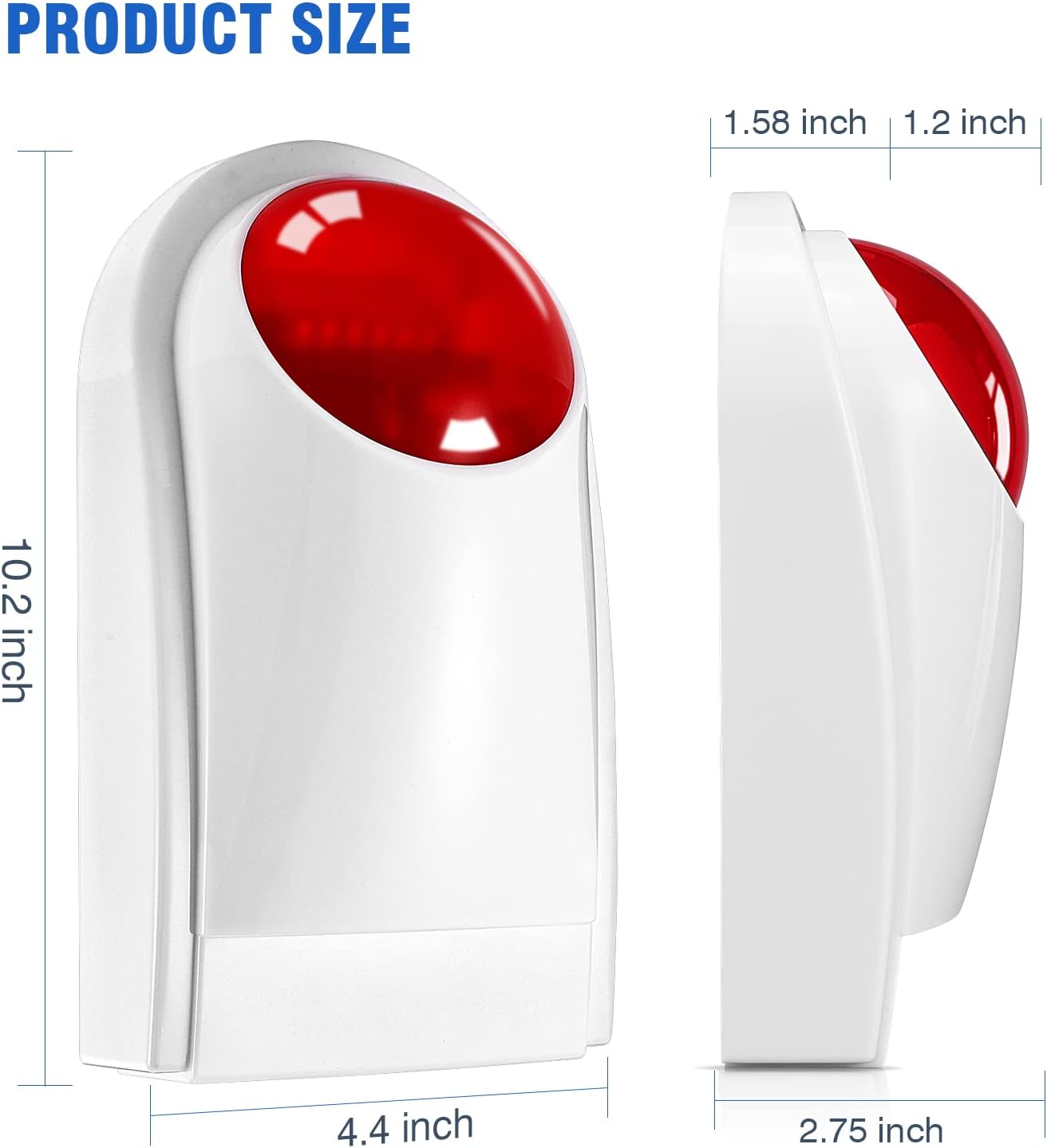

Image: A technical diagram illustrating the physical dimensions of the YISEELE Y-2 Wireless Indoor Siren. The diagram provides measurements for height (10.2 inches), width (4.4 inches), and depth (2.75 inches), along with specific measurements for the top section (1.58 inches and 1.2 inches), aiding in planning the installation space.

Image: The YISEELE Y-2 siren is shown with text overlay "Built-in large 2000mAh lithium battery, power supply double insurance. Battery Backup" and a battery icon. Note: According to product specifications, this siren is DC powered and does not include or require internal batteries. This image may refer to the battery backup capabilities of a compatible alarm system to which the siren connects, rather than the siren itself.

Image: The YISEELE Y-2 siren is depicted in an outdoor home setting, accompanied by icons indicating "Audible & Strobe", "Powered by Solar", "No Wire No Worries", and "Multi-use". Note: This product is specified as an "Indoor Siren" and is "DC Powered". The "Powered by Solar" and "No Wire No Worries" icons may refer to features of a broader YISEELE alarm system that this siren can integrate with, not the siren's standalone capabilities.

5. Operating Instructions

The YISEELE Y-2 Wireless Indoor Siren operates in conjunction with a compatible home security alarm system. It does not have independent controls for activation or deactivation.

• Activation: The siren will automatically activate (produce a 120dB sound and flash its LED light) when it receives an alarm signal from the connected main alarm system.
• Deactivation: The siren will cease alarming once the alarm condition on the main system is cleared or the main system is disarmed.
• Testing: To test the siren's functionality, initiate a test alarm through your connected home security alarm system.

6. Maintenance

To ensure optimal performance and longevity of your YISEELE Y-2 Indoor Siren, follow these simple maintenance guidelines:

• Cleaning: Periodically wipe the exterior of the siren with a soft, dry cloth to remove dust and dirt. Do not use abrasive cleaners or solvents.
• Connection Check: Occasionally inspect the power connection and the connection to your alarm system's main engine to ensure they are secure and free from damage.
• Environmental Conditions: Ensure the siren remains in an indoor environment, away from direct moisture, extreme temperatures, and excessive dust.

7. Troubleshooting

If you encounter issues with your YISEELE Y-2 Indoor Siren, refer to the following troubleshooting steps:

8. Specifications

9. Warranty and Support

For any questions, technical assistance, or warranty inquiries regarding your YISEELE Y-2 Wireless Indoor Siren, please contact YISEELE customer support. While specific warranty details are not provided in this manual, YISEELE prioritizes customer safety and satisfaction.

You can find more information and contact details by visiting the official YISEELE store or support channels:
