1. Product Overview
The Gedotec Mounting Glass Shelving Unit Mount Shelf Carrier is designed to securely hold glass shelves with a thickness ranging from 5 to 8 mm. Crafted from durable chrome-plated zinc casting, this accessory provides a robust and aesthetically pleasing solution for your shelving needs. It is ideal for various applications where a stable and reliable shelf support is required.
Figure 1: The Gedotec glass shelf bracket, showcasing its polished chrome-plated finish and robust design.
Key Features:
- Designed for glass shelves with a thickness of 5 to 8 mm.
- Constructed from high-quality zinc casting with a chrome-plated finish for durability and aesthetics.
- Installation via screwing, with a clamping mechanism for secure shelf attachment.
- Compact dimensions: 18 mm (W) x 25 mm (D) x 18 mm (H).
- Suitable for various shelving applications in homes or offices.
2. Setup & Installation
Proper installation of the Gedotec shelf carrier is crucial for the stability and safety of your glass shelf. Follow these steps carefully:
- Preparation: Ensure the mounting surface (wall or furniture) is clean, dry, and structurally sound. Mark the desired location for the shelf and the bracket(s).
- Drilling Pilot Holes: Using appropriate wall anchors and screws (not included), drill pilot holes at the marked locations. The bracket requires screws for mounting.
- Mounting the Bracket: Align the bracket with the pilot holes and secure it firmly to the surface using screws. Ensure the bracket is level and stable.
- Inserting the Glass Shelf: Gently slide the glass shelf into the clamping mechanism of the bracket. The bracket is designed to hold shelves between 5 mm and 8 mm thick.
- Securing the Shelf: The bracket features a clamping screw (often located at the bottom or side) to tighten and secure the glass shelf in place. Use a suitable screwdriver to carefully tighten this screw until the shelf is firmly held without overtightening, which could damage the glass.
Figure 2: The Gedotec bracket securely holding a glass shelf, demonstrating its clamping function.
Important: Always ensure the shelf is balanced and the weight distributed evenly. Do not exceed the recommended load capacity for your shelving system.
3. Operation
Once properly installed, the Gedotec shelf carrier operates as a fixed support for your glass shelf. Its primary function is to provide stable and reliable support, ensuring the shelf remains securely in place. There are no moving parts or user-adjustable settings after the initial installation and tightening of the clamping screw.
Ensure that items placed on the shelf do not exceed its weight capacity or cause an imbalance that could compromise stability. Regularly inspect the bracket and shelf for any signs of loosening or damage.
4. Maintenance
The Gedotec shelf carrier is made from chrome-plated zinc casting, which is designed for durability and resistance to corrosion. Minimal maintenance is required to keep the product in optimal condition:
- Cleaning: To clean the chrome-plated surface, use a soft, damp cloth. For stubborn marks, a mild, non-abrasive cleaner specifically designed for chrome or polished metal surfaces can be used.
- Avoid: Do not use abrasive cleaners, scouring pads, or harsh chemicals, as these can scratch or damage the chrome finish.
- Inspection: Periodically check the tightness of the mounting screws and the clamping screw that holds the glass shelf. Retighten if necessary, but avoid overtightening.
- Damage: If the bracket shows signs of significant wear, corrosion, or structural damage, it should be replaced to ensure safety.
5. Troubleshooting
This section addresses common issues you might encounter with the Gedotec shelf carrier:
| Problem | Possible Cause | Solution |
|---|---|---|
| Shelf feels loose or wobbly. | Clamping screw not tight enough; mounting screws loose; shelf thickness outside 5-8mm range. | Carefully tighten the clamping screw. Check and retighten mounting screws. Ensure your glass shelf is within the specified thickness. |
| Bracket appears damaged or corroded. | Exposure to harsh chemicals; physical impact; prolonged moisture. | Clean with appropriate mild cleaners. If damage is significant or structural, replace the bracket immediately. |
| Difficulty inserting shelf. | Shelf thickness too large; debris in clamping slot. | Verify shelf thickness (must be 5-8mm). Clear any obstructions from the clamping slot. |
6. Specifications
Detailed technical specifications for the Gedotec Mounting Glass Shelving Unit Mount Shelf Carrier:
| Attribute | Detail |
|---|---|
| Brand | Gedotec |
| Model Number | Gedo-28401201 |
| Colour | Polished Chrome Plated |
| Manufacturer | GedoTec® |
| Material | Zinc Casting |
| Dimensions (W x D x H) | 18 mm x 25 mm x 18 mm |
| Shelf Thickness Compatibility | 5 - 8 mm |
| Installation Type | For screwing, with clamping mechanism |

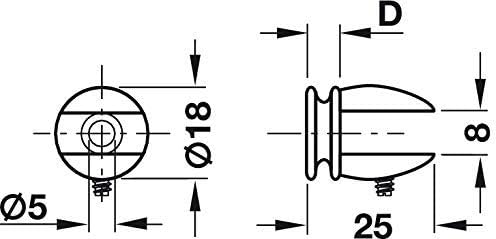

Figure 3: Technical drawing illustrating the dimensions of the Gedotec shelf bracket.
7. Warranty & Support
For information regarding warranty coverage, returns, or technical support for your Gedotec Mounting Glass Shelving Unit Mount Shelf Carrier, please refer to the purchase documentation or contact the retailer from whom you purchased the product. You may also reach out to the manufacturer, Gedotec, directly for assistance.
Seller: heimwerkertools
For further inquiries, please visit the official Gedotec website or consult your local hardware specialist.
