Product Overview
The HomVent 52CC Backpack Gas Leaf Blower is a powerful and efficient tool designed for clearing leaves, snow, debris, and dust from various outdoor areas. Equipped with a robust 2-stroke 52cc engine, it delivers high-speed airflow, making it suitable for both residential and commercial applications.
This blower features a maximum air volume of 600 CFM and an air speed of 248 MPH, ensuring effective and rapid clearing. The engine operates at a maximum speed of 7500 revolutions per minute, providing strong performance even for tough, wet debris.
Designed for user comfort, the backpack blower includes a padded back and harness system that is ventilated and soft. This ergonomic design helps reduce vibration during operation and maximizes comfort, while adjustable shoulder straps and a hip belt ensure a suitable fit for various body sizes.
Figure 1: HomVent 52CC Backpack Gas Leaf Blower, showing the main unit with attached blower tube and control handle.
Important Safety Instructions
Always read and understand all safety warnings and instructions before operating this product. Failure to follow these instructions may result in serious injury or death.
- Personal Protective Equipment (PPE): Always wear appropriate eye protection (safety glasses or goggles), hearing protection (earplugs or earmuffs), and sturdy footwear. Long pants and gloves are also recommended.
- Fuel Handling: Gasoline is highly flammable. Handle fuel in a well-ventilated area, away from sparks, open flames, or other ignition sources. Do not smoke while handling fuel. Store fuel in approved containers.
- Engine Exhaust: The engine exhaust contains carbon monoxide, a colorless, odorless, and deadly gas. Never operate the blower in an enclosed area. Ensure adequate ventilation.
- Hot Surfaces: The engine and muffler become very hot during operation and can cause burns. Avoid contact with hot surfaces.
- Clear Work Area: Keep children, bystanders, and pets at a safe distance (at least 50 feet/15 meters) from the operating area. Inspect the area for objects that could be thrown by the air stream.
- Secure Operation: Always maintain a firm grip on the control handle. Do not operate the blower if you are fatigued, under the influence of alcohol, drugs, or medication.
- Maintenance Safety: Disconnect the spark plug wire before performing any maintenance or repairs to prevent accidental starting.
Package Contents
Upon unpacking, verify that all components are present and undamaged. If any parts are missing or damaged, contact HomVent customer support immediately.
- Backpack Blower Unit (Engine and Frame)
- Blower Tubes (Flexible and Rigid Sections)
- Control Handle Assembly
- Fuel Mixing Bottle
- Tool Kit (Wrench, Screwdriver, etc.)
- Instruction Manual

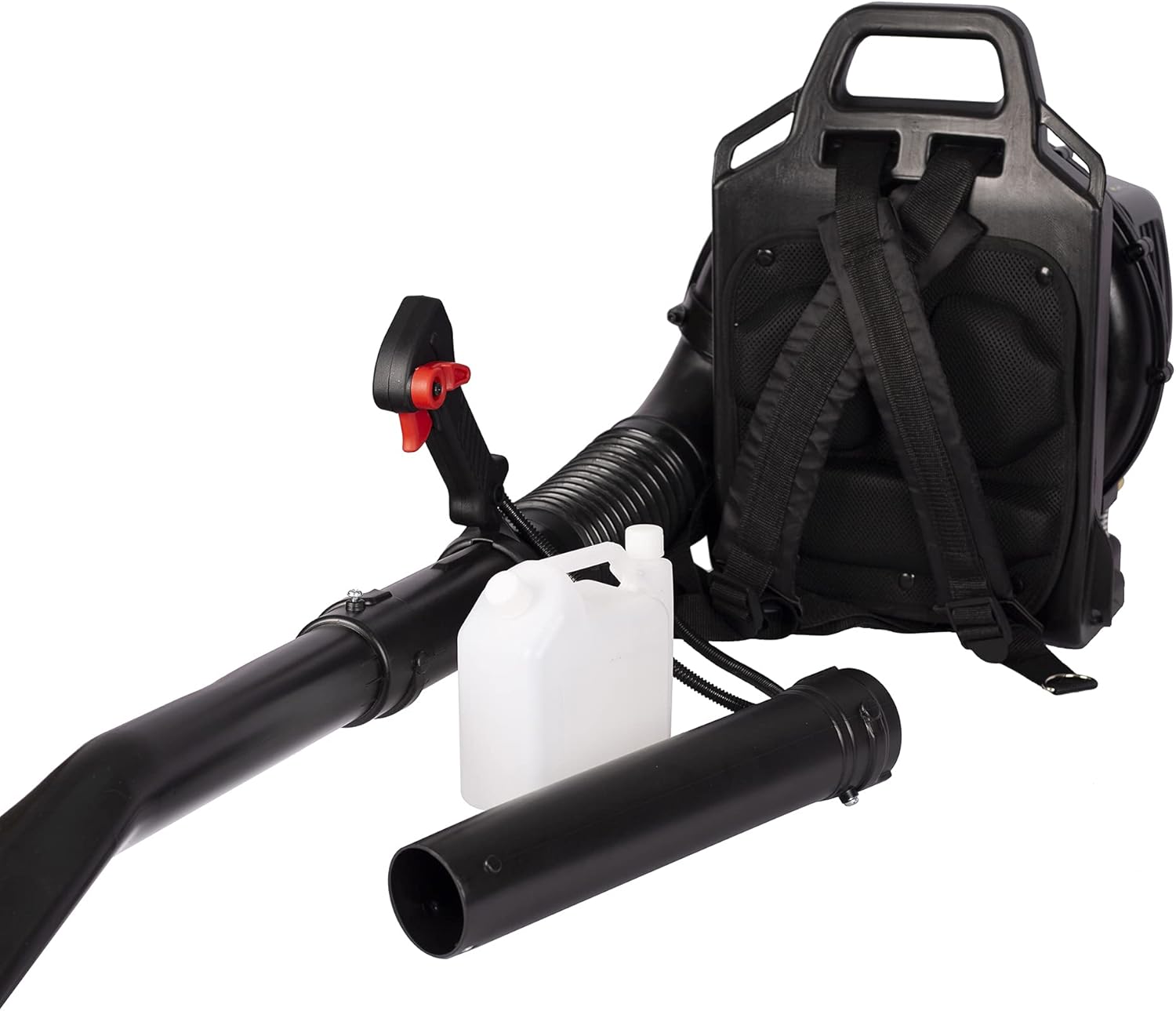

Figure 2: All components of the HomVent Backpack Blower laid out, including the main unit, blower tubes, and fuel mixing bottle.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | HomVent |
| Model | 50210010-19 |
| Engine Type | 2-Cycle Gas Engine |
| Cylinder Capacity | 52CC |
| Max Speed | 7500 RPM |
| Max Air Volume | 600 CFM |
| Air Speed | 248 MPH |
| Noise Level | 111 dB |
| Power Source | Gasoline-powered |
| Form Factor | Ergonomic Backpack |
| Product Dimensions (L x W x H) | 68.5" x 13.8" x 20.1" |
Figure 3: The HomVent Backpack Blower with key dimensions indicated for reference.
Setup and Assembly
Follow these steps to assemble your HomVent Backpack Gas Leaf Blower before first use.
- Attach Blower Tubes: Connect the flexible tube to the main blower unit's air outlet. Secure it firmly with the provided clamp or locking mechanism. Then, attach the rigid tube sections to the flexible tube, ensuring they click into place or are tightened securely.
- Install Control Handle: Slide the control handle assembly onto the appropriate section of the blower tube. Position it for comfortable operation and tighten any securing screws or clamps. Ensure the throttle cable is routed correctly and connected to the engine's carburetor linkage.
- Adjust Harness: Put on the backpack unit and adjust the shoulder straps and hip belt for a snug and comfortable fit. The padded design is intended to distribute weight evenly and reduce strain during extended use.
Figure 4: Close-up view of the ergonomic control handle, showing the throttle trigger and stop switch.
Operating Instructions
Proper operation ensures efficiency and extends the life of your blower.
- Fuel Mixture: This is a 2-cycle engine and requires a specific gasoline-to-oil mixture. Refer to the engine label or manual for the exact ratio (typically 25:1 or 50:1). Use fresh, unleaded gasoline and high-quality 2-cycle engine oil. Mix thoroughly in the provided fuel mixing bottle before pouring into the fuel tank.
- Filling Fuel Tank: Ensure the engine is off and cool. Place the blower on a level surface. Carefully open the fuel cap and fill the tank with the prepared fuel mixture. Do not overfill. Securely close the fuel cap.
- Starting Procedure:
- Set the ON/OFF switch to the 'ON' position.
- Push the primer bulb several times until fuel is visible and flowing through the clear lines.
- Set the choke lever to the 'FULL CHOKE' position.
- Pull the starter rope firmly and steadily until the engine 'pops' or attempts to start. Do not pull the rope to its full extension.
- Once the engine 'pops', move the choke lever to the 'HALF CHOKE' or 'RUN' position.
- Pull the starter rope again until the engine starts.
- Allow the engine to warm up for a few moments before applying full throttle.
- Operating the Blower: Once started, wear the blower as a backpack. Use the throttle trigger on the control handle to adjust the air speed. Direct the blower tube towards the debris you wish to clear. Work in a systematic pattern to efficiently move leaves and debris.
- Stopping Procedure: To stop the engine, simply move the ON/OFF switch to the 'OFF' position.
Figure 5: An individual demonstrating the proper use of the HomVent Backpack Blower for clearing leaves.
Maintenance
Regular maintenance is crucial for the longevity and optimal performance of your HomVent leaf blower.
- Air Filter: Check the air filter regularly (e.g., every 10 hours of operation or more frequently in dusty conditions). Clean or replace it if it is dirty or clogged to ensure proper engine performance.
- Spark Plug: Inspect the spark plug periodically. Clean any carbon deposits and adjust the gap if necessary. Replace the spark plug annually or if it shows signs of wear.
- Fuel Filter: The fuel filter, located inside the fuel tank, should be checked and replaced if it appears clogged or dirty.
- Cooling Fins: Keep the engine's cooling fins clean and free of debris to prevent overheating.
- General Cleaning: After each use, clean the exterior of the blower, removing any dirt, dust, or debris.
- Fuel Storage: For long-term storage (over 30 days), drain the fuel tank and run the engine until it stops from lack of fuel. This prevents fuel degradation and carburetor issues.
Troubleshooting Guide
This section provides solutions to common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine will not start | No fuel or incorrect fuel mixture Spark plug fouled or loose Choke setting incorrect Air filter clogged | Fill with correct fuel mixture Clean or replace spark plug; ensure connection Adjust choke according to starting procedure Clean or replace air filter |
| Engine starts but runs poorly | Incorrect fuel mixture Clogged fuel filter Dirty air filter Spark plug issue | Ensure correct fuel mixture Replace fuel filter Clean or replace air filter Inspect and clean/replace spark plug |
| Loss of power during operation | Clogged air filter Overheating Incorrect fuel mixture | Clean or replace air filter Check cooling fins for blockage; allow to cool Verify fuel mixture ratio |
| Excessive smoke from exhaust | Too much oil in fuel mixture Engine internal issue | Use correct fuel-to-oil ratio Contact qualified service technician |
Warranty and Customer Support
HomVent products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your product or contact HomVent customer support directly. Keep your purchase receipt as proof of purchase.
For technical assistance, parts, or service inquiries, please contact HomVent customer support. You may find contact information on the product packaging or the official HomVent website.
Additional protection plans may be available for purchase through authorized retailers, offering extended coverage beyond the standard manufacturer's warranty.
