Chuancheng Ecovacs Deebot Ozmo 900 DN5G

Chuancheng Replacement Parts Instruction Manual for Ecovacs Deebot Ozmo 900 DN5G

Model Compatibility: Ecovacs Deebot Ozmo 900 DN5G Series Robot Vacuum Cleaners

Introduction

This instruction manual provides guidance for the installation and maintenance of Chuancheng replacement parts designed for the Ecovacs Deebot Ozmo 900 DN5G series robot vacuum cleaners. Regular replacement of these parts ensures optimal cleaning performance and extends the lifespan of your robot vacuum.

Package Contents:

  • 1 x Main Roller Brush
  • 4 x High-Efficiency Filters
  • 6 x Side Brushes (3 pairs)
  • 1 x Cleaning Brush
Complete set of Chuancheng replacement parts for Ecovacs Deebot Ozmo 900 DN5G, including one main roller brush, four filters, six side brushes, and one small cleaning brush.

Image: Overview of the Chuancheng 12-piece replacement kit, showing all components.

Safety Information

  • Always power off and unplug your robot vacuum cleaner before performing any maintenance or part replacement.
  • Use only genuine or compatible replacement parts to ensure proper function and avoid damage to your device.
  • Keep small parts away from children and pets.
  • Dispose of old parts responsibly according to local regulations.

Setup and Installation

1. Replacing the Main Roller Brush

  1. Turn off your Ecovacs Deebot Ozmo 900 DN5G and place it upside down on a clean, flat surface.
  2. Locate the main brush cover, usually secured by two tabs or screws. Press the tabs or unscrew to remove the cover.
  3. Lift out the old main roller brush.
  4. Insert the new Chuancheng main roller brush, ensuring the ends align with the slots in the vacuum cleaner.
  5. Replace the main brush cover and secure it.
Close-up of the main roller brush, showing its yellow and black bristles and rubber fins.

Image: The main roller brush, ready for installation.

2. Replacing the Side Brushes

  1. Turn off your robot vacuum and place it upside down.
  2. Locate the side brushes. Each brush is typically held by a single screw.
  3. Use a screwdriver to remove the screw holding the old side brush.
  4. Carefully pull off the old side brush.
  5. Align the new Chuancheng side brush with the post and push it down.
  6. Secure the new side brush with the screw. Repeat for all side brushes.

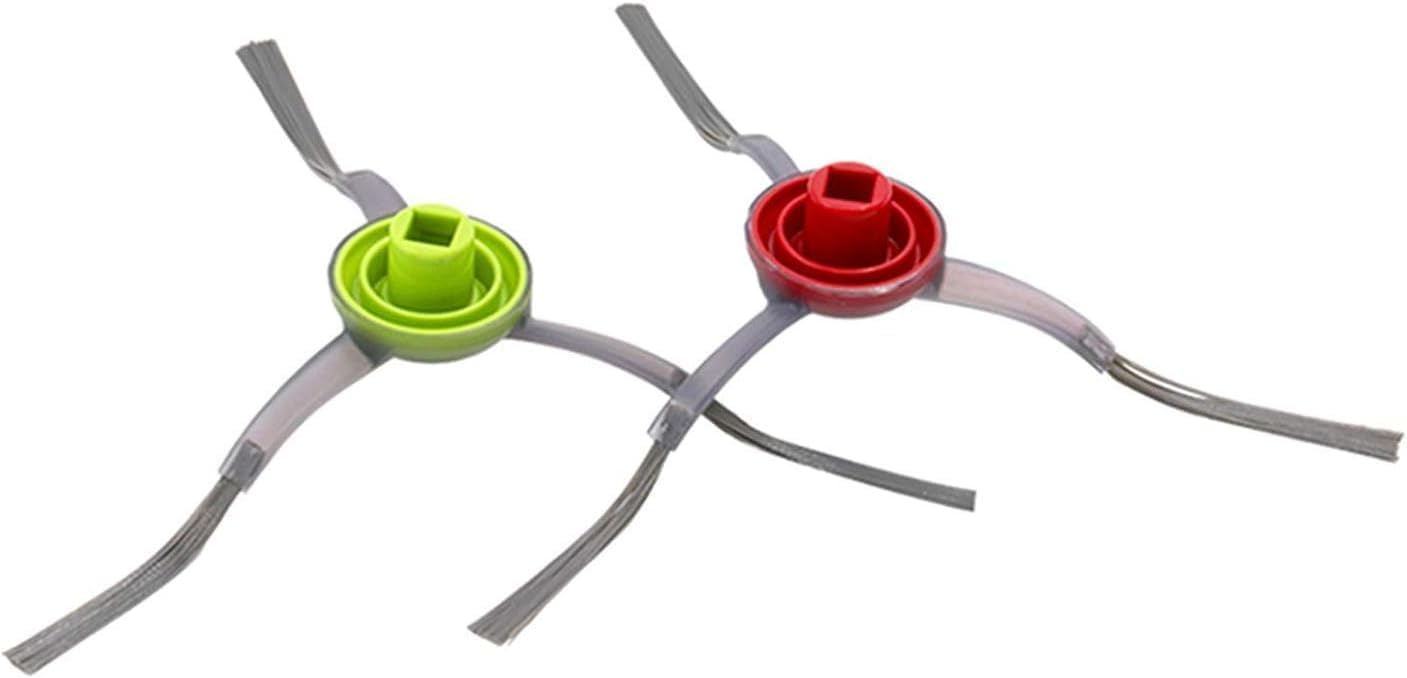

Two side brushes, one with a green hub and one with a red hub, indicating left and right placement.

Image: Chuancheng side brushes with color-coded hubs for easy identification.

3. Replacing the Filters

  1. Open the top cover of your robot vacuum to access the dustbin.
  2. Remove the dustbin from the vacuum cleaner.
  3. Open the dustbin cover and locate the filter compartment.
  4. Remove the old filter assembly (often consists of a mesh filter and a high-efficiency filter).
  5. Insert the new Chuancheng high-efficiency filter into the dustbin, ensuring it is seated correctly.
  6. Close the dustbin cover and reinsert the dustbin into the vacuum cleaner.

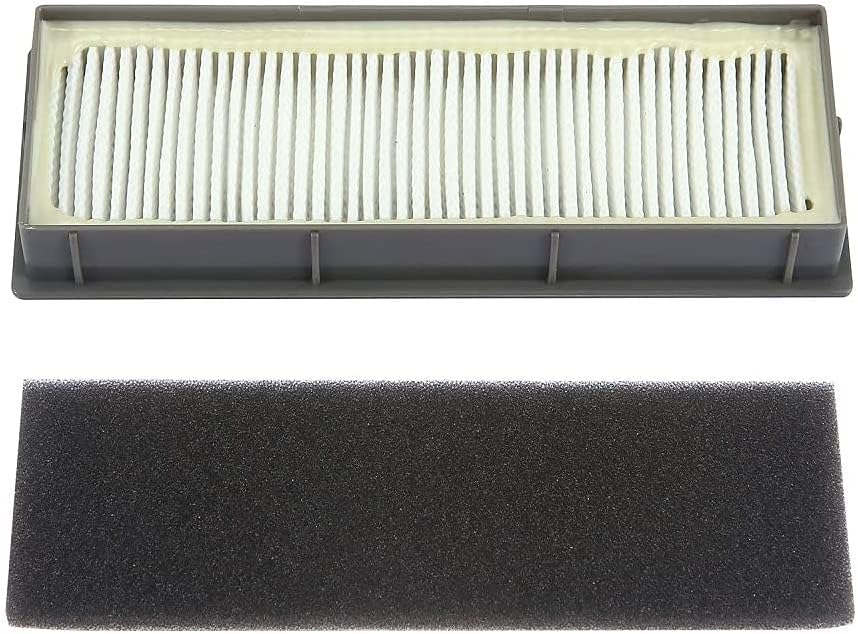

A new filter assembly, showing the pleated high-efficiency filter and the foam pre-filter.

Image: Chuancheng high-efficiency filter with foam pre-filter.

Maintenance

Regular cleaning and timely replacement of parts are crucial for maintaining your robot vacuum's performance.

Main Roller Brush Maintenance

  • Frequency: Inspect weekly, clean every 1-2 weeks, replace every 3-6 months depending on usage.
  • Cleaning: Use the provided cleaning brush to remove hair, dust, and debris tangled around the main brush.

Side Brush Maintenance

  • Frequency: Inspect weekly, clean every 2-4 weeks, replace every 3-6 months depending on usage.
  • Cleaning: Remove any tangled hair or debris from the side brushes. If bristles are bent or damaged, replace the brush.

Filter Maintenance

  • Frequency: Clean weekly, replace every 1-3 months depending on usage and pet hair presence.
  • Cleaning: Tap the filter gently over a trash can to remove accumulated dust. Do not wash the high-efficiency filter with water.
A small yellow cleaning brush with black bristles, used for removing debris from vacuum parts.

Image: The included cleaning brush for routine maintenance.

Troubleshooting

If your robot vacuum's cleaning performance decreases after replacing parts, consider the following:

  • Reduced Suction: Ensure the filter is correctly seated and not clogged. Check the dustbin for fullness.
  • Ineffective Brushing: Verify that the main roller brush and side brushes are installed correctly and free from tangles. Ensure side brushes are spinning freely.
  • Unusual Noises: Check all brushes for obstructions or improper installation. Remove any foreign objects.

If issues persist, refer to your Ecovacs Deebot Ozmo 900 DN5G's original user manual or contact Ecovacs customer support.

Specifications

ComponentQuantityFunctionRecommended Replacement Interval
Main Roller Brush1Sweeps and agitates debris from floors.3-6 months
High-Efficiency Filters4Captures fine dust and allergens.1-3 months
Side Brushes6 (3 pairs)Sweeps debris from edges and corners into the main cleaning path.3-6 months
Cleaning Brush1Assists in cleaning main and side brushes.As needed (reusable)

Brand: Chuancheng

Compatible Model: Ecovacs Deebot Ozmo 900 DN5G

ASIN: B099Z9FGW4

UPC: 729107312136

Warranty and Support

For any questions regarding the Chuancheng replacement parts, please contact the seller directly through the platform where the purchase was made. For issues related to your Ecovacs Deebot Ozmo 900 DN5G robot vacuum cleaner, please refer to the manufacturer's official support channels.

This product is a compatible replacement part and is not manufactured or endorsed by Ecovacs Robotics.
