1. Introduction
1.1 Product Overview
The INSTARTING Alternator Voltage Regulator is a high-quality component designed to maintain a stable 14V output from your vehicle's alternator. It features an A-Circuit design and is manufactured with new premium quality components to meet or exceed OEM specifications. Each unit undergoes rigorous testing for reliability, durability, and performance, ensuring optimal function within your vehicle's electrical system.
1.2 Package Contents
- One (1) INSTARTING Alternator Voltage Regulator (Model 03-005)
1.3 Product Images

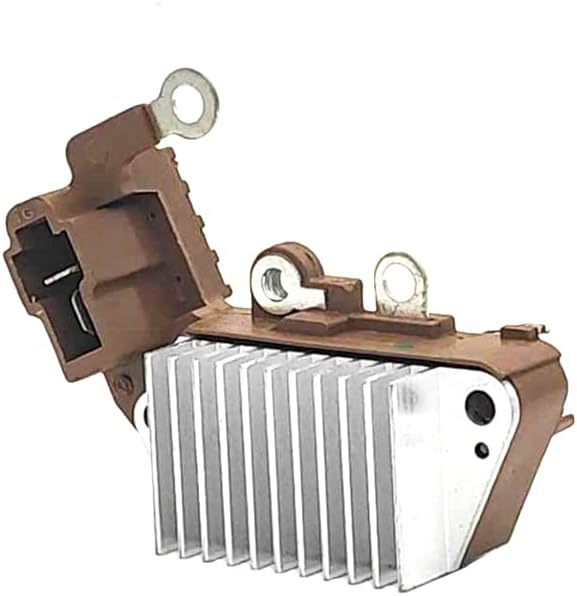

This image displays the primary view of the INSTARTING Alternator Voltage Regulator, highlighting its brown casing and the prominent silver heat sink fins designed for efficient heat dissipation. Connection terminals are visible on the top.
An angled perspective of the voltage regulator, providing a clearer view of the electrical connection points and mounting tabs. The robust construction of the unit is evident.

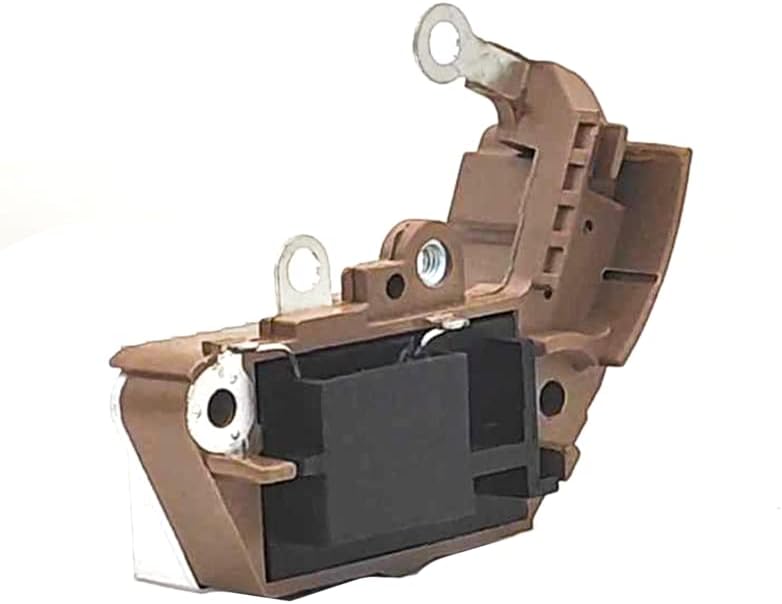

This image shows the reverse side of the voltage regulator, revealing the internal circuitry and components protected by the brown housing. This view is important for understanding the unit's design.
2. Safety Information
Always prioritize safety when working with automotive electrical systems. Failure to follow safety guidelines can result in injury or damage to the vehicle.
- Disconnect Battery: Before beginning any work, always disconnect the vehicle's negative battery terminal to prevent electrical shorts and accidental starts.
- Wear Protective Gear: Use appropriate personal protective equipment, including safety glasses and gloves.
- Consult Vehicle Manual: Refer to your vehicle's service manual for specific instructions and torque specifications related to alternator and regulator removal/installation.
- Professional Installation Recommended: If you are not experienced with automotive electrical repairs, it is highly recommended to seek professional assistance for installation.
- Avoid Short Circuits: Ensure no tools or metal objects come into contact with live electrical terminals.
3. Setup and Installation
This section provides general guidelines for installing an alternator voltage regulator. Specific steps may vary depending on your vehicle's make and model. Always consult your vehicle's service manual.
- Prepare Vehicle: Park the vehicle on a level surface and engage the parking brake. Allow the engine to cool completely.
- Disconnect Battery: Disconnect the negative (-) battery cable first, followed by the positive (+) battery cable. Isolate the cables to prevent accidental contact.
- Locate Alternator: Identify the alternator in your engine bay. The voltage regulator is typically mounted on or within the alternator assembly.
- Remove Alternator (if necessary): In some cases, the alternator may need to be removed from the vehicle to access the voltage regulator. Follow your vehicle's service manual for removal procedures, including disconnecting electrical connectors and mounting bolts.
- Remove Old Regulator: Carefully disconnect the electrical connections and mounting screws/bolts securing the old voltage regulator. Note the orientation for correct installation of the new unit.
- Install New Regulator: Position the new INSTARTING Alternator Voltage Regulator (Model 03-005) in place. Secure it with the appropriate mounting hardware. Ensure all electrical connections are clean and securely fastened.
- Reinstall Alternator (if removed): If the alternator was removed, reinstall it according to your vehicle's service manual.
- Reconnect Battery: Reconnect the positive (+) battery cable first, then the negative (-) battery cable.
- Test System: Start the vehicle and check the charging system. Monitor the battery voltage, which should be stable around 13.8V to 14.7V when the engine is running.
4. Operating Principles
The alternator voltage regulator is a critical component in your vehicle's charging system. Its primary function is to control the output voltage of the alternator, ensuring it remains within a safe and optimal range (typically around 14V for a 12V system). This regulation is essential to prevent both overcharging, which can damage the battery and other electrical components, and undercharging, which can lead to a dead battery and insufficient power for vehicle operation. The regulator achieves this by adjusting the current supplied to the alternator's field coil, thereby controlling the strength of the magnetic field and, consequently, the alternator's voltage output.
5. Maintenance
The INSTARTING Alternator Voltage Regulator is designed for long-term reliability and typically requires minimal maintenance. However, periodic inspection of the charging system can help ensure its continued performance.
- Visual Inspection: Periodically inspect the voltage regulator and its connections for any signs of corrosion, loose wiring, or physical damage.
- Clean Connections: If corrosion is present on battery terminals or alternator connections, clean them thoroughly to ensure good electrical contact.
- Battery Health: Ensure your vehicle's battery is in good condition, as a failing battery can put additional strain on the charging system.
- Professional Check-up: Consider having your vehicle's charging system professionally tested during routine maintenance to verify proper voltage regulation.
6. Troubleshooting
If you experience issues with your vehicle's charging system, the voltage regulator may be a contributing factor. Below are common symptoms and potential solutions.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Battery light on dashboard | Charging system fault, including regulator failure. | Test alternator and regulator output. Replace regulator if faulty. |
| Headlights dim or flicker | Undercharging or inconsistent voltage regulation. | Check all electrical connections. Test regulator for stable voltage output. |
| Battery constantly dead | Alternator not charging, or regulator not allowing proper charge. | Verify alternator function. Test regulator. Check for parasitic draws. |
| Battery overcharging (e.g., boiling, strong odor) | Regulator failure, allowing excessive voltage. | Immediately stop vehicle operation. Replace faulty regulator. |
| Electronic accessories malfunction | Unstable voltage from charging system. | Test charging system for voltage stability. Replace regulator if voltage fluctuates. |
If troubleshooting steps do not resolve the issue, it is recommended to consult a certified automotive technician.
7. Specifications
| Attribute | Detail |
|---|---|
| Brand | INSTARTING |
| Model | Regulator |
| Item Model Number | 03-005 |
| Manufacturer Part Number | 13320300 / 03-005 |
| OEM Part Numbers | 133872, 139419, 335229, 1260000600, 1260000750, 1260000760, 1260000990, 1260001160, RTR8058, 31150PZ3003, 163271, ARN6254AD, ARN6254UT, UCJ400, 940038093, AMP0870, AMP0872, MD604589, VRH200515H, VRH200539, VRH200539SE, WN254, SQNPR254, 3250076F01, 2770078301, 2770087207, 2770096300, IN254, IN254SE, IN254SE154, IN254SE190, YR611, YR614, RN6254A, 310N10311Z, 1002111610, 1002111611, 1002111630, 1002111640, 1002111650, 1002111661, 1002111662, 1002111670, 1002111680, 1002113370, 1002114000, 1002114001, 1002114002, 1002114003, 1002114004, 1002114080, 1002114103, 1002114104, 1002114120, 1002114190, 1002114191, 1002114210, 1002114440, 1002114450, 1002114490, 1002114520, 1002114528, 1002114530, 1002114620, 1002114621, 1002114631, 1002114640, 1002114650, 1002116040, 1002116640, 1002116730, 1002116780, 1002116801, 1002116890, 1002116920, 1002119200, 1002119230, 1012111180, 1012112040, 1012112200, 1012112731, 1012112750, 1012112751, 1012112850, 1012112880, 1012113370, 1012113720, 1012118520, 1012118680, 1012118940, 1012118950, 1623164011, 1624164012, 1661564012, 2706087501, 2706087802, 2706097202, 3140076G00, 3A01174012, A6020, A6024, ALN0551AW, ALN0551NW, ALN0551UX, ALN0551WA, ALN0763UX, ALN0792UX, ALN0792WA, ALN0880DD, ALN0880YJ, ALN0971UX, ALN0971WA, ALN1358UX, ALN1609LK, ALN1609NW, ALN1609ZD, ALN1961LK, ALN2012LK, ALN2017LK, ALN2028LK, ALN2721LK, ALN4251UX, ALN4411SK, ALN4640MQ, ALN4640UX, ALN4640WA, ALN4751LK, ALN4751SK, ALN5320LK, ALN5320LP, ALN5320YJ, ALN5435LK, ALN6880, ALN6880LK, ALN9210NW, ALN9210UX, ALN9551UX, ALN9551WA, ALN9640MQ, EG67364200, MD166662 |
| Item Weight | 10.6 ounces |
| Voltage Set Point | 14V |
| Circuit Type | A-Circuit |
| Manufacturer | Lishui Instarting Technology Co.,Ltd |
| ASIN | B099P8KJ8R |
| Date First Available | July 17, 2021 |
8. Warranty and Support
8.1 Warranty Information
The INSTARTING Alternator Voltage Regulator is backed by the manufacturer's standard warranty, ensuring quality and performance. Please refer to the product packaging or contact the seller for specific warranty terms and conditions.
8.2 Customer Support
For technical assistance, troubleshooting, or inquiries regarding your INSTARTING Alternator Voltage Regulator, please contact the seller or the manufacturer directly. Provide your product model number (03-005) and any relevant purchase information for faster service.
