1. Introduction
This manual provides essential information for the safe and effective operation of your JCYWFLODY 60W LED Moving Head Light, Model ZZ-S. This professional stage lighting fixture features a 30W LED light source, 8 GOBO patterns, and 8 color options, designed for dynamic lighting effects in various environments. It supports multiple control modes including DMX512, Master/Slave, Sound Active, and Automatic operation.
Please read this manual thoroughly before installation and use, and retain it for future reference.
2. Package Contents
Verify that all items listed below are present and in good condition upon unpacking:
- 2 x JCYWFLODY 60W LED Moving Head Light (Model ZZ-S)
- 2 x Set of Installation Gadgets (Mounting Brackets)
- 4 x Screws
- 2 x Instruction Manual
- 1 x Hex Screwdriver for Installation
3. Setup and Installation
The JCYWFLODY 60W LED Moving Head Light can be installed in various configurations to suit your needs. Ensure the installation surface or truss is capable of supporting the weight of the fixture(s).
3.1 Mounting Options
- Truss Mounting: Use the provided mounting bracket and screws to securely attach the fixture to a lighting truss.
- Wall Mounting: The bracket allows for secure attachment to a wall. Ensure appropriate wall anchors are used.
- Ground Placement: The fixture can be placed on a flat, stable surface. Ensure it is not easily knocked over.
3.2 Power Connection
Connect the power cable to a standard AC 100-240V/50-60Hz power outlet. Ensure the voltage matches the fixture's requirements.
Figure 1: Various views of the moving head light, including the rear panel with power and DMX connections.

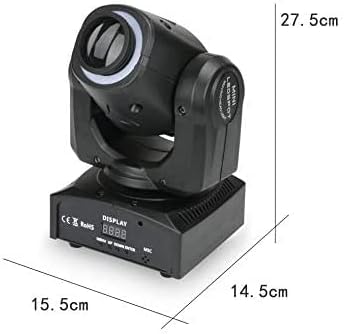

Figure 2: Product dimensions for installation planning.
4. Operating Modes
The fixture offers four operational modes, selectable via the LED display on the unit:
- Automatic Operation: The light will cycle through pre-programmed patterns and colors automatically.
- Sound Active Mode: The light reacts to ambient sound or music, changing patterns and colors in sync with the beat. Sensitivity can be adjusted.
- Master/Slave Mode: Connect multiple units via DMX cables. One unit acts as the master, controlling all connected slave units to synchronize effects.
- DMX512 Control: For professional control, connect the fixture to a DMX controller. This allows precise manipulation of channels, including pan (540°), tilt (180°), electronic dimming (0-100%), color, and GOBO patterns.
The LED display provides an interface for mode selection and parameter adjustments.

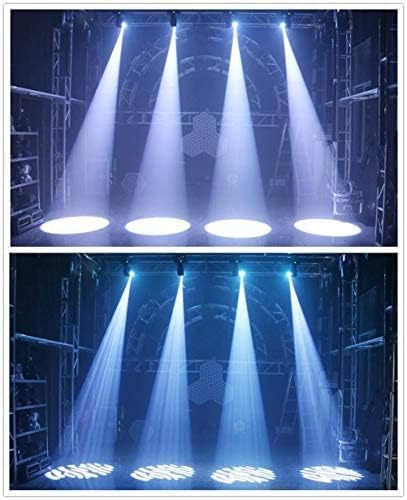

Figure 3: Example of white and blue light beam effects.
Figure 4: Example of multi-colored light beam effects.
Figure 5: Examples of GOBO patterns and color combinations (dots and swirls).
Figure 6: More examples of GOBO patterns and color combinations (circles, clusters, rings).
5. DMX Control
The JCYWFLODY 60W LED Moving Head Light supports DMX512 protocol with either 9 or 11 control channels. Refer to your DMX controller's manual for specific setup instructions. Connect the DMX output of your controller to the DMX input of the first fixture, and then daisy-chain subsequent fixtures using DMX output to DMX input connections.
Each fixture must be assigned a unique DMX address to ensure independent control. Consult the fixture's LED display menu for DMX address setting options.
6. Maintenance
To ensure optimal performance and longevity of your moving head light, follow these maintenance guidelines:
- Cleaning: Regularly clean the exterior casing and optical lenses with a soft, lint-free cloth. For stubborn dirt, a mild cleaning solution can be used, applied to the cloth, not directly to the fixture.
- Ventilation: Ensure the ventilation openings are clear of dust and debris to prevent overheating.
- Inspection: Periodically check all cables and connections for signs of wear or damage.
- Storage: When not in use, store the fixture in a dry, dust-free environment.
The LED light source has an estimated lifetime of 100,000 hours under normal operating conditions.
7. Troubleshooting
If you encounter issues with your JCYWFLODY 60W LED Moving Head Light, refer to the following common troubleshooting steps:
- No Power: Check the power cable connection to both the fixture and the power outlet. Ensure the outlet is functional.
- No Light Output: Verify the fixture is receiving power and is not in a 'blackout' or 'standby' mode. Check DMX settings if in DMX mode.
- Incorrect Movement/Effects: If using DMX, confirm the DMX address is correctly set and the DMX signal is clean. In Master/Slave mode, ensure the master unit is functioning correctly and DMX cables are properly connected.
- Sound Active Mode Not Responding: Check the sound active sensitivity setting on the fixture's display. Ensure there is sufficient ambient sound for the microphone to detect.
If problems persist after attempting these steps, please contact customer support.
8. Specifications
| Feature | Specification |
|---|---|
| Model Number | ZZ-S |
| Light Source | 1 x 30W LED |
| Total Power Consumption | 60 Watts (approx.) |
| Voltage | AC 100-240V / 50-60Hz |
| Control Modes | DMX512, Master/Slave, Sound Active, Automatic |
| DMX Channels | 9 / 11 Channels |
| Colors | 8 Colors (Blue, Pink, Red, Pale Blue, Yellow, Green, Orange, White) |
| GOBO Patterns | 8 GOBO Patterns |
| Pan Movement | 540° |
| Tilt Movement | 180° |
| Electronic Dimming | 0-100% |
| Shell Material | Plastic |
| LED Lifetime | 100,000 hours |
| Product Dimensions (L x W x H) | 14.5 x 17 x 23.5 cm (5.7 x 6.69 x 9.25 in) |
| Product Weight (per unit) | 2.67 kg (5.88 lbs) |
| Cable Length | 125 cm (4.10 ft) |
9. Warranty and Support
The JCYWFLODY 60W LED Moving Head Light (Model ZZ-S) comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and ensures the product is free from material and workmanship flaws under normal use.
Additionally, we offer lifetime professional technical support for this product. If you have any questions, require assistance with setup, operation, or troubleshooting, please do not hesitate to contact our support team. Our dedicated professionals are available to provide guidance and solutions.
