Easyinsmile Dental IPR Strip System: Orthodontic Interproximal Reduction Manual

1. Introduction

The Easyinsmile Dental IPR Strip System is designed for orthodontic interproximal reduction (IPR), also known as enamel stripping or slenderizing. This system facilitates the creation of necessary space between teeth, corrects tooth size discrepancies, and aids in achieving optimal orthodontic outcomes. The kit includes 10 multi-colored strips, each with specific characteristics for various stages of interproximal reduction.

Image 1: The complete set of 10 Easyinsmile Dental IPR Strips, showcasing the variety of colors and strip types included in the system.

2. Safety Information

Warning:

• May cause sensitivity or irritation.
• Use as directed to avoid injury.
• This product is intended for professional dental use only.
• Always wear appropriate personal protective equipment (PPE) during use.
• Ensure proper patient isolation to prevent ingestion or aspiration of debris.

3. Product Features

• Patient Comfort: Designed to bend along the natural contour of teeth, minimizing sharp corners or subgingival ledges for enhanced patient comfort and safety.
• Efficient Design: The bendable design allows for gradual expansion of the interproximal space, effectively wrapping the tooth surface and preventing step formation after enamel reduction.
• Versatile Use: Primarily used for descaling, polishing, grinding, and cleaning tooth surfaces.
• Durable Material: Constructed from wear-resistant and stable corundum material.
• Sterilizable: Autoclavable up to 270°F (132°C) for repeated use.
• Single-Handed Operation: Ergonomic design for convenient single-handed use.
• Color-Coded: Different colors correspond to different sizes and grit levels for easy identification and selection.

Image 2: Visual representation of key product features, including autoclavable, reusable, one-hand design, and carborundum strip material.

4. Components

The Easyinsmile Dental IPR Strip System typically includes 10 strips, each designed for a specific purpose in interproximal reduction. The strips are color-coded to indicate their width, thickness, and diamond coating pattern. This multi-color kit provides a range of options for various clinical needs.

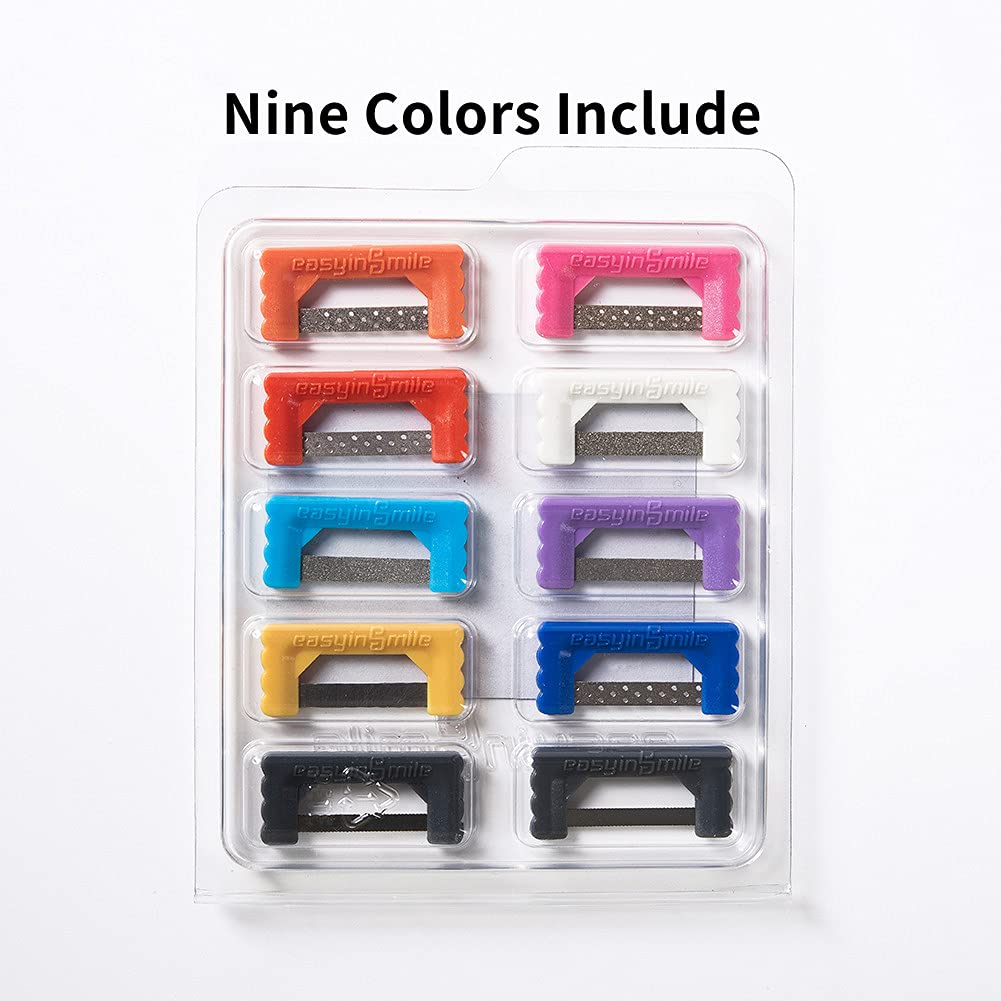

Image 3: A clear plastic tray showcasing the nine distinct colors of Easyinsmile IPR strips, each representing a different specification.

5. Setup

1. Preparation: Ensure the patient is comfortably seated and appropriate dental isolation (e.g., rubber dam) is in place to protect soft tissues and prevent debris aspiration.
2. Sterilization: Before initial use and after each subsequent use, sterilize the IPR strips according to the maintenance instructions provided in Section 7.
3. Selection: Identify the specific IPR strip required for the procedure based on the desired reduction amount and the stage of treatment. Refer to the 'Operating Instructions' section for guidance on strip selection.
4. Inspection: Visually inspect the chosen strip for any damage or wear before use. Do not use damaged strips.

6. Operating Instructions (Usage)

The Easyinsmile IPR Strip System offers various strips for different stages of interproximal reduction. Always use a gentle, controlled motion and apply minimal pressure. Work systematically to achieve the desired reduction without over-reducing enamel.

Image 4: A comprehensive guide illustrating the different IPR strip types, their dimensions, diamond patterns, and specific orthodontic applications.

General Application Steps:

1. Initial Contact: For initial contact opening, use a strip with a serrated edge (e.g., Black or Navy). Gently insert the strip into the interproximal space.
2. Enamel Reduction: Once initial contact is broken, select a strip with the appropriate grit and thickness for enamel reduction. Move the strip back and forth with a controlled, sawing motion.
3. Widening Space: Progress through strips of increasing thickness to gradually widen the interproximal space as needed.
4. Finishing and Polishing: Use finer grit strips (e.g., Purple or Pink) for smoothing and polishing the reduced enamel surfaces.
5. Monitoring: Regularly check the amount of reduction using appropriate gauges to ensure precise results.

Specific Strip Usage Examples:

• Black (Width: 3MM, Thickness: 0.1MM, Serrated): Used to safely open initial contact points.
• Yellow (Width: 4MM, Thickness: 0.08MM, Double-sided, Ultra-fine): For reducing enamel on the proximal surface of one tooth.
• Navy (Width: 4MM, Thickness: 0.1MM, Double-sided, Ultra-fine): Similar to Yellow, for fine enamel reduction.
• Blue (Width: 4MM, Thickness: 0.1MM, Single-sided, Fine): For further enamel reduction on the proximal surface.
• Purple (Width: 4MM, Thickness: 0.2MM, Double-sided, Medium-Coarse): For more significant enamel reduction.
• Red (Width: 4MM, Thickness: 0.2MM, Double-sided, Extra-fine): Can be used as a heavy-duty strip for breaking contacts and initiating IPR.
• White (Width: 4MM, Thickness: 0.3MM, Double-sided, Coarse): For further reducing enamel on the proximal surface.
• Orange (Width: 4MM, Thickness: 0.3MM, Double-sided, Medium-Coarse): For further widening the interproximal space.
• Pink (Width: 4MM, Thickness: 0.4MM, Double-sided, Coarse): For removing glaze on the depth adjacent surface and creating extra-wide interproximal space.

Image 5: A gloved hand demonstrating the ease of use of the single-handed design of an Easyinsmile IPR strip on a dental model.

7. Maintenance

1. Cleaning: After each use, thoroughly clean the IPR strips to remove all debris and biological material. Use a soft brush and an appropriate cleaning solution.
2. Sterilization: The strips are autoclavable. Place cleaned strips in a sterilization pouch and sterilize in an autoclave at temperatures up to 270°F (132°C) according to the autoclave manufacturer's instructions.
3. Storage: Store sterilized strips in a clean, dry environment, preferably in their original packaging or a designated sterile container, until next use.
4. Inspection: Regularly inspect strips for signs of wear, damage, or dullness. Replace worn or damaged strips to ensure optimal performance and patient safety.

8. Troubleshooting

• Strip Bending/Breaking: Ensure minimal pressure is applied during use. Excessive force can cause the strip to bend or break. If a strip bends or breaks, discontinue use immediately and replace it.
• Ineffective Reduction: If the strip is not effectively reducing enamel, ensure you are using the correct grit and thickness for the desired outcome. The strip may be worn and require replacement.
• Patient Discomfort: If the patient experiences discomfort, re-evaluate the technique and ensure the strip is bending along the natural tooth contour. Consider using a finer grit or a different strip type.
• Difficulty Inserting: If a strip is difficult to insert, ensure the contact point is adequately opened. Do not force the strip, as this can cause injury or damage to the tooth/strip.

9. Specifications

10. Warranty and Support

Specific warranty information for the Easyinsmile Dental IPR Strip System is not provided in the product details. For warranty claims, technical support, or further inquiries, please contact Easyinsmile customer service directly through their official website or the retailer from whom the product was purchased.

Manufacturer: Easyinsmile
