Seesii 6 Inch Mini Chainsaw Replacement Chain User Manual

Introduction

This manual provides essential instructions for the installation, operation, and maintenance of your Seesii 6 Inch Mini Chainsaw Replacement Chain. Please read this manual carefully before use to ensure safe and effective performance.

Product Overview

The Seesii 6-inch replacement chain is designed for cordless electric mini chainsaws. It features 37 drive links and a 1/4" LP pitch, ensuring compatibility with most 6-inch mini chainsaw guide bars, including 24V, 26V, and 36V models. The chain is engineered for smooth cutting and durability.

Image: Chain Specifications. This image displays the key specifications of the replacement chain: Bar Length 6", Pitch 1/4", Drive Links 37, and Gauge .043". It also notes to check your mini chainsaw's bar length and drive link count for compatibility.

Specifications

• Drive Link Count: 37
• Item Pitch: 0.25 Inches (1/4" LP)
• Chain Type: Semi-Chisel
• Item Length: 6 Inches
• Chain Length: 6 Inches
• Material: High-quality heat-treated steel (Carbide)
• Compatibility: Most 6-inch mini chainsaws (24V, 26V, 36V)

Setup and Installation

Proper installation of the replacement chain is crucial for safe and efficient operation. Follow these steps carefully:

1. Remove the Sprocket Cover: Use the appropriate tool (often a wrench or screwdriver) to loosen and remove the sprocket cover from your mini chainsaw.
2. Position the Saw Chain: Carefully place the new saw chain around the guide bar and the sprocket. Ensure the guide bar lines up with the pin.
3. Adjust Chain Tension: While holding the guide bar, use the tensioning screw (if present) or adjust the guide bar position to achieve proper chain tension. The chain should be snug but still able to be pulled around the bar by hand.
4. Tighten the Nut: Securely tighten the nut or screw that holds the sprocket cover and guide bar in place using the wrench.
5. Insert Battery Pack: If applicable, insert the battery pack into the slot at the bottom of the chainsaw.
6. Check for Free Movement: Before starting, manually rotate the chain to ensure it moves freely around the guide bar without binding.

Image: How to Change the Chain. This visual guide illustrates the six steps for replacing the chainsaw chain, from removing the sprocket cover to inserting the battery pack.

Operating Instructions

Once the chain is installed and tensioned correctly, the mini chainsaw is ready for use. Always ensure the chain is properly lubricated before and during operation.

• Lubrication: The chain is designed with a multi-point oil storage tank for optimal lubrication, reducing friction and ensuring efficient cutting. Regularly check and replenish the chainsaw's oil reservoir as per your chainsaw's manual.
• Cutting Technique: The semi-chisel design and right-angle cutter head facilitate faster cutting and efficient wood chip removal. Apply steady, controlled pressure. Avoid forcing the saw, as this can lead to kickback or damage to the chain and motor.
• Applications: This chain is suitable for various tasks such as branches pruning, shrub pruning, and general wood cutting.

Image: Multi-Point Oil Storage Tank. This image highlights the design feature of the chain links that helps store oil for reduced friction and efficient cutting.

Image: Right Angle Cutter Head. This image shows the specific design of the cutter head, which is optimized for accelerated wood chip removal.

Image: Widely Applicable to Various Scenarios. This image depicts a mini chainsaw in use, demonstrating its suitability for tasks like branches pruning, shrub pruning, and wood cutting.

Maintenance

Regular maintenance extends the life of your chain and ensures consistent performance.

• Sharpening: The heat-treated carbide design helps the chain stay sharp longer. When sharpening is required, follow the sharpening guidelines provided with your chainsaw or consult a professional.
• Cleaning: After each use, clean the chain to remove sawdust, resin, and debris. This prevents buildup and maintains smooth operation.
• Lubrication: Ensure the chain is always well-lubricated. Proper lubrication reduces wear and chain stretch, minimizing the need for frequent tension adjustments.
• Storage: Store the chain in a dry, clean place when not in use to prevent rust and damage.

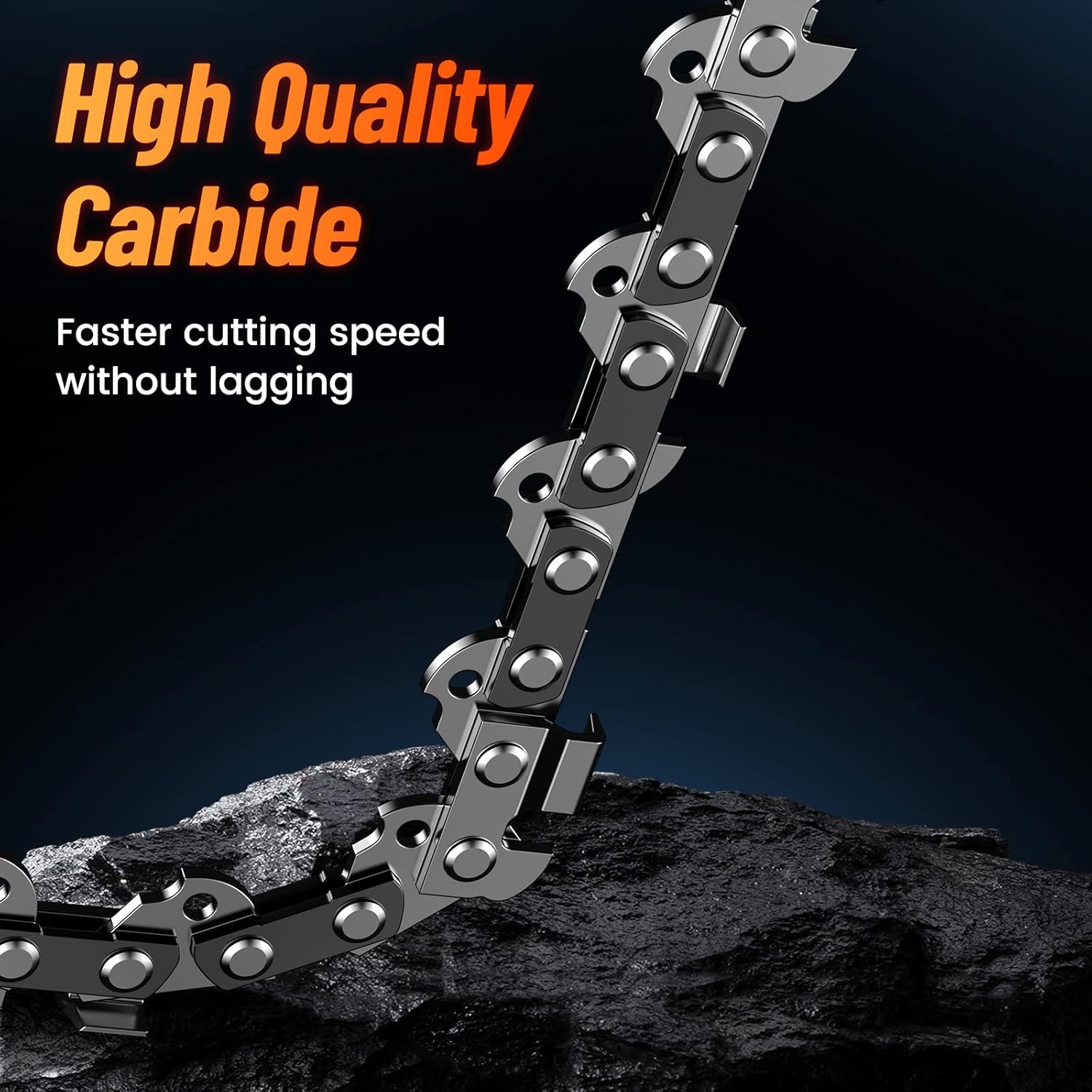

Image: High Quality Carbide. This image emphasizes the durable carbide material used in the chain, contributing to faster cutting and extended sharpness.

Troubleshooting

If you encounter issues with your replacement chain, consider the following:

• Chain Not Cutting Effectively:
  • Check if the chain is dull and requires sharpening.
  • Ensure the chain is installed in the correct direction.
  • Verify proper chain tension.
• Chain Binding or Sticking:
  • Confirm the chain is adequately lubricated.
  • Check for debris or sawdust buildup in the guide bar groove or sprocket.
  • Ensure the chain tension is not too tight.
• Chain Comes Off Guide Bar:
  • The chain tension might be too loose. Adjust as per installation instructions.
  • Inspect the guide bar and sprocket for wear or damage.

Safety Information

Always prioritize safety when working with chainsaws and their components:

• Wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and hearing protection.
• Ensure the chainsaw is turned off and the battery is removed before performing any maintenance, installation, or adjustments.
• Keep bystanders, especially children and pets, at a safe distance from the work area.
• Inspect the chain and chainsaw for any damage before each use. Do not operate with damaged components.

Customer Support

For any questions, concerns, or assistance with your Seesii replacement chain, please contact our customer support team. We are committed to providing prompt and helpful service.

Contact Information: Refer to your product packaging or the official Seesii website for the most current customer support details.
