1. Introduction
This manual provides comprehensive instructions for the safe and effective use of your CTBAIER ET-LAEF100 replacement projector lamp. Please read this manual thoroughly before installation and operation to ensure optimal performance and longevity of the lamp.
Image 1.1: The CTBAIER ET-LAEF100 replacement projector lamp module with housing.
2. Product Overview
The CTBAIER ET-LAEF100 is a high-quality replacement lamp designed to restore optimal brightness and color performance to your compatible Panasonic projector. It features advanced technology for extended lifespan and stable output.
Key Features:
- Advanced A+ Wick Technology: Equipped with a new generation of A+ wicks and matrix light control, offering significantly higher brightness compared to standard wicks.
- Optimized Burner Design: Engineered for consistent aging across all positions, extending the bulb's operational life.
- Integrated Housing: Supplied as a complete lamp module with housing for easy and quick replacement.
- Rigorous Testing: Each lamp undergoes strict performance testing before shipment to ensure reliability.

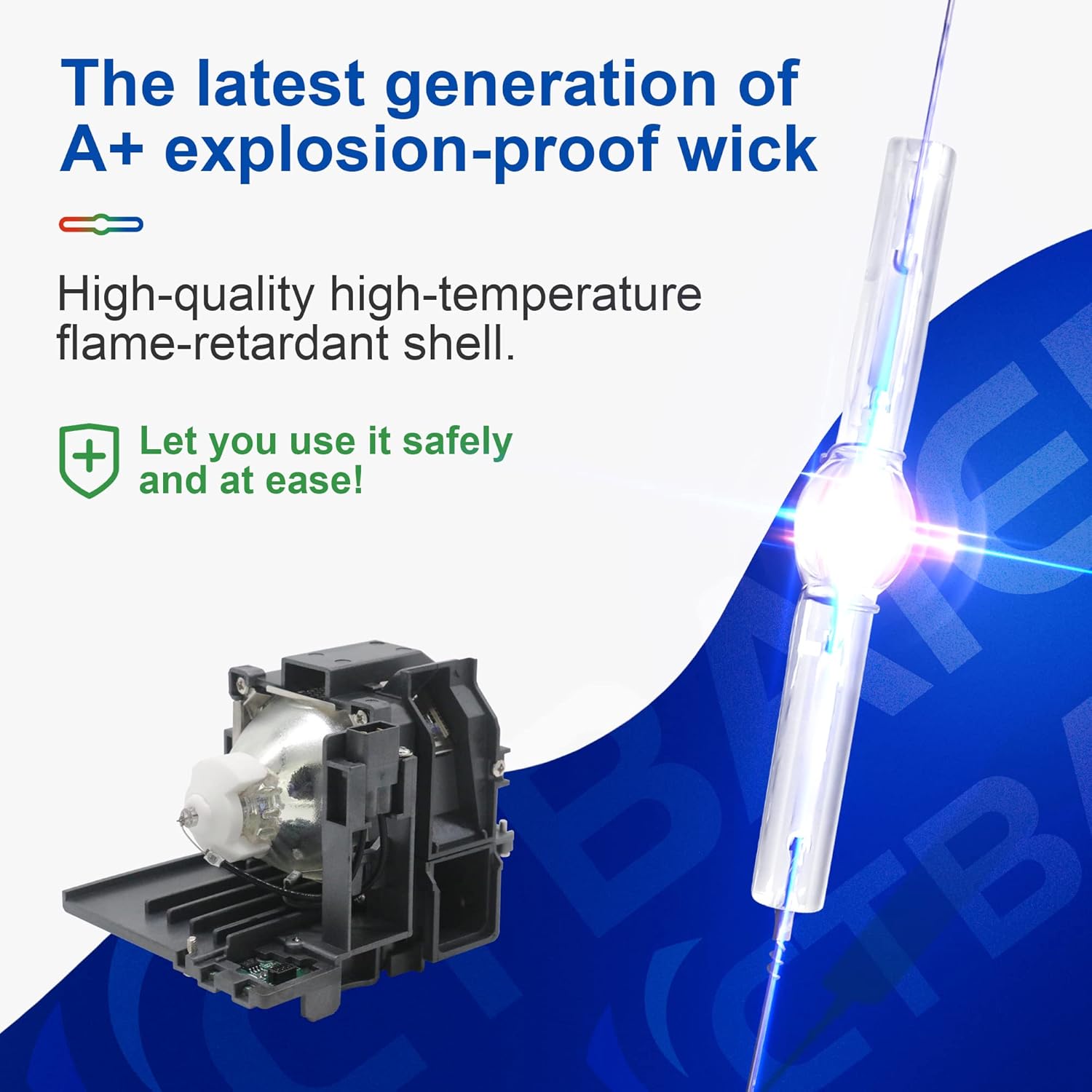

Image 2.1: Illustration of the A+ explosion-proof wick and high-quality high-temperature flame-retardant shell for enhanced safety and performance.
Image 2.2: Depiction of the ECO Power Saving Technique, highlighting an optimized burner design for extended service life, rated at approximately 4000 hours.
3. Compatible Projector Models
This CTBAIER ET-LAEF100 replacement lamp is compatible with the following Panasonic projector models:
- PT-EZ590, PT-EW650, PT-EX620, PT-EW550, PT-EX520, PT-FZ570, PT-FW530, PT-FX500, PT-FW430, PT-FX400
- PT-EZ590U, PT-EZ590L, PT-EW650U, PT-EW650L, PT-EX520L, PT-EX620U, PT-EX620L, PT-FX500U, PT-FZ570U
- PT-EX620T, PT-SLX64C, PT-SLX64CB, PT-SLX64CL, PT-SLX64CLB
4. Specifications
| Feature | Specification |
|---|---|
| Brand | CTBAIER |
| Model (Style) | ET-LAEF100 |
| Wattage | 300 Watts |
| Average Life | 4500 Hours |
| Item Weight | 1.06 Pounds |
| Package Dimensions | 6.38 x 5.31 x 5.24 inches |
5. Installation Instructions
Follow these steps to safely replace the projector lamp. Ensure the projector is turned off and unplugged, and has cooled down completely before beginning.
- Step 1: Loosen Lamp Cover Screw. Locate the lamp cover on your projector. Use a screwdriver to loosen the screw securing the lamp cover.
- Step 2: Remove Old Lamp. Gently lift up the lamp handle and carefully pull the old lamp module out of the projector. Avoid touching the glass part of the lamp.
- Step 3: Insert New Lamp. Carefully insert the new CTBAIER ET-LAEF100 lamp module into the projector. Ensure it is seated correctly, then press the handle down to secure it. Tighten any screws that hold the lamp in place.
- Step 4: Replace Lamp Cover. Reattach the lamp cover and tighten the screw to secure it.
After installation, it is recommended to reset the lamp timer in your projector's menu to accurately track the new lamp's usage hours.
Image 5.1: Visual guide illustrating the four steps for replacing a projector lamp: loosening the screw, removing the old lamp, inserting the new lamp, and replacing the cover.
6. Operation Guidelines
Once the new lamp is installed, you can resume normal projector operation. The CTBAIER ET-LAEF100 lamp is designed to provide high brightness and clear images for various applications.
- Optimal Performance: Expect high brightness and accurate color reproduction for an immersive viewing experience.
- Application Versatility: Suitable for business presentations, educational settings, home theater systems, and outdoor venues.
Image 6.1: Example of a projected image showcasing the high brightness and clear image quality provided by the lamp.
Image 6.2: Visual representation of diverse environments where the projector lamp can be effectively used, including business, education, home theater, and outdoor settings.
7. Maintenance and Longevity
Proper maintenance can help extend the life of your projector lamp and maintain optimal performance.
- Allow Cooling: Always allow the projector to cool down completely after use before unplugging or moving it. Abrupt power cuts can shorten lamp life.
- Clean Air Filters: Regularly clean or replace your projector's air filters to ensure proper ventilation and prevent overheating, which can degrade lamp performance.
- Avoid Frequent On/Off Cycles: Minimize turning the projector on and off frequently, as this can stress the lamp and reduce its lifespan.
- Operate in Eco Mode (if available): Using the projector in a lower power or 'Eco' mode can significantly extend lamp life.
8. Troubleshooting Common Issues
This section addresses common issues you might encounter with your projector lamp. For more complex problems, consult your projector's user manual or contact support.
Common Problems and Solutions:
- Screen Color Difference: If the projection screen appears yellowish/greenish/blueish, this is typically caused by damage to the LCD panel of the projector or aging of the signal cable, not the lamp quality.
- Prompt to Replace Bulb After New Installation: If the projector still prompts for a lamp replacement after installing a new lamp, it is because the lamp timer in the projector has not been reset. Refer to your projector's manual for instructions on how to reset the lamp timer.
- Snow White Spots (Black, White Dots): This fault is usually caused by damage to the projector's DMD chip and is not related to the lamp. The machine may need repair or replacement of corresponding accessories.
- Insufficient Brightness or No Signal: Projection brightness is not solely related to the bulb but also to the configuration of the machine and the aging of optical components/lenses. Ensure all cables are securely connected.
- Blurred Projection: If the overall projection screen is blurred due to insufficient brightness, it could be a lamp problem. However, if the same problem occurs with both old and new bulbs, it is likely caused by the aging of the projector's optical components.
Image 8.1: Visual summary of common projector issues, including screen color differences, lamp replacement prompts, white spots, insufficient brightness, and blurred projection, along with their typical causes.
9. Warranty and Support
CTBAIER stands by the quality of its products and offers comprehensive support:
- Warranty: A 220-day warranty is provided for this product.
- Replacement Policy: Enjoy a 30-day unsatisfactory replacement policy under any condition.
- Customer Support: CTBAIER commits to providing feedback within 12 hours for any inquiries or concerns.
For support, please contact CTBAIER customer service through the platform where you purchased the product.
10. Important Safety Information
- High Pressure Lamp: Projector lamps contain high-pressure mercury vapor. Handle with care.
- Burn Hazard: The lamp becomes extremely hot during operation. Allow the projector to cool down for at least 30 minutes before attempting to replace the lamp.
- Eye Protection: Never look directly into the projector lens or the bare lamp when it is lit, as intense light can cause eye damage.
- Disposal: Dispose of old lamps according to local regulations, as they may contain hazardous materials.
- Professional Installation: If you are unsure about the installation process, consult a qualified technician.
