1. Introduction
This instruction manual provides essential information for the safe and effective use of the iProtool 600W 220V Air Heater Electric Heating Element. Please read this manual thoroughly before installation and operation to ensure proper function and safety. This heating element is designed for integration into heating apparatuses, such as clothes dryers, requiring a 600W, 220V power source.
2. Safety Instructions
Improper installation or use can lead to electric shock, fire, or personal injury. Adhere to the following safety guidelines:
- Professional Installation: Installation should only be performed by a qualified electrician or technician familiar with electrical heating elements and appliance repair.
- Power Disconnection: Always disconnect power to the appliance before installing, servicing, or inspecting the heating element.
- Voltage Compatibility: Ensure the supply voltage (220V) matches the heating element's requirements.
- Proper Wiring: Use appropriate gauge wiring and ensure all connections are secure and insulated to prevent short circuits.
- Heat Exposure: The heating element will become extremely hot during operation. Avoid direct contact. Ensure adequate ventilation and clearance from flammable materials.
- Damage Inspection: Before installation, inspect the element for any signs of physical damage. Do not install a damaged element.
- Intended Use: Use this product only for its intended purpose as a heating element in compatible apparatuses.
3. Product Overview
The iProtool 600W 220V Air Heater Electric Heating Element is a robust component designed for efficient heat generation. It features a compact design with dimensions of approximately 125x23mm (4.92x0.59 inches), making it suitable for various applications, particularly in clothes dryers and similar heating apparatuses. The element is constructed to withstand high temperatures and provide consistent heating performance.

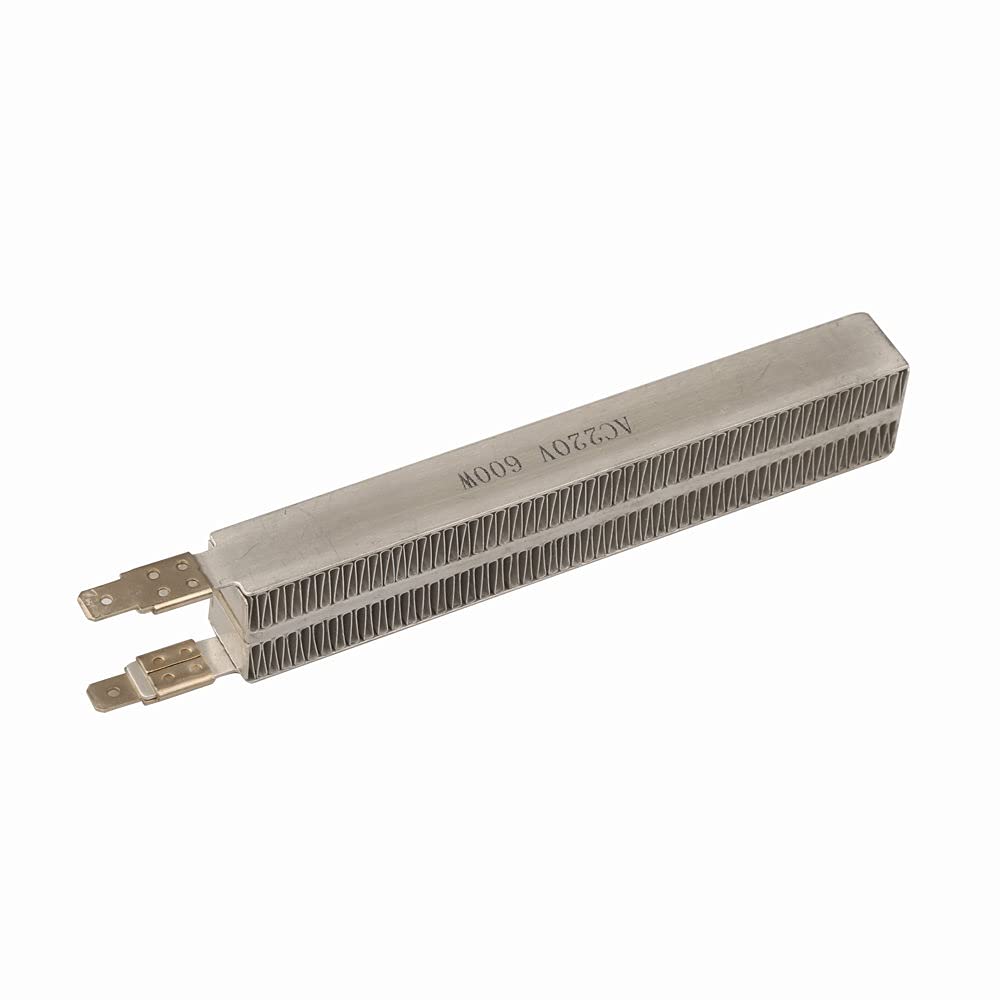

Image 1: Top-down view of the iProtool 600W 220V Air Heater Electric Heating Element, showing its rectangular shape and finned surface. The text 'AC220V 600W' is visible on the surface.

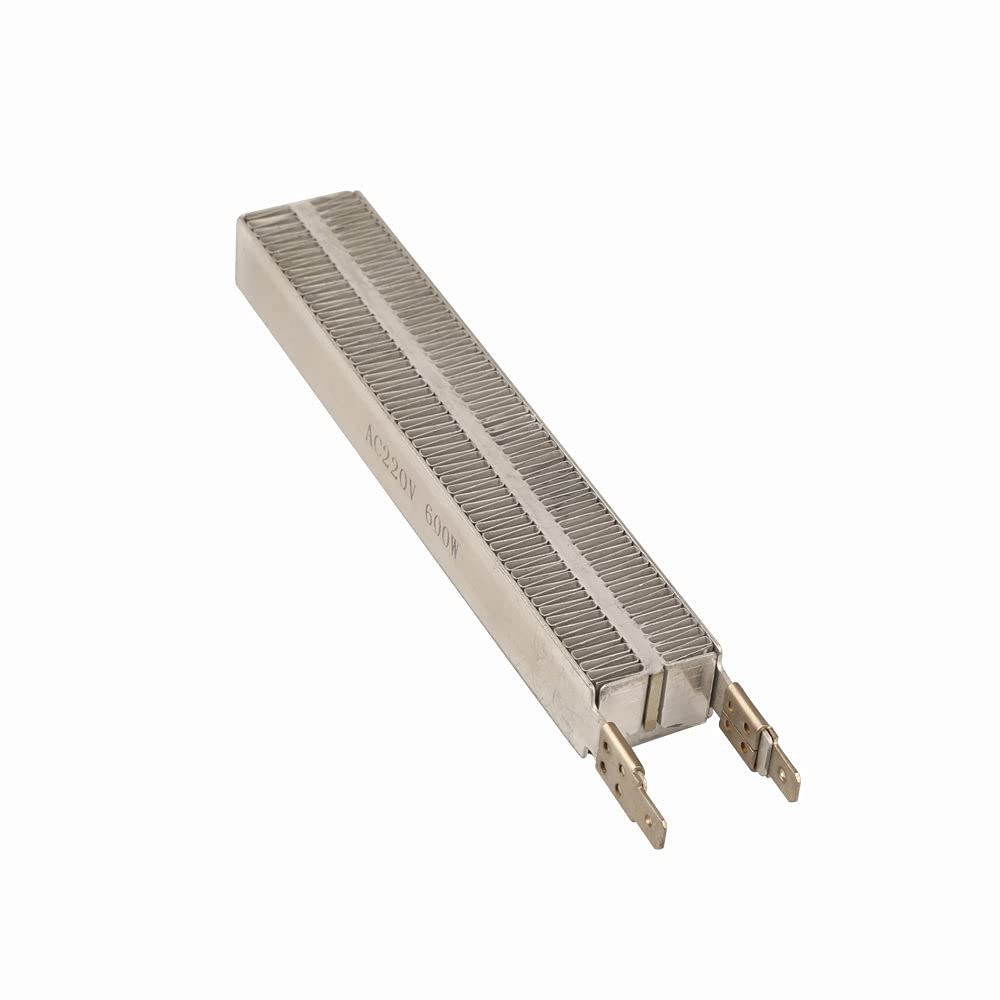

Image 2: Angled view of the heating element, highlighting the electrical terminals at one end and the corrugated fin design for heat dissipation.
4. Specifications
| Feature | Specification |
|---|---|
| Power | 600W |
| Voltage | 220V |
| Dimensions (L x W) | 125mm x 23mm (4.92" x 0.59") |
| Manufacturer | iProtool |
| ASIN | B09838Z6FB |
Image 3: Side view of the heating element, showing the thickness and the structure of the fins.
5. Setup and Installation
This heating element is a replacement part and requires careful installation. Refer to the service manual of the appliance it is being installed into for specific instructions. The following are general guidelines:
- Preparation: Ensure the appliance is unplugged and completely de-energized. Allow any existing components to cool down if they were recently in operation.
- Access: Gain access to the heating element compartment within the appliance. This may involve removing panels or covers.
- Removal of Old Element: Carefully disconnect the wiring from the old heating element and unmount it. Note the orientation and wiring connections for correct reinstallation.
- Mounting New Element: Securely mount the iProtool heating element in the designated position. Ensure it is stable and does not obstruct any moving parts or airflow.
- Wiring Connections: Connect the electrical wires to the terminals of the new heating element. Ensure connections are tight and correct according to the appliance's wiring diagram. Double-check for any loose strands or exposed wire.
- Reassembly: Reattach any removed panels or covers. Ensure all safety guards are in place.
- Testing: Before full operation, perform a preliminary test according to the appliance's service manual to confirm proper function and safety.
Image 4: Close-up view of the electrical terminals on the heating element, indicating connection points for power supply.
6. Operation
Once properly installed, the iProtool 600W 220V Air Heater Electric Heating Element operates automatically when power is supplied to the appliance and the heating function is activated. The element will generate heat, which is then typically circulated by a fan within the appliance to achieve the desired heating effect.
- Initial Power-Up: After installation, carefully power on the appliance. Monitor for any unusual smells, sounds, or signs of malfunction.
- Heat Generation: The element will begin to heat up rapidly. Ensure the appliance's internal temperature regulation system is functioning correctly.
- Normal Operation: The element will cycle on and off as required by the appliance's thermostat or control system to maintain the set temperature.
Image 5: Another angled view of the heating element, providing a comprehensive look at its structure and connection points.
7. Maintenance
Regular maintenance helps ensure the longevity and efficiency of the heating element and the appliance it serves.
- Power Disconnection: Always disconnect power before performing any maintenance.
- Visual Inspection: Periodically inspect the heating element for signs of wear, corrosion, or damage. Check electrical connections for tightness.
- Cleaning: If accessible and safe to do so, gently remove any dust, lint, or debris that may accumulate on the element's fins. Use a soft brush or vacuum cleaner. Ensure the element is cool before cleaning.
- Airflow: Ensure that the appliance's airflow pathways are clear and unobstructed, as restricted airflow can lead to overheating and reduced element lifespan.
Image 6: Full length view of the heating element, showcasing its elongated design and the uniform distribution of fins.
8. Troubleshooting
If the heating element or the appliance is not functioning correctly, consider the following general troubleshooting steps:
- No Heat:
- Check if the appliance is receiving power.
- Verify that the heating element is properly wired and connections are secure.
- Inspect the element for visible damage (e.g., broken coils).
- Consult the appliance's service manual for specific diagnostic procedures related to its heating system.
- Overheating:
- Ensure proper airflow within the appliance. Clear any obstructions.
- Check the appliance's thermostat or temperature control system for malfunction.
- Unusual Noises or Smells:
- Immediately disconnect power.
- Inspect for loose components, foreign objects, or signs of electrical arcing or burning.
For complex issues or if you are unsure about any repair, contact a qualified technician.
9. Warranty and Support
Specific warranty information for this iProtool heating element is not provided in this manual. For details regarding warranty coverage, return policies, or technical support, please refer to the product packaging, the seller's information, or contact iProtool directly through their official channels. Always retain your proof of purchase for warranty claims.
