FORTRESS 4 Gallon 200 PSI High Performance Air Compressor

1. Important Safety Instructions

Read and understand all safety warnings and instructions before operating this air compressor. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

General Safety

• Always wear ANSI-approved safety goggles during operation.
• Do not operate the compressor in wet or damp conditions.
• Keep children and bystanders away while operating the compressor.
• Ensure the work area is well-lit and free of clutter.
• Never point the air nozzle at yourself or others.

Electrical Safety

• Connect the compressor only to a properly grounded 120V AC outlet.
• Do not use extension cords unless absolutely necessary, and ensure they are rated for the compressor's power requirements.
• Never operate the compressor with a damaged cord or plug.

Compressor Use and Care

• Do not modify the compressor or its components.
• Always drain the air tank after each use to prevent corrosion.
• Do not over-pressurize the air tank beyond its maximum rated PSI.
• Store the compressor indoors in a dry, secure location.

2. Product Overview

The FORTRESS 4 Gallon 200 PSI High Performance Air Compressor is designed for demanding job site applications. Its compact and lightweight design, combined with an oil-free pump, makes it a convenient and low-maintenance tool. It delivers high performance with up to 300% more runtime compared to similar job site compressors.

Key Features

• Lightweight & Portable: Up to 30% lighter than similar compressors, making it easy to transport.
• Extended Runtime: Delivers up to 300% more runtime than comparable job site compressors.
• Easy Start Technology: Reliable starting in temperatures as low as -20°F.
• Dual Quick Connect Couplers: Allows simultaneous operation of two air tools.
• Durable & Protected: Features a full protective roll cage to shield vital components.
• Oil-Free Pump: Ensures no-maintenance operation.
• Integrated Control Panel: Easy-to-read gauges for tank and outlet pressure.

Figure 2.1: Overview of the FORTRESS Air Compressor highlighting its key features including lightweight design, extended runtime, and protective roll cage.

3. Components Identification

Familiarize yourself with the main components of your air compressor before operation.

Figure 3.1: Front view of the FORTRESS Air Compressor, showing the control panel, tank, and protective roll cage.

Main Components:

• Air Tank: Stores compressed air (4 Gallon capacity).
• Control Panel: Houses gauges, regulator, and quick connect couplers.
• Tank Pressure Gauge: Displays the pressure inside the air tank.
• Regulator: Adjusts the outlet air pressure.
• Outlet Pressure Gauge: Displays the regulated air pressure supplied to tools.
• Quick Connect Couplers: Ports for connecting air hoses and tools.
• Drain Valve: Located at the bottom of the tank for draining condensation.
• Protective Roll Cage: Provides protection for the compressor's vital components.
• Power Switch: Turns the compressor ON/OFF.

4. Setup and Initial Operation

4.1 Unpacking

• Carefully remove the compressor from its packaging.
• Inspect for any shipping damage. If damaged, do not operate and contact customer support.
• Ensure all components listed in the manual are present.

4.2 Power Connection

• Place the compressor on a stable, level surface.
• Ensure the power switch is in the OFF position.
• Plug the power cord into a grounded 120V AC electrical outlet.

4.3 First Use

• Before first use, open the drain valve at the bottom of the tank.
• Turn the power switch to the ON position. Allow the compressor to run for 5 minutes with the drain valve open. This helps to break in the motor.
• Close the drain valve and allow the tank to fill to maximum pressure. The compressor will shut off automatically.
• Check for any air leaks by listening for hissing sounds or using soapy water on connections.

5. Operating Instructions

5.1 Starting the Compressor

• Ensure the power cord is securely plugged in.
• Turn the power switch to the ON position. The compressor will begin to fill the air tank.
• The compressor will automatically shut off once the tank reaches its maximum pressure (200 PSI).

5.2 Adjusting Pressure

• The regulator knob controls the outlet pressure.
• Turn the regulator knob clockwise to increase pressure and counter-clockwise to decrease pressure.
• Monitor the outlet pressure gauge to set the desired pressure for your air tool.

5.3 Connecting Air Tools

• Ensure the air tool is rated for the pressure you intend to use.
• Connect your air hose to one of the quick connect couplers.
• Attach your air tool to the other end of the hose.
• The compressor features two quick connect couplers, allowing two tools to be connected simultaneously.

5.4 Shutting Down

• Turn the power switch to the OFF position.
• Disconnect air tools and hoses.
• Slowly open the drain valve to release all air pressure from the tank. This is crucial for safety and compressor longevity.
• Unplug the power cord from the outlet.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your air compressor.

6.1 Daily Maintenance

• Drain Air Tank: After each use, open the drain valve to release any accumulated moisture from the air tank. This prevents rust and corrosion.

6.2 Periodic Maintenance

• Inspect for Leaks: Periodically check all air connections and hoses for leaks. Use soapy water to identify leaks if necessary.
• Clean Exterior: Wipe down the exterior of the compressor with a damp cloth to remove dust and debris.
• Check Power Cord: Inspect the power cord for any signs of damage or fraying. Replace if necessary.

Note: This compressor features an oil-free pump, eliminating the need for oil changes or lubrication.

7. Troubleshooting

Refer to the table below for common issues and their solutions.

8. Technical Specifications

Detailed specifications for the FORTRESS 4 Gallon 200 PSI High Performance Air Compressor.

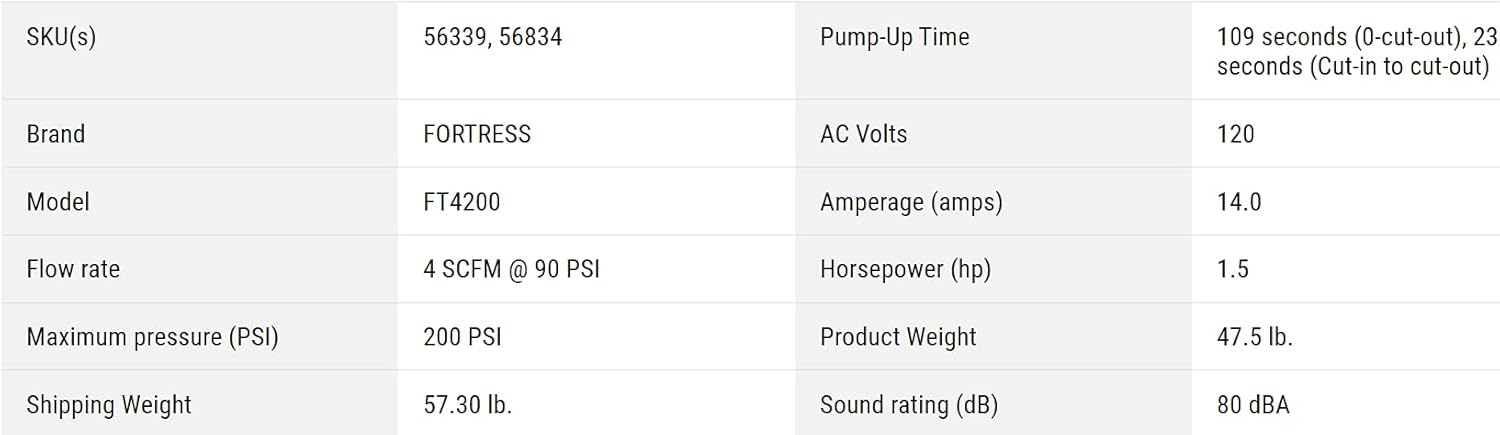

Figure 8.1: Manufacturer's specification sheet for the FORTRESS Air Compressor.

9. Warranty and Customer Support

For warranty information, please refer to the documentation included with your purchase or visit the official HFT FORTRESS website. Keep your purchase receipt as proof of purchase.

If you encounter any issues or have questions not covered in this manual, please contact HFT FORTRESS customer support:

• Online Support: Visit the HFT FORTRESS official website for FAQs and support resources.
• Phone Support: Refer to your product packaging or the official website for contact numbers.

When contacting support, please have your product model number (1c701352-cf9e-4244-a6f3-b3c15de36ed1) and UPC (792363563390) ready.
