Odashen String Trimmer Carburetor Repair Kit Instruction Manual

Introduction

This manual provides essential information for the installation and maintenance of your Odashen String Trimmer Carburetor Repair Kit. This kit is designed to restore optimal performance to Stihl FS44, FS36, and FS40 string trimmers by replacing critical carburetor components. Please read these instructions carefully before proceeding with any repairs.

Safety Information

• Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when working on power tools.
• Ensure the string trimmer's engine is off and cool before beginning any repair work. Disconnect the spark plug wire to prevent accidental starting.
• Work in a well-ventilated area, especially when handling fuel.
• Keep a fire extinguisher nearby when working with fuel.
• If you are unsure about any step, consult a qualified service technician.

Package Contents

The Odashen String Trimmer Carburetor Repair Kit includes the following components:

• 1 x Carburetor Repair Kit (various gaskets, diaphragms, and small parts)
• 2 x Grommets
• 1 x 2-feet Fuel Line
• 2 x Primer Bulbs
• 2 x Fuel Filters
• 1 x Spark Plug

Image 1: Overview of the Odashen Carburetor Repair Kit components.

Setup and Installation

This kit is designed for Stihl FS44, FS36, and FS40 string trimmers. Installation involves disassembling the carburetor, replacing worn components, and reassembling. Due to the intricate nature of carburetor repair, it is recommended that this procedure be performed by individuals with mechanical experience or by a professional.

General Installation Steps:

1. Preparation: Ensure the trimmer is clean and on a stable surface. Drain any fuel from the tank.
2. Access Carburetor: Remove the air filter cover and air filter. Disconnect the throttle linkage and fuel lines from the carburetor. Carefully remove the carburetor from the engine.
3. Disassemble Carburetor: Following your trimmer's service manual or a reliable guide for your specific Stihl model (FS44, FS36, or FS40), carefully disassemble the carburetor. Pay close attention to the orientation of all gaskets and diaphragms.
4. Replace Components: Replace all old gaskets, diaphragms, and other small parts with the new ones from the repair kit. Ensure each new part matches the old one in shape and size.
5. Replace Fuel System Parts:
   • Fuel Line: Replace the old fuel line with the new 2-foot fuel line, cutting it to the appropriate length.
   • Fuel Filters: Replace the old fuel filters located inside the fuel tank.
   • Primer Bulbs: Replace the old primer bulbs.
   • Grommets: Replace any worn grommets, especially those for the fuel lines.
6. Replace Spark Plug: Remove the old spark plug and install the new one, ensuring it is tightened to the manufacturer's specifications.
7. Reassemble Carburetor: Carefully reassemble the carburetor, ensuring all parts are correctly seated and screws are tightened appropriately.
8. Reinstall Carburetor: Mount the carburetor back onto the engine, reconnect the throttle linkage and fuel lines. Reinstall the air filter and cover.

Image 2: Detailed view of gaskets and diaphragms for carburetor repair.

Image 3: Fuel filters, primer bulbs, and spark plug included in the kit.

Operating (Post-Installation)

After installing the repair kit, refill the fuel tank with the correct fuel mixture for your Stihl trimmer. Prime the carburetor by pressing the primer bulb until fuel is visible. Start the engine according to your trimmer's operating instructions. The engine may require a few pulls to start as the fuel system repressurizes.

Carburetor Adjustment:

If your trimmer runs poorly after the repair, the carburetor may require adjustment. Refer to your Stihl trimmer's owner's manual for specific carburetor adjustment procedures. Typically, this involves adjusting the high (H) and low (L) speed mixture screws and the idle speed (LA) screw to achieve smooth operation and proper acceleration.

Maintenance

Regular maintenance of your string trimmer is crucial for longevity and performance. After replacing carburetor components, consider the following:

• Fuel System: Regularly inspect fuel lines for cracks or leaks. Replace fuel filters annually or more frequently if operating in dusty conditions.
• Air Filter: Clean or replace the air filter regularly to ensure proper air intake and prevent carburetor clogging.
• Spark Plug: Inspect the spark plug periodically for wear or carbon buildup. Replace it if electrodes are worn or fouled.
• Fuel Quality: Always use fresh, properly mixed fuel. Stale fuel can cause carburetor issues.

Troubleshooting

If your Stihl FS44, FS36, or FS40 trimmer experiences issues after installing the repair kit, consider these common troubleshooting steps:

• Engine Not Starting:
  • Check if the spark plug is firing. Ensure it's clean and properly gapped.
  • Verify fuel flow. Ensure fuel lines are correctly connected and fuel filters are not clogged.
  • Confirm the primer bulb is drawing fuel.
  • Check for proper carburetor reassembly, especially gaskets and diaphragms.
• Poor Engine Performance (Stalling, Lack of Power):
  • Adjust the carburetor's high and low-speed mixture screws.
  • Ensure the air filter is clean.
  • Check for air leaks around the carburetor mounting or intake manifold.
• Fuel Leaks:
  • Inspect all fuel line connections and grommets for proper seating.
  • Ensure carburetor gaskets are correctly installed and not pinched.

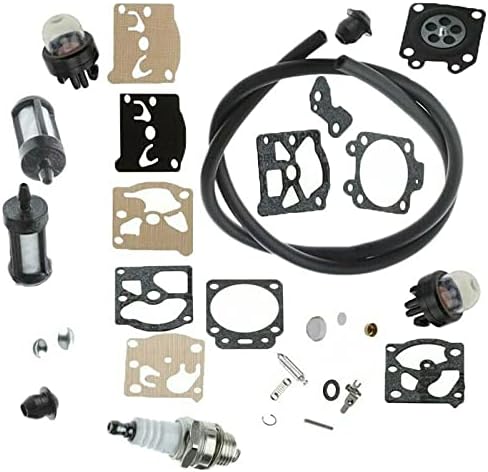

Image 4: Additional view of the repair kit, highlighting small seals and components.

Specifications

Warranty and Support

For any questions regarding the Odashen String Trimmer Carburetor Repair Kit or for technical assistance, please contact the seller or manufacturer directly. Please refer to your purchase documentation for specific warranty terms and conditions.
