1. Introduction
This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your Onn Roku TV Smart Remote Control. This remote is designed for seamless compatibility with specific Onn Roku TV models, ensuring a straightforward user experience.
2. Product Overview
The Onn Roku TV Smart Remote Control is an infrared (IR) remote designed for intuitive control of your compatible Onn Roku TV. It features dedicated buttons for power, navigation, playback, and popular streaming services.

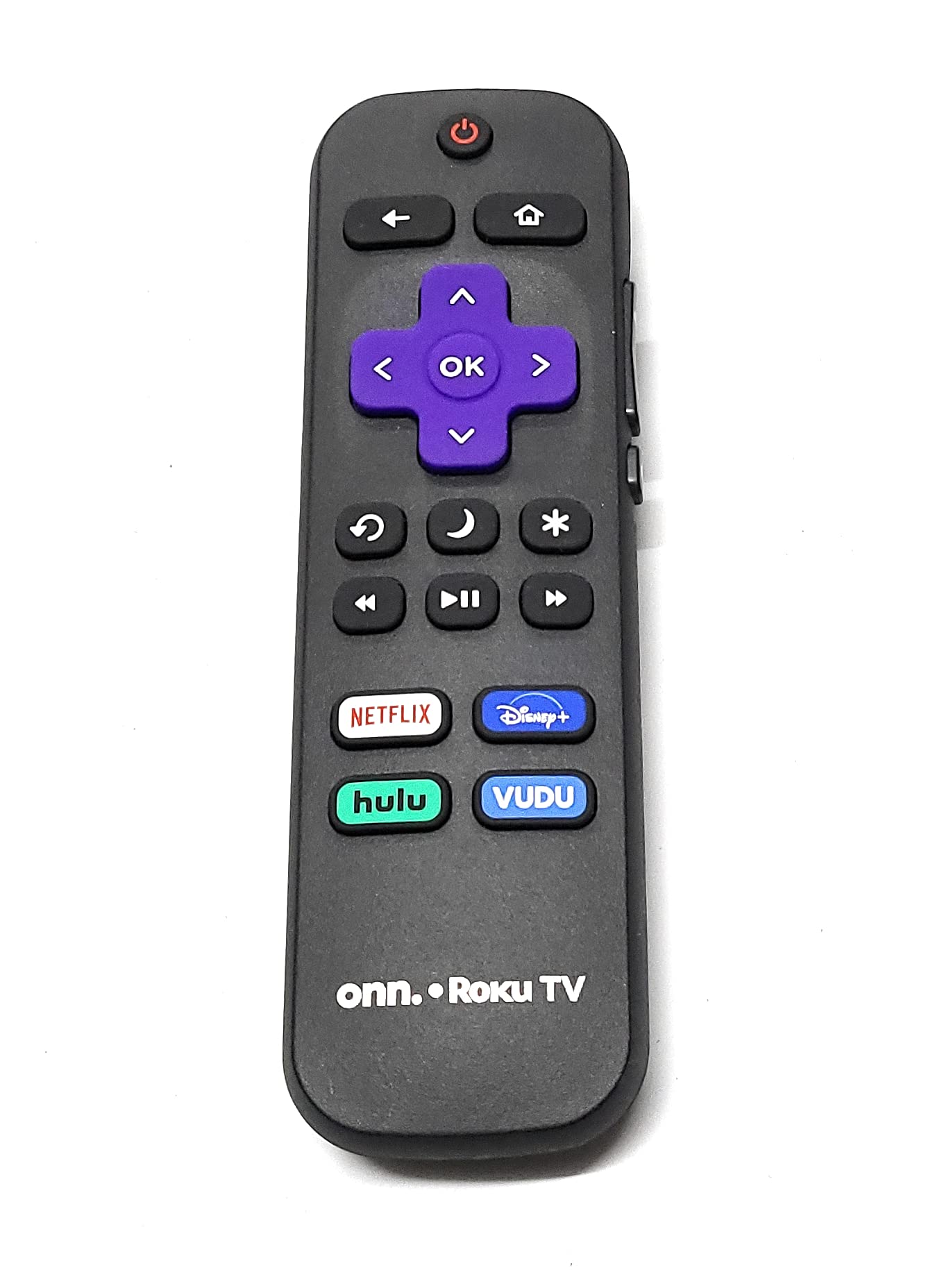

Figure 1: Onn Roku TV Smart Remote Control
This image displays the front face of the Onn Roku TV Smart Remote Control. It is black with various buttons. At the top is the Power button. Below it are the Back, Home, and directional navigation buttons (Up, Down, Left, Right) with an 'OK' button in the center. Further down are the Replay, Star (*), Rewind, Play/Pause, and Fast Forward buttons. At the bottom, there are dedicated quick-access buttons for Netflix, Disney+, Hulu, and Vudu. The remote also features "onn. Roku TV" branding at the bottom.
Button Functions:
- Power Button (⏻): Turns the TV on or off.
- Back Button (←): Returns to the previous screen or menu.
- Home Button (⌂): Navigates to the Roku Home screen.
- Directional Pad (Up, Down, Left, Right): Used for navigating menus and selecting items.
- OK Button: Confirms a selection or action.
- Replay Button (↻): Replays the last few seconds of video.
- Star Button (*): Accesses options or settings within an app or menu.
- Rewind Button (⏮): Rewinds video playback.
- Play/Pause Button (⏯): Plays or pauses video content.
- Fast Forward Button (⏭): Fast forwards video playback.
- Netflix Button: Direct access to the Netflix streaming application.
- Disney+ Button: Direct access to the Disney+ streaming application.
- Hulu Button: Direct access to the Hulu streaming application.
- Vudu Button: Direct access to the Vudu streaming application.
3. Setup
3.1 Battery Installation
- Locate the battery compartment cover on the back of the remote control.
- Slide the cover downwards or press the latch (if present) to open the compartment.
- Insert two AAA batteries (not included), ensuring the positive (+) and negative (-) terminals match the diagrams inside the compartment.
- Replace the battery compartment cover, sliding it back into place until it clicks securely.
3.2 Initial Use
This remote control operates using infrared (IR) technology and is designed to work immediately with compatible Onn Roku TV models without requiring any programming or pairing. Simply point the remote at your TV and press the Power button to begin use.
4. Operating Instructions
To operate your Onn Roku TV using this remote control, ensure there is a clear line of sight between the remote's IR emitter and the TV's IR receiver.
- Power On/Off: Press the ⏻ button once to turn the TV on or off.
- Navigation: Use the Up, Down, Left, and Right directional buttons to move through menus and select options. Press the OK button to confirm your selection.
- Home Screen: Press the ⌂ button to return to the main Roku Home screen at any time.
- Back: Use the ← button to go back to the previous menu or screen.
- Playback Controls: During video playback, use the ⏮ (Rewind), ⏯ (Play/Pause), and ⏭ (Fast Forward) buttons to control media. The ↻ (Replay) button will jump back a few seconds.
- Options/Settings: Press the * button to access context-sensitive options or settings within an application or menu.
- Quick App Access: Use the dedicated Netflix, Disney+, Hulu, and Vudu buttons for instant access to these streaming services.
5. Maintenance
5.1 Cleaning
To clean your remote control, gently wipe it with a soft, dry cloth. For stubborn dirt, slightly dampen the cloth with water. Avoid using harsh chemicals, abrasive cleaners, or excessive moisture, as these can damage the remote.
5.2 Battery Replacement
Replace batteries when the remote's responsiveness decreases or it stops functioning. Always replace both batteries at the same time with new AAA alkaline batteries. Do not mix old and new batteries, or different types of batteries.
6. Troubleshooting
- Remote Not Responding:
- Ensure batteries are correctly installed with the correct polarity.
- Replace old batteries with new ones.
- Check for any obstructions between the remote and the TV's IR sensor.
- Ensure you are within the effective range and pointing the remote directly at the TV.
- Specific Buttons Not Working:
- This could indicate a stuck button or a localized issue. Try pressing the button firmly several times. If the issue persists after battery replacement, the remote may require replacement.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Generic |
| Compatible Devices | Television (Onn Roku TV Models: 100005842, 100005396, 100005395, 100005397) |
| Connectivity Technology | Infrared (IR) |
| Controller Type | Button Control |
| Special Feature | Ergonomic design |
| Item Weight | 1.13 ounces (approx. 32 grams) |
| Package Dimensions | 5.83 x 1.69 x 0.91 inches |
8. Warranty and Support
As this product is listed under a 'Generic' brand, specific warranty information may vary. Please refer to the retailer or point of purchase for details regarding warranty coverage and customer support options. For general troubleshooting, please consult the 'Troubleshooting' section of this manual.
