1. Product Overview
The Speedmaster PCE415.1020.01 Serpentine Engine Pulley Kit is a complete system designed for Chevy BBC 454 engines. This kit features a high water flow ratio pulley set style, crafted from polished billet aluminum for durability and a clean aesthetic. It includes essential components for a comprehensive serpentine belt conversion.
Kit Components:
- Crankshaft Pulley: 6-groove serpentine design.
- Water Pump Pulley: Serpentine design.
- Power Steering Pulley: 6-groove serpentine with keyway attachment.
- Power Steering Brackets: Included.
- Alternator Brackets: Included (Alternator Pulley not included).
- Air Conditioning Cover: Included (Air Conditioning Pulley not included).
- Air Conditioning Bracket: Included.
- Hardware: All necessary mounting hardware is included.
- Material: All pulleys and brackets are made from polished billet aluminum.

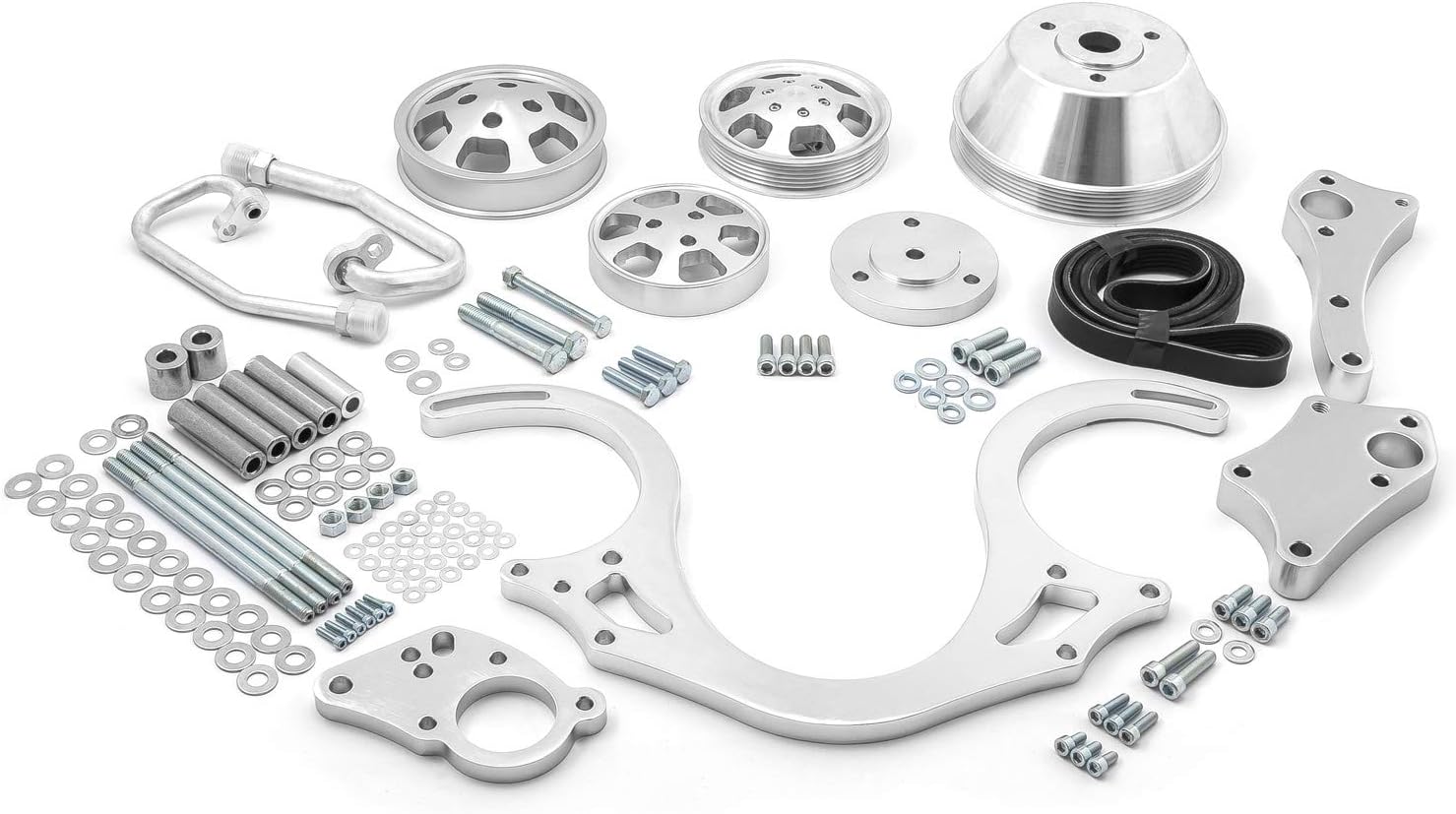

Figure 1: Complete kit components including pulleys, brackets, and hardware.
2. Safety Information
Important Legal Disclaimer: This product is intended for racing applications only and is not designed or approved for street use. Installation and operation should only be performed by qualified personnel.
Always wear appropriate personal protective equipment (PPE) including safety glasses and gloves when handling or installing automotive components. Ensure the engine is cool and disconnected from the battery before beginning any installation or maintenance procedures.
3. Setup and Installation
This section provides general guidance for the installation of the Speedmaster PCE415.1020.01 Serpentine Engine Pulley Kit. Due to variations in engine configurations and existing accessories, specific steps may vary. It is highly recommended to consult a professional mechanic or refer to a detailed service manual for your specific vehicle model.
- Preparation: Ensure the engine is off, cool, and the battery is disconnected. Remove any existing belts, pulleys, and brackets that will be replaced by the new kit.
- Crankshaft Pulley Installation: Mount the new crankshaft pulley to the crankshaft using the provided hardware. Ensure it is seated correctly and torqued to manufacturer specifications.
- Water Pump Pulley Installation: Install the water pump pulley onto the water pump. Verify proper alignment.
- Bracket Mounting: Attach the power steering and alternator brackets to their respective mounting points on the engine block or cylinder heads. Use the supplied hardware and ensure all bolts are securely tightened.
- Accessory Installation: Mount your power steering pump and alternator (if applicable) to the newly installed brackets.
- Pulley Installation (Accessories): Install the power steering pulley onto the power steering pump shaft, securing it with the keyway and retaining hardware.
- Belt Routing: Route the serpentine belt according to the diagram for your specific engine and accessory configuration. Ensure the belt is properly tensioned.
- Final Checks: Double-check all fasteners for tightness. Ensure there is no interference between components. Reconnect the battery.
Figure 2: Example of the pulley kit installed on an engine.
Figure 3: Detailed view of installed components.
4. Operating Considerations
Once installed, the serpentine pulley system operates automatically with the engine. Ensure proper belt tension is maintained to prevent slippage or excessive wear on bearings. Listen for any unusual noises, such as squealing or grinding, which may indicate an issue with belt tension or component alignment.
Regularly inspect the belt for cracks, fraying, or glazing. Check pulleys for any signs of wobble or damage. The high water flow ratio design of this kit is intended to optimize cooling system performance during operation.
5. Maintenance
Proper maintenance ensures the longevity and optimal performance of your Speedmaster pulley kit.
- Belt Inspection: Inspect the serpentine belt every 3,000-5,000 miles or as recommended by your vehicle's service manual. Look for cracks, fraying, or signs of wear. Replace the belt if any damage is observed.
- Pulley Inspection: Periodically check all pulleys for signs of wear, damage, or excessive play. Ensure they spin freely without binding.
- Hardware Check: Verify that all mounting bolts for the pulleys and brackets remain tight. Re-torque if necessary according to appropriate specifications.
- Cleaning: Keep the pulleys and belt free from dirt, oil, and debris. A clean system operates more efficiently and reduces wear.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Belt Squealing | Loose belt tension, worn belt, misaligned pulleys, contaminated belt/pulleys. | Check and adjust belt tension. Inspect and replace worn belt. Verify pulley alignment. Clean belt and pulley surfaces. |
| Excessive Belt Wear | Improper tension (too tight or too loose), misaligned pulleys, worn pulley bearings. | Adjust belt tension. Check and correct pulley alignment. Inspect and replace worn pulleys/bearings. |
| Vibration from Pulley System | Loose mounting hardware, unbalanced pulley, worn bearing. | Check and tighten all mounting hardware. Inspect pulleys for damage or imbalance. Replace faulty components. |
7. Specifications
| Attribute | Detail |
|---|---|
| Brand | Speedmaster |
| Model Number | PCE415.1020.01 |
| Part Type | Pulley Kit |
| Pulley Style | Serpentine |
| Pulley Material | Billet Aluminum |
| Pulley Finish | Polished |
| Item Weight | 16.37 pounds |
| Product Dimensions | 20 x 12 x 3.99 inches |
8. Warranty and Support
Specific warranty information for the Speedmaster PCE415.1020.01 Serpentine Engine Pulley Kit is not provided in this manual. Please refer to the manufacturer's official website or contact Speedmaster customer support directly for details regarding warranty coverage and technical assistance.
For further inquiries or support, please visit the Speedmaster Store on Amazon or their official corporate website.
