Ewatchparts Deployment Buckle Clasp Instruction Manual

Model: 14-24mm Deployment Buckle Clasp

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Ewatchparts Deployment Buckle Clasp. Designed for use with leather or PU rubber watch straps, this heavy-duty clasp offers a secure and comfortable fit. Please read these instructions carefully before use to ensure proper function and longevity of your product.

Product Overview

Features:

  • Quality Stainless Steel: Made from premium 316L stainless steel, this buckle offers exceptional durability and strength. The high-grade steel provides long-lasting use and resistance to corrosion.
  • Compatible with Various Straps: Ideal for leather or PU rubber watch straps, this buckle enhances both functionality and style. Its versatile design makes it a great choice for different types of watch bands.
  • Heavy Duty Design: Features a robust construction with a double lock release mechanism for enhanced security.
  • Wide Compatibility: Compatible with strap widths from 14mm to 24mm and straps up to 3.5mm thick.

Package Contents:

  • 1 x Ewatchparts Deployment Buckle Clasp

Product Images:

Ewatchparts Deployment Buckle Clasp, top view, open
Image 1: Top view of the deployment buckle clasp in an open position, showing the internal mechanism and pins.

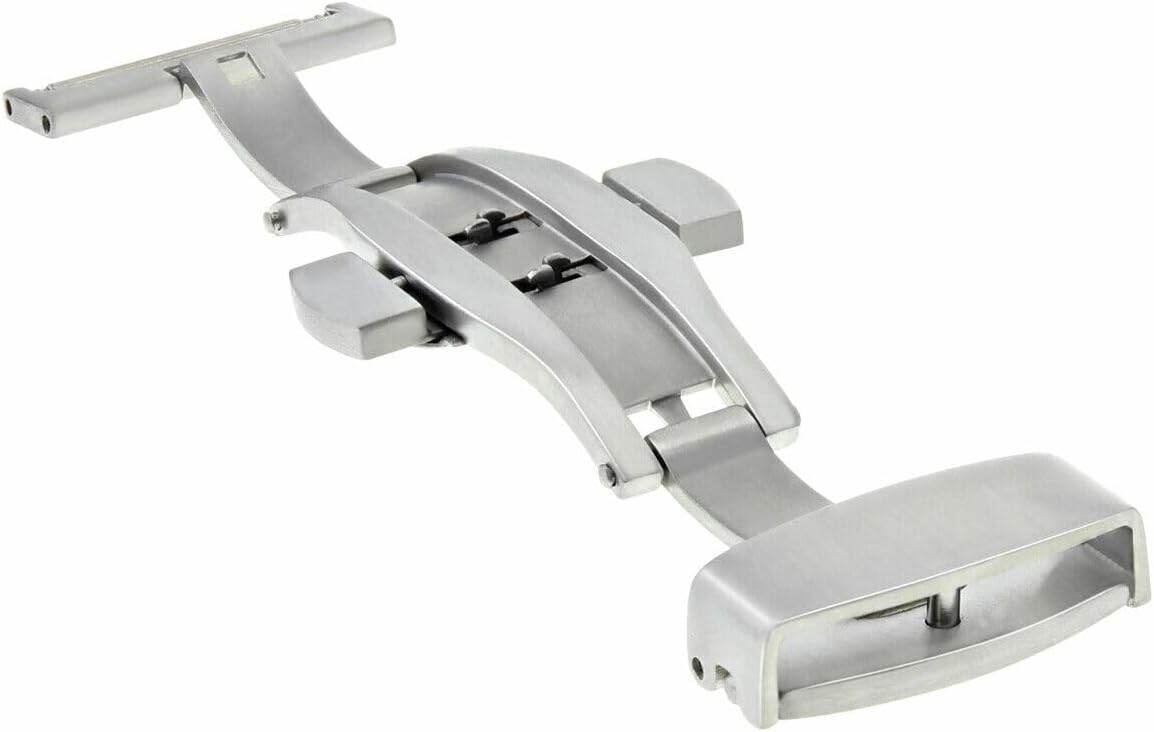

Ewatchparts Deployment Buckle Clasp, underside view, open
Image 2: Underside view of the deployment buckle clasp, showing the butterfly mechanism and attachment points for the watch strap.
Ewatchparts Deployment Buckle Clasp, side view, partially open
Image 3: Side view of the deployment buckle clasp, partially open, highlighting the double lock release buttons.
Ewatchparts Deployment Buckle Clasp, closed position
Image 4: The deployment buckle clasp in a closed position, ready for attachment to a watch strap.

Setup and Installation

Before installation, ensure your watch strap is compatible with the clasp's width (14mm-24mm) and thickness (up to 3.5mm). You will need a spring bar tool for this process.

  1. Prepare the Watch Strap: If your watch strap currently has a traditional buckle, carefully remove it using a spring bar tool to detach the buckle from the strap.
  2. Identify Clasp Ends: The deployment clasp has two ends. One end typically has a fixed bar or a spring bar already installed, and the other end has a slot for a spring bar. The end with the fixed bar or pre-installed spring bar is usually for the longer part of your watch strap (the 12 o'clock side). The end with the removable spring bar is for the shorter part of your watch strap (the 6 o'clock side).
  3. Attach Longer Strap Section: Take the longer section of your watch strap. Insert the end of this strap section into the fixed bar or pre-installed spring bar end of the deployment clasp. Ensure the strap is fully seated and secure.
  4. Attach Shorter Strap Section: For the shorter section of your watch strap, insert a spring bar (if not already present) into the strap's lug hole. Then, align the spring bar with the corresponding holes on the other end of the deployment clasp. Use your spring bar tool to compress the spring bar and carefully guide it into place, ensuring both ends of the spring bar are securely seated in the clasp's holes.
  5. Verify Security: Gently pull on both strap sections to ensure they are firmly attached to the deployment clasp. The clasp should not detach with light force.
  6. Adjust for Fit: Once installed, you can adjust the length of the strap by moving the spring bar on the shorter strap section to different holes on the strap, similar to a traditional buckle.

Operation

The Ewatchparts Deployment Buckle Clasp features a double lock release mechanism for secure closure and easy opening.

  1. Closing the Clasp: Bring the two ends of the clasp together. The main buckle will snap into place. Then, press down on the two smaller side flaps until they click securely, engaging the double lock mechanism.
  2. Opening the Clasp: To open, simultaneously press the two small release buttons located on the sides of the clasp. This will disengage the double lock, allowing the clasp to open.

Maintenance

  • Cleaning: To clean the stainless steel clasp, wipe it gently with a soft, damp cloth. For stubborn dirt, a mild soap solution can be used, followed by thorough rinsing and drying. Avoid harsh chemicals or abrasive materials, which can damage the finish.
  • Inspection: Periodically inspect the clasp for any signs of wear, loose pins, or damage. Ensure the double lock mechanism operates smoothly.
  • Storage: When not in use, store the clasp in a clean, dry place to prevent dust accumulation and potential scratches.

Troubleshooting

Problem Possible Cause Solution
Clasp does not close securely. Debris in the locking mechanism or misaligned strap. Clean the clasp mechanism. Ensure the watch strap ends are properly seated and not obstructing the closure.
Pins are difficult to install or remove. Incorrect spring bar tool usage or misaligned holes. Ensure you are using a proper spring bar tool. Align the spring bar carefully with the holes before attempting to seat it. Do not force.
Clasp feels loose after installation. Spring bars not fully seated or incorrect strap width. Verify that all spring bars are fully engaged in their respective holes. Confirm that your watch strap width matches the clasp's intended size.

Specifications

  • Material: 316L Stainless Steel
  • Design: Heavy Duty with Double Lock Release
  • Compatible Strap Widths: 14mm, 16mm, 18mm, 20mm, 22mm, 24mm
  • Maximum Strap Thickness: 3.5mm
  • Clasp Type: Deployment Clasp

Warranty and Support

For any questions, concerns, or support regarding your Ewatchparts Deployment Buckle Clasp, please contact the manufacturer directly through their official website or the retailer from whom you purchased the product. Please retain your proof of purchase for warranty claims, if applicable.
