1. Product Overview
The MEDAS 3-in-1 Electric Submersible Pump is a versatile and robust solution designed for various water transfer applications. This pump features a powerful 750-watt (1HP) motor, delivering a maximum flow rate of 4623 GPH and a maximum head of 27.8 feet. It is engineered for reliability and durability, having passed extensive non-stop running tests.
Key functionalities include multi-functional pump bases for handling clean water, dirty water, and achieving low suction levels, along with a sensitive float switch for both automatic and manual operation. Its design prioritizes convenience and safety, making it suitable for tasks such as flood management, garden ponds, pools, and general residential or commercial water transfer needs.
Image 1.1: The MEDAS 3 in 1 Electric Submersible Pump, showcasing its compact design, float switch, and included hose adapter.
2. Components and Features
The MEDAS submersible pump is equipped with several features designed for efficient and reliable operation:
- Adjustable Float Switch: Enables automatic start/stop based on water levels and supports manual control.
- Portable Handle: Integrated handle for easy transportation and positioning of the pump.
- Thermally Protected Motor: High-quality motor with low consumption, designed for long service life and protection against overheating.
- 19.7ft UL Power Cord: Provides ample reach for various applications.
- 1-1/2" NPT Discharge: Standard discharge size for efficient water expulsion.
- Multi-functional Pump Bases: Interchangeable bases for clean water, dirty water, and low suction applications.
- Multiple Hose Fittings: Includes 1 inch, 1-1/4 inch, and 1-1/2 inch fittings to accommodate different hose sizes.
Image 2.1: Diagram illustrating key product details and components such as the adjustable float switch, portable handle, and power cord.
Image 2.2: Visual representation of the automatic float switch, ergonomic handle, different pump bases, and various hose fittings.
3. Setup and Installation
3.1 Hose Connection
The pump includes multiple hose fittings (1 inch, 1-1/4 inch, 1-1/2 inch) to ensure compatibility with various hose sizes. Select the appropriate fitting based on your required flow rate and hose diameter. Securely attach the chosen fitting to the pump's discharge outlet and then connect your hose.
Image 3.1: Illustration of the various hose fitting sizes and their connection to the pump.
3.2 Base Configuration
The pump features adjustable bases to adapt to different water conditions:
- Clean Water Base: Filters particles larger than 3 mm. Use this configuration for relatively clean water applications.
- Dirty Water Base: Allows for the passage of solids up to 30 mm. Ideal for pumping water containing larger debris.
- Low Suction: By removing all bases, the pump can drain water down to 1 mm in depth, enabling nearly complete water removal from flat surfaces.
Image 3.2: Visual guide to configuring the pump bases for different water types and suction levels.
4. Operating Instructions
4.1 Automatic Operation
For automatic operation, ensure the float switch is freely suspended and can move with the water level. The pump will automatically start when the water level rises to approximately 23 inches and stop when it drops to about 8 inches. This mode is ideal for continuous monitoring and drainage in areas prone to flooding.
4.2 Manual Operation
To operate the pump manually, fix the float switch in an upright position using the float switch holder on the pump handle. In manual mode, the pump will run continuously, allowing for drainage down to a minimum stop level of approximately 1/25 inch. This mode is particularly useful when the water level is too low for the float switch to activate automatically or when precise control over drainage is required.

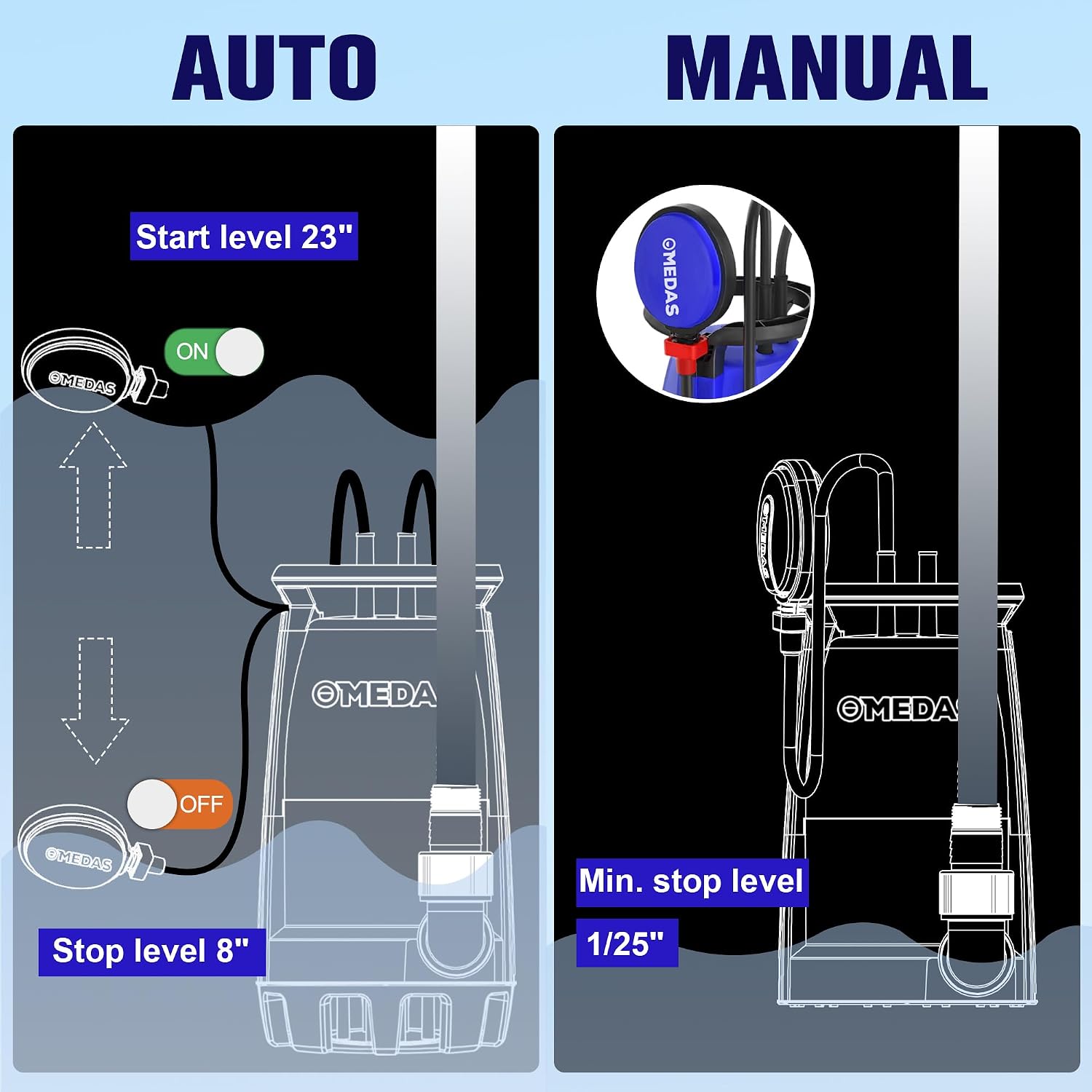

Image 4.1: Comparison of automatic and manual operating modes, detailing the float switch's role in each.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your MEDAS submersible pump. While specific detailed maintenance instructions are not provided in the available product data, general best practices include:
- Cleaning: Periodically clean the pump's intake and discharge areas to prevent blockages from debris, especially after pumping dirty water.
- Inspection: Regularly inspect the power cord, float switch, and pump housing for any signs of damage or wear.
- Storage: When not in use for extended periods, clean the pump thoroughly, drain any remaining water, and store it in a dry, protected area.
6. Troubleshooting
This section provides general troubleshooting advice. For specific issues not covered here, please refer to the manufacturer's support channels. Detailed troubleshooting steps are not available in the provided product data.
- Pump Not Starting: Check power supply, ensure the float switch is not obstructed (in automatic mode), or try manual operation.
- Low Flow Rate: Inspect for blockages in the intake or discharge hose, ensure the correct base is used for the water type, and check for kinks in the hose.
- Pump Running Continuously (Automatic Mode): Verify the float switch is not stuck in the 'on' position or obstructed.
- Unusual Noise: Disconnect power and inspect for foreign objects inside the pump housing.
7. Technical Specifications
| Specification | Value |
|---|---|
| Model Number | 748743702576 |
| Brand | MEDAS |
| Power | 750 Watts (1 HP) |
| Voltage | 110 Volts |
| Maximum Flow Rate | 4623 GPH |
| Maximum Head (Lift) | 27.8 Feet |
| Material | Stainless Steel |
| Item Weight | 4.4 kg (9.7 lbs) |
| Special Features | Auto Float Switch |
| Hose Fittings Included | 1 inch, 1-1/4 inch, 1-1/2 inch |
Image 7.1: Visual summary of the pump's technical specifications.
8. Warranty and Support Information
Specific warranty details and direct support contact information are not available in the provided product data. For warranty claims, technical assistance, or further inquiries, please refer to the product packaging, the retailer's website where the product was purchased, or contact MEDAS customer service through their official channels.
