Product Overview
The Emerson Quiet Kool EAPH10RSC1 is a versatile portable air conditioner designed for flexible, energy-saving spot cooling and heating. It integrates modern smart home technology, allowing control via Wi-Fi and voice commands through Amazon Alexa and Google Home. This unit also functions as a dehumidifier, efficiently reducing air moisture with its auto-evaporation system.
Key Features
- Smart Voice Control: Wi-Fi enabled, compatible with Amazon Alexa and Google Home via the Smart Life skill/app.
- Multi-functional: Provides cooling, heating, and dehumidification for year-round comfort.
- Quiet Operation: Operates at 52dB, suitable for living rooms and large bedrooms.
- Bucketless Design: Auto-evaporation system minimizes manual draining.
- Programmable Timer & Sleep Mode: Features a 24-hour timer and intelligent sleep mode for energy efficiency and comfort.
- Easy Installation: Includes a window venting kit for quick setup.
- Comprehensive Warranty: Backed by a 1-year labor, 2-year parts, and 5-year compressor warranty.
Product Components
Familiarize yourself with the main components and features of your portable air conditioner.
Figure 1: Front view and key features of the Emerson Quiet Kool portable air conditioner, showing the Blue LED Digital Display, Easy To Carry Handles, Auto Air Louver, Omni-directional Casters, and indicators for R32 Low GWP Refrigerant and All Season Comfort.
Figure 2: Rear view of the unit, indicating the locations of the Dust Filter, Continuous Drain Outlet, Air Exhaust Outlet, and Bottom Tray Drain Outlet.

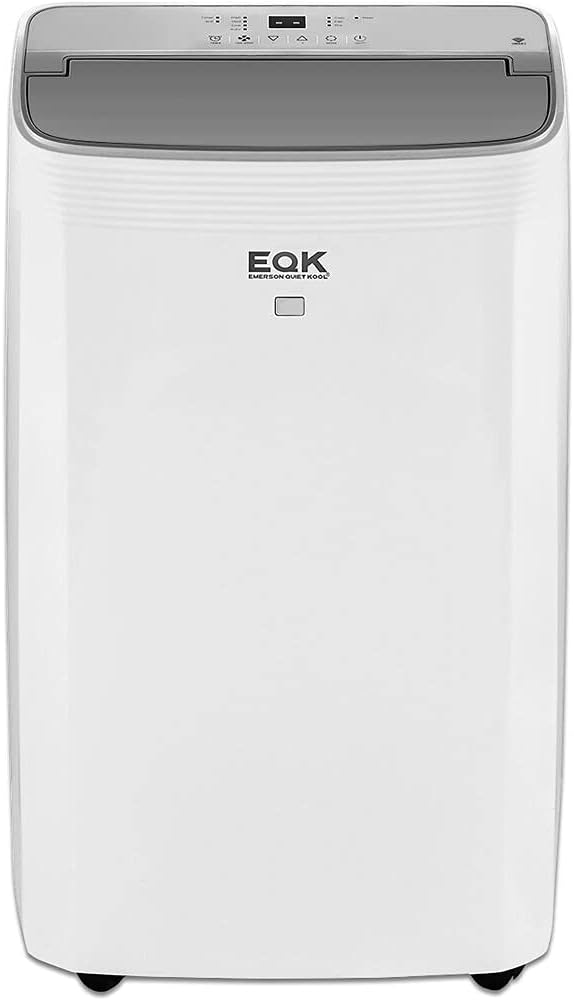

Figure 3: The Emerson Quiet Kool EAPH10RSC1 portable air conditioner in its upright position.
Setup and Installation
The Emerson Quiet Kool portable air conditioner is designed for easy setup. Follow these steps to install your unit and begin operation.
Window Venting Kit Installation
- Attach the exhaust hose to the unit's air exhaust outlet.
- Assemble the window venting kit components according to your window type (horizontal or vertical). The kit is adjustable to fit windows from 26.6 to 50.7 inches in width.
- Secure the window kit in your open window frame.
- Connect the exhaust hose to the window kit. Ensure a tight seal to prevent air leakage.
- Position the unit on a flat, stable surface, ensuring adequate clearance around the air inlets and outlets.
Installation Overview Video
Video 1: An overview of Emerson Portable Air Conditioners, demonstrating key features and the ease of installation, including the window venting process.
Operating Instructions
Your Emerson Quiet Kool portable AC offers various modes and settings for optimal comfort. The unit can be controlled via the onboard control panel, remote control, or through the HE Smart app with Wi-Fi connectivity.
Control Panel and Remote Functions
Figure 4: The HE Smart app interface for controlling the unit, highlighting its compatibility with Google Assistant and Amazon Alexa for smart voice control.
- Power: Press to turn the unit ON or OFF.
- Mode: Cycle through available modes: Cool, Heat, Dehumidify (Dry), and Fan.
- Temperature Adjustment: Use the Up/Down arrows to set your desired temperature.
- Fan Speed: Select from multiple fan speeds (e.g., Low, Medium, High) to adjust airflow.
- Timer: Set a 24-hour timer for automatic ON/OFF operation.
- Sleep Mode: Activates a quiet operation mode that gradually adjusts temperature and fan speed for comfortable overnight use and energy saving.
- Wi-Fi Connectivity: Connect the unit to your home Wi-Fi network to enable control via the HE Smart app and voice assistants. Refer to the app's instructions for pairing.
Maintenance
Regular maintenance ensures optimal performance and longevity of your portable air conditioner.
- Filter Cleaning: The unit features a washable dust filter. Regularly remove and clean the filter to maintain air quality and cooling efficiency. Refer to Figure 2 for filter location.
- Drainage: The auto-evaporation system typically handles moisture. However, in highly humid conditions, manual draining may be required. Use the continuous drain outlet or bottom tray drain outlet as needed (refer to Figure 2).
- Unit Cleaning: Wipe the exterior of the unit with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
Troubleshooting
If you encounter issues with your unit, consult the following common troubleshooting tips before contacting customer support.
- Unit Not Turning On: Ensure the power cord is securely plugged into a working electrical outlet. Check for tripped circuit breakers.
- Insufficient Cooling/Heating: Verify that the correct mode is selected. Check if the air filter is clean and not obstructed. Ensure the exhaust hose is properly installed and sealed to the window kit, and that no windows or doors are open, allowing outside air to enter.
- Noisy Operation: Confirm the unit is placed on a flat, stable surface. Check for any obstructions in the air inlets or outlets.
- Water Leakage: If the auto-evaporation system is overwhelmed by high humidity, drain the water manually from the continuous drain outlet or bottom tray drain outlet.
- Wi-Fi Connectivity Issues: Ensure your Wi-Fi network is active and the unit is within range. Re-pair the unit with the HE Smart app if necessary.
Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | EAPH10RSC1 |
| Cooling Capacity (ASHRAE) | 14,000 BTU |
| Cooling Capacity (DOE) | 7,900 BTU |
| Coverage Area | Up to 550 sq. ft. |
| Noise Level | 52 dB |
| Product Dimensions (D x W x H) | 14.8" x 17.5" x 28.4" |
| Item Weight | 70.6 pounds |
| Voltage | 115 Volts |
| Dehumidifier Capacity | 5.3 Pints |
| Special Features | Remote Controlled, WiFi Enabled, Heating And Cooling Function, Dehumidifier |
| Energy Efficiency (SEER) | 9.7 |
Warranty and Support
Emerson Quiet Kool stands behind the quality of its products with a comprehensive warranty.
- Warranty Coverage: 12 months labor, 24 months parts, and 60 months on the compressor.
- For warranty claims or technical assistance, please refer to the contact information provided in your product packaging or visit the official Emerson Quiet Kool website.
