Aufun AF-K-BI9021A
Aufun 370W Submersible Deep Well Pump User Manual
Model: AF-K-BI9021A
Product Overview
The Aufun 370W Submersible Deep Well Pump is a highly efficient pressure pump designed for extracting water from significant depths. It is ideal for various applications, including home irrigation, garden watering, and supplying water to systems like washing machines and toilets.
Key features include a robust stainless steel housing, a durable copper motor, and an integrated thermal protection circuit for enhanced safety and longevity. Its design ensures reliable performance even in challenging conditions, such as sandy water, thanks to its effective filtration system.
Figure 1: The Aufun 370W Deep Well Pump, demonstrating its use in a garden irrigation scenario. The pump is designed for efficient water extraction from deep wells.
Package Contents
Please check the package for the following items:
- 1 x Aufun Deep Well Pump (370W model)
- 1 x Connection Cable
- 1 x User Manual (this document)
Safety Instructions
Always read and understand all safety instructions before operating the pump. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Ensure the power supply matches the pump's voltage requirements (220V-240V).
- Do not operate the pump if the cable or plug is damaged.
- The pump must be fully submerged in water during operation. Operating it dry will cause damage.
- Do not use the pump for flammable or corrosive liquids.
- Keep children and unauthorized persons away from the operating area.
- Disconnect the pump from the power supply before any maintenance or cleaning.

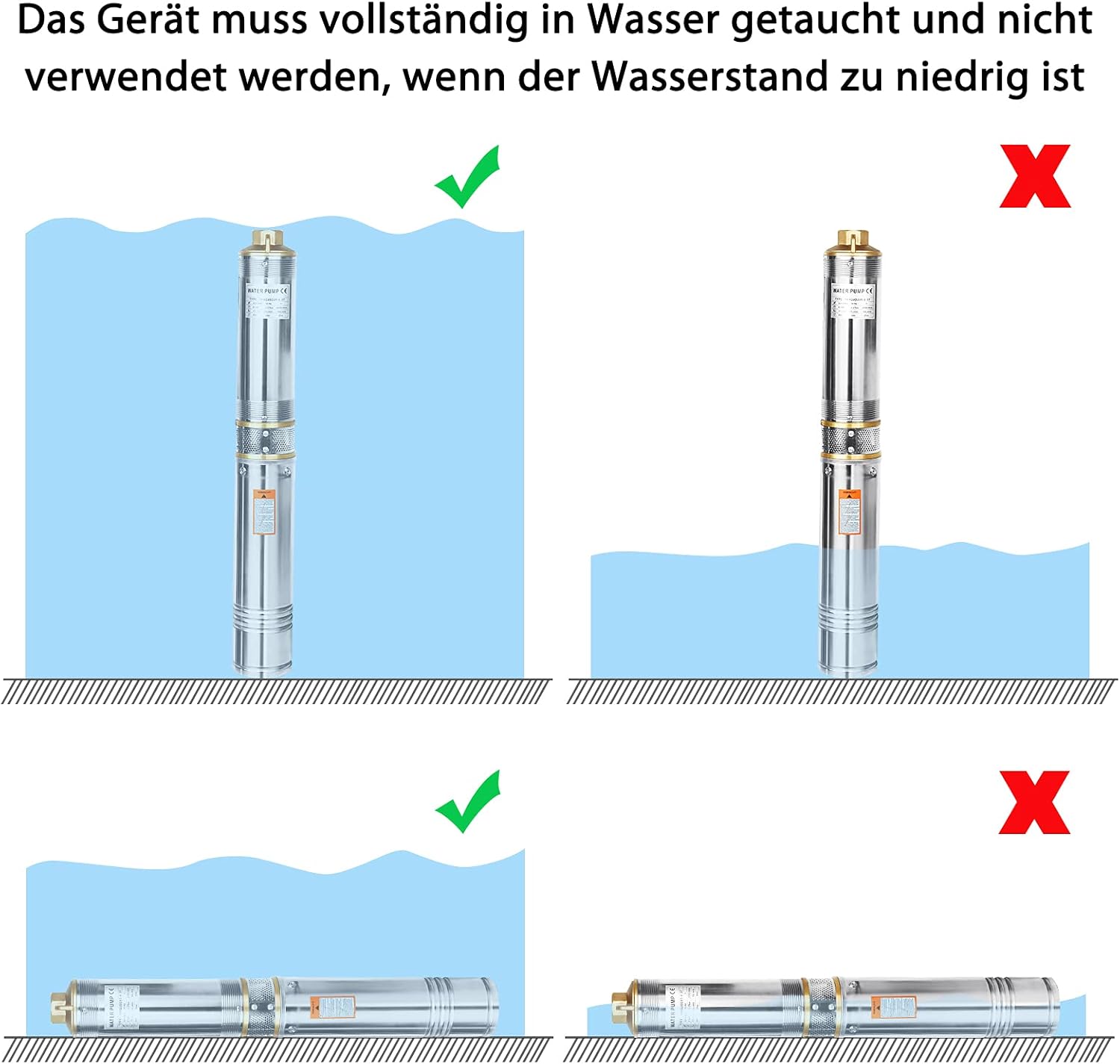

Figure 2: Proper submersion of the pump. The pump must be completely covered by water to ensure efficient operation and prevent overheating or damage.
Setup and Installation
- Unpacking: Carefully remove all components from the packaging. Inspect for any damage during transit.
- Cable Connection: Ensure the connection cable is securely attached to the pump. The pump comes with a pre-attached cable.
- Pressure Connection: Connect your desired hose or pipe to the pump's brass threaded socket. The socket has a diameter of 87 mm and is compatible with 1 ¼" pipes. Ensure a tight, leak-free connection.
- Placement: Lower the pump into the well or water source. Ensure the well diameter is at least 4 inches. The pump must be fully submerged in water. The maximum immersion depth is 70 meters.
- Power Connection: Once the pump is securely placed and submerged, connect the power plug to a suitable electrical outlet (220V-240V).
Figure 3: Detailed view of the pump's connection points and filtration system, highlighting the brass threaded socket and the stainless steel filter.
Operating Instructions
To operate the Aufun Deep Well Pump:
- Initial Check: Before starting, confirm the pump is fully submerged and all connections are secure.
- Power On: Plug the pump into the power outlet. The pump will start automatically.
- Monitoring: Observe the water flow. The pump has a maximum flow rate of 4000 liters per hour and a maximum delivery head of 34 meters.
- Power Off: To stop the pump, simply unplug it from the power outlet.
Important: Do not run the pump dry. Continuous dry running will severely damage the motor and void the warranty.
Figure 4: Examples of typical applications for the Aufun Deep Well Pump, showcasing its versatility in different water supply scenarios.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your pump.
- Cleaning the Filter: The pump is equipped with a stainless steel filter designed to prevent particles from entering. Periodically inspect and clean the filter to ensure unrestricted water flow. The pump is compatible with sand up to 150g/m³ and grain size up to 0.3 mm.
- Winterization: In regions with freezing temperatures, remove the pump from the water source before winter. Drain all water from the pump and store it in a dry, frost-free location.
- General Inspection: Regularly check the power cable for any signs of wear or damage. Inspect all connections for leaks.

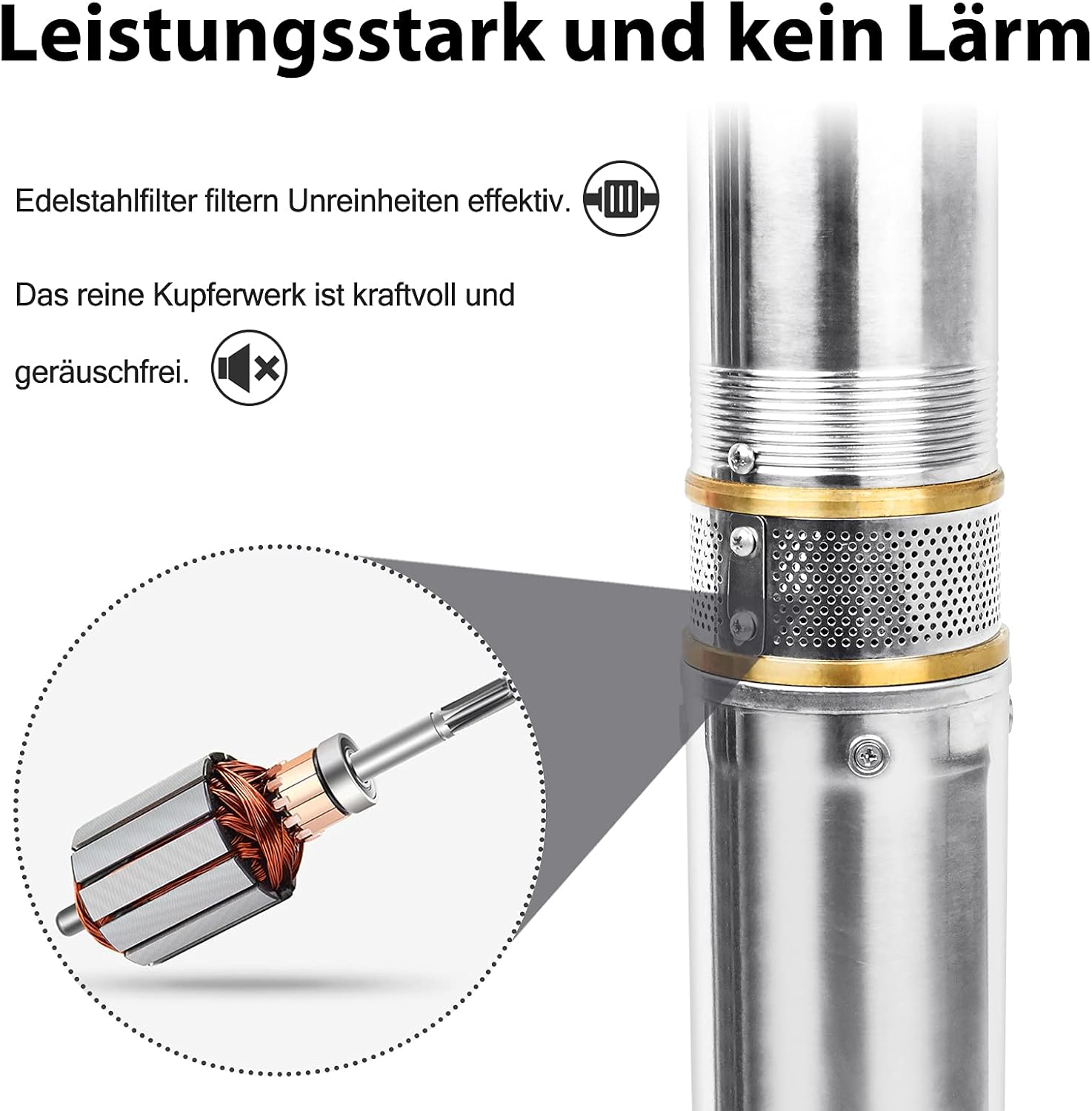

Figure 5: Internal components of the pump, illustrating the stainless steel filter for impurity removal and the pure copper motor for powerful, quiet operation.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start | No power supply; Thermal overload protection activated; Damaged cable/plug | Check power connection and circuit breaker; Allow pump to cool down; Inspect and replace damaged parts. |
| Low water flow | Clogged filter; Insufficient water level; Air in the system; Kinked hose | Clean the filter; Ensure pump is fully submerged; Bleed air from the system; Straighten hose. |
| Pump runs but no water | Pump not submerged; Suction line leak; Impeller damage | Ensure full submersion; Check and seal suction line; Contact service for impeller inspection. |
| Pump stops unexpectedly | Thermal overload; Low water level; Power interruption | Allow pump to cool; Check water level; Verify power supply. |
Specifications
| Feature | Detail |
|---|---|
| Model | AF-K-BI9021A (370W) |
| Material | Stainless Steel |
| Motor Power | 0.37 kW (0.5 hp) |
| Voltage | 220V-240V |
| Max Current | 4.5 A |
| Max Flow Rate | 4 m³/h (4000 L/h) |
| Max Operating Pressure | 3.4 bar |
| Revolutions | 2850 rpm |
| Sand Compatibility | 150g/m³ |
| Max Grain Size | 0.3 mm |
| Max Immersion Depth | 70 m |
| Max Flow Head | 34 m |
| Threaded Socket Diameter | 87 mm (1 ¼" compatible) |
| Min Well Diameter | 4 inches |
| Max Water Temperature | 35 °C |
| Impeller Quantity | 5 |
| Dimensions (L x W x H) | 69.3 x 9.2 x 69.3 cm |
| Weight | 13.38 kg |
Figure 6: Technical specifications and dimensions of the Aufun Deep Well Pump.
Warranty and Support
Aufun products are manufactured to high-quality standards. For warranty information, please refer to the terms and conditions provided at the time of purchase or contact your retailer.
For technical support, troubleshooting assistance, or spare parts inquiries, please contact Aufun customer service through the official website or your point of purchase. Please have your model number (AF-K-BI9021A) and purchase date ready when contacting support.
