1. Introduction
Thank you for choosing the KETOTEK Digital Thermostat Plug KT3100. This device is designed to precisely control temperature for various heating and cooling applications, offering both temperature regulation and timing functions. Please read this manual carefully before operation to ensure safe and efficient use.
2. Safety Information
- Always ensure the device is properly grounded.
- Do not exceed the maximum load capacity of 16A / 3680W.
- Keep the device and sensor away from water or excessive moisture, unless specified for waterproof use.
- Do not disassemble or attempt to repair the device yourself. Contact qualified personnel for service.
- Ensure the power supply matches the device's requirements (230V AC).
- Keep out of reach of children.
3. Product Overview
The KETOTEK KT3100 Digital Thermostat Plug features a clear digital display and intuitive buttons for easy operation. It includes a remote temperature sensor for accurate readings.
Figure 3.1: Front view of the KETOTEK KT3100 Digital Thermostat Plug with key components labeled. This includes the display showing measured, start, and stop temperatures, heating/refrigeration mode indicators, output work indicator, and control buttons (MODE, SET, UP, DOWN, Reset).
Key Features:
- Temperature Control Function: Range -40°C to 120°C, with 0.1°C resolution.
- Timing Functions (F01-F04): Cycle timer, countdown ON, countdown OFF, and combined countdown ON/OFF modes.
- Temperature Calibration: Adjust readings from -9.9°C to 9.9°C.
- Memory Function: Retains settings after power loss.
- Reset Function: Restores factory default settings.
Figure 3.2: Visual representation of the main functions of the KT3100: Heating/Refrigeration, Timing, Temperature Calibration, Memory, and Reset.
4. Specifications
| Parameter | Value |
|---|---|
| Model | KT3100 |
| Power Source | AC 230V |
| Max Output Load | 16A / 3680W |
| Temperature Control Range | -40°C to 120°C |
| Temperature Resolution | 0.1°C |
| Control Accuracy | ±1% |
| Sensor Type | NTC10K/B3950 Waterproof Sensor |
| Sensor Cable Length | 1.7 meters (170 cm) |
| Timing Range | 0-99 hours 59 minutes |
| Temperature Calibration Range | -9.9°C to 9.9°C |
| Product Dimensions (L x W x H) | 12 cm x 5.8 cm x 3.2 cm |
| Display Type | Digital |
| Color | White |
Figure 4.1: Dimensions of the KT3100 thermostat plug and its 1.7-meter temperature sensor cable.
5. Setup
- Unpack: Carefully remove the thermostat plug and sensor from its packaging.
- Connect Sensor: Plug the NTC10K/B3950 temperature sensor into the designated port on the thermostat plug.
- Position Sensor: Place the sensor in the area where you want to measure and control the temperature. Ensure it is not directly exposed to heating or cooling elements, which could lead to inaccurate readings.
- Plug In: Insert the KETOTEK KT3100 into a standard 230V AC power outlet.
- Connect Appliance: Plug your heating or cooling appliance (e.g., heater, fan, refrigerator) into the outlet on the KETOTEK KT3100.
- Initial Reset (Recommended): If the device does not immediately display temperature or seems stuck in a timing mode, press the small 'Reset' button (usually located near the 'UP' and 'DOWN' buttons) with a pointed object (e.g., a pen tip) to restore default settings and enter temperature control mode.
6. Operating Instructions
6.1 Temperature Control Mode
This mode allows you to set a desired temperature range for your connected appliance.
- Set Start Temperature: Press the SET button once. The 'Start Temperature' value will flash. Use the UP and DOWN buttons to adjust the desired temperature at which the appliance should turn ON. Press SET again to confirm.
- Set Stop Temperature: After setting the start temperature, press the SET button again. The 'Stop Temperature' value will flash. Use the UP and DOWN buttons to adjust the desired temperature at which the appliance should turn OFF. Press SET a third time to confirm and exit setting mode.
- Heating vs. Cooling:
- Heating Mode: If the Start Temperature is set lower than the Stop Temperature (e.g., Start 20°C, Stop 25°C), the device operates in heating mode. The appliance will turn ON when the measured temperature drops to 20°C and turn OFF when it reaches 25°C.
- Cooling Mode: If the Start Temperature is set higher than the Stop Temperature (e.g., Start 25°C, Stop 20°C), the device operates in cooling mode. The appliance will turn ON when the measured temperature rises to 25°C and turn OFF when it drops to 20°C.
Figure 6.1: Examples of the LCD display in Temperature Control Mode and different Timing Modes (F01, F02, F03, F04).
6.2 Timing Functions (F01-F04)
Press the MODE button repeatedly to cycle through the different timing modes (F01, F02, F03, F04). Once in a timing mode, press SET to adjust the time parameters using UP and DOWN buttons. The time range is 0-99 hours and 59 minutes.
- F01 - Cycle Timer Mode: The output will turn ON for a set duration (ON time) and then turn OFF for another set duration (OFF time), repeating the cycle.
- F02 - Countdown ON Mode: The output will remain OFF for a set countdown period, and then turn ON and stay ON indefinitely.
- F03 - Countdown OFF Mode: The output will remain ON for a set countdown period, and then turn OFF and stay OFF indefinitely.
- F04 - Countdown ON/OFF Mode: The output will turn ON for a set duration (CD ON time) and then turn OFF for another set duration (CD OFF time), completing a single cycle.
6.3 Temperature Calibration
If you find the measured temperature to be inaccurate compared to a known reference thermometer, you can calibrate the device:
- With the device in normal operating mode (displaying measured temperature), press and hold the SET button for approximately 3 seconds until the display changes to show 'CAL' or a calibration value.
- Use the UP and DOWN buttons to adjust the calibration value (from -9.9°C to 9.9°C). A positive value increases the displayed temperature, a negative value decreases it.
- Press SET again to save the calibration and exit.
6.4 Reset Function
To restore the device to its factory default settings, locate the small 'Reset' button (often a small pinhole) and press it with a pointed object. This will clear all custom settings and return the device to its initial state.
7. Maintenance
- Cleaning: Wipe the device with a soft, dry cloth. Do not use abrasive cleaners or immerse the unit in water.
- Sensor Care: Ensure the temperature sensor is clean and free from debris. Avoid bending or damaging the sensor cable.
- Storage: When not in use for extended periods, store the device in a cool, dry place away from direct sunlight.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not power on. | No power from outlet; device faulty. | Check power outlet with another appliance. Ensure the device is properly plugged in. If still no power, contact support. |
| Temperature reading is inaccurate. | Sensor placement; calibration needed. | Relocate sensor away from direct heat/cold sources. Perform temperature calibration as described in Section 6.3. |
| Appliance not turning ON/OFF at set temperatures. | Incorrect start/stop temperature settings; heating/cooling mode misconfigured. | Review and adjust start/stop temperatures (Section 6.1). Ensure the logic (Start < Stop for heating, Start > Stop for cooling) matches your intended operation. |
| Device stuck in timer mode or unresponsive. | Software glitch; incorrect mode selection. | Press the small 'Reset' button with a pointed object to return to default temperature control mode. Cycle through modes using the MODE button. |
| Output indicator not lighting up when appliance should be active. | Appliance not plugged in correctly; device fault. | Ensure the appliance is securely plugged into the thermostat. Check if the appliance itself is working by plugging it directly into a wall outlet. |
9. Applications
The KETOTEK KT3100 Digital Thermostat Plug is versatile and can be used in a variety of settings:
- Home: For controlling room heaters, fans, or small refrigerators.
- Incubators: Maintaining precise temperatures for hatching eggs.
- Greenhouses: Regulating temperature for optimal plant growth.
- Reptile Enclosures: Ensuring stable temperatures for pets.
- Aquaculture: Controlling water temperature for aquatic life.
- Carbon Crystal Heating: Managing heating panels.

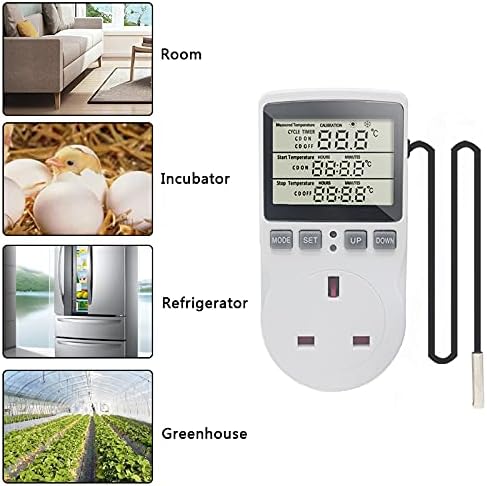

Figure 9.1: Examples of common applications for the KT3100 thermostat, including home heating, incubators, refrigeration, and greenhouses.
10. Warranty and Support
KETOTEK products are designed for reliability and performance. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. For warranty claims, technical support, or any questions regarding the operation of your KT3100 Digital Thermostat Plug, please refer to the contact information provided with your purchase or visit the official KETOTEK website.
