Introduction
This manual provides essential information for the safe operation, assembly, and maintenance of your Costzon 2-Seater 12V Electric Ride-on Truck. Please read all instructions carefully before use to ensure a safe and enjoyable experience for your child.
Safety Information
- Always supervise children when operating the ride-on truck.
- Ensure the child is securely fastened with the seatbelt before operation.
- Do not operate the vehicle near stairs, steep inclines, public roads, or swimming pools.
- The maximum weight capacity for this vehicle is 110 lbs (approximately 50 kg).
- Recommended age for use is 3 to 8 years.
- Only use the provided charger and battery. Do not modify the electrical system.
- Regularly inspect the vehicle for damage, loose parts, or worn components.
Product Features
Dual Control Modes
The ride-on truck offers two methods of control: manual operation by the child using the steering wheel and foot pedal, or parental control via the included 2.4G remote. The parental remote control always overrides manual operation for enhanced safety.
Image: Illustration of the remote control and the foot pedal, highlighting the two operational modes.
Enhanced Safety & Smooth Ride
Equipped with front and rear spring suspension, this truck ensures a smooth ride over various terrains. The slow start function prevents sudden acceleration, protecting the child from jolts. A secure seatbelt and lockable, openable doors further enhance safety during play.
Image: Graph demonstrating the slow start function for safety.
Realistic Driving Experience
The truck features realistic details such as a grid front window, working steering wheel, engine sounds upon power-up, a horn, and flashing LED lights. It also includes a rocking mode for additional entertainment.

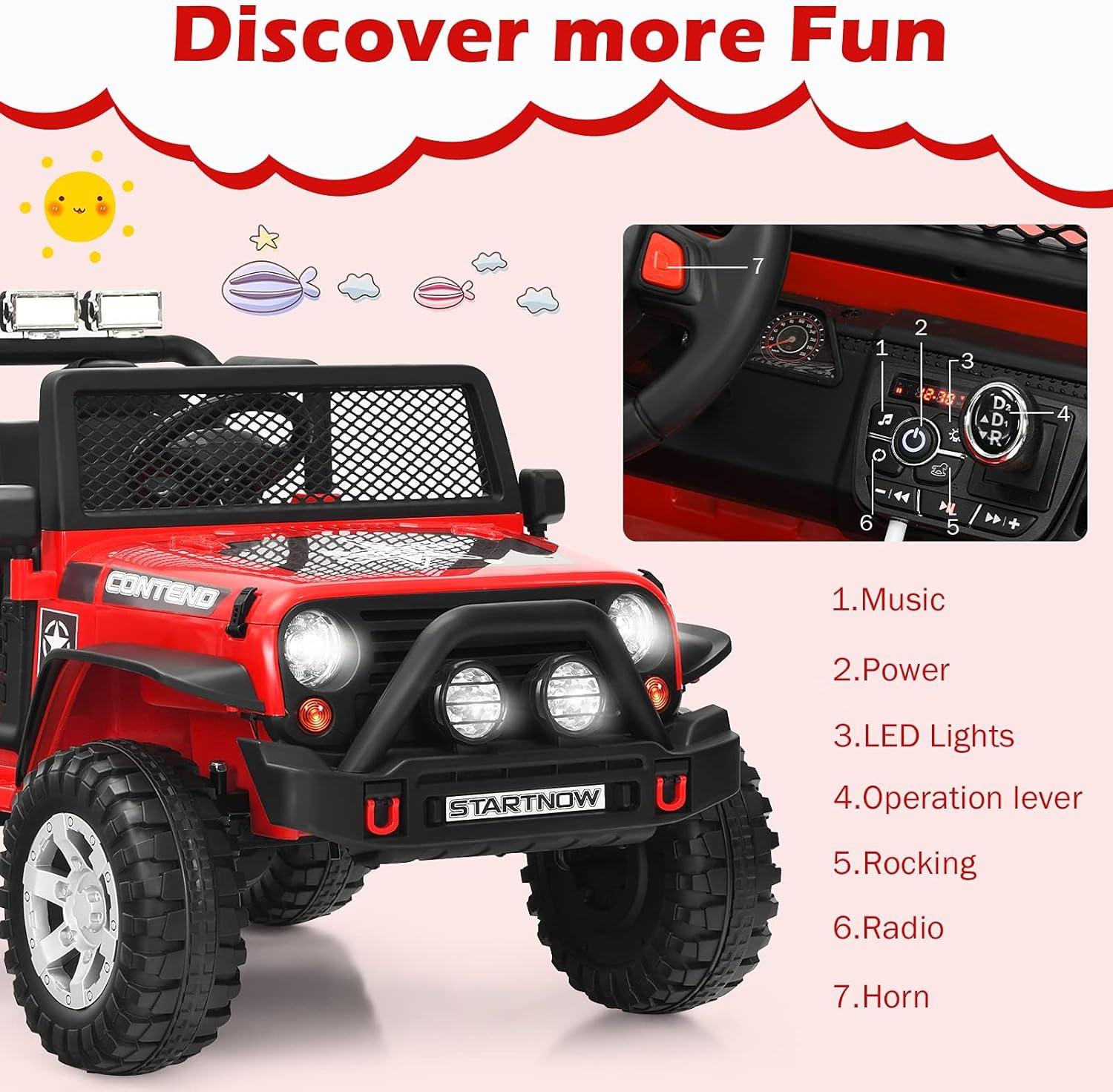

Image: Detailed view of the dashboard controls and front lights.
Music & Audio Options
An integrated control system provides music, MP3, USB outlet, and wireless connection functions, allowing children to enjoy their favorite audio while riding. The horn also produces sound.
Image: Overview of the entertainment features on the dashboard.
Durable Design & Capacity
Constructed with a solid PP cover, this ride-on truck is designed for lasting enjoyment. It accommodates two children with a maximum weight of 110 lbs. The vehicle is capable of climbing inclines up to 30 degrees.
Image: Close-up of the comfortable seat with safety belt and easy-grip handle.
Setup and Assembly
The Costzon 2-Seater Ride-on Truck requires assembly. Please follow the detailed instructions provided in the separate assembly guide included with your product. Typically, assembly takes approximately 30 minutes to 2 hours, depending on familiarity with similar products.
- Unpack all components and verify against the parts list.
- Assemble the wheels, steering column, and seats as per the guide.
- Connect the battery terminals.
- Perform an initial charge of 8-12 hours before the first use.
Operating Instructions
1. Powering On/Off
- Press and hold the power button on the dashboard to turn the vehicle on or off.
2. Driving Modes
- Manual Driving: The child can operate the vehicle using the steering wheel and the foot pedal. The gear selector (D/R) allows for forward and reverse motion.
- Parental Remote Control: Use the 2.4G remote control to steer, accelerate, brake, and change speeds. The remote control takes precedence over manual controls.
3. Speed Control
- The vehicle has multiple speed settings (1.24-3.73 MPH). Adjust speed using the controls on the dashboard or the parental remote.
4. Lights and Sounds
- Press the horn button on the steering wheel for sound.
- Activate LED headlights and taillights using the dedicated button on the dashboard.
- Use the music controls for pre-loaded songs, FM radio, or connect external devices via MP3/USB/Wireless Connection.
5. Rocking Mode
- Engage the rocking mode via the dashboard button for stationary entertainment.
Video: Official product video demonstrating the features and operation of the Costzon Kids Ride on Truck.
Maintenance
- Charging: Charge the battery for 8-12 hours for approximately 1 hour of playtime. Do not overcharge. The charging port is conveniently located.
- Cleaning: Wipe the vehicle with a damp cloth. Avoid using harsh chemicals or abrasive cleaners.
- Storage: Store the vehicle in a dry, covered area when not in use. Disconnect the battery if storing for extended periods.
- Tire Care: The wide, wear-resistant tires are designed for various surfaces. Inspect them periodically for damage.
Image: Close-up of the built-in charging port.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Vehicle does not move | Low battery, loose battery connection, motor issue. | Charge battery fully. Check all electrical connections. Contact customer support if issue persists. |
| Remote control not working | Remote batteries dead, remote not paired. | Replace remote batteries (1.5V AAA). Refer to pairing instructions in the full manual. |
| Vehicle moves slowly | Low battery, overloaded vehicle, rough terrain. | Charge battery. Reduce load. Operate on smoother surfaces. |
Specifications
- Product Dimensions: 45 x 28.5 x 28.7 inches
- Item Weight: 44 pounds
- Recommended Age: 3 - 8 years
- Maximum Weight Capacity: 110 lbs
- Battery: 12V
- Speed Range: 1.24-3.73 MPH
- Manufacturer: Costzon

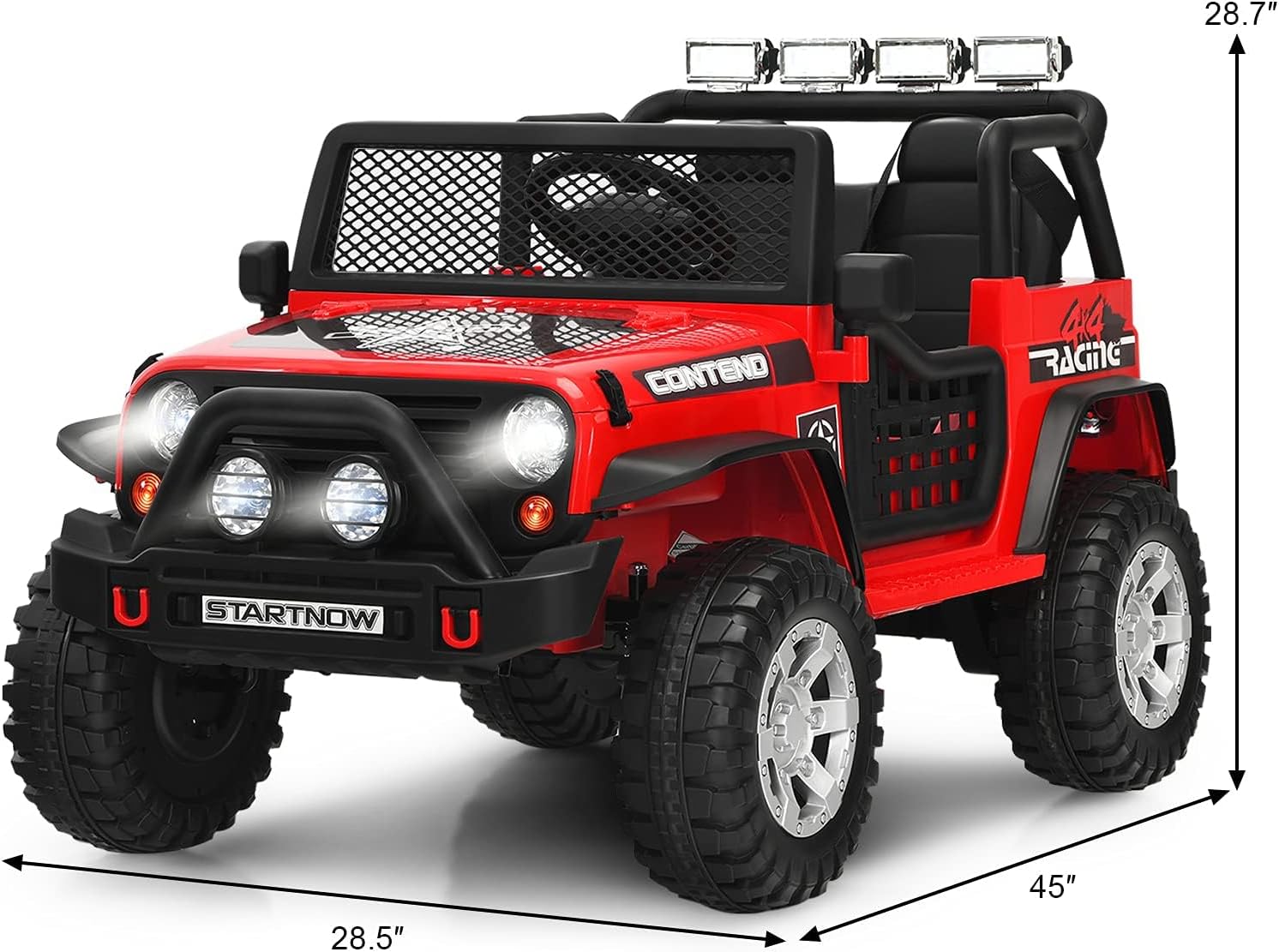

Image: Product dimensions diagram.
Warranty and Support
For warranty information, technical support, or replacement parts, please contact Costzon customer service. Refer to your purchase documentation for specific warranty terms and contact details.
Customer Service: Please visit the official Costzon website or refer to the contact information provided in your product packaging.
