COSTWAY Portable Washing Machine User Manual

1. Product Overview

The COSTWAY Portable Washing Machine is a semi-automatic twin tub appliance designed for compact living spaces such as dormitories, apartments, and RVs. It combines washing and spinning functions in one unit, offering convenience and efficiency for small to medium laundry loads.

Figure 1.1: Front view of the COSTWAY Portable Washing Machine, showcasing its compact design and twin tub layout.

Key features include a powerful motor for effective cleaning, a built-in drain pump for easy water disposal, and user-friendly control knobs for setting wash and spin times. Its durable PP material construction ensures rust resistance and long service life.

Figure 1.2: The portable design makes this washing machine suitable for various living environments, including RVs, dorms, and apartments.

2. Safety Instructions

Please read all instructions carefully before using the appliance to ensure safe operation and prevent damage. Keep this manual for future reference.

• Ensure the power supply voltage matches the appliance's requirements (120V).
• Do not operate the machine with a damaged power cord or plug. The power plug is UL certified for electrical safety.
• Keep hands and feet away from the moving parts during operation, especially the pulsator and spin tub.
• Do not immerse the appliance, cord, or plug in water or other liquids.
• Always unplug the machine from the power outlet when not in use, before cleaning, or before performing any maintenance.
• Place the machine on a stable, level surface to prevent shaking and tipping during operation.
• Do not wash waterproof clothing or items that float easily in the spin dryer, as this may cause imbalance and excessive vibration.
• Keep children and pets away from the appliance during operation.
• Do not overload the washer or spinner beyond their specified capacities.

3. Product Components

Familiarize yourself with the main parts and accessories of your COSTWAY Portable Washing Machine:

• Wash Tub: For washing clothes.
• Spin Tub: For spinning clothes to remove excess water.
• Wash Timer Knob: Sets the washing duration (0-15 minutes).
• Wash Selector Knob: Selects wash mode (Gentle, Normal, Drain).
• Spin Timer Knob: Sets the spinning duration (0-5 minutes).
• Water Inlet: Connection point for the water supply hose.
• Drain Pipe: For discharging dirty water.
• Safety Cover: Placed over the spin tub for safety during operation.
• Filter Net: Collects lint and debris during washing.
• Pulsator: Located at the bottom of the wash tub, creates water currents for washing.

Figure 3.1: Close-up view of various components including the water inlet, safety cover, filter net, pulsator, power cord storage, and drain pipe.

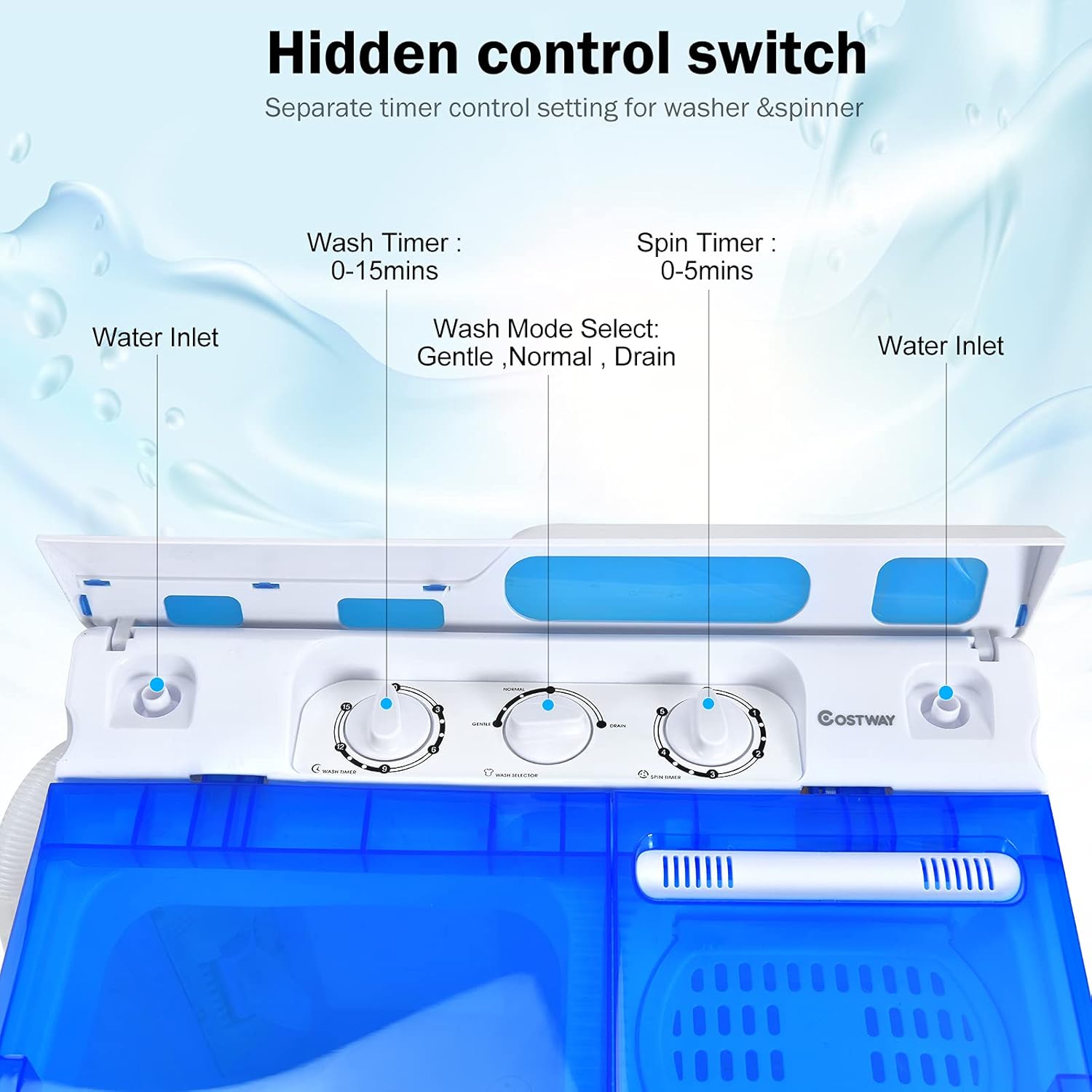

Figure 3.2: The control panel with clearly marked knobs for wash timer, wash selector, and spin timer, along with water inlets.

4. Setup

Follow these steps to set up your portable washing machine:

1. Unpacking: Carefully remove the washing machine from its packaging. Check for any damage during transit.
2. Placement: Place the machine on a firm, level surface. Ensure there is enough space around it for ventilation and operation. The compact size (21.5” L x 13.5” W x 25.5” H) allows placement in small corners.
3. Drainage: Position the drain pipe (37” length) to discharge water into a sink, bucket, or floor drain. The built-in drain pump facilitates easy water removal.
4. Water Supply: Connect the water inlet hose (46.5” length) to a water faucet and to the water inlet on the machine. Ensure connections are secure to prevent leaks.
5. Power Connection: Plug the power cord into a grounded 120V electrical outlet.

Figure 4.1: Overview of the machine's dimensions and included accessories like the drain pipe and water inlet hose, essential for proper setup.

5. Operating Instructions

This semi-automatic twin tub machine allows for separate washing and spinning cycles.

5.1. Washing Clothes

1. Load Clothes: Open the wash tub lid and place clothes inside. Do not exceed the 8 lbs washing capacity.
2. Add Water and Detergent: Fill the wash tub with the appropriate amount of water and detergent.
3. Select Wash Mode: Turn the Wash Selector Knob to your desired setting: Gentle for delicate items or Normal for regular clothes. To drain water, select Drain.
4. Set Wash Time: Turn the Wash Timer Knob to set the washing duration. The maximum wash time is 15 minutes. The machine will start washing automatically.
5. Rinse (Optional): After the wash cycle, you can drain the dirty water and refill the tub with clean water for rinsing, or transfer clothes to the spin tub for rinsing.

Figure 5.1: The intuitive control panel allows for easy selection of wash mode and timing, suitable for various fabric types.

5.2. Spinning Clothes

1. Transfer Clothes: After washing/rinsing, transfer the clothes to the spin tub. Do not exceed the 5 lbs spinning capacity. Distribute clothes evenly to prevent imbalance.
2. Place Safety Cover: Place the safety cover firmly over the clothes in the spin tub.
3. Set Spin Time: Turn the Spin Timer Knob to set the spinning duration. The maximum spin time is 5 minutes. The machine will start spinning automatically.
4. Remove Clothes: Once the spin cycle is complete, remove the clothes. They will be significantly drier, reducing drying time.

Figure 5.2: The twin tub design allows for simultaneous or sequential washing and spinning, optimizing laundry efficiency.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your washing machine.

• Cleaning the Exterior: Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Cleaning the Interior: After each use, wipe down the inside of the wash and spin tubs to prevent mildew and odors.
• Filter Net Cleaning: Regularly check and clean the filter net located in the wash tub. Remove any lint or debris to maintain efficient drainage and prevent clogging.
• Drain Pipe: Ensure the drain pipe is clear of obstructions. If the machine is not draining properly, check the drain pipe for kinks or blockages.
• Storage: If storing the machine for an extended period, ensure it is completely dry inside and out. Store in a cool, dry place.

7. Troubleshooting

If you encounter any issues with your washing machine, refer to the following common problems and solutions:

8. Specifications

Detailed technical specifications for the COSTWAY Portable Washing Machine:

Figure 8.1: Visual representation of key specifications including capacities and power ratings.

Figure 8.2: Illustration of the powerful dual motor (280W washing & 140W spinning) and built-in drain pump for efficient laundry.

9. Warranty and Support

For detailed warranty information, please refer to the warranty card included with your product or visit the official COSTWAY website. If you require technical support or have questions not covered in this manual, please contact COSTWAY customer service.

This product is designed for durability with its high-quality PP material and features a UL-certified power plug for enhanced electrical safety.
