MULMART K530-6
MULMART K530-6 MIG Welding Gun Instruction Manual
Model: K530-6
1. Introduction
This manual provides essential information for the safe and effective use of your MULMART K530-6 15FT 100Amp MIG Welding Gun. This welding gun is designed as a replacement for Lincoln Magnum 100L (K530-6) and is compatible with various Lincoln MIG welders including SP-140T/180T, MIG-Pak 140/180, Pro MIG 140/180, Weld-Pak 125HD/140HD/180HD, Power MIG 140C/180C, and EasyCore 140/180. It is suitable for a wide range of applications from home and farm projects to small shop work and auto-body repair.
Image 1.1: MULMART K530-6 MIG Welding Gun
2. Safety Information
Always prioritize safety when operating welding equipment. Failure to follow safety guidelines can result in serious injury or property damage.
- Wear appropriate personal protective equipment (PPE), including welding helmet, gloves, protective clothing, and safety shoes.
- Ensure proper ventilation in the work area to avoid inhalation of welding fumes.
- Protect bystanders from arc rays and hot metal.
- Disconnect power to the welding machine before performing any maintenance or changing components on the welding gun.
- Do not operate the welding gun if any part is damaged or worn.
- Keep the work area clean and free of flammable materials.
3. Product Overview
The MULMART K530-6 MIG Welding Gun is a robust and ergonomic tool designed for efficient MIG, Pulsed MIG, and Flux-Cored welding processes. It features a 15-foot (4.6M) cable for extended reach and is air-cooled with a 40% duty cycle at 100A CO2.
3.1 Key Features
- One-piece Modular Trigger Assembly: Molded from high heat-resistant material to withstand heat and spatter, ensuring long life and reliable operation.
- Gun Tube Design: Armored with an electrically insulated metal jacket to optimize fine wire welding performance.
- Abrasion-resistant, Extruded Rubber Jacket: Adds strength and extends the life of the cable, providing durability in demanding environments.
- Classic Curved Handle: Lightweight and balanced design offers a comfortable grip, reducing operator fatigue during prolonged use.
- Compact and Lightweight: Weighing approximately 4.44 pounds, this gun is easy to maneuver and ideal for various projects.
Image 3.1: Design and Key Specifications (Cable Length, Amperage, Wire Diameter)

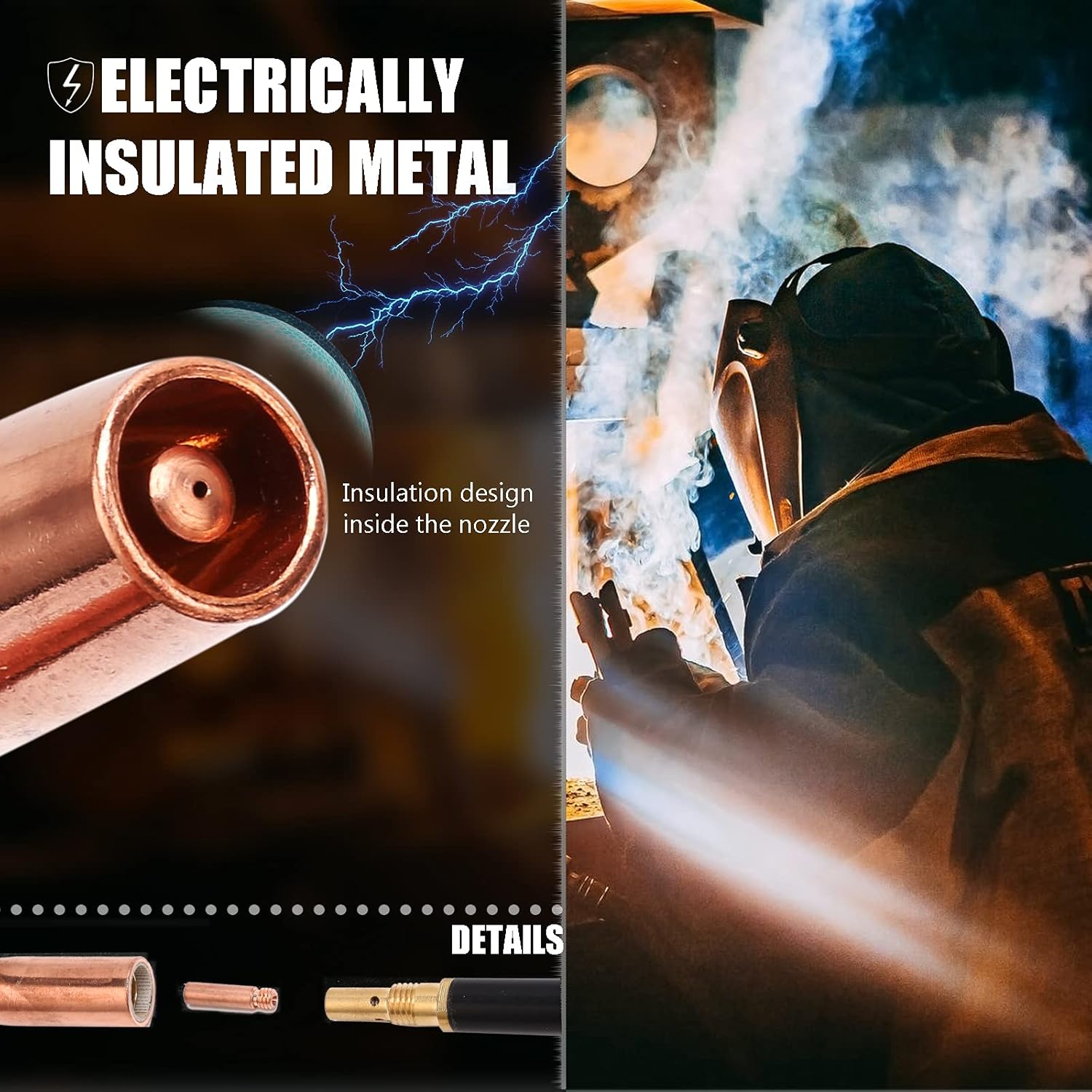

Image 3.2: Electrically Insulated Metal Jacket for Optimized Performance

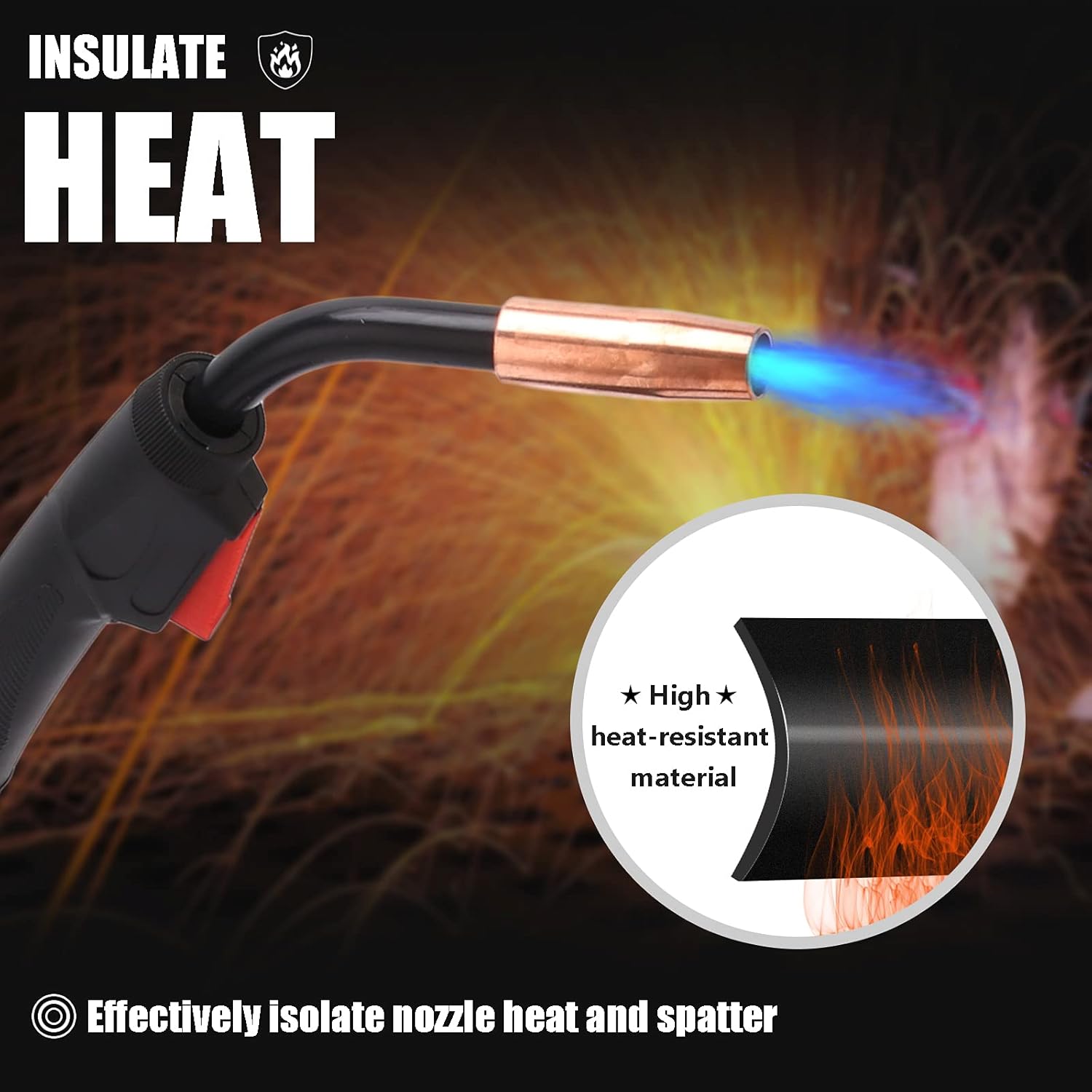

Image 3.3: High Heat-Resistant Material for Effective Heat Isolation

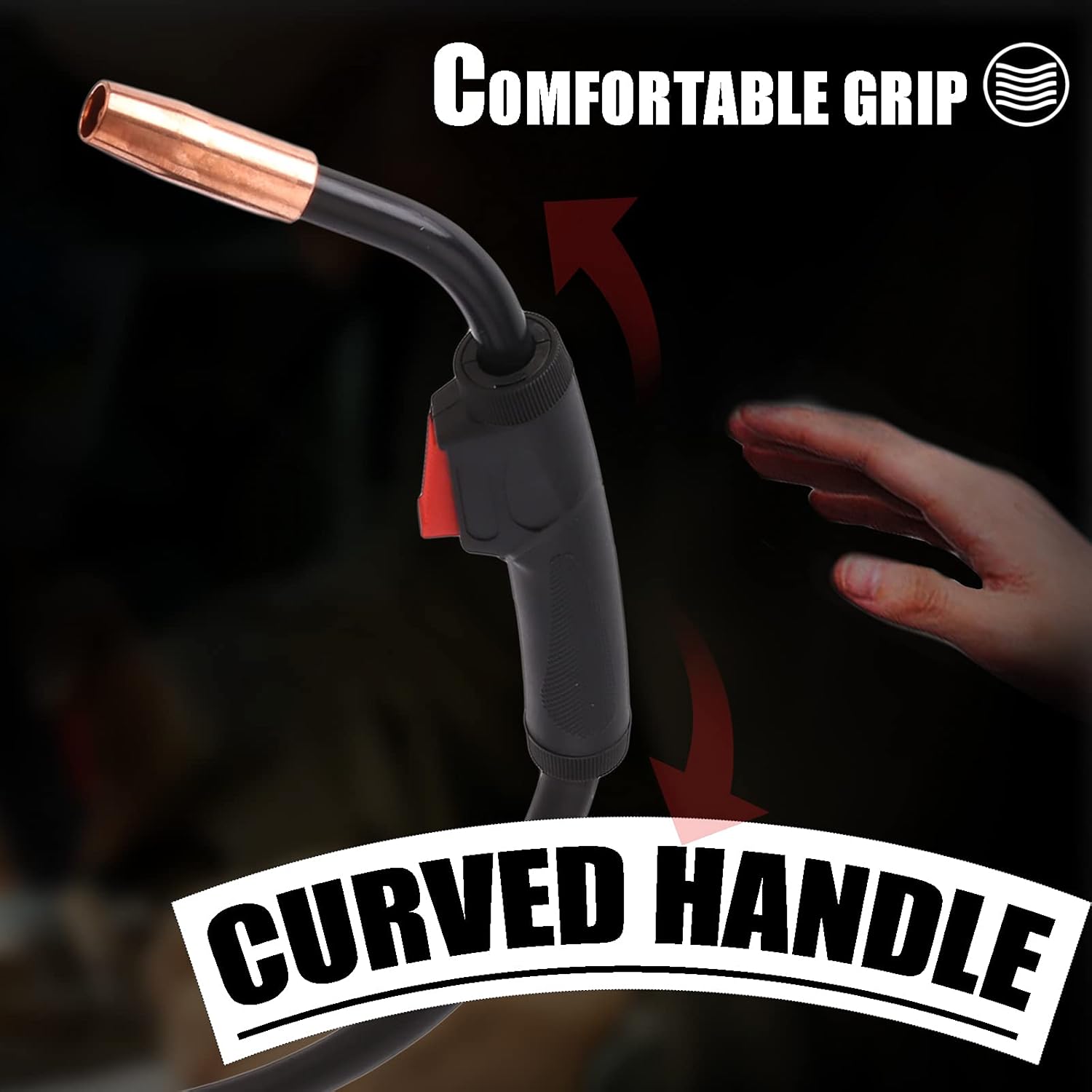

Image 3.4: Ergonomic Curved Handle for Comfortable Grip
Image 3.5: Wear-Resistant Rubber Sleeve for Enhanced Durability
Image 3.6: Compact and Lightweight Design for Easy Handling
4. Setup
Before using the welding gun, ensure it is correctly connected to your compatible welding machine. This gun is designed for direct replacement of Lincoln Magnum 100L (K530-6) MIG guns.
4.1 Installation Steps
- Power Off: Ensure your welding machine is completely powered off and unplugged from the main power supply before beginning installation.
- Remove Old Gun (if applicable): Disconnect the existing MIG welding gun from your machine. This typically involves unscrewing the main connector and detaching any trigger wire connections.
- Connect Main Connector: Insert the main connector of the MULMART K530-6 gun into the corresponding port on your welding machine. Securely tighten the connection.
- Connect Trigger Wire: Attach the trigger wire connector from the new gun to the appropriate terminal on your welding machine. Ensure a firm connection for proper trigger function.
- Install Consumables: Ensure a contact tip of the correct size for your welding wire diameter (.025-.045 in. / 0.6-1.2mm) is installed in the gun nozzle. Verify the gas nozzle is securely in place.
- Check Gas Line: Confirm that the gas line from your welding machine is properly connected and that your shielding gas cylinder is open (if using CO2 or mixed gas).
- Test Connection: Once all connections are secure, you may plug in and power on your welding machine. Perform a brief function test of the trigger and wire feed mechanism before beginning any welding operations.
5. Operating Instructions
The MULMART K530-6 MIG Welding Gun operates in conjunction with your welding machine to deliver welding current and shielding gas to the weld puddle. Always refer to your welding machine's manual for specific settings and procedures.
5.1 Basic Operation
- Prepare Workpiece: Ensure the workpiece is clean and properly grounded to the welding machine.
- Set Welding Parameters: Adjust the voltage, wire feed speed, and gas flow rate on your welding machine according to the material thickness and type of welding being performed.
- Position Gun: Hold the welding gun with a comfortable grip, ensuring the nozzle is positioned correctly over the weld joint. The curved handle is designed to reduce fatigue.
- Initiate Arc: Press the trigger on the welding gun to start the wire feed and initiate the welding arc.
- Maintain Arc: Maintain a consistent travel speed and gun angle to achieve a quality weld bead. The electrically insulated metal jacket helps optimize performance.
- Release Trigger: Release the trigger to stop the wire feed and extinguish the arc.
The gun's design, including its heat-resistant materials and durable rubber jacket, contributes to stable performance during welding operations.
Image 5.1: The welding gun is suitable for various applications including home, farm, and small shop projects.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your welding gun.
- Daily Cleaning: After each use, clean the nozzle and contact tip to remove spatter. Use anti-spatter spray to prevent buildup.
- Contact Tip Replacement: Replace the contact tip when it becomes worn or the wire feed becomes inconsistent. Ensure the new tip matches the wire diameter.
- Nozzle Inspection: Inspect the gas nozzle for damage or excessive spatter buildup. Replace if necessary to ensure proper gas shielding.
- Liner Inspection: Periodically check the wire feed liner for kinks or blockages. A worn liner can cause wire feeding issues. Replace if damaged.
- Cable Care: Avoid kinking or crushing the welding cable. Store the gun in a clean, dry place away from extreme temperatures and moisture. The abrasion-resistant rubber jacket helps protect the cable.
- Trigger Assembly: Ensure the trigger operates smoothly. Do not force the trigger if it sticks.
7. Troubleshooting
This section addresses common issues you might encounter with your welding gun. For more complex problems, consult a qualified technician or your welding machine's manual.
| Problem | Possible Cause | Solution |
|---|---|---|
| Poor Wire Feed | Worn contact tip, kinked liner, incorrect drive roll tension, wrong wire size for tip/liner. | Replace contact tip/liner, adjust drive roll tension, ensure correct wire/tip match. |
| No Arc | No power to machine, poor ground connection, faulty trigger, loose connections. | Check power supply, verify ground clamp, inspect trigger wire connection, tighten all connections. |
| Excessive Spatter | Incorrect voltage/wire speed, insufficient gas flow, dirty workpiece, worn nozzle. | Adjust machine settings, check gas flow/cylinder, clean workpiece, replace nozzle. |
| Porosity in Weld | Insufficient shielding gas, gas leaks, contaminated gas, dirty workpiece, incorrect gun angle. | Check gas flow/connections, ensure gas cylinder is full, clean workpiece, adjust gun angle. |
| Overheating Gun | Exceeding duty cycle, poor connections, damaged cable. | Allow gun to cool, check all connections for tightness, inspect cable for damage. |
8. Specifications
Technical specifications for the MULMART K530-6 MIG Welding Gun.
| Attribute | Value |
|---|---|
| Model | K530-6 |
| Cable Length | 15 FT (4.6M) |
| Rated Amperage | 100A CO2 |
| Welding Wire Diameter | .025-.045 in. (0.6-1.2mm) |
| Gun Type | Handheld |
| Processes | MIG, Pulsed MIG, and Flux-Cored |
| Cooling | Air Cooled |
| Duty Cycle | 40% with CO2 Gas |
| Item Weight | 4.44 pounds |
| Material | Copper, PVC, Rubber |
| Color | Black |
9. Warranty and Support
For information regarding product warranty, returns, or technical support, please refer to the seller's policies or contact MULMART customer service directly. Keep your purchase receipt as proof of purchase.
