1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Mpulse Ignition Coil, model MPS-MF639. Please read these instructions carefully before proceeding with installation or use to ensure optimal performance and safety.
The Mpulse Ignition Coil MPS-MF639 is engineered to deliver reliable voltage to your spark plugs, ensuring a faster rise time and improved spark duration for enhanced engine performance. It is designed to produce 15% higher spark energy compared to standard coils.

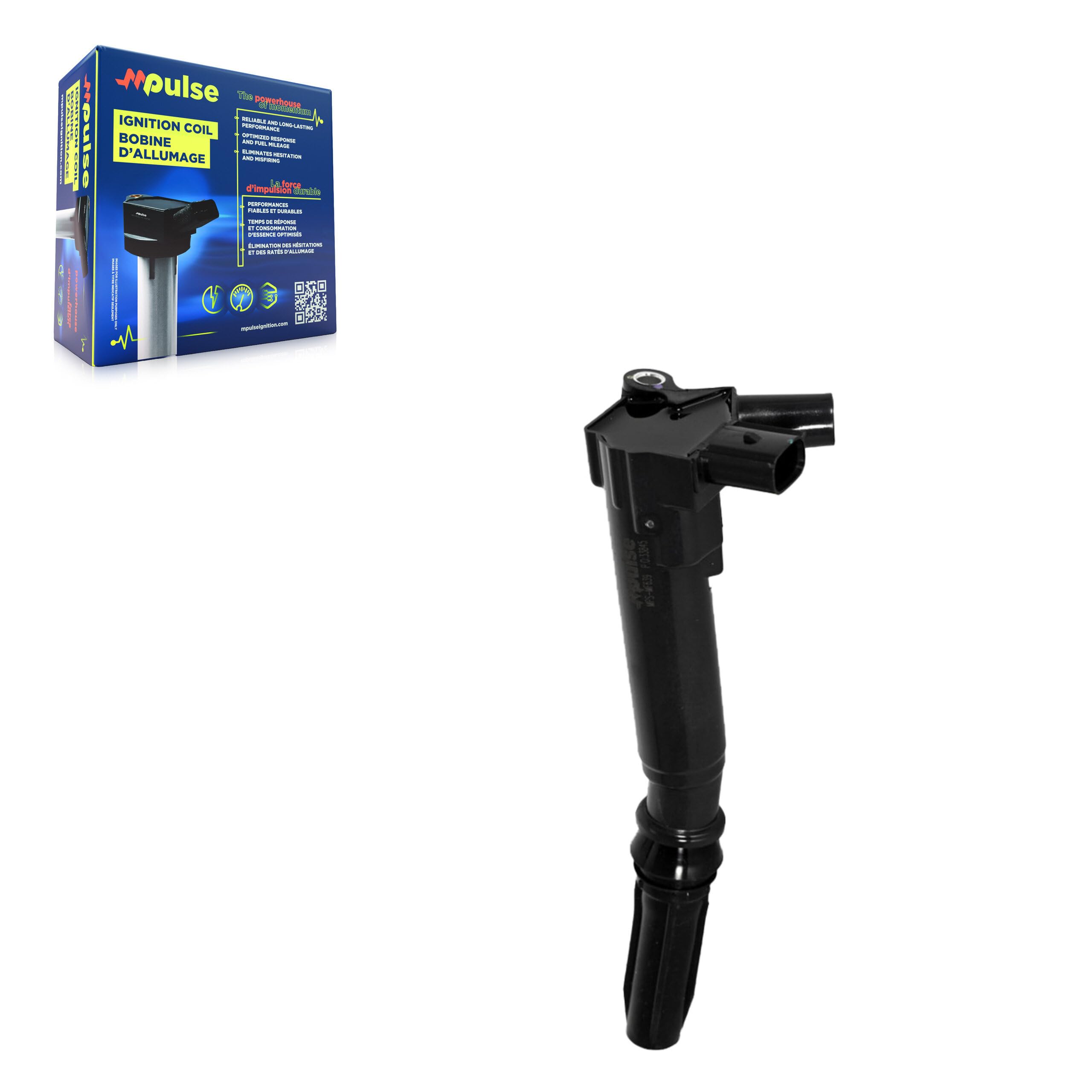

Figure 1: Mpulse Ignition Coil MPS-MF639
1.1 Vehicle Compatibility
This ignition coil (MPS-MF639) is specifically designed for the following Ford vehicles with a 6.2L engine:
- 2017 Ford E-350 Super Duty 6.2L
- 2017 Ford E-450 Super Duty 6.2L (Driver Side)
- 2011-2017 Ford F-250 Super Duty 6.2L
- 2011-2017 Ford F-350 Super Duty 6.2L
- 2010-2014 Ford F-150 6.2L
Figure 2: Vehicle Compatibility List
2. Safety Information
Always prioritize safety when working on your vehicle. Improper installation or handling of automotive components can lead to injury or damage. If you are unsure about any step, consult a qualified automotive technician.
- Disconnect Battery: Always disconnect the vehicle's negative battery terminal before starting any electrical work to prevent accidental shorts or electrical shocks.
- Wear Protective Gear: Use appropriate personal protective equipment, including safety glasses and gloves.
- Engine Cool Down: Ensure the engine is cool before working on ignition components to avoid burns.
- Avoid Contact with Hot Surfaces: Engine components can remain hot for an extended period after operation.
- Proper Tools: Use the correct tools for each step to prevent damage to the coil or surrounding components.
3. Package Contents
Verify that your package contains the following item:
- 1x Mpulse Ignition Coil MPS-MF639 (Left side, if applicable for specific models)
4. Setup and Installation
The Mpulse Ignition Coil MPS-MF639 is designed for bolt-on installation. Follow these general steps for replacement. Specific vehicle service manuals may provide more detailed instructions.
- Prepare Vehicle: Park the vehicle on a level surface, engage the parking brake, and ensure the engine is off and cool. Disconnect the negative terminal of the battery.
- Locate Ignition Coils: Identify the ignition coils on your engine. They are typically located on top of the spark plugs.
- Disconnect Electrical Connector: Carefully disconnect the electrical connector from the ignition coil by pressing the release tab and pulling. Avoid pulling on the wires.
- Remove Fasteners: Use an appropriate wrench or socket to remove the bolt(s) securing the ignition coil to the engine.
- Remove Old Coil: Gently pull the old ignition coil straight up to remove it from the spark plug. Inspect the spark plug well for any debris or oil.
- Install New Coil: Apply a small amount of dielectric grease to the inside of the new Mpulse ignition coil boot (where it connects to the spark plug). Carefully push the new coil onto the spark plug until it seats firmly.
- Secure New Coil: Reinstall the bolt(s) to secure the new ignition coil. Tighten to the manufacturer's specified torque (refer to your vehicle's service manual).
- Reconnect Electrical Connector: Reconnect the electrical connector to the new ignition coil until it clicks into place.
- Repeat for Other Coils (if necessary): If replacing multiple coils, repeat steps 3-8 for each coil.
- Reconnect Battery: Reconnect the negative battery terminal.
- Test Vehicle: Start the engine and check for proper operation. Listen for any misfires or unusual noises.
Figure 3: Mpulse Ignition Coil MPS-MF639, alternate view
5. Operating
Once installed, the Mpulse Ignition Coil MPS-MF639 operates automatically as part of your vehicle's ignition system. It is designed to convert low battery voltage into the high voltage required to create a spark across the spark plug gap, igniting the air-fuel mixture in the engine's cylinders.
Properly functioning ignition coils contribute to:
- Smooth engine idle
- Efficient fuel combustion
- Optimal engine power and acceleration
- Reduced exhaust emissions
6. Maintenance
Ignition coils are generally maintenance-free components. However, regular inspection of your vehicle's ignition system can help identify potential issues early.
- Visual Inspection: Periodically check the ignition coils and their electrical connectors for any signs of damage, corrosion, or loose connections.
- Spark Plug Replacement: Ensure spark plugs are replaced according to your vehicle manufacturer's recommended schedule. Worn spark plugs can put additional strain on ignition coils.
- Cleanliness: Keep the engine bay clean to prevent dirt and debris from accumulating around ignition components.
7. Troubleshooting
If you experience engine performance issues after installing or while using the Mpulse Ignition Coil, consider the following common troubleshooting steps:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Engine Misfire / Rough Idle | Faulty ignition coil, worn spark plug, loose electrical connection, fuel system issue. | Check coil connections. Inspect and replace spark plugs if necessary. If misfire persists, test the coil or consult a technician. |
| Check Engine Light (CEL) | Diagnostic Trouble Code (DTC) related to ignition system. | Use an OBD-II scanner to retrieve DTCs. Address the specific code (e.g., P030x for misfire). |
| Reduced Power / Acceleration | One or more coils not firing correctly. | Verify all coils are properly installed and connected. Check for misfires. |
If troubleshooting does not resolve the issue, it is recommended to seek professional diagnostic and repair services.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | MPS-MF639 |
| Brand | Mpulse |
| Installation Type | Bolt-On |
| Item Weight | 0.29 Kilograms |
| Parcel Dimensions | 25 x 10 x 7 cm |
| Manufacturer | Transit |
| Country of Origin | China |
| UPC / GTIN | 827098082042 |
| Automotive Fit Type | Vehicle Specific Fit |
9. Warranty Information
This Mpulse Ignition Coil MPS-MF639 is covered by a limited lifetime warranty against manufacturer defects. For specific details regarding warranty claims and coverage, please refer to the official Mpulse warranty policy or contact customer support.
Additionally, products purchased through Amazon.ca typically adhere to a 30-day return/replacement policy, fulfilled by Amazon.
10. Support
For further assistance, technical questions, or warranty inquiries regarding your Mpulse Ignition Coil MPS-MF639, please contact Mpulse customer support through their official channels. You may also refer to your vehicle's specific service manual for detailed installation and diagnostic procedures.
Always ensure that any work performed on your vehicle is done safely and correctly. If you are not confident in performing the installation or troubleshooting yourself, it is advisable to consult a certified automotive mechanic.
