YITAHOME 8-Piece Patio Furniture Set Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your YITAHOME 8-Piece Patio Furniture Set. Designed for versatility and comfort, this modular set allows for various configurations to suit your outdoor living space, including porches, lawns, gardens, backyards, and patios.

Figure 1.1: The YITAHOME 8-Piece Patio Furniture Set in a typical outdoor arrangement.

2. Safety Information

• Ensure all components are securely fastened before use. Regularly check and tighten all bolts and screws.
• Do not stand or jump on the furniture.
• Keep furniture away from open flames or excessive heat sources.
• Avoid placing heavy or sharp objects directly on the rattan surface to prevent damage.
• Use caution when moving assembled pieces to prevent injury or damage.
• Children should be supervised when using the furniture.

3. Package Contents

Your YITAHOME 8-Piece Patio Furniture Set includes the following components:

• 2 x Corner Chairs
• 5 x Armless Chairs
• 1 x Coffee Table with Tempered Glass Top
• Seat Cushions (for all chairs)
• Back Cushions (for all chairs)
• 2 x Throw Pillows (Blue/White Pattern)
• 8 x Alignment Fasteners
• Assembly Hardware (bolts, washers, adjustable feet, Allen wrench)

Figure 3.1: Included throw pillows and alignment fasteners.

4. Setup and Assembly

Assembly is required for this patio furniture set. Please follow the steps below carefully. An official installation video is also provided for visual guidance.

4.1 General Assembly Steps (for Chairs and Table)

1. Unpack Components: Carefully remove all parts from the packaging. Verify all listed components and hardware are present.
2. Assemble Base Frames: For each chair and the table, connect the side panels and base using the provided bolts and Allen wrench. Ensure all connections are firm but do not overtighten initially.
3. Attach Adjustable Feet: Screw the adjustable feet into the designated holes at the bottom of each furniture piece. These feet help stabilize the furniture on uneven surfaces.


   Figure 4.1: Adjustable feet for leveling.

4. Secure Connections: Once all panels are aligned, fully tighten all bolts.
5. Place Cushions: Position the seat and back cushions on the chairs. The cushions feature anti-slip horn buckles to prevent displacement.


   Figure 4.2: Anti-slip horn buckle design for cushion stability.
6. Install Tabletop: For the coffee table, carefully place the tempered glass top onto the assembled frame.

4.2 Connecting Modular Pieces

Use the provided alignment fasteners to connect individual chair pieces, creating your desired sectional configuration. These fasteners slide into the base of adjacent pieces to hold them together securely.

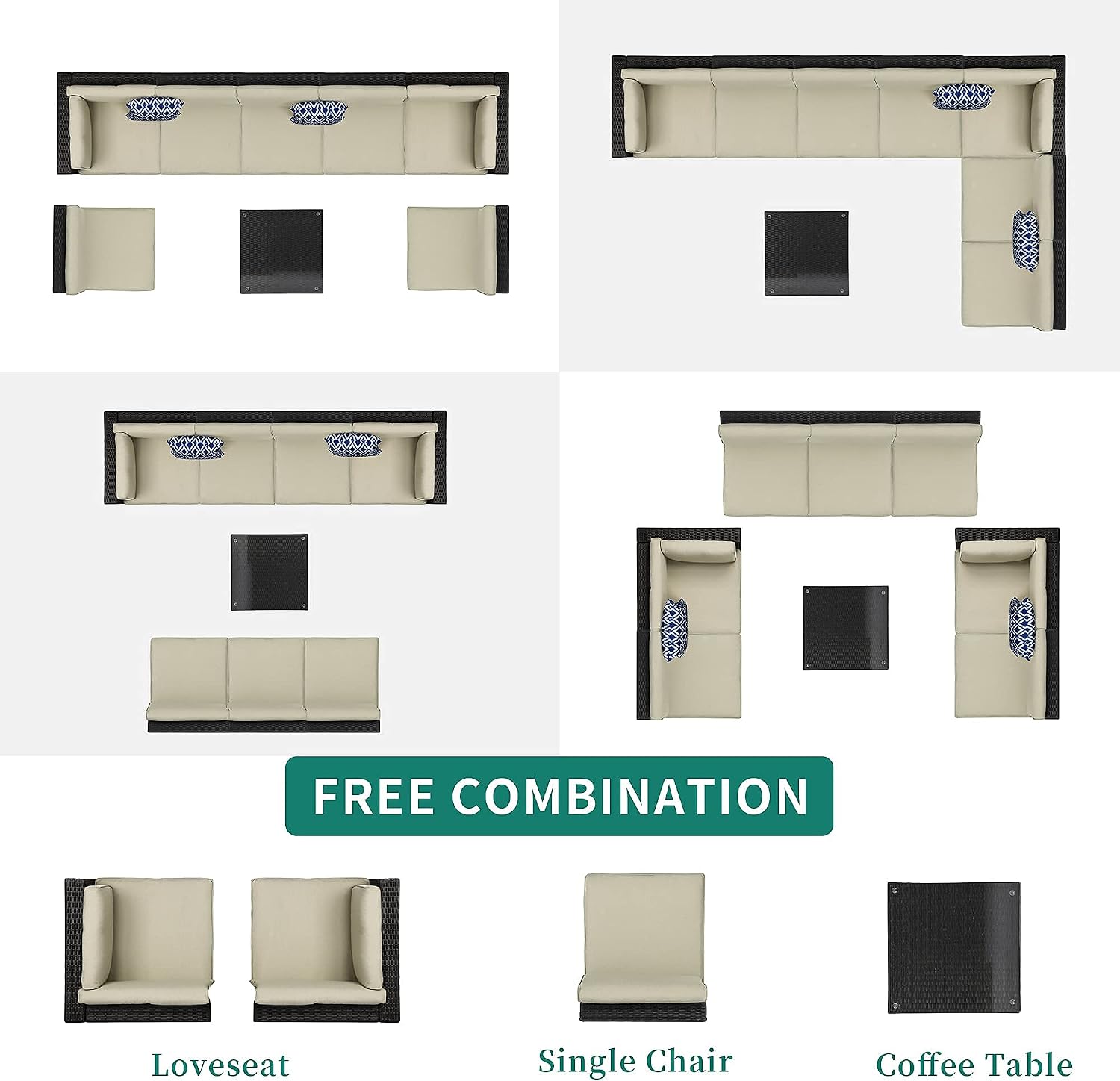

Figure 4.3: Examples of free combination layouts for the modular set.

5. Operation and Customization

The YITAHOME Patio Furniture Set is designed for maximum flexibility. Its modular nature allows you to freely customize the layout to fit your specific needs and space. You can arrange the corner chairs and armless chairs into various configurations, such as a large sectional sofa, separate seating areas, or a combination with the coffee table.

Figure 5.1: Enjoying the customizable patio furniture set.

6. Maintenance and Care

• Cleaning Rattan: Wipe the rattan surfaces with a dry cloth to remove dust and debris. For deeper cleaning, use a mild soap solution and a soft brush, then rinse thoroughly and allow to air dry completely.
• Cushion Care: The cushions are made with water-repellent fabric. For spills, blot immediately with a clean, dry cloth. For general cleaning, remove cushion covers (if applicable) and hand wash with mild soap and water, or spot clean. Allow to air dry completely before reattaching. Avoid machine washing or harsh detergents.
• Glass Tabletop: Clean the tempered glass tabletop with a glass cleaner and a soft cloth.
• Weather Protection: To prolong the life and appearance of your furniture, it is recommended to cover the set with a weather-resistant cover during prolonged periods of non-use or harsh weather conditions (heavy rain, snow, intense sun).
• Seasonal Storage: During off-season, store cushions in a dry, protected area to prevent mildew and fading.

7. Troubleshooting

8. Specifications

• Brand: YITAHOME
• Model Number: FTPLPB-0057/0058/0059
• Material: PE Rattan, Steel Frame, Tempered Glass, Polyester Fabric (Cushions)
• Color: Black (Rattan), Beige (Cushions)
• Item Weight: Approximately 65 pounds (entire set)
• Product Dimensions (Individual Piece - Armless Chair): 30 x 26 x 26 inches (L x W x H)
• Cushion Thickness: 3.1 inches (as per product images)


  Figure 8.1: Key features including cushion thickness.

• UPC: 810079392087

9. Warranty and Support

YITAHOME is committed to providing high-quality products. For any questions, concerns, or issues regarding your patio furniture set, please contact YITAHOME customer support. Please have your purchase details and model number ready for faster assistance.

Contact information can typically be found on the retailer's website or your purchase invoice.
