Introduction
Welcome to your new Leo Jaymz DIY Single Cut Electric Guitar Kit. This manual provides detailed instructions for assembling, operating, maintaining, and troubleshooting your electric guitar kit. Please read through this manual carefully before beginning assembly to ensure a smooth and successful build.
This kit allows you to craft a personalized instrument from start to finish, providing a rewarding experience for musicians and hobbyists alike.
Package Contents
Your Leo Jaymz DIY Single Cut Electric Guitar Kit (LP Hollow) includes all necessary components for assembly. Please verify that all parts listed below are present before starting.
The kit typically includes:
- Semi-Hollow Mahogany Body with Flame Maple Veneer Top

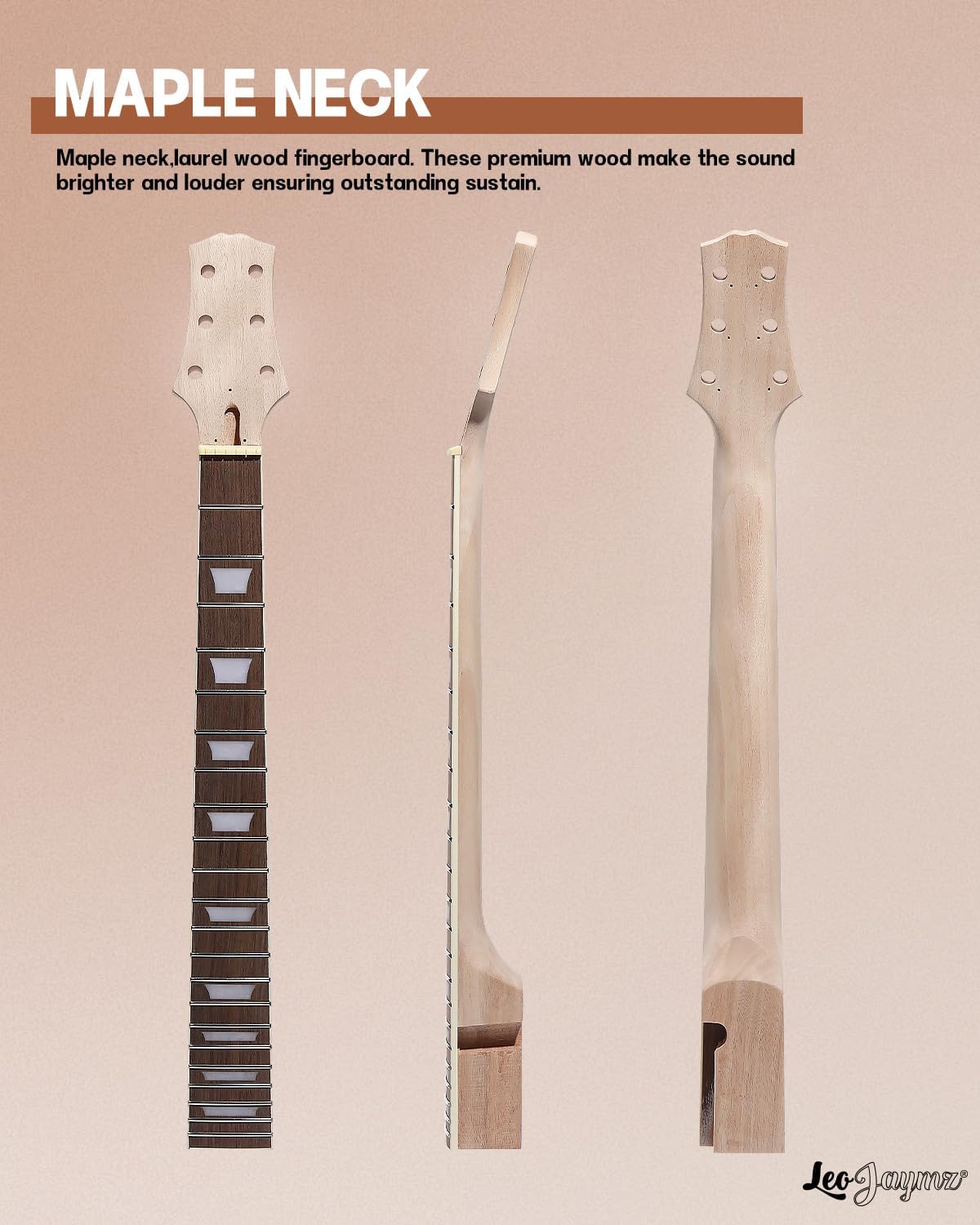

- Mahogany Neck with Rosewood Fingerboard (24.72" Scale, 22 Frets)
- 2 Humbucker Pickups
- Tune-o-Matic Bridge
- Tuning Pegs (6 alloy tuning pegs)
- All necessary wiring, cables, and screws
- Control Knobs
- Guitar Strap
- Copper Foil Tape
- Allen Wrench
- Output Jack
- Switch
Setup and Assembly
This DIY kit is designed for straightforward assembly with plug-in connections, minimizing the need for soldering. Follow these steps carefully.
1. Body and Neck Preparation

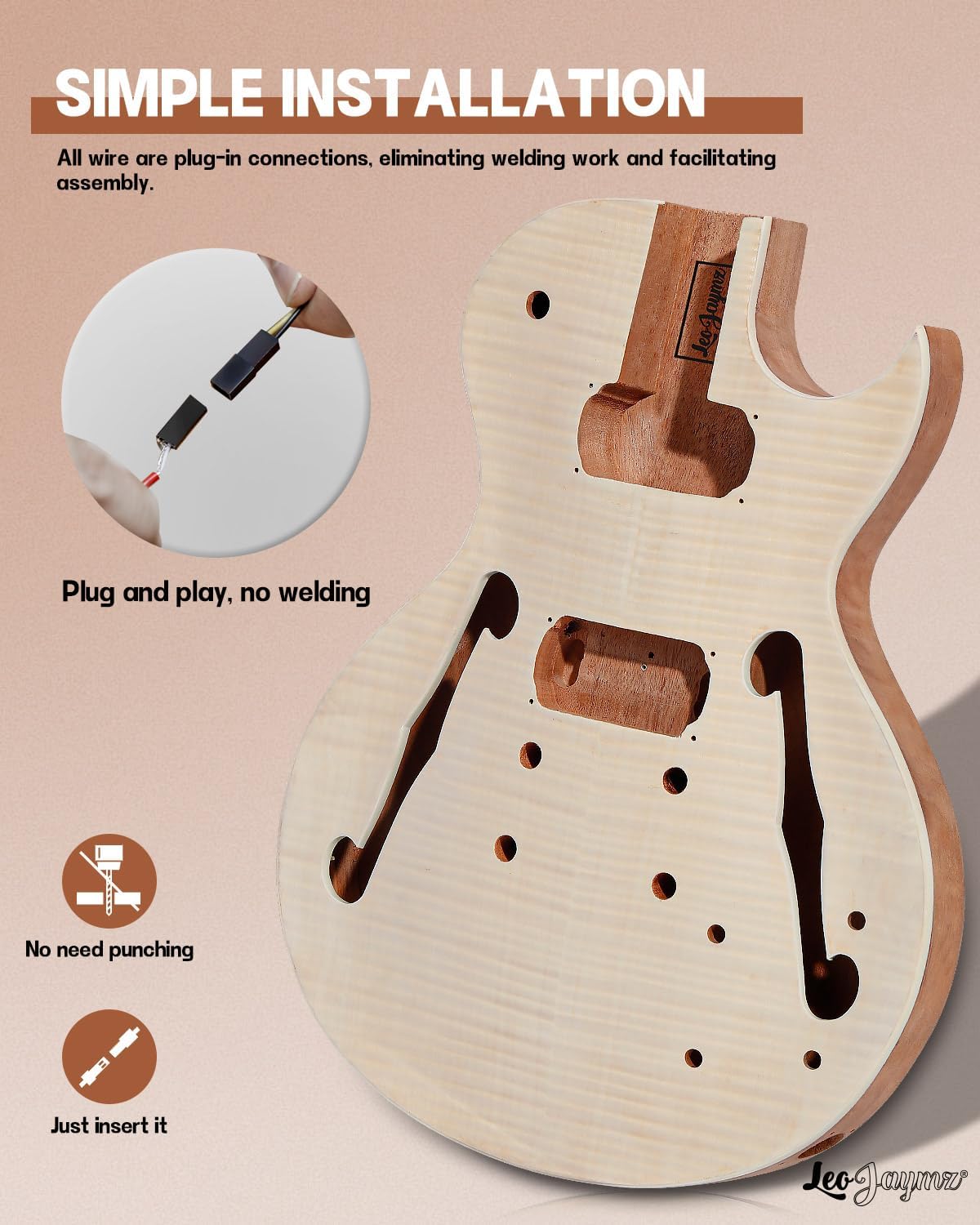

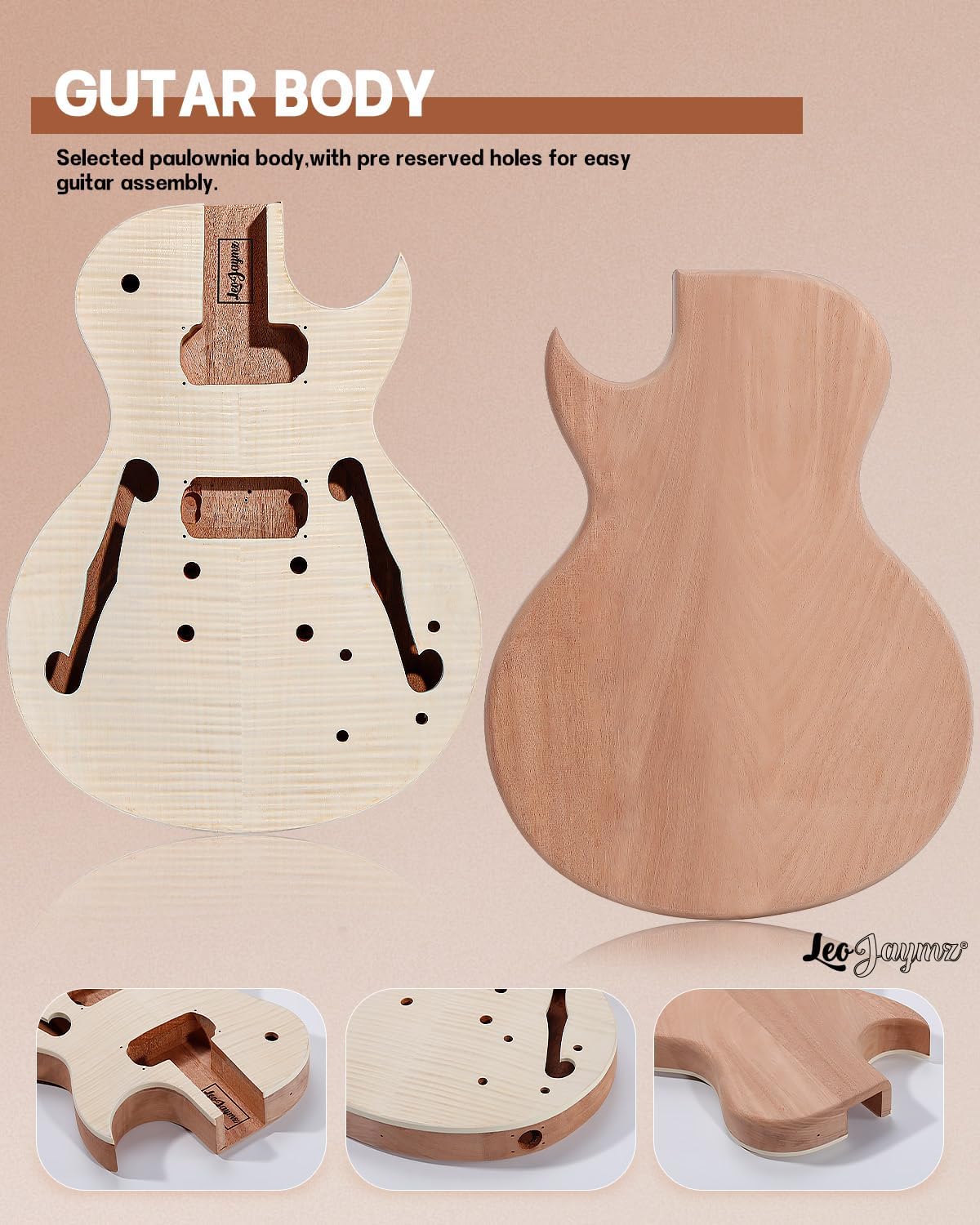

The guitar body and neck are pre-drilled and routed for easy assembly. The mahogany body with flame maple veneer top and mahogany neck with rosewood fingerboard are ready for finishing and component installation.
The headstock comes in an unshaped form, allowing for custom design. A template is typically included for common headstock shapes, or you can create your own unique design. Once shaped, you can varnish or paint it to your preference.
2. Electronics Installation
All wiring connections are plug-and-play, eliminating the need for soldering. Connect the pickups, control knobs, and output jack according to the provided diagram.
Ensure all connections are secure to prevent signal loss or interference.
3. Hardware Installation
Install the Tune-o-Matic bridge, tuning pegs, and other hardware components. The kit includes all necessary screws and fasteners.
For optimal performance, ensure the bridge is correctly positioned and secured. The tuning pegs should be installed firmly to maintain tuning stability.
4. Stringing and Initial Setup
Once all components are assembled, install the guitar strings. Perform an initial setup, including adjusting string action and intonation. While the kit provides basic components, some builders may choose to upgrade parts like the nut or bridge for enhanced playability and tone.
Operating Your Guitar
After successful assembly and initial setup, your Leo Jaymz electric guitar is ready to play. Connect it to an amplifier using a standard guitar cable.
Controls:
- Volume Knobs: Control the output volume of each pickup.
- Tone Knobs: Adjust the tonal characteristics (treble/bass) of each pickup.
- Pickup Selector Switch: Select between the neck pickup, bridge pickup, or both.
Experiment with different control settings to find your desired sound. The humbucker pickups provide a powerful and clear tone suitable for various music genres.
Maintenance
Regular maintenance will ensure the longevity and optimal performance of your guitar.
- Cleaning: Wipe down the body, neck, and strings after each use with a soft, dry cloth to remove sweat and grime.
- String Replacement: Replace strings regularly, typically every 1-3 months depending on usage, to maintain tone and playability.
- Fretboard Care: Condition the rosewood fretboard periodically (e.g., every 6 months) with a suitable fretboard oil to prevent drying and cracking.
- Hardware Check: Periodically check all screws and hardware for tightness. Loose components can affect tuning stability and tone.
- Fret Leveling: For advanced builders, occasional fret leveling and crowning may be necessary to ensure optimal playability and eliminate fret buzz.
Troubleshooting
If you encounter any issues with your guitar, refer to the following common troubleshooting tips:
| Problem | Possible Cause | Solution |
|---|---|---|
| No Sound / Low Output | Loose wiring connection, faulty pickup, faulty cable, amplifier issue. | Check all plug-in connections. Test with a different cable and amplifier. Inspect pickups for damage. |
| Poor Tuning Stability | Loose tuning pegs, improperly installed strings, nut issues. | Ensure tuning pegs are tight. Re-string properly. Consider upgrading the nut if issues persist. |
| Fret Buzz | Uneven frets, low action, warped neck. | Adjust string action at the bridge. Check neck relief and adjust truss rod if necessary. Fret leveling may be required. |
| Scratchy Pots / Controls | Dust or debris in potentiometers. | Apply contact cleaner to the potentiometers. |
If you are unable to resolve an issue, consider consulting a professional guitar technician.
Specifications
Key specifications for the Leo Jaymz DIY Single Cut Electric Guitar Kit (LP Hollow):
- Body Material: Semi-Hollow Mahogany with Flame Maple Veneer Top
- Neck Material: Mahogany
- Fingerboard Material: Rosewood
- Scale Length: 24.72 inches
- Frets: 22
- Pickups: 2 Humbuckers (H-H configuration)
- Bridge: Tune-o-Matic
- Number of Strings: 6
- Hand Orientation: Right
- Item Weight: 9.53 pounds
- Package Dimensions: 29.25 x 20.25 x 3.25 inches
Warranty and Support
Leo Jaymz stands behind the quality of its products. For specific warranty information and support inquiries, please refer to the official Leo Jaymz website or contact their customer service directly.
For additional resources and community support, consider exploring online forums and communities dedicated to DIY guitar building. Many enthusiasts share tips, tricks, and solutions for common building challenges.
