1. Introduction
Thank you for choosing the Kinder King 2-in-1 Convertible Baby Stroller. This versatile stroller is designed to provide comfort and safety for your child from newborn to toddler stages. It features a convertible seat that transforms into a bassinet, a reversible design, adjustable canopy, and an anti-shock system for smooth rides. Please read this manual thoroughly before assembly and use to ensure proper operation and your child's safety.
Image 1.1: The Kinder King 2-in-1 Convertible Baby Stroller in Light Grey, showcasing its versatile design and included diaper bag.
2. Safety Information
WARNING: Failure to follow these warnings and instructions could result in serious injury or death.
- Always use the harness system to secure your child in the stroller.
- Never leave your child unattended in the stroller.
- Ensure the stroller is fully open and locked before placing a child in it.
- Do not overload the storage basket or attach items to the handle, as this can cause the stroller to become unstable.
- Avoid placing hot liquids or heavy objects in the cup holder.
- Always engage the brakes when the stroller is stationary.
- Keep children clear of moving parts when making adjustments.
- This stroller is suitable for children from 0-36 months, with a maximum weight recommendation of 50 pounds.
- Do not use this stroller with a car seat. It is not car seat compatible.
3. Included Components
The Kinder King 2-in-1 Convertible Baby Stroller package includes the following items:
- Stroller Frame
- Convertible Seat/Bassinet Unit
- Canopy
- Front Wheels (x2)
- Rear Wheels (x2)
- Removable Foot Cover
- Diaper Bag
- Soft Cushion
- Mosquito Net
- Cup Holder
- User Manual
Image 3.1: Visual representation of included accessories such as the large storage basket, 360-degree front wheels, mosquito net, cup holder, soft cushion, and diaper bag.
4. Setup and Assembly
Follow these steps to assemble your Kinder King 2-in-1 Convertible Baby Stroller:
- Unfold the Stroller Frame: Place the folded stroller frame on a flat surface. Release any locking mechanisms and lift the handle until the frame clicks into its fully open position. Ensure all frame locks are engaged.
- Attach the Wheels:
- Insert the rear wheels into their designated slots on the rear axle until they click securely into place.
- Attach the front wheels by pushing them into the front wheel housings until they lock.
- Install the Seat/Bassinet Unit: Align the connectors on the bottom of the seat/bassinet unit with the corresponding slots on the stroller frame. Push down firmly until you hear a click, indicating it is securely attached.
- Attach the Canopy: Secure the canopy to the designated attachment points on the seat/bassinet unit. Ensure it is firmly attached to provide adequate shade.
- Attach Accessories: Install the removable foot cover, soft cushion, mosquito net, and cup holder as desired. The diaper bag can be hung on the handle.
Video 4.1: This video demonstrates the full assembly process of the Kinder King 2-in-1 Convertible Baby Stroller, including attaching wheels, the seat unit, and canopy.
Image 4.1: A visual guide illustrating the step-by-step assembly of the stroller, from attaching wheels to securing the seat unit.
5. Operating Instructions
5.1. Converting Seat to Bassinet Mode
The stroller seat can be easily converted into a bassinet for newborns. To convert, adjust the backrest and footrest to a flat position. Ensure all straps are tucked away for comfort.
5.2. Adjusting Seat Positions
The seat offers three positions: resting, semi-lying, and sitting. Locate the adjustment mechanism on the back of the seat. Press the button or lever and recline the seat to your desired angle. Ensure it locks securely into place.
Video 5.1: This video provides a detailed guide on how to adjust the seat positions and convert between seat and bassinet modes.
Image 5.1: Illustration of the three available seat positions: 100° sitting mode, 145° rest mode, and 180° bassinet mode.
5.3. Reversible Seat Function
The seat unit can be reversed to face either forward or backward. To reverse the seat, ensure your child is removed from the stroller. Locate the release buttons on both sides of the seat unit, typically near the attachment points. Press these buttons and lift the seat unit off the frame. Rotate the seat to the desired direction and reattach it until it clicks securely.
Image 5.2: This diagram illustrates the two-way push feature, allowing the baby to face outside or inside for parent-child interaction.
5.4. Folding and Unfolding
The stroller features a simple one-button folding mechanism for easy storage and transport.
- Folding: Ensure the seat is in the forward-facing position and fully upright. Locate the folding button on the handle. Press the button and follow the frame's natural collapse. Secure the folding latch.
- Unfolding: Release the folding latch. Lift the handle until the frame fully extends and locks into place.
Image 5.3: A visual guide demonstrating the two-step folding process, highlighting its ease of use and compact storage.
5.5. Brake System
The stroller is equipped with a one-foot rear wheel brake system. To engage the brakes, press down firmly on the brake pedal located near the rear wheels. To release, lift the pedal up.
5.6. Front Wheel Functionality
The front wheels can rotate 360 degrees for maneuverability or be locked into a straight position for stability on uneven terrain. Locate the locking mechanism on each front wheel assembly. Push down to lock and pull up to unlock.
5.7. Adjustable Canopy
The canopy has three adjustable positions to protect your child from sun and rain. Simply push or pull the canopy to adjust its coverage. It also features a visible skylight for observing your child.

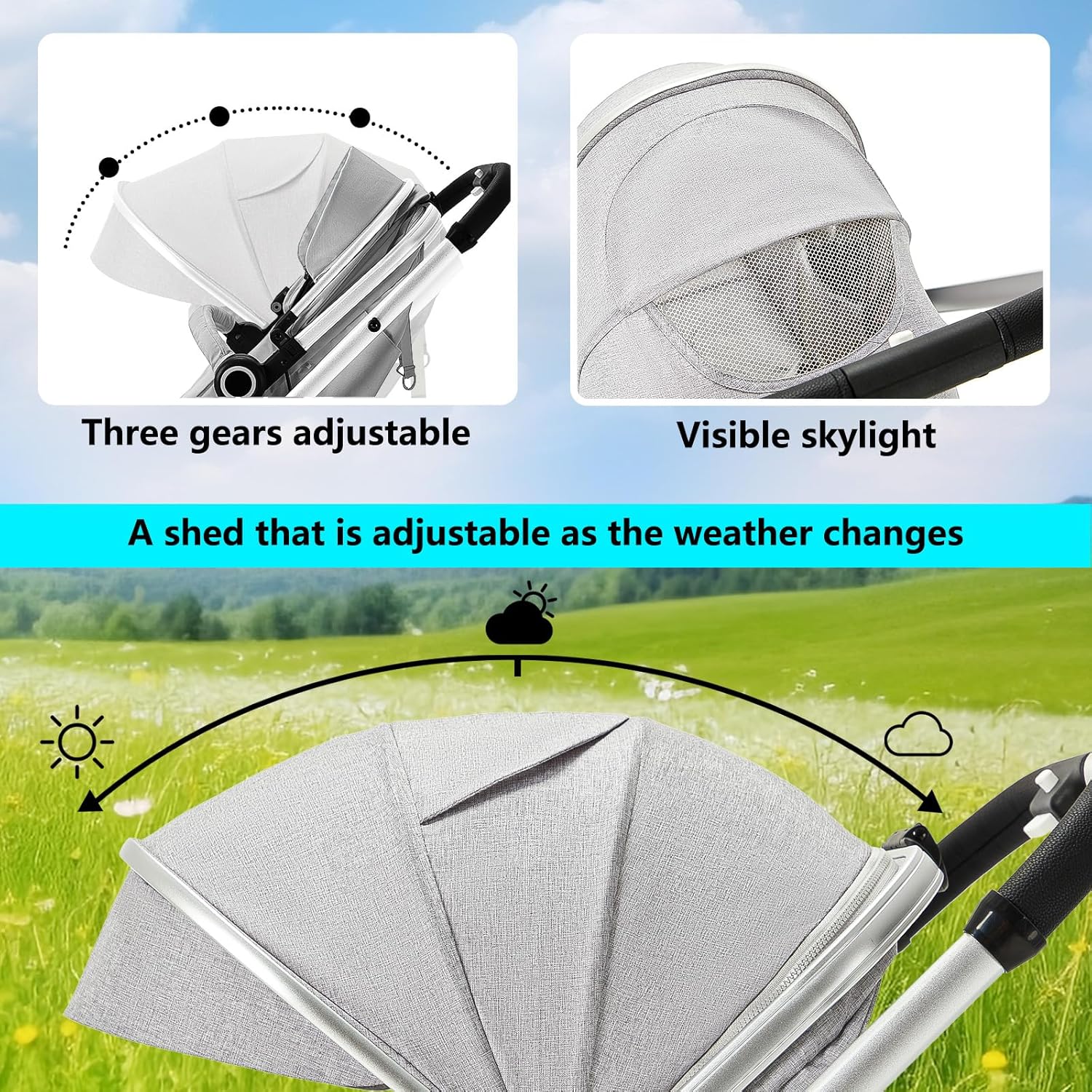

Image 5.4: This image highlights the three-gear adjustable canopy and the mesh skylight for ventilation and visibility.
5.8. 5-Point Harness System
Always secure your child using the 5-point harness. Adjust the shoulder straps, waist strap, and crotch strap to fit snugly around your child. To fasten, insert the buckles into the central locking mechanism until they click. To release, press the button on the central buckle.
Image 5.5: An overview of the stroller's features, including the secure 5-point harness system and spring suspension for various terrains.
6. Maintenance
6.1. Cleaning Instructions
- For cleaning the fabric components of the stroller, brush the stain directly with a soft brush or other suitable cleaning equipment.
- For cleaning other parts of the stroller (frame, wheels), please use household soap or a neutral detergent with a damp cloth.
- Do not use abrasive cleaners or solvents.
- Allow all parts to dry completely before folding or storing the stroller.
6.2. Storage
When not in use, store the stroller in a clean, dry place away from direct sunlight and extreme temperatures. Ensure the stroller is folded correctly to prevent damage.
7. Troubleshooting
- Stroller not folding/unfolding smoothly: Ensure all locking mechanisms are disengaged before folding. Check for any obstructions in the folding joints. Apply a small amount of silicone lubricant to moving parts if necessary.
- Wheels not rotating freely: Check for debris (e.g., hair, lint) caught in the wheel axles. Clean as needed. Ensure the front wheels are unlocked if you desire 360-degree rotation.
- Seat adjustment difficulty: Ensure the adjustment button/lever is fully pressed. Sometimes, a firm push or pull is required, especially when the product is new. Refer to Video 5.1 for visual guidance.
- Stroller feels unstable: Verify that all frame locks are securely engaged after unfolding. Ensure the seat unit is properly clicked into place on the frame. Do not exceed the maximum weight limit.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Kinder King |
| Model Number | EKK0054GR |
| Color | Light Grey |
| Material | Linen (Fabric, Canopy, Seat), Aluminum (Frame), Rubber (Tire) |
| Age Range (Description) | 0-36 months |
| Maximum Weight Recommendation | 50 Pounds |
| Item Dimensions (L x W x H) | 29"L x 25.5"W x 39"H |
| Folded Size | 41.3" x 23.6" x 8.2" |
| Item Weight | 10.93 Kilograms |
| Harness Type | 5 Point (shoulder straps, waist strap, crotch strap) |
| Number of Wheels | 4 |
| Brake System | Yes |
| Number of Cup Holders | 2 |
| Car Seat Compatible | No |
Image 8.1: Detailed dimensions of the Kinder King 2-in-1 Convertible Baby Stroller in both unfolded and folded states.
9. Warranty and Support
For warranty information, product support, or to purchase replacement parts, please contact Kinder King customer service directly. Refer to the contact information provided with your product packaging or visit the official Kinder King website.
You can also visit the Kinder King Store on Amazon for additional product details and support resources.
