FUFU Bamboo Roller Shades User Manual

1. Introduction

This user manual provides detailed instructions for the installation, operation, and maintenance of your FUFU Bamboo Roller Shades. These shades are crafted from natural bamboo materials, designed to gently filter light and enhance the aesthetic of your indoor or outdoor spaces.

The unique woven design allows for a smooth appearance and easy adjustment using the integrated pull rope mechanism. Suitable for various environments including living rooms, tea rooms, restaurants, offices, and more.

2. Safety Information

• Keep all cords and small parts out of reach of children and pets to prevent entanglement or choking hazards.
• Ensure the shades are securely mounted to prevent accidental falling.
• Do not attempt to modify the product. Unauthorized modifications may void the warranty and pose safety risks.
• Handle with care during installation to avoid damage to the product or injury.

3. Package Contents

Please verify that all components are present before beginning installation:

• Bamboo Roller Shade (1 unit)
• Mounting Hardware (hooks, screws, anchors - quantity may vary based on size)
• Installation Instructions (this manual)

4. Setup and Installation

The FUFU Bamboo Roller Shades are designed for easy installation. Please follow these steps carefully.

4.1 Confirm Mounting Type Before Measuring

Before taking measurements, determine whether you will use an Inside Mount or Outside Mount installation. This choice affects how you measure your window.

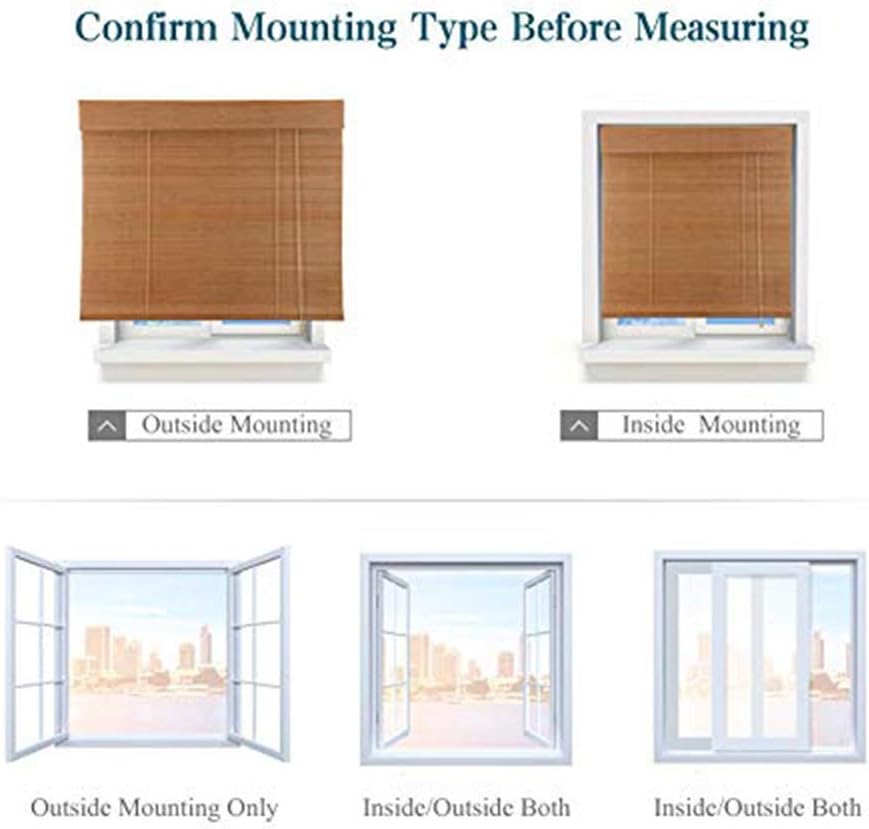

Figure 4.1: Illustration of Outside Mounting vs. Inside Mounting. Outside mounting covers the window frame, while inside mounting fits within the window recess.

• Inside Mount: The shade fits within the window frame. Requires a minimum window frame depth of 2 inches (5 cm). The shade width must be 1/4 inch (0.6 cm) narrower than the window opening.
• Outside Mount: The shade covers the entire window opening and frame.

4.2 Measurement Method

Accurate measurements are critical for proper fit and function. Use a steel measuring tape for best results.

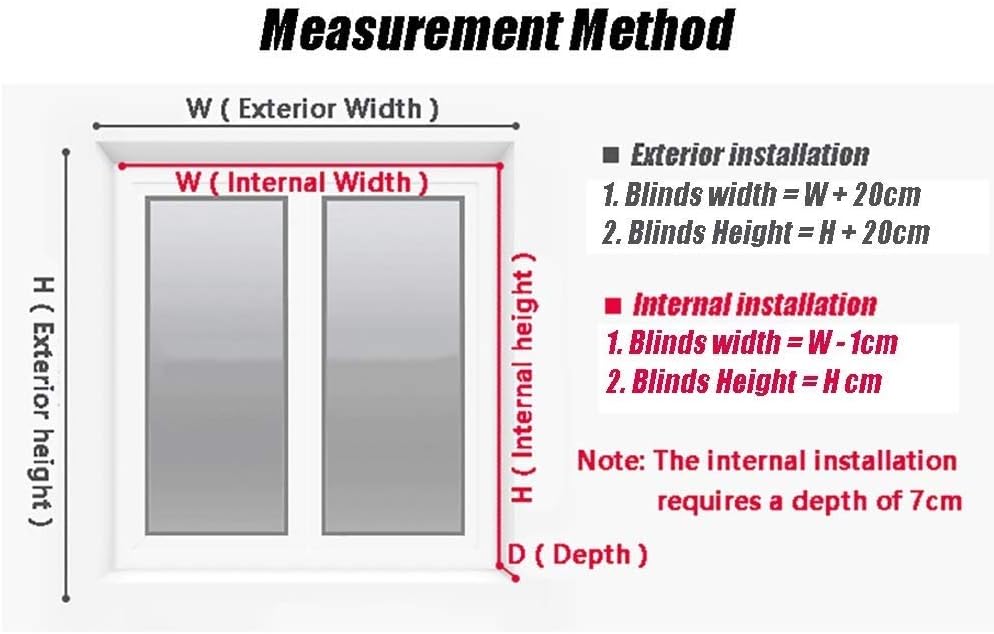

Figure 4.2: Measurement guide for both internal and external installations. W denotes width, H denotes height, and D denotes depth.

• For Internal Installation (Inside Mount):
  • Curtain width = Window width (W) - 1 cm (0.4 inches)
  • Curtain height = Window height (H)
  • Note: Internal installation requires a minimum depth (D) of 7 cm (2.75 inches).
• For External Installation (Outside Mount):
  • Blinds width = Window width (W) + 20 cm (7.9 inches)
  • Blinds height = Window height (H) + 20 cm (7.9 inches)

4.3 Installation Steps (Punch-Free Method)

These shades are designed for a simple hook installation method, often referred to as "punch-free" for internal mounts.

1. Prepare the Window: Clean the area where the shade will be installed to ensure a secure attachment.
2. Attach Mounting Brackets: Secure the provided mounting brackets to the top of the window frame (for inside mount) or above the window opening (for outside mount) using the included screws. Ensure they are level and spaced correctly to support the shade's width.
3. Hang the Shade: Carefully align the top rail of the bamboo roller shade with the installed brackets. Hook the shade onto the brackets until it clicks securely into place.
4. Test Operation: Gently pull the rope to ensure the shade rolls up and down smoothly. Adjust if necessary.

Note: The lift chain is typically installed on the right-hand side. If you require it on the left, this must be specified at the time of order.

5. Operating Instructions

Your FUFU Bamboo Roller Shade is operated using a simple pull rope mechanism.

• To Lower the Shade: Gently pull the rope downwards and slightly towards the center of the shade. The shade will begin to unroll. Release the rope at your desired height.
• To Raise the Shade: Pull the rope downwards and slightly towards the outside edge of the shade. The shade will begin to roll upwards. Release the rope when the shade reaches the desired height.
• Locking Mechanism: The shade features an internal locking mechanism. To lock the shade in place, simply release the rope when the shade is at the desired position. To unlock, give a slight tug on the rope to release the tension.

Figure 5.1: The bamboo roller shade showing the pull rope and rolling mechanism.

6. Maintenance and Care

Proper care will extend the life and beauty of your bamboo roller shades.

• Cleaning: Dust the shades regularly with a soft cloth or a feather duster. For deeper cleaning, gently wipe with a damp cloth. Avoid excessive moisture, as bamboo is a natural material. Do not use harsh chemicals or abrasive cleaners.
• Moisture Control: While the bamboo is treated against mildew and moisture, avoid prolonged exposure to high humidity or direct water. If used outdoors, ensure they are protected from heavy rain.
• Sun Exposure: Although designed for light filtering, prolonged direct intense sunlight may cause natural fading over time.
• Inspection: Periodically inspect the pull rope and mounting hardware for any signs of wear or damage.

Figure 6.1: Detail of the fine woven bamboo material, indicating good toughness, natural harmlessness after sterilization, treatment against mildew and moisture, careful handling for sun protection, resistance to deformation by steam drying, and natural bamboo properties.

7. Troubleshooting

If you encounter issues with your roller shades, refer to the following common problems and solutions:

8. Specifications

9. Warranty and Support

No specific warranty information is provided in the product details. For any support inquiries, product issues, or to inquire about replacement parts, please contact the seller or manufacturer directly through your purchase platform.

Manufacturer: FUFU
