1. Introduction
This manual provides comprehensive instructions for the safe and effective installation, operation, and maintenance of your new Mintu Refrigerator Icemaker Replacement. Please read this manual thoroughly before beginning installation to ensure proper function and to prevent potential damage or injury. Keep this manual for future reference.
2. Safety Information
WARNING: To reduce the risk of electric shock, fire, or injury to persons, read all instructions before installing this icemaker. Always disconnect power to the refrigerator before servicing. Failure to do so can result in serious injury or death.
- Always disconnect the refrigerator from the power supply before attempting any installation or maintenance.
- Wear appropriate personal protective equipment, such as gloves, during installation.
- Ensure all connections are secure and properly seated.
- If you are unsure about any step, consult a qualified appliance technician.
3. Package Contents
Verify that all components are present before proceeding with installation:
- Mintu Refrigerator Icemaker Assembly
- Mounting Bracket
- Mounting Screw
Image 1: Complete Mintu Refrigerator Icemaker Replacement unit, including the main icemaker assembly, a metal bail arm, and a separate white plastic mounting bracket with a screw.
4. Compatibility
This Mintu Refrigerator Icemaker Replacement (Model: EB9SHKXVQ03 ED5KVEXVQ02) is designed to be compatible with a wide range of Whirlpool and Kenmore refrigerator models. Please verify your refrigerator's model number against the following list:
Compatible Whirlpool Models: GB2FHDXWQ02, MBR2258XES1, GX2FHDXVB02, IX5HHEXWS07, GX5FHDXVA02, GX5SHTXVQ00, KW2902684, ED5FVGXSS03, ED5FVGXSS01, ED5VHEXTL01, ED5FVGXWS01, PBF2253HEW, ED25RFXFW01, ED5RHGXMQ00, GD5THGXKS03.
Compatible Kenmore Models: 25326092100, 25326093100, 25331133300, 25331133302, 25331133303, 25331133306, 25331135300, 25331135302, 25331135303, 25331135306, 25331143300, 25331143302, 25331143303, 25331145300, 25331145302, 25331145303, 25331440300, 25331440301, 25331440302, 25331440303, 25331442300, 25331442301, 25331442302, 25331442303, 25331444300, 25331444301, 25331444302, 25331444303, 25331447300, 25331447301, 25331447302, 25331447303, 25331670105, 25331670106, 25331670107, 25331672100, 25331672101, 25331672102, 25331672103, 25331672104, 25331672105, 25331672106, 25331672107, 25331674100, 25331674101, 25331674102, 25331674103, 25331674104, 25331674105, 25331674106, 25331674107, 25331679100, 25331679101, 25331679102, 25331679103, 25331679104, 25331679105, 25331679106, 25331679107, 25331810300, 25331810302, 25331812300, 25331812302, 25331814300, 25331814302, 25331817300, 25331817302, 25331870100, 25331870102, 25331870104, 25331870106, 25331870108, 2533187010A, 2533187010B, 2533187010C, 25331872100, 25331872102, 25331872104, 25331872106, 25331872108, 2533187210A, 2533187210B, 2533187210C, 25331874100, 25331874102, 25331874104, 25331874106, 25331874108, 2533187410A, 2533187410B, 2533187410C, 25331879100, 25331879102, 25331879104, 25331879106, 25331879108, 2533187910A, 2533187910B, 2533187910C, 25337870890, 25337870891, 25337870892, 25337870893, 25337872890, 25337872891, 25337872892, 25337872893, 25337874890, 25337874891, 25337874892, 25337874893, 25337877890, 25337877891, 25337877892, 25337877893, 25338652990, 25338652991, 25338652992, 25338652993, 25338652994, 25338652995, 25338652996, 25338657990, 25338657991, 25338657992, 25338657993, 25338657994, 25338657995, 25338657996, 25338670890, 25338670891, 25338670892, 25338670893, 25338670894, 25338670895, 25338672890, 25338672891, 25338672892, 25338672893, 25338672894, 25338672896, 2533867289A, 25338672995, 25338674890, 25338674891, 25338674892, 25338674893, 25338674894, 25338674895, 25338674896, 2533867489A.
If your specific model number is not listed, please consult the product listing or contact Mintu support for compatibility confirmation.
5. Installation Instructions
Follow these steps carefully to install your new icemaker. Basic tools such as a screwdriver may be required.
- Disconnect Power: Before starting, unplug your refrigerator from the electrical outlet or turn off the power at the circuit breaker.
- Access the Icemaker Compartment: Open the freezer door and locate the existing icemaker. You may need to remove shelves or the ice bucket to gain full access.
- Remove Old Icemaker:
- Carefully disconnect any wiring harnesses connected to the old icemaker.
- Unscrew any mounting screws holding the old icemaker in place.
- Gently remove the old icemaker unit from the freezer compartment.
- Install New Icemaker:
- Position the new Mintu icemaker in the same location as the old one.
- Secure the icemaker using the provided mounting bracket and screw, or reuse existing hardware if compatible.
Image 2: The included white plastic mounting bracket and a hex-head screw, used to secure the icemaker in place.
- Connect the wiring harness to the new icemaker. Ensure it clicks securely into place.

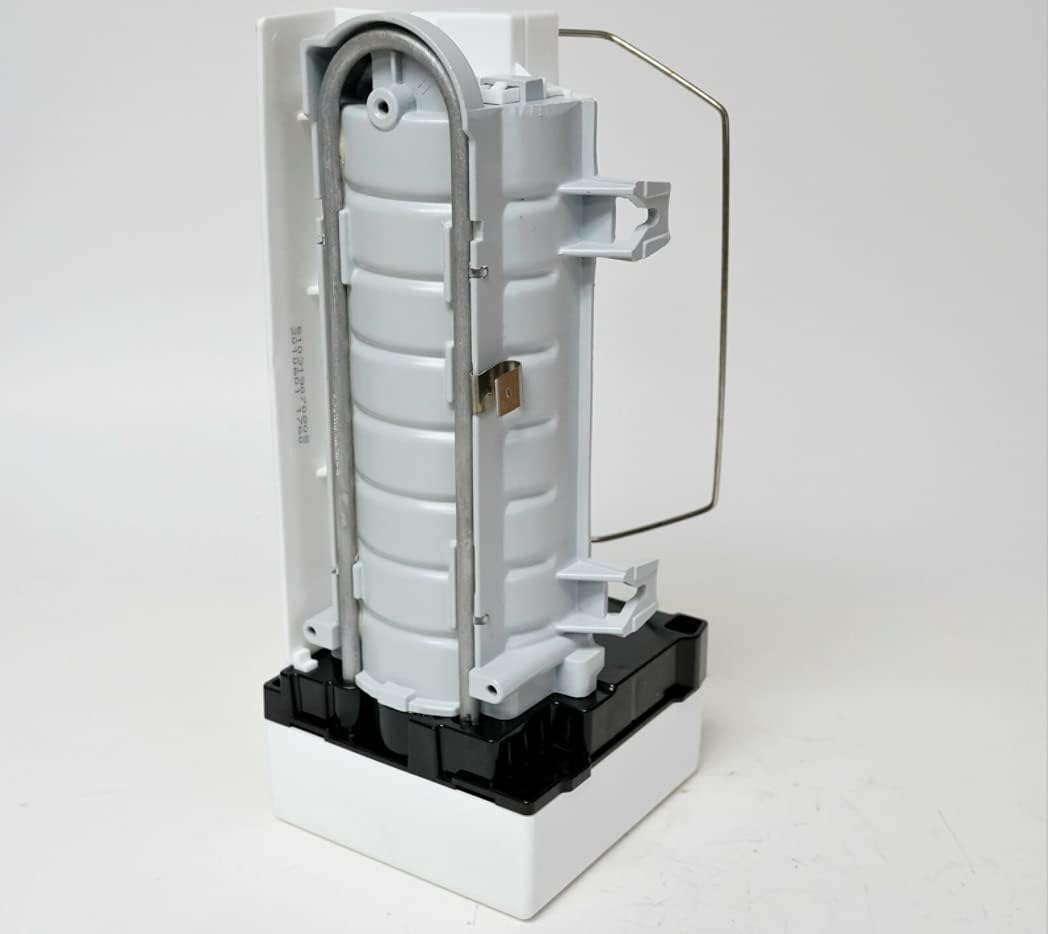

Image 3: A side view of the icemaker, highlighting the water fill tube and the internal ice-making mechanism.
- Ensure the metal bail arm is in the down position to allow ice production.
Image 4: The icemaker with its metal bail arm in the raised position, which typically stops ice production.
- Restore Power: Plug the refrigerator back into the electrical outlet or turn on the circuit breaker.
- Test Operation: The icemaker will typically begin its first cycle within a few hours. Discard the first few batches of ice to ensure cleanliness.
6. Operation
Once installed and powered, the icemaker will automatically begin producing ice. The metal bail arm acts as a sensor and a shut-off mechanism:
- Arm Down: When the bail arm is in the down position (as shown in Image 1), the icemaker will produce ice until the ice bucket is full and the arm is lifted by the ice.
- Arm Up: When the bail arm is in the up position (as shown in Image 4), ice production will stop. This is useful if you need to temporarily halt ice production or remove the ice bucket.
Image 5: The control module of the icemaker, featuring a gear with a warning against manual rotation, indicating automated operation.
Allow 24 hours for the icemaker to reach full ice production capacity after initial installation or after a power outage.
7. Maintenance
Regular maintenance helps ensure optimal performance and longevity of your icemaker:
- Cleaning: Periodically clean the ice bucket with mild soap and water. Ensure it is completely dry before returning it to the freezer.
- Water Filter: If your refrigerator has a water filter, ensure it is replaced according to the manufacturer's recommendations to maintain water quality and icemaker efficiency.
- Inspect Water Line: Occasionally check the water supply line for any kinks, leaks, or blockages.
8. Troubleshooting
If your icemaker is not functioning as expected, refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No ice production | Power disconnected, water supply off, bail arm up, clogged water line, faulty water valve. | Check power connection, ensure water supply is on, lower bail arm, inspect water line for kinks/blockages, check water valve. |
| Slow ice production | High freezer temperature, low water pressure, dirty water filter. | Ensure freezer temperature is set correctly (0°F/-18°C), check water pressure, replace water filter. |
| Ice cubes are small or hollow | Low water pressure, partially clogged water line or filter. | Check water pressure, inspect water line, replace water filter. |
| Icemaker is noisy | Normal operation sounds, loose mounting. | Some operational noise is normal. Ensure icemaker is securely mounted. |
If troubleshooting steps do not resolve the issue, please contact Mintu customer support.
9. Specifications
- Brand: Mintu
- Model Name: Refrigerator Icemaker
- Part Number: EB9SHKXVQ03 ED5KVEXVQ02
- Material: Plastic
- UPC: 017015804905
10. Warranty and Support
For warranty information or technical assistance, please refer to the product's original purchase documentation or contact Mintu customer support directly. You can typically find contact information on the Mintu brand store page or through your retailer.
Mintu Store: Visit the Mintu Store on Amazon
