Knocbel Metal Triple Twin Bunk Bed User Manual

Product Overview

The Knocbel Metal Triple Twin Bunk Bed is the ultimate space saver for small rooms, designed to securely stack three twin beds. It features easy access guardrails for safety and two built-in ladders for convenient access to the upper bunks. This durable metal bunk bed comes in a sleek silver finish, providing a contemporary and casual style to any bedroom. It includes a robust slat system for mattress support and is designed to be used only in its stacked configuration.

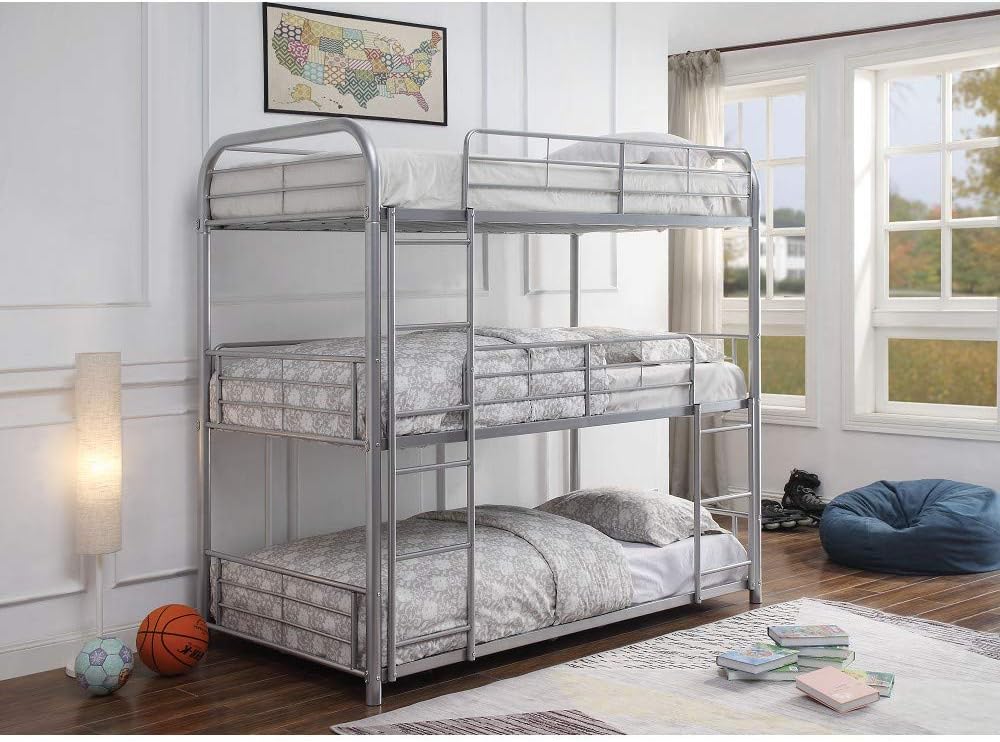

Image: The Knocbel Metal Triple Twin Bunk Bed in silver, featuring three stacked beds with ladders and guardrails, shown in a bedroom environment with bedding.

Safety Information

Please read and adhere to all safety warnings and instructions to prevent serious injury.

• Always follow assembly instructions carefully and ensure all bolts and fasteners are securely tightened before use. Periodically check for tightness.
• Do not allow children under 6 years of age on the top bunk.
• Use only mattresses that comply with the recommended dimensions and thickness for each bunk.
• Do not attach or hang items on any part of the bunk bed that are not designed for use with the bed; for example, but not limited to, hooks, belts, or jump ropes.
• The maximum weight capacity for each bed is 200 lbs. Do not exceed this limit.
• Always use the provided ladders for access to upper bunks. Do not jump on the bed.
• Ensure the bunk bed is placed on a level surface.
• Guard-rails are essential for safety. Ensure they are properly installed and maintained.

Components and Parts List

Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, contact customer support.

Setup and Assembly

Assembly requires two adults. Please follow these steps carefully. Refer to the included assembly diagram for visual guidance.

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratching.
2. Assemble Base Frame: Begin by connecting the side rails and end panels for the bottom bunk. Secure with the provided bolts and Allen wrench. Do not fully tighten bolts until all sections are aligned.
3. Install Bottom Slats: Insert the metal slats into the designated slots on the bottom bunk frame. Ensure they are evenly spaced and securely seated.
4. Attach Middle Bunk Supports: Connect the vertical support posts for the middle bunk to the assembled bottom bunk frame.
5. Assemble Middle Bunk Frame: Attach the side rails and end panels for the middle bunk to the vertical supports.
6. Install Middle Slats and Guard-Rails: Place the metal slats for the middle bunk. Attach the guard-rails to the middle bunk frame.
7. Attach Top Bunk Supports: Connect the vertical support posts for the top bunk to the assembled middle bunk frame.
8. Assemble Top Bunk Frame: Attach the side rails and end panels for the top bunk to the vertical supports.
9. Install Top Slats and Guard-Rails: Place the metal slats for the top bunk. Attach the guard-rails to the top bunk frame.
10. Attach Ladders: Securely attach the two front ladders to the designated points on the bunk bed structure.
11. Final Tightening: Once all components are assembled and aligned, fully tighten all bolts and fasteners.

Image: The metal frame of the triple twin bunk bed, shown without mattresses or bedding, highlighting the structure and slat system.

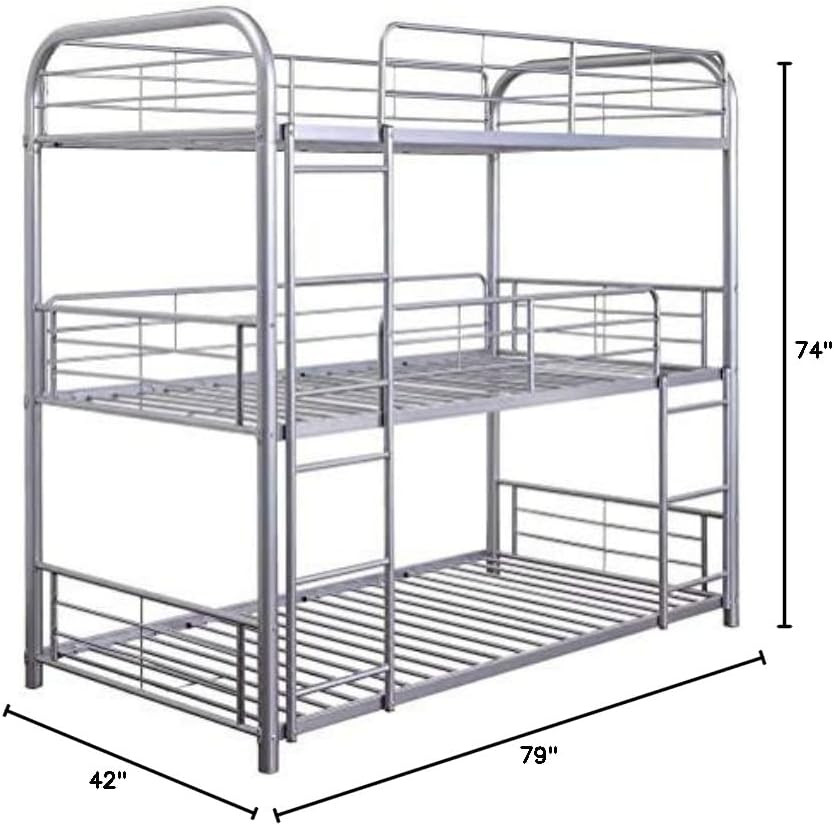

Image: A diagram illustrating the overall dimensions of the bunk bed: 79 inches length, 42 inches width, and 74 inches height.

Usage Guidelines

To ensure safe and proper use of your triple bunk bed:

• Ensure mattresses fit snugly within the bed frames to prevent gaps.
• Always use the ladders for entering and exiting the middle and top bunks.
• Do not allow rough play or jumping on the bunk bed.
• Periodically check all connections and tighten any loose bolts.

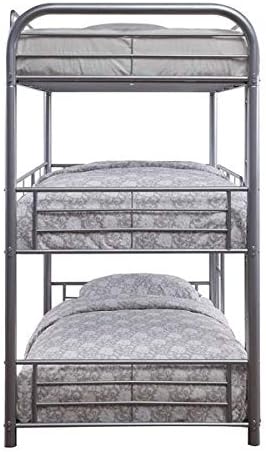

Image: A side view of the assembled triple twin bunk bed, complete with mattresses and bedding, showcasing its compact design.

Image: A front view of the assembled triple twin bunk bed, complete with mattresses and bedding, highlighting the two integrated ladders.

Maintenance

Proper maintenance will extend the life of your bunk bed:

• Cleaning: Wipe down the metal frame with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners. For stubborn spots, a mild soap solution can be used, followed by drying thoroughly.
• Hardware Check: Periodically (every 3-6 months) inspect all bolts, screws, and fasteners to ensure they are tight. Re-tighten if necessary to maintain structural integrity.
• Slat Inspection: Check the metal slats for any signs of bending or damage. Replace any damaged slats immediately.
• Placement: Avoid placing the bed in direct sunlight or near heat sources, which could affect the finish over time.

Troubleshooting

Specifications

Warranty and Support

For warranty information or technical support, please contact Knocbel customer service. Keep your purchase receipt as proof of purchase.

Customer Service: Refer to the contact information provided with your product packaging or visit the official Knocbel website.

Online Resources: For additional support, assembly videos (if available), or FAQs, please visit the manufacturer's website.
