TTAMG S86325000 Exhaust Fan Motor and Blower Instruction Manual

1. Introduction

Thank you for choosing the TTAMG S86325000 Exhaust Fan Motor and Blower. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new replacement part. This motor and blower assembly is designed to be compatible with Broan Nutone QT90 and QT90T exhaust fan models, ensuring proper ventilation in your space.

Please read this manual thoroughly before proceeding with installation or use. Keep this manual for future reference.

2. Safety Information

WARNING: Risk of Electric Shock. Disconnect power before servicing.

• Always disconnect the electrical power supply at the circuit breaker or fuse box before attempting any installation, maintenance, or repair.
• Ensure all wiring connections are secure and comply with local electrical codes.
• If you are unsure about any part of the installation process, consult a qualified electrician.
• Do not operate the fan if it is damaged or if any parts are missing.
• Keep hands and foreign objects away from the blower wheel during operation.

3. Package Contents

Verify that all components are present and undamaged upon opening the package:

• 1 x TTAMG S86325000 Exhaust Fan Motor and Blower Assembly

Image 1: The complete TTAMG S86325000 exhaust fan motor and blower assembly, showing the motor, blower wheel, and power cord with plug.

4. Specifications

Key technical specifications for the TTAMG S86325000 motor and blower assembly:

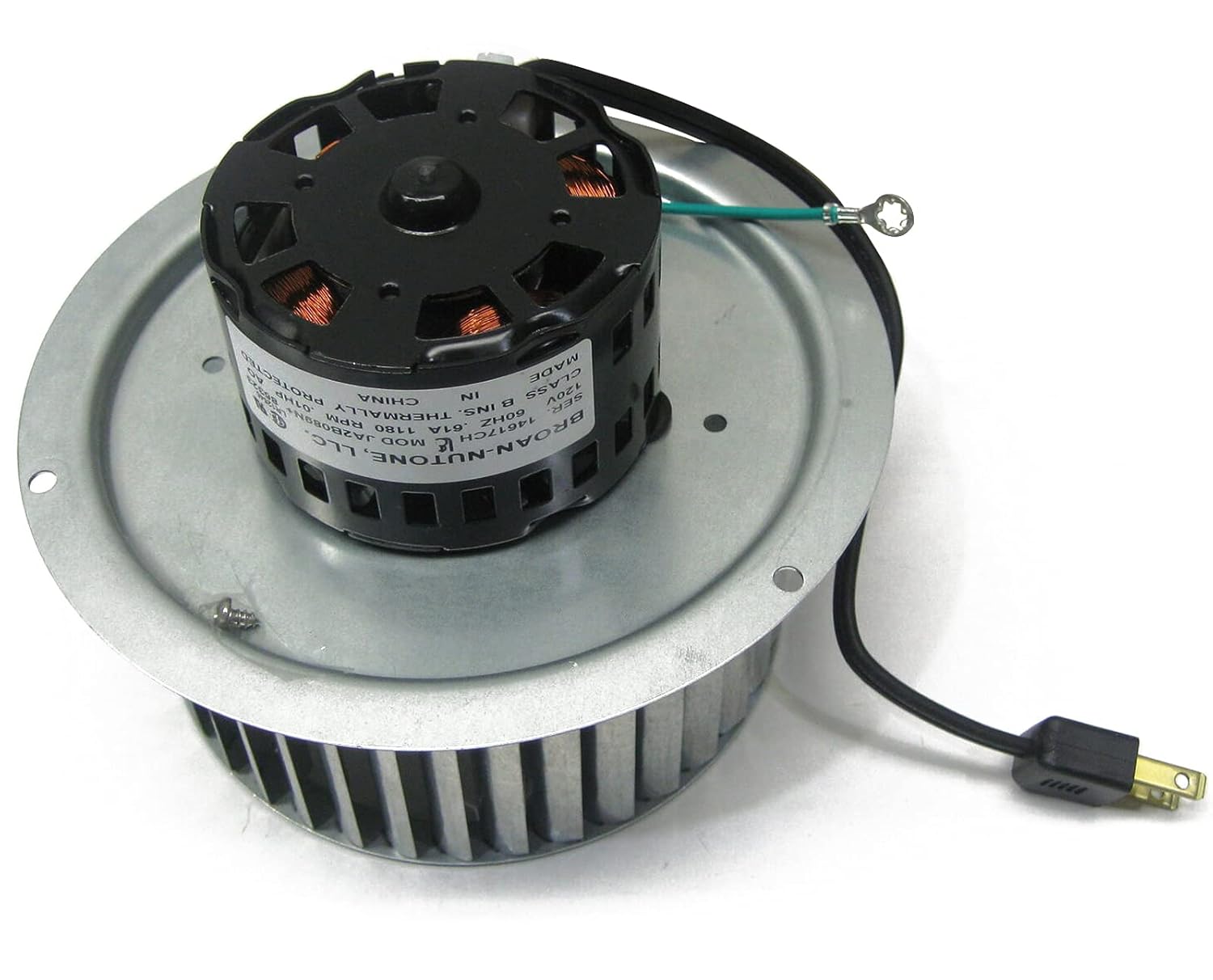

Image 2: Top view of the TTAMG S86325000 motor, showing the electrical specifications label and wiring connections.

5. Setup and Installation

This section outlines the general steps for replacing an existing exhaust fan motor and blower. Specific installation procedures may vary slightly depending on your existing fan housing. Always refer to the original fan's manual for detailed housing removal instructions if available.

Required Tools (Not Included):

• Screwdriver (Phillips or flathead, as needed)
• Pliers
• Wire strippers (if new wiring connections are required)
• Voltage tester

Installation Steps:

1. Disconnect Power: Locate the circuit breaker for the exhaust fan and turn off the power. Verify power is off using a voltage tester.
2. Remove Fan Cover: Carefully remove the existing fan's grille or cover. This usually involves pulling down on spring clips or unscrewing fasteners.
3. Remove Old Motor/Blower: Disconnect the power cord from the old motor. Note how the old motor and blower assembly is mounted within the fan housing (e.g., screws, clips). Remove the old assembly.
4. Install New Motor/Blower: Position the TTAMG S86325000 assembly into the fan housing. Secure it using the existing mounting points (screws or clips). Ensure the blower wheel spins freely without obstruction.
5. Connect Wiring: Connect the power cord of the new motor to the fan's electrical supply. Ensure connections are tight and secure. If the new motor has a plug, simply plug it into the receptacle within the fan housing.
6. Replace Fan Cover: Reattach the fan grille or cover.
7. Restore Power: Turn the power back on at the circuit breaker. Test the fan's operation.

6. Operation

Once properly installed, the TTAMG S86325000 exhaust fan motor and blower operates by drawing air from the room and expelling it, helping to reduce humidity, odors, and airborne pollutants. The fan is typically activated by a wall switch connected to the fan's electrical circuit.

• Turn on the wall switch to activate the fan.
• Turn off the wall switch to deactivate the fan.

For optimal performance, operate the fan during and after activities that generate moisture or odors, such as showering or cooking.

7. Maintenance

Regular maintenance ensures the longevity and efficient operation of your exhaust fan. Always disconnect power before performing any maintenance.

Cleaning the Blower Wheel and Housing:

1. Disconnect Power: Turn off power to the fan at the circuit breaker.
2. Remove Fan Cover: Remove the fan grille/cover.
3. Access Blower Wheel: Carefully detach the motor and blower assembly from the housing.
4. Clean Components: Use a soft brush, cloth, or vacuum cleaner to remove dust and debris from the blower wheel blades and the interior of the fan housing. Avoid using harsh chemicals or abrasive cleaners.
5. Reassemble: Reattach the motor and blower assembly, then replace the fan cover.
6. Restore Power: Turn power back on at the circuit breaker.

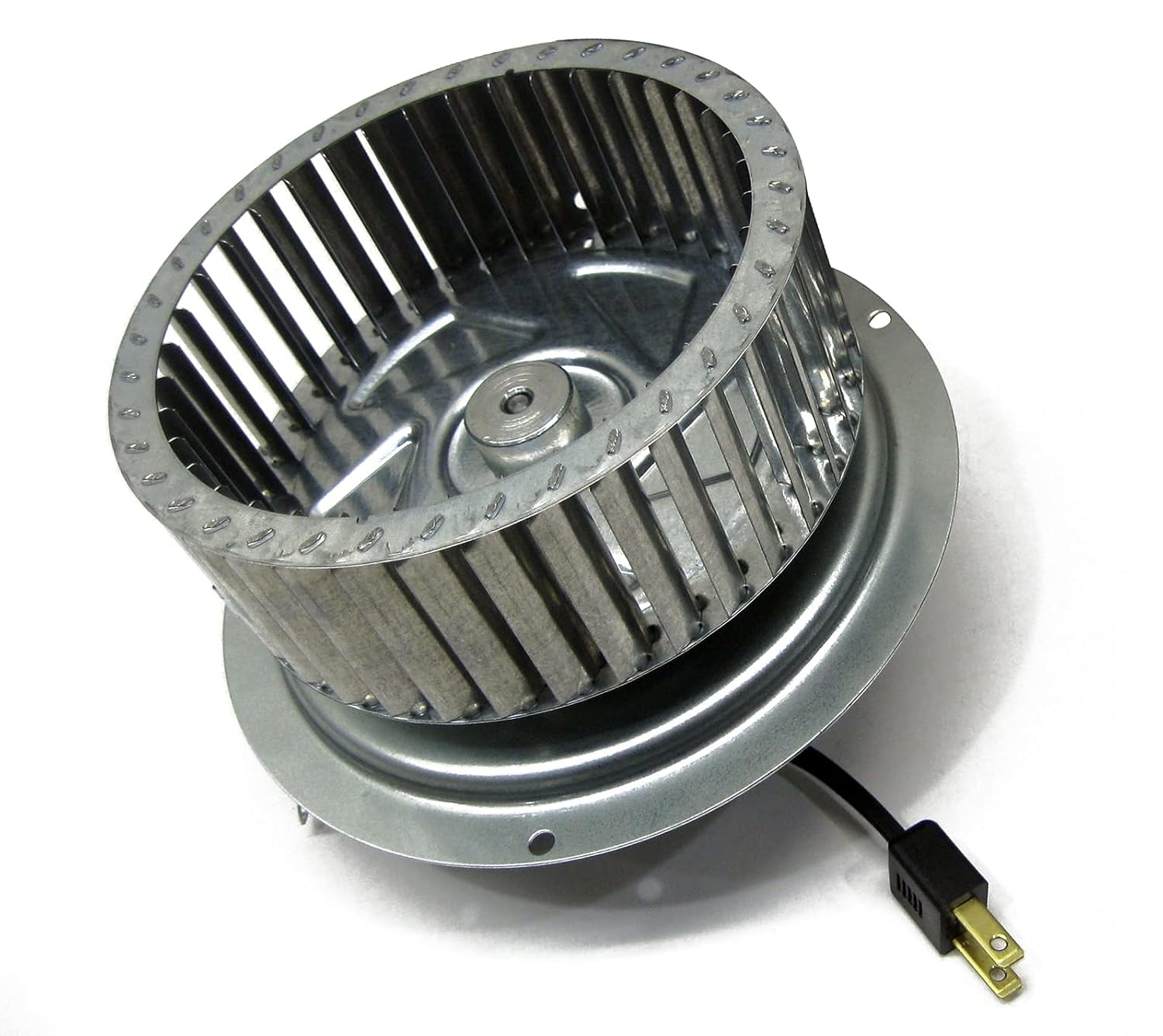

Image 3: Underside view of the blower wheel, illustrating the blades that require periodic cleaning to maintain airflow.

Perform cleaning at least once a year, or more frequently in dusty environments.

8. Troubleshooting

If you encounter issues with your TTAMG S86325000 exhaust fan motor and blower, refer to the following common problems and solutions:

• Fan Does Not Turn On:
  • Check if the circuit breaker is tripped. Reset if necessary.
  • Ensure the wall switch is in the "ON" position.
  • Verify that the motor's power cord is securely plugged into the receptacle within the fan housing.
  • Inspect wiring connections for looseness or damage (with power off).
• Fan is Noisy or Vibrates Excessively:
  • Ensure the motor and blower assembly is securely mounted and all screws are tightened.
  • Check the blower wheel for debris accumulation (refer to Maintenance section).
  • Inspect the blower wheel for any damage or imbalance.
  • Ensure the fan cover is properly installed and not rattling.
• Reduced Airflow:
  • Clean the blower wheel and fan housing (refer to Maintenance section).
  • Check for obstructions in the exhaust ductwork.
  • Ensure the fan cover is clean and not blocking airflow.

If problems persist after attempting these troubleshooting steps, contact customer support or a qualified technician.

9. Warranty and Support

For warranty information or technical support regarding your TTAMG S86325000 Exhaust Fan Motor and Blower, please refer to the seller's return policy or contact TTAMG customer service directly. Keep your purchase receipt as proof of purchase.

For further assistance, you may also visit the product page on Amazon or contact the seller, Washers Specialties Co, for specific inquiries related to your purchase.
