Hudson Pro Dual Power Inflator/Deflator

Introduction

The Hudson Pro Dual Power Inflator/Deflator is a versatile and portable device designed for efficient inflation and deflation of various items. Its dual power capability allows operation via both 120V AC wall outlets and 12V DC vehicle power outlets, providing convenience for home and on-the-go use. Equipped with a digital pressure gauge and automatic shutoff, it ensures precise and safe operation for tires, sports balls, and other inflatables.

Safety Information

WARNING: RISK OF PERSONAL INJURY. BEFORE using this inflator, be sure to read and follow the Operator's Manual. Inflator surfaces may get hot during use. USE CAUTION WHEN HANDLING!

• Always operate the inflator in a well-ventilated area.
• Do not leave the inflator unattended while in use.
• Ensure the correct adapter is used for the item being inflated to prevent over-inflation or damage.
• Keep out of reach of children.
• Avoid direct contact with hot surfaces during and immediately after operation.
• Do not operate if the unit or power cord is damaged.

Product Features

• Dual Power Source: Operates on 120V AC (wall outlet) or 12V DC (vehicle power outlet).
• Digital Pressure Gauge: Provides accurate pressure readings.
• Automatic Shut-Off: Stops inflation once the preset pressure is reached, preventing over-inflation.
• LED Light: Integrated light for visibility in low-light conditions.
• Integrated Storage: Convenient storage for hoses and accessories.
• High Volume & Low Volume Hoses: Suitable for various inflation needs.
• Compact & Portable Design: Easy to carry and store.

Figure 1: Front view of the Hudson Pro Dual Power Inflator/Deflator, showing the digital display and control buttons.

Package Contents

Verify that all items are present in the package:

• Hudson Pro Dual Power Inflator/Deflator Unit
• 120V AC Power Cord (integrated)
• 12V DC Power Cord (integrated)
• High Volume Hose (for inflatables like air mattresses)
• Low Volume Hose (for tires and balls)
• Ball Adaptor (needle)
• Tire Valve Adaptor
• Small Inflatable Adaptor

Figure 2: The inflator unit with its various adapters and hoses, demonstrating its versatility.

Setup

1. Choose Power Source:
   • For 120V AC operation: Locate the AC power cord stored at the bottom of the unit. Plug it into a standard wall outlet.
   • For 12V DC operation: Locate the DC power cord (cigarette lighter adapter) stored at the bottom of the unit. Plug it into your vehicle's 12V accessory outlet.
2. Select Mode: Use the AC/DC switch on the unit to select the appropriate power mode.
3. Attach Hose:
   • For high-volume inflation/deflation (e.g., air mattresses, pool floats): Attach the large diameter hose to the appropriate port on the unit.
   • For high-pressure inflation (e.g., tires, balls): Attach the smaller diameter hose with the tire valve connector to the high-pressure port.
4. Select Adapter: Choose the correct adapter (ball, tire valve, or small inflatable) for the item you intend to inflate/deflate and attach it to the end of the selected hose.

Operating Instructions

Inflating Items:

1. Ensure the unit is connected to a power source and the correct power mode (AC or DC) is selected.
2. Turn on the unit using the power switch. The digital display will illuminate.
3. Use the '+' and '-' buttons to set the desired pressure (PSI, BAR, or KPA) on the digital display.
4. Connect the appropriate hose and adapter to the item you wish to inflate.
5. Press the inflate switch (usually marked with 'I' or 'Inflate'). The compressor will start.
6. The unit will automatically shut off once the preset pressure is reached.
7. Disconnect the hose from the item and the unit.

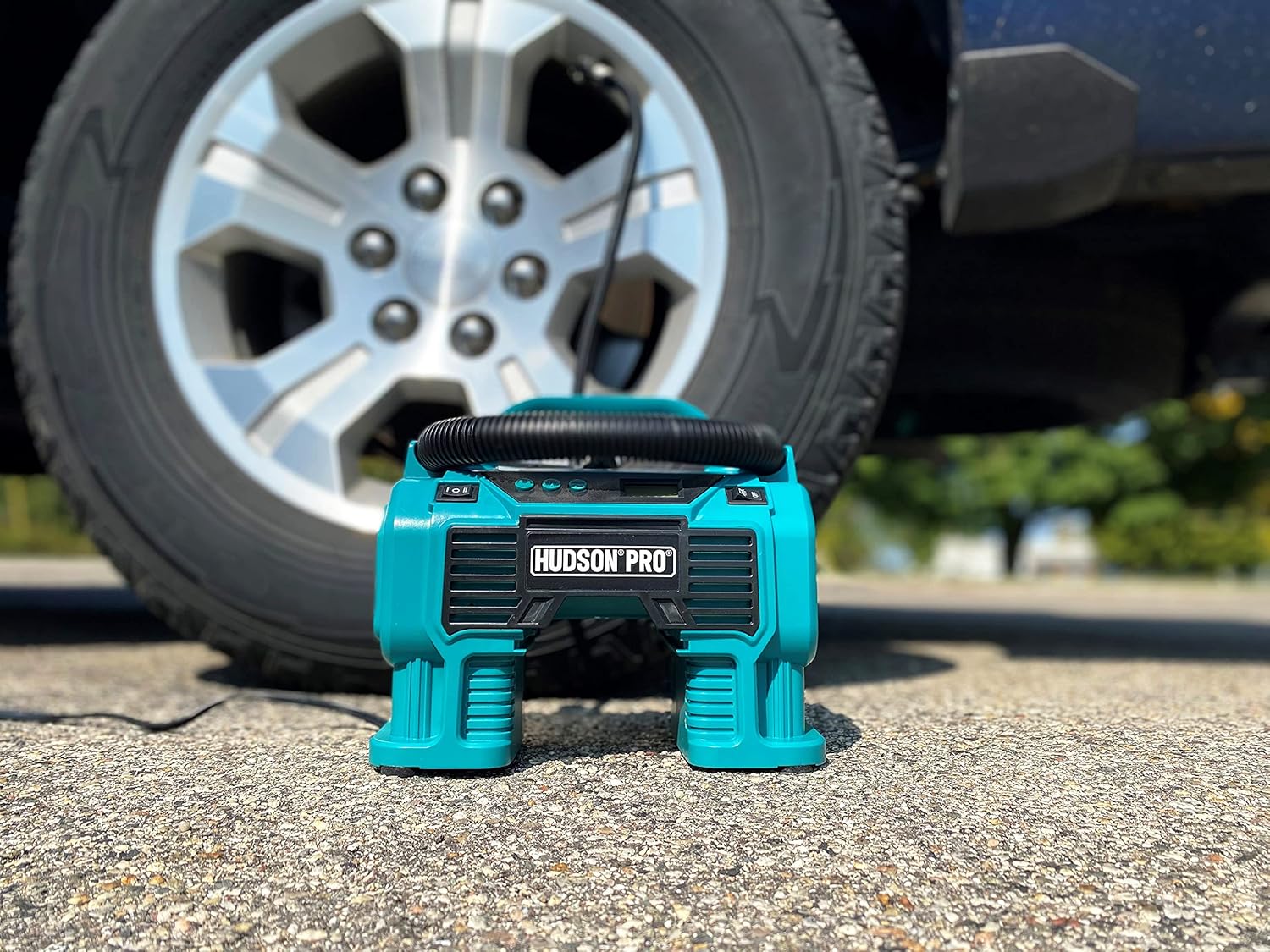

Figure 3: The inflator in use, connected to a car tire for inflation. Note the long power cord for convenience.

Deflating Items:

1. Ensure the unit is connected to a power source and the correct power mode (AC or DC) is selected.
2. Turn on the unit using the power switch.
3. Connect the appropriate hose to the deflation port on the unit (usually marked with 'II' or 'Deflate').
4. Connect the other end of the hose to the item you wish to deflate.
5. Press the deflate switch. The unit will begin to draw air out of the item.
6. Monitor the deflation process and turn off the unit once the desired level of deflation is achieved.
7. Disconnect the hose from the item and the unit.

Using the LED Light:

The unit features an integrated LED light for illumination. To activate the light, locate the light switch on the side of the unit and toggle it to the 'ON' position. Turn it off when not needed to conserve power.

Maintenance

• Cleaning: Wipe the exterior of the unit with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Storage: Store the unit in a cool, dry place away from direct sunlight and extreme temperatures. Ensure all hoses and accessories are properly stored in their designated compartments to prevent damage or loss.
• Cord Care: Regularly inspect power cords for any signs of damage (fraying, cuts). Do not use the unit if cords are damaged.
• Filter Cleaning: Periodically check and clean any air intake filters to ensure optimal performance and prevent dust buildup. Refer to the specific filter location in the diagram if available in the physical manual.

Troubleshooting

Specifications

• Model Name: Hudson Pro Dual Power Inflator/Deflator
• Part Number: 23005
• Voltage: 120V AC / 12V DC
• Power Source: Corded Electric
• Color: Teal
• Material: Plastic
• Product Dimensions: 9.6"L x 6.1"W x 8.8"H
• Hose Length: 2.5 Feet (High-pressure hose)
• Special Feature: Automatic Shut-Off
• Included Components: Ball Adaptor, Inflator, LED Light, Small Inflatable Adaptor, Tire Adaptor
• UPC: 026156914800

Warranty and Support

The Hudson Pro Dual Power Inflator/Deflator comes with a 2-year warranty from the date of purchase, covering defects in materials and workmanship. For warranty claims, technical support, or replacement parts, please contact Hudson Pro customer service.
