DuroMax XP9000iH-PK Inverter Parallel Kit User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your DuroMax XP9000iH-PK Inverter Parallel Kit. This kit is designed to connect two compatible DuroMax XP9000iH inverter generators, allowing them to operate in parallel to combine their power output. Please read this manual thoroughly before setup or operation.

2. Safety Information

WARNING: Failure to follow these instructions may result in serious injury or death.

• Always operate generators and parallel kits outdoors in a well-ventilated area.
• Never operate generators or parallel kits indoors or in enclosed spaces.
• Ensure all connections are secure before starting generators or applying load.
• Do not overload the parallel kit or connected generators.
• Keep children and pets away from the equipment during operation.
• Refer to your generator's individual manual for specific safety guidelines.

3. Setup

The DuroMax XP9000iH-PK Parallel Kit allows you to combine the power of two XP9000iH inverter generators. Follow these steps for proper setup:

1. Unboxing and Inspection: Carefully remove the parallel kit from its packaging. Inspect for any damage. Ensure all components are present.
2. Positioning Generators: Place your two DuroMax XP9000iH inverter generators on a level, stable surface outdoors, ensuring adequate ventilation and separation from any structures.
3. Connecting the Parallel Kit:
   • Locate the parallel ports on each generator.
   • Connect the parallel cables from the kit to the corresponding ports on each generator. Ensure a firm and secure connection.
   • Connect the ground wire from the parallel kit to the ground terminal on one of the generators.

4. Operating Instructions

Once the parallel kit is securely connected to both generators, you can begin operation:

1. Start Generators: Start both DuroMax XP9000iH generators according to their individual operating instructions. Ensure they are running smoothly before proceeding.

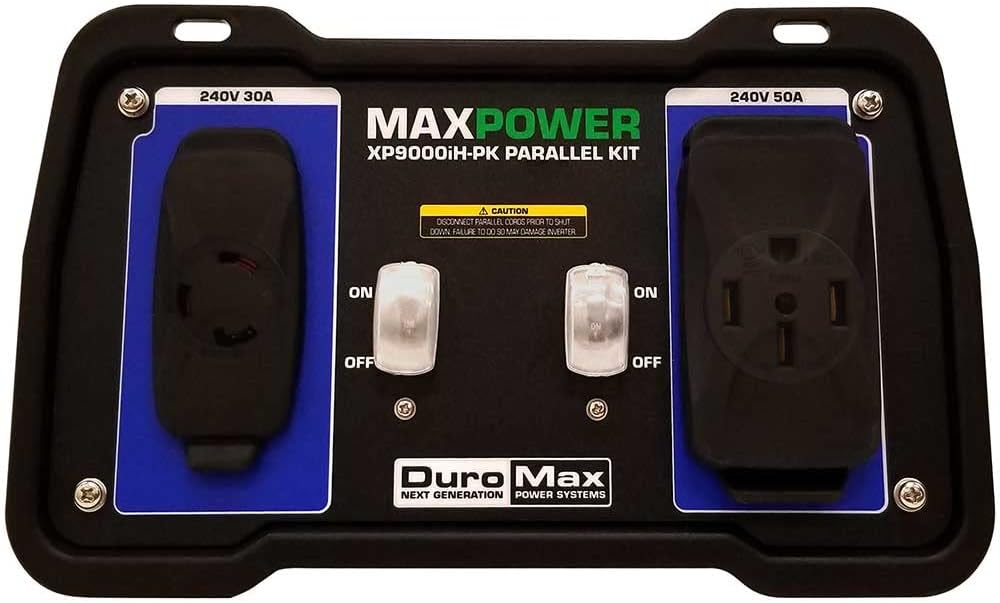

2. Verify Power Output: Check the control panel of the parallel kit for power indicators. The kit includes a 30A 240V (L6-30) outlet and a 50A 240V (14-50) outlet.
3. Connecting Loads: Plug your desired appliances or transfer switch into the appropriate outlets on the parallel kit. Ensure the total load does not exceed the combined running wattage of the two generators (15,200 running watts).
4. Circuit Protection: The parallel kit features circuit protectors and circuit breakers to safeguard your appliances from overload. If a breaker trips, reduce the load and reset the breaker.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your parallel kit:

• Inspection: Before each use, inspect the parallel cables and connectors for any signs of wear, damage, or corrosion. Replace any damaged components immediately.
• Cleaning: Keep the parallel kit clean and free from dirt, debris, and moisture. Use a dry cloth to wipe down the unit.
• Storage: When not in use, store the parallel kit in a clean, dry place, away from direct sunlight and extreme temperatures.
• Generator Maintenance: Always follow the maintenance schedule and procedures outlined in your DuroMax XP9000iH generator manuals.

6. Troubleshooting

If you encounter issues with your parallel kit, refer to the following common problems and solutions:

• No Power Output from Kit:
  • Ensure both generators are running and producing power.
  • Check all parallel cable connections for tightness.
  • Verify that the circuit breakers on the parallel kit are not tripped. Reset if necessary.
• Overload Indicator:
  • If the overload indicator illuminates, disconnect some appliances to reduce the load.
  • Reset the circuit breaker on the parallel kit.
• Generators Not Synchronizing:
  • Ensure both generators are the same model (DuroMax XP9000iH).
  • Check that both generators are running at their optimal speed.
  • Verify all parallel connections are correct and secure.

7. Specifications

8. Warranty and Support

For specific warranty details regarding your DuroMax XP9000iH-PK Inverter Parallel Kit, please refer to the warranty information provided with your original generator purchase or visit the official DuroMax website. For technical support or assistance, please contact DuroMax customer service.

Support: 844-DUROMAX

Website: DUROMAXPOWER.COM
