WIHTU Motion Sensor Outdoor Wall Light Fixtures

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your WIHTU Motion Sensor Outdoor Wall Light Fixtures. Please read this manual thoroughly before installation and retain it for future reference. These fixtures are designed for outdoor use, featuring motion sensing and dusk-to-dawn capabilities to enhance convenience and security around your home.

Safety Information

• Electrical Safety: Always turn off power at the circuit breaker before installing, servicing, or cleaning the fixture. Failure to do so may result in serious injury or death.
• Qualified Electrician: If you are unsure about the installation process, consult a qualified electrician.
• Grounding: Ensure the fixture is properly grounded to avoid potential electrical shock.
• Bulb Type: Use only E26 base dimmable bulbs, with a maximum wattage of 60W. Non-dimmable bulbs may cause malfunction.
• Fixture Integrity: Do not modify the fixture. Any modifications may void the warranty and create safety hazards.
• Operating Voltage: This fixture is designed for 110-120 Volts AC.

Package Contents

Your package should contain the following items:

• WIHTU Motion Sensor Outdoor Wall Light Fixtures (2 units)
• Mounting hardware (screws, wire nuts)
• Instruction Manual

Note: Bulbs are not included and must be purchased separately. Suggested bulbs are E26 Dimmable bulbs.

Image: Two WIHTU Motion Sensor Outdoor Wall Light Fixtures, showcasing their matte black finish and integrated motion sensors.

Product Features

• Integrated Motion Sensor: Detects movement up to 40 feet away with a 220-degree wide detection angle.
• Dusk-to-Dawn Functionality: Automatically turns on at a lower brightness at dusk and off at dawn.
• Weather Resistant: IP65 waterproof rating, sunproof, frost resistant, and storm proof for durability in various outdoor conditions.
• Anti-Rust & Anti-Corrosion: Constructed from premium metal with a matte black finish to resist rust and corrosion.
• Durable Construction: Features high-strength tempered clear glass and an open-bottom design for easy bulb replacement.
• Bulb Compatibility: Supports E26 base dimmable bulbs (max 60W).

Image: A diagram pointing out key features: Light & PIR Motion Sensor, Premium Metal construction, High Strength Glass, and an Open Bottom design for easy bulb access.

Image: A visual comparison showing the WIHTU fixture's anti-rust and anti-corrosion properties against a rusted, older-style light fixture.

Setup and Installation

Follow these general steps for installing your outdoor wall light fixtures. It is recommended to have a second person assist during installation.

1. Turn Off Power: Locate the circuit breaker controlling the outdoor lighting circuit and turn off the power. Verify power is off using a voltage tester.
2. Prepare Mounting Surface: Ensure the electrical box is securely mounted and the wiring is accessible.
3. Attach Mounting Bracket: Secure the fixture's mounting bracket to the electrical box using the provided screws.
4. Wire Connections: Connect the fixture's wires to your household wiring. Match black to black (live), white to white (neutral), and green/bare copper to green/bare copper (ground). Secure connections with wire nuts.
5. Mount Fixture: Carefully tuck the wires into the electrical box and align the fixture with the mounting bracket. Secure the fixture to the bracket using the provided screws.
6. Install Bulb: Insert an E26 base dimmable bulb (not included) into the socket. Do not exceed 60W.
7. Restore Power: Turn the power back on at the circuit breaker.

For specific wiring diagrams or if you encounter difficulties, consult a professional electrician.

Operating Instructions

Your WIHTU outdoor wall light fixtures feature intelligent motion sensing and dusk-to-dawn capabilities. The fixture operates in two primary modes:

• Automatic Dusk-to-Dawn Mode: The light will automatically turn on at a lower brightness when it gets dark. When motion is detected within its 40-foot, 220-degree detection zone, the light will switch to full brightness. After a period of no motion, it will return to the lower brightness setting.
• Override Mode: To activate Override Mode, quickly toggle the wall switch OFF and then ON. In this mode, the light will illuminate at 100% brightness for approximately 8 hours, regardless of motion. After 8 hours, or at dawn, the fixture will automatically revert to the Automatic Dusk-to-Dawn Mode.

Image: An illustration of the Override Mode, where the light stays at 100% brightness for 8 hours before returning to automatic mode.

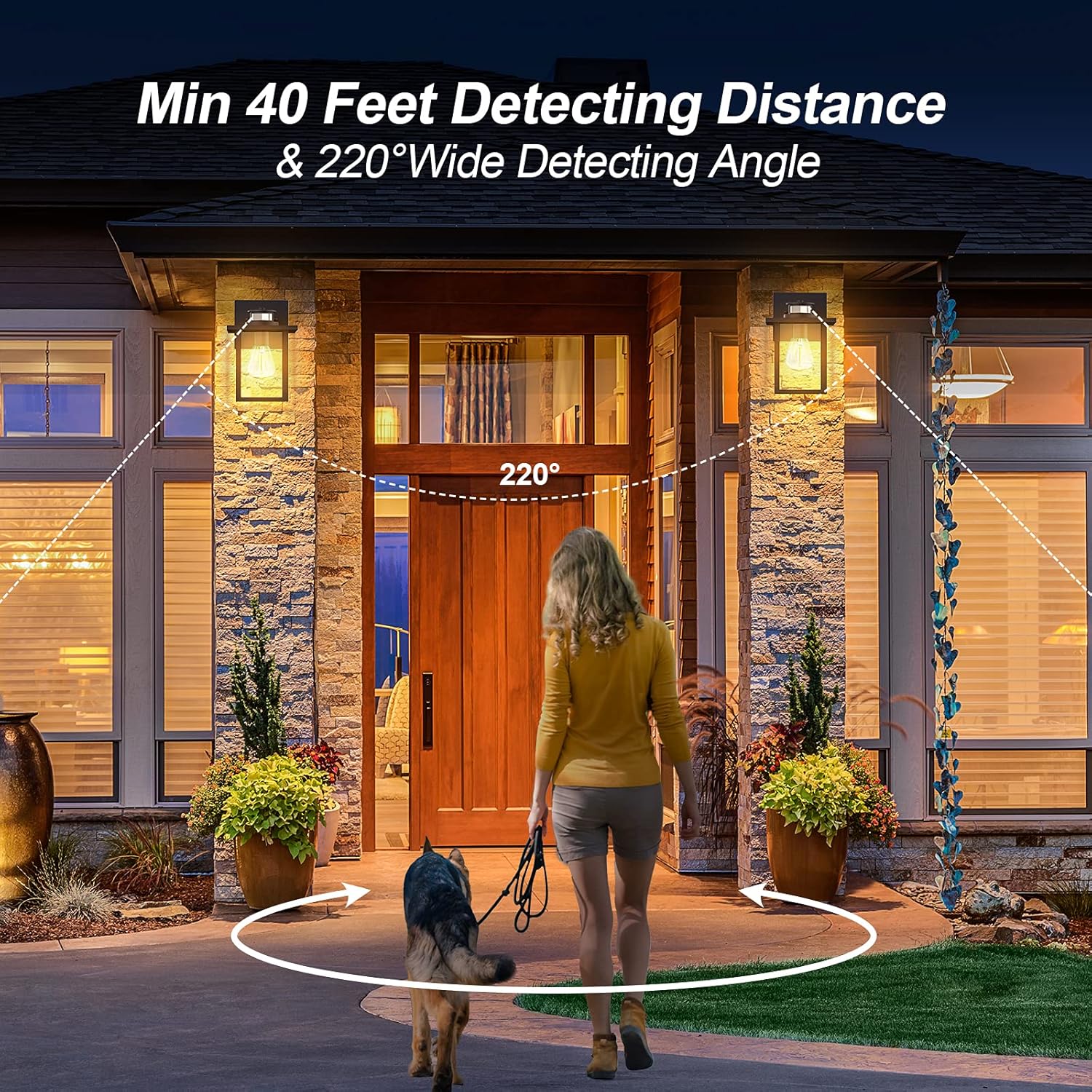

Image: A visual representation of the motion sensor's detection capabilities, showing a minimum 40-foot detecting distance and a 220-degree wide detecting angle.

Maintenance

• Cleaning: To clean the fixture, ensure power is off. Wipe with a soft, damp cloth. Do not use abrasive cleaners or solvents, as they may damage the finish or electrical components.
• Bulb Replacement: Turn off power at the circuit breaker. Allow the bulb to cool completely before attempting to remove it. Unscrew the old bulb and replace it with a new E26 base dimmable bulb (max 60W).
• Inspection: Periodically inspect the fixture for any signs of damage, loose wiring, or corrosion. Address any issues promptly.

Troubleshooting

Specifications

Warranty and Support

For warranty information or technical support, please refer to the documentation included with your purchase or contact WIHTU customer service directly through their official website or the platform where the product was purchased. Please have your model number (123) and purchase date available when contacting support.
