Introduction
This manual provides comprehensive instructions for the safe installation, operation, and maintenance of your ML Lighting 6-Light Vanity in Satin Nickel. Please read all instructions carefully before beginning installation and retain this manual for future reference.

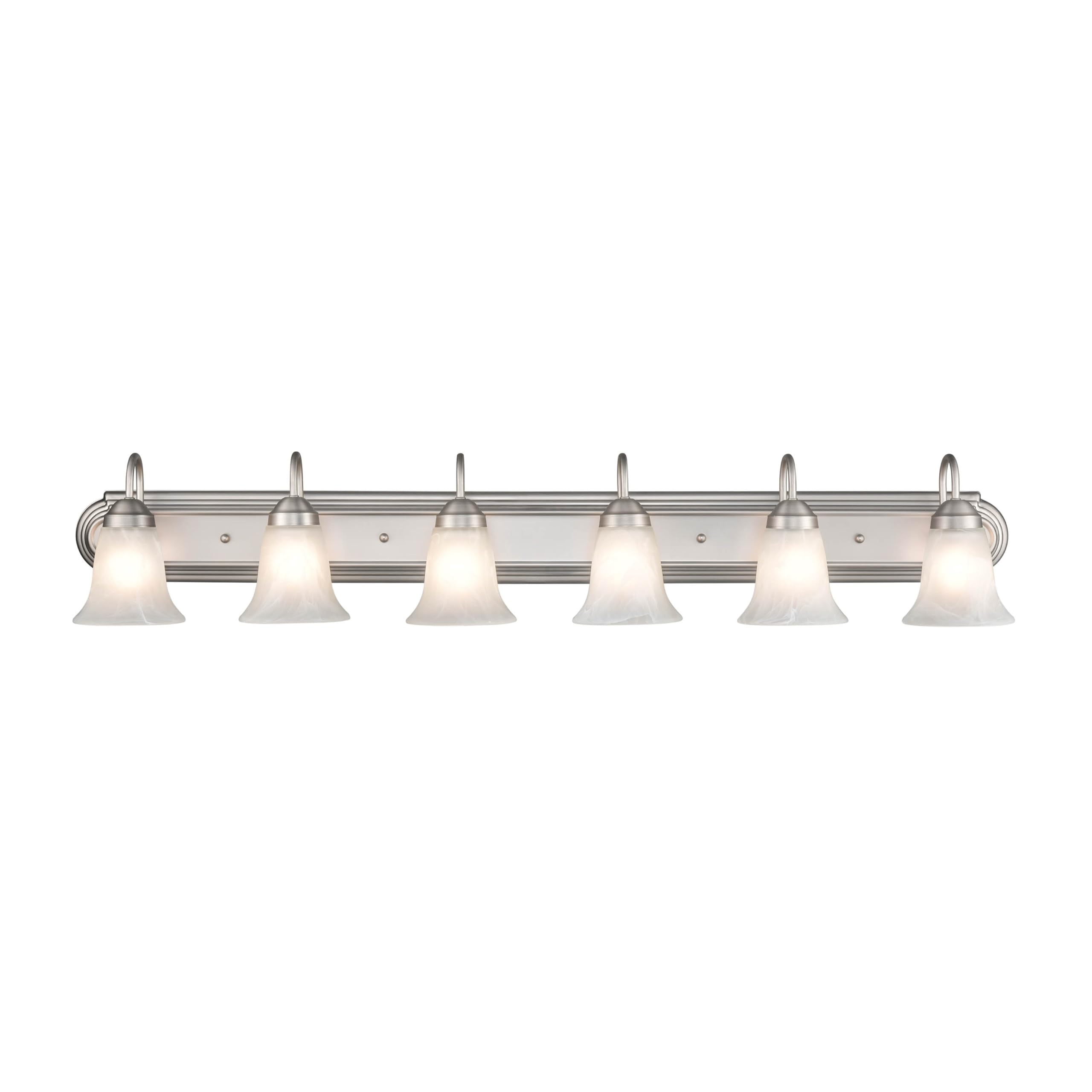

Image: The ML Lighting 6-Light Vanity fixture in Satin Nickel finish with six frosted glass shades.
Safety Information
- WARNING: To avoid electric shock, disconnect power at the circuit breaker or fuse box before installation or servicing.
- This fixture is designed for 120 Volt AC applications.
- All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). Consult a qualified electrician if you are unfamiliar with proper electrical wiring connections.
- This item is UL listed and meets CSA standards, ensuring compliance with safety regulations.
- This fixture is rated for damp locations, making it suitable for bathroom environments.
- Professional installation is recommended for optimal safety and performance.
- Do not exceed the maximum wattage specified for the bulbs.
Package Contents
Carefully unpack your fixture and inspect for any damage. Keep all packaging materials until you are sure the fixture is in working order. Ensure all parts listed below are present:
- Vanity Light Fixture (1)
- Glass Shades (6)
- Mounting Hardware (e.g., mounting plate, screws, wire nuts)
- Instruction Manual (1)
Note: Light bulbs are not included with this fixture. Please purchase E26 Medium base bulbs separately.
Setup and Installation
This fixture is designed for wall-mount installation. Professional installation is recommended.
- Prepare for Installation: Turn off power at the main circuit breaker. Ensure the power is off before proceeding.
- Mounting Plate Installation: Attach the mounting plate to the junction box using the provided screws. Ensure it is securely fastened.
- Electrical Connections:
- Connect the fixture's bare copper ground wire to the green or bare copper ground wire from the junction box using a wire nut.
- Connect the fixture's white wire to the white (neutral) wire from the junction box using a wire nut.
- Connect the fixture's black wire to the black (hot) wire from the junction box using a wire nut.
- Ensure all wire connections are secure.
- Attach Fixture: Carefully align the fixture with the mounting plate and secure it using the provided screws or nuts.
- Install Bulbs: Insert six E26 Medium base bulbs (not included) into the sockets. Do not exceed 100 watts per bulb.
- Attach Glass Shades: Securely attach the glass shades to each light socket according to the fixture design.
- Restore Power: Turn the power back on at the main circuit breaker.
Image: A guide illustrating recommended vanity light widths relative to mirror and vanity sizes for optimal placement.
Operating Instructions
This vanity light fixture is operated via a standard wall switch (rocker or push button type) and is compatible with standard wall dimmers. Ensure appropriate E26 Medium base LED or incandescent bulbs are installed.
- Turning On/Off: Use the wall switch connected to the fixture to turn the lights on or off.
- Dimming (Optional): If connected to a compatible dimmer switch, adjust the dimmer to control the light intensity.
Maintenance
Regular maintenance will help preserve the appearance and functionality of your vanity light fixture.
- Cleaning: Turn off power before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish. Clean glass shades with a mild glass cleaner if necessary, ensuring they are completely dry before restoring power.
- Bulb Replacement: Turn off power before replacing bulbs. Allow bulbs to cool completely. Unscrew old bulbs and replace with new E26 Medium base bulbs, not exceeding 100 watts per bulb.
- Inspection: Periodically check all connections and mounting hardware for tightness.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. |
|
|
| Light flickers. |
|
|
Specifications
- Brand: ML Lighting
- Model Number: 4286-SN
- Finish: Satin Nickel
- Shade Material: Glass
- Number of Lights: 6
- Bulb Base: E26 Medium
- Max Wattage: 100 watts per bulb
- Voltage: 120 Volts
- Dimensions (L x W x H): 7.5" x 48" x 8.5"
- Installation Type: Wall Mount
- Location Rating: Damp Location
- Certifications: UL Listed, Meets CSA Standards
- Control Method: Wall Switch (App control mentioned in specifications, but primary control is physical switch)
Warranty Information
This ML Lighting fixture is covered by a 1-year limited manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accident, misuse, abuse, or normal wear and tear. Please retain your proof of purchase for warranty claims.
Support
For technical assistance, replacement parts, or warranty inquiries, please contact ML Lighting customer service. You may also visit the official ML Lighting website for additional resources and support.
ML Lighting Website: Visit the ML Lighting Store on Amazon
