Yeticool TX50 Dual Zone Compressor Electric Cooler User Manual

1. Introduction

Thank you for choosing the Yeticool TX50 Dual Zone Compressor Electric Cooler. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read it thoroughly before use and retain it for future reference.

2. Safety Instructions

• Ensure the power supply matches the voltage specified on the cooler's rating label.
• Do not operate the cooler if the power cord is damaged. Contact qualified service personnel for repairs.
• Keep the cooler away from direct heat sources and ensure adequate ventilation around the unit.
• Avoid placing the cooler in direct sunlight for extended periods.
• Do not immerse the cooler in water or expose it to heavy rain.
• Always disconnect the power supply before cleaning or performing maintenance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

3. Package Contents

Verify that all items are present in the package:

• Yeticool TX50 Portable Cooling Box
• Internal Basket
• 12/24V DC Connection Cable (3.5 m long)
• AC/DC Adapter with 100-240V Connection Cable (EU/UK plug)
• User Manual

4. Product Overview

The Yeticool TX50 is a versatile dual-zone compressor electric cooler designed for portable use in various environments, including cars, trucks, boats, and camping. It features robust insulation and a powerful compressor for rapid cooling and freezing.

Key Features:

• Dual Zone Operation: Two independent cooling compartments with separate temperature control. The adjustable partition can be removed to create a single large compartment.
• Wide Temperature Range: Capable of maintaining temperatures from -20°C to +20°C.
• Flexible Power Input: Operates on 12V/24V DC (vehicle power) and 100-240V AC (household power).
• Bluetooth App Control: Remote control via a dedicated mobile application (Android/iOS) for convenient temperature adjustment and monitoring.
• Battery Protection: Multi-level system to prevent vehicle battery discharge.
• Portability: Equipped with ergonomic carrying handles, telescopic handle, and durable wheels for easy transport.
• Internal Lighting: LED lighting inside the cooling chamber for visibility.
• USB Charging Port: Integrated USB socket for charging external devices like smartphones or tablets.
• Bottle Opener: Conveniently located for ease of use.

Figure 1: Yeticool TX50 Electric Cooler - Main View

Figure 2: Temperature Range and Insulation Features

Figure 3: Interior View with Dual Compartments and Lighting

5. Setup

5.1 Unpacking

1. Carefully remove the cooler from its packaging.
2. Inspect the unit for any signs of damage. If damaged, do not use and contact your retailer.
3. Remove all internal packaging materials and accessories.

5.2 Placement

• Place the cooler on a flat, stable surface.
• Ensure there is at least 10 cm of clear space around all sides of the cooler for proper ventilation.
• Avoid placing the cooler near heat sources or in direct sunlight.

5.3 Power Connection

Figure 4: Power Connection Cables

• For 12V/24V DC (Vehicle Use): Connect the 12/24V DC cable to the cooler's DC input port and then to your vehicle's cigarette lighter socket or 12V/24V power outlet.
• For 100-240V AC (Household Use): Connect the AC/DC adapter to the cooler's AC input port, then plug the AC cable into a standard wall outlet.
• Ensure connections are secure before powering on the unit.

6. Operating Instructions

6.1 Control Panel

The control panel is located on the top of the cooler. It typically includes a power button, temperature adjustment buttons, and a display for current temperatures.

6.2 Power On/Off

Press and hold the power button for a few seconds to turn the cooler on or off. The display will illuminate when the unit is active.

6.3 Temperature Adjustment (Dual Zone)

• The TX50 features two cooling zones. Each zone can be set to a different temperature.
• Use the dedicated temperature buttons (usually '+' and '-') for each zone to set your desired temperature.
• The display will show the current temperature of each zone.
• To combine the zones into a single large compartment, remove the internal partition. The cooler will then operate as a single zone unit, typically controlled by one set of temperature settings.

6.4 Bluetooth App Control

Figure 5: Bluetooth App Interface

1. Download the Yeticool mobile application from your device's app store (Android/iOS).
2. Ensure Bluetooth is enabled on your smartphone.
3. Open the Yeticool app and follow the on-screen instructions to pair with your TX50 cooler.
4. Once connected, you can monitor temperatures, adjust settings, and control power remotely via the app.

6.5 Battery Protection Mode

The cooler is equipped with a multi-level battery protection system to prevent excessive discharge of your vehicle's battery. You can typically select between different protection levels (e.g., High, Medium, Low) via the control panel or the mobile app. Refer to the specific instructions on the control panel or app for details on adjusting this setting.

7. Maintenance

7.1 Cleaning

• Always disconnect the power before cleaning.
• Wipe the interior and exterior surfaces with a damp cloth and mild detergent.
• Do not use abrasive cleaners or harsh chemicals.
• Ensure the cooler is completely dry before reconnecting power.

7.2 Ventilation

Regularly check that the ventilation openings are clear of dust and debris to ensure efficient operation and prevent overheating.

7.3 Storage

When not in use for extended periods, clean the cooler thoroughly, leave the lid slightly ajar to prevent odors, and store it in a dry, well-ventilated area.

8. Troubleshooting

If you encounter issues with your Yeticool TX50, consult the following table:

If the problem persists after attempting these solutions, please contact customer support.

9. Specifications

Figure 6: Cooler Dimensions (Isometric View)

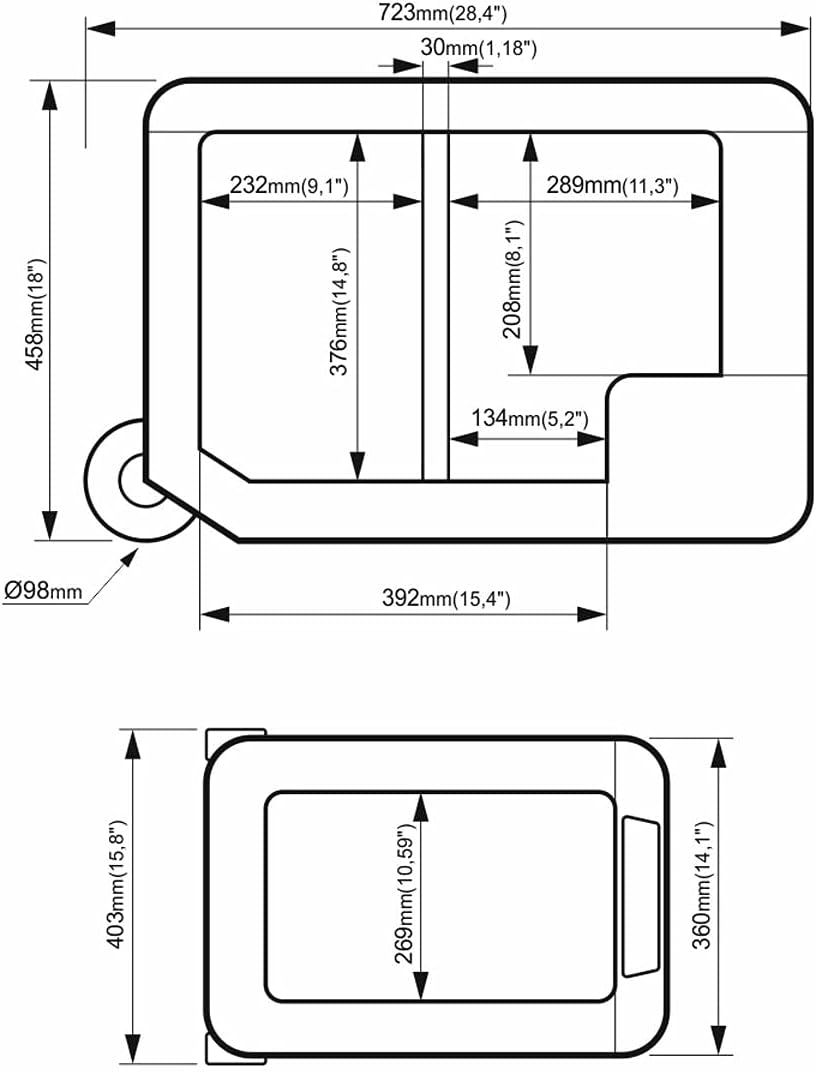

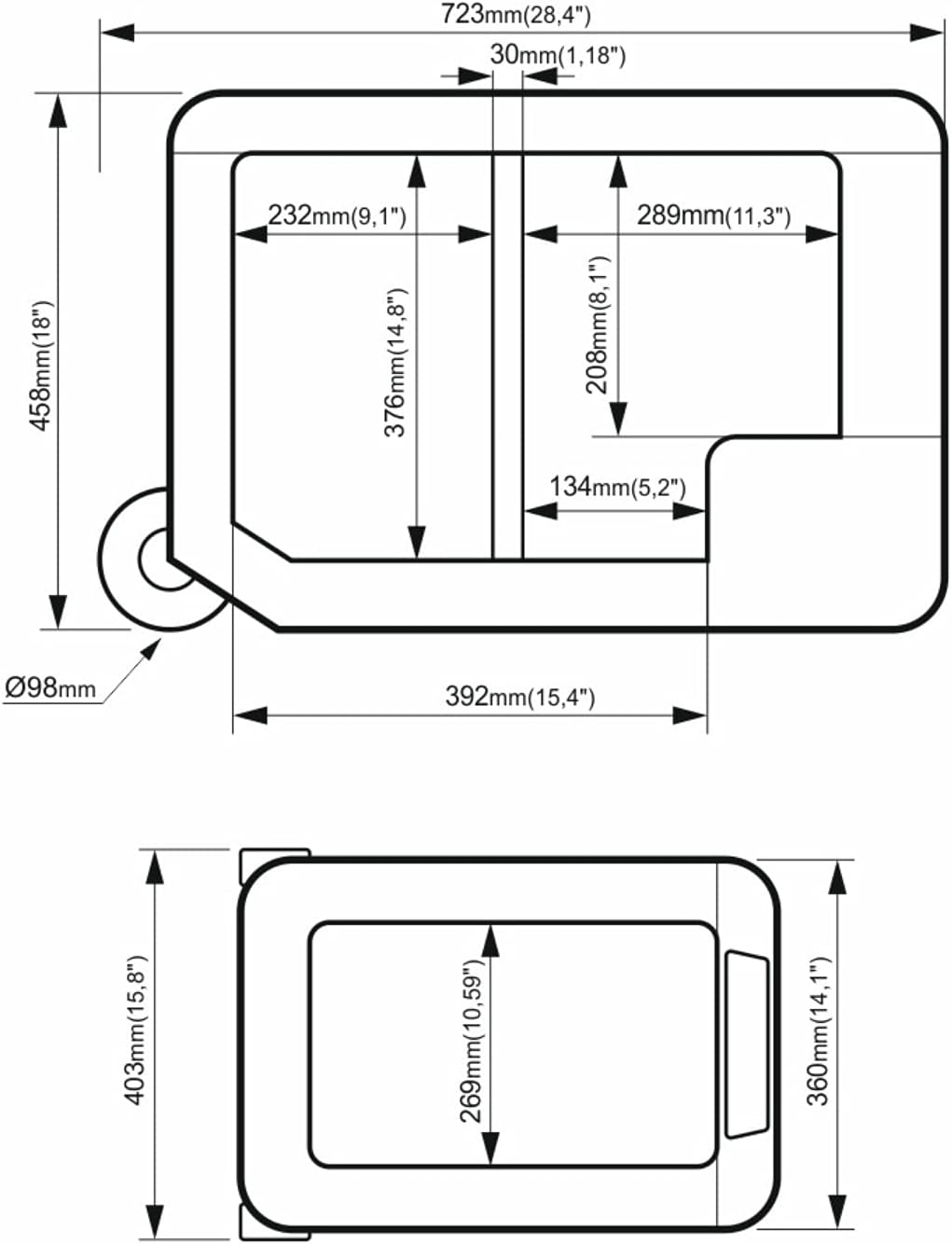

Figure 7: Cooler Dimensions (Top and Front Views)

Figure 8: EU Energy Label for Yeticool TX50

For more details, refer to the official EU EPREL database: https://eprel.ec.europa.eu/qr/422251

Figure 9: Product Data Sheet

10. Warranty and Support

10.1 Warranty Information

The Yeticool TX50 Electric Cooler comes with a 24-month manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper maintenance.

Please retain your proof of purchase for warranty claims.

10.2 Customer Support

For technical assistance, warranty claims, or general inquiries, please contact the manufacturer:

• Manufacturer: Arkas Sp. z o.o.
• Address: KuŹnicza 4, 59-400 Jawor, PL
• Website: www.arkas.pl
