Supfine Portable Infrared Sauna Cabin 1000W User Manual

1. Introduction

This manual provides essential instructions for the safe and effective operation, setup, maintenance, and troubleshooting of your Supfine Portable Infrared Sauna Cabin 1000W. Please read this manual thoroughly before initial use and retain it for future reference.

The Supfine Portable Infrared Sauna Cabin is designed for personal use, offering a convenient way to experience infrared sauna benefits in your home. It features a foldable design, 1000W heating elements, and an external thermoregulator for temperature control.

2. Important Safety Instructions

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, observe the following:

• Always unplug the sauna from the electrical outlet immediately after using and before cleaning.
• Do not use while sleeping or drowsy.
• Do not use on an infant or invalid, or on a person who is unconscious or asleep.
• Do not use in the presence of explosive and/or flammable fumes.
• Do not operate under a blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
• Close supervision is necessary when this product is used by, on, or near children or invalids.
• Use this product only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
• Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the product to a service center for examination and repair.
• Keep the cord away from heated surfaces.
• Never block the air openings of the product or place it on a soft surface, such as a bed or couch, where the air openings may be blocked. Keep air openings free of lint, hair, and the like.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
• To disconnect, turn all controls to the OFF position, then remove plug from outlet.
• Do not stand on the foot mat.
• Consult a physician before use if you have any medical conditions, are pregnant, or have a pacemaker.

3. Package Contents

Please check the package contents upon receipt to ensure all components are present and undamaged.

• Portable Infrared Sauna Cabin
• Foldable Chair
• Foot Heating Pad
• Remote Control / External Thermoregulator
• Power Cord
• User Manual (this document)

Image: The portable infrared sauna cabin shown with a blue foldable chair placed inside, illustrating the main components.

4. Setup Instructions

1. Unpack the Sauna: Carefully remove all components from the packaging.
2. Unfold the Cabin: Place the foldable sauna cabin on a flat, stable, and heat-resistant surface. Gently unfold the cabin until it forms its full shape. Ensure the zippers are aligned.
3. Insert the Chair: Place the foldable chair inside the sauna cabin. Ensure it is stable and centered.
4. Position the Foot Heating Pad: Place the foot heating pad on the floor inside the sauna cabin. Connect its cable to the designated port inside the cabin.
5. Connect the Controller: Connect the external thermoregulator (remote control) cable to the corresponding port on the exterior of the sauna cabin.
6. Power Connection: Plug the power cord from the thermoregulator into a standard electrical outlet. Ensure the outlet meets the power requirements (1000W).

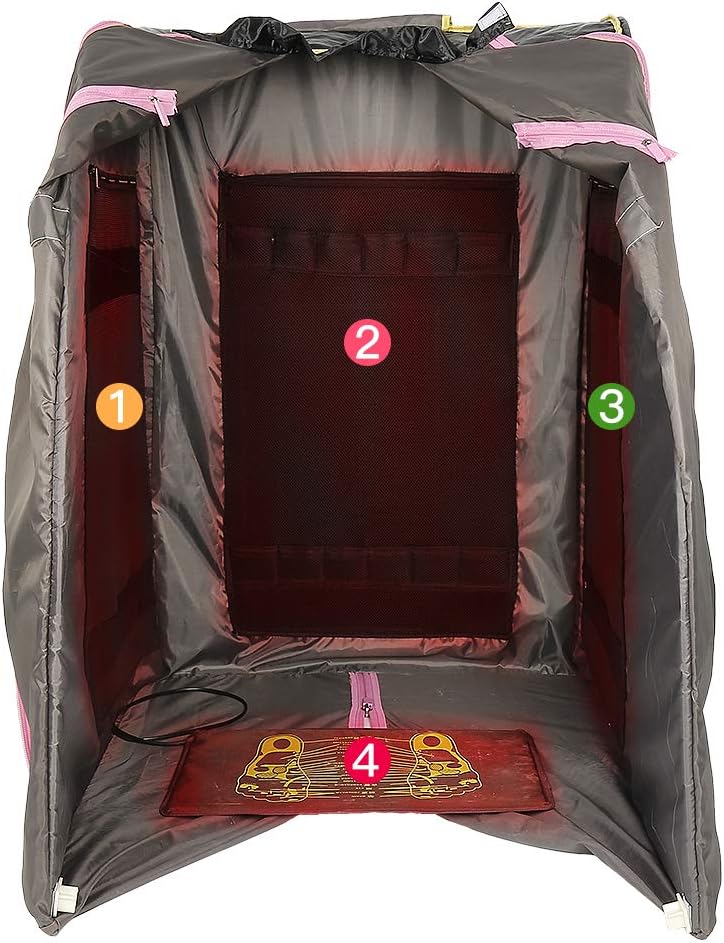

Image: An interior view of the sauna cabin showing the numbered heating panels and foot pad. (1) Side heating panel, (2) Back heating panel, (3) Side heating panel, (4) Foot heating pad.

Image: The exterior of the sauna cabin, highlighting the connection point for the external thermoregulator and power cord.

5. Operating Instructions

1. Pre-heating: Plug in the sauna. Use the external thermoregulator to set your desired temperature and time. Allow 5-10 minutes for the sauna to pre-heat.
2. Enter the Sauna: Unzip the main zipper, sit on the chair inside the cabin, and zip yourself in. The neck opening can be adjusted for comfort.
3. Adjust Settings: Use the remote control to adjust temperature and time during your session as needed. The maximum recommended session time is 30-45 minutes.
4. Hydration: It is recommended to drink water before and after your sauna session to stay hydrated.
5. Exiting the Sauna: Once your session is complete or you wish to exit, turn off the unit using the remote control, unzip the cabin, and carefully step out.
6. Cool Down: Allow your body to cool down gradually after a session.

Image: A woman standing next to the fully assembled portable infrared sauna cabin, demonstrating its size and typical usage scenario.

Image: A close-up view of the adjustable neck opening of the sauna cabin, showing the Velcro fasteners for a secure and comfortable fit.

Image: A close-up of the small transparent pocket on the exterior of the sauna cabin, suitable for holding a remote control or small personal items.

6. Maintenance and Storage

• Cleaning: After each use, wipe the interior of the sauna cabin with a damp cloth. For deeper cleaning, use a mild, non-abrasive cleaner. Ensure the sauna is completely dry before folding or storing.
• Drying: Leave the sauna partially unzipped for a period after use to allow any moisture to evaporate.
• Storage: When not in use, unplug the sauna and allow it to cool completely. Fold the cabin neatly and store it in a dry, cool place away from direct sunlight.
• Foot Mat Care: The foot heating pad can be wiped clean with a damp cloth. Do not immerse it in water.

Image: A close-up view of the foot heating pad, showing its textured surface and design, which is placed inside the sauna cabin.

7. Troubleshooting

8. Specifications

• Model: Portable Infrared Sauna Cabin 1000W (B094HSLP7Z)
• Brand: Supfine
• Power: 1000W
• Material: Fabric
• Color: Black
• Dimensions (Approximate): 80cm (Width) x 70cm (Depth) x 98cm (Height)
• Control: External Thermoregulator / Remote Control
• Features: Foldable design, Negative Ion release (as per product description)

Image: A diagram illustrating the approximate dimensions of the portable infrared sauna cabin: 80cm width, 70cm depth, and 98cm height.

9. Warranty and Support

For warranty information or technical support, please contact your retailer or the manufacturer directly. Please have your purchase receipt and product model information (B094HSLP7Z) available when contacting support.

Manufacturer: Supfine

Note: Availability of spare parts is currently unavailable as per product specifications.
