Raching MON1800 Cigar Humidor Cabinet User Manual

1. Introduction

Thank you for choosing the Raching MON1800 Cigar Humidor Cabinet. This manual provides essential information for the proper installation, operation, and maintenance of your humidor. Adhering to these instructions will ensure optimal performance and longevity of your unit, providing an ideal environment for storing and aging your cigars.

Front view of the Raching MON1800 Cigar Humidor Cabinet, showcasing its elegant black exterior and interior cedar shelving system designed for cigar storage.

2. Safety Information

• Read all instructions before using the appliance.
• Ensure the power supply matches the specifications (110 volts AC).
• Do not operate the appliance with a damaged cord or plug.
• Keep the appliance away from direct sunlight, heat sources, and flammable materials.
• Ensure adequate ventilation around the unit. Maintain at least 4 inches of space from walls and other objects.
• Only use distilled water in the humidifier reservoir.
• Unplug the unit before cleaning or performing any maintenance.
• This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities unless supervised.

3. Product Overview

3.1 Key Features

• Premium Construction: Features a 100% wood frame with an upscale piano black paint finish and premium Spanish cedar wood trays.
• Advanced Climate Control: Integrated humidity, fan cooling, PTC heating, and dehumidify systems maintain a constant temperature and humidity environment.
• Ammonia Removal System: Designed to remove up to 93.7% of ammonia odor, enhancing the cigar aging process and preserving fragrance.
• Optimal Storage Conditions: Maintains a temperature range of 60-71°F (16-22°C) and humidity of 60-75%.
• Generous Capacity: 220L capacity, capable of storing over 900 cigars.

An image depicting the Raching MON1800 Humidor's ability to maintain stable internal conditions regardless of external environmental factors, symbolized by contrasting desert and city backgrounds.

3.2 Components

• Control Panel: Digital interface for setting and monitoring temperature and humidity.
• Spanish Cedar Trays: Removable trays for organizing cigars, contributing to aroma and humidity regulation.
• Water Reservoir: Located at the bottom for the humidification system.
• Ammonia Removal Device: Internal component for air purification.
• Compressor: Part of the cooling and dehumidification system.
• PTC Heating System: Ensures stable temperatures in cooler environments.
• Evaporative Cooling System: Aids in efficient temperature regulation.

A view of the removable Spanish cedar trays, designed to organize and store cigars while contributing to the ideal humidification environment.

An illustration of the compressor, a key component of the humidor's active cooling and dehumidification system.

An illustration of the PTC (Positive Temperature Coefficient) heating system, which ensures stable temperatures in cooler environments.

An illustration of the evaporative cooling system, contributing to efficient temperature regulation within the cabinet.

4. Setup

4.1 Unpacking and Inspection

1. Carefully remove all packaging materials.
2. Inspect the humidor for any signs of shipping damage. Contact customer support immediately if damage is found.
3. Remove all internal packing materials, including tape and protective films.

4.2 Placement

• Place the humidor on a firm, level surface capable of supporting its weight (approximately 187.39 lbs / 85 kg when empty).
• Ensure the unit is not exposed to direct sunlight or placed near heat-generating appliances (e.g., ovens, radiators).
• Allow at least 4 inches (10 cm) of space around the back and sides of the unit for proper air circulation and heat dissipation.
• Dimensions: 23.62" L x 24.02" W x 48.03" H.

4.3 Initial Power-On

• After placing the unit, allow it to stand upright for at least 24 hours before plugging it into a power outlet. This allows the compressor lubricants to settle.
• Plug the power cord into a dedicated 110V AC grounded outlet.

4.4 Seasoning the Humidor

Seasoning is crucial for new humidors to allow the Spanish cedar wood to absorb moisture and stabilize the internal humidity. This process prevents the wood from drawing moisture from your cigars.

1. Fill the water reservoir with distilled water. The unit will indicate when the reservoir is full.
2. Set the desired humidity level (e.g., 70%) on the control panel.
3. Allow the humidor to run for 3-7 days with the cedar trays inside, but without cigars. The humidity should stabilize during this period.
4. Monitor the internal humidity using a calibrated hygrometer (if not using the built-in sensor).
5. Once the humidity has stabilized at your desired level, the humidor is ready for cigar storage.

Detail of the humidor's Spanish cedar wood interior, emphasizing its natural moisture-regulating properties that prevent condensation and enhance cigar aroma.

5. Operation

5.1 Control Panel Functions

The digital control panel of the Raching MON1800, showing indicators for temperature, humidity, water level, and various operational settings.

The digital control panel allows you to set and monitor the internal temperature and humidity. Refer to the icons on the panel for specific functions:

• Temperature Setting: Use the '+' and '-' buttons to adjust the desired temperature (recommended 60-71°F / 16-22°C).
• Humidity Setting: Use the dedicated humidity controls to set the desired relative humidity (recommended 60-75%).
• Water Level Indicator: An icon will illuminate and an audible beep may sound when the water reservoir needs refilling.
• Lighting: Manual control for interior LED lighting.
• Setup/Mode: Access advanced settings or switch operating modes.

5.2 Water Reservoir Refilling

When the water level indicator signals, refill the reservoir with distilled water. The unit will automatically stop humidifying if the water level is too low. Use only distilled water to prevent mineral buildup and maintain hygiene.

5.3 Ammonia Removal System

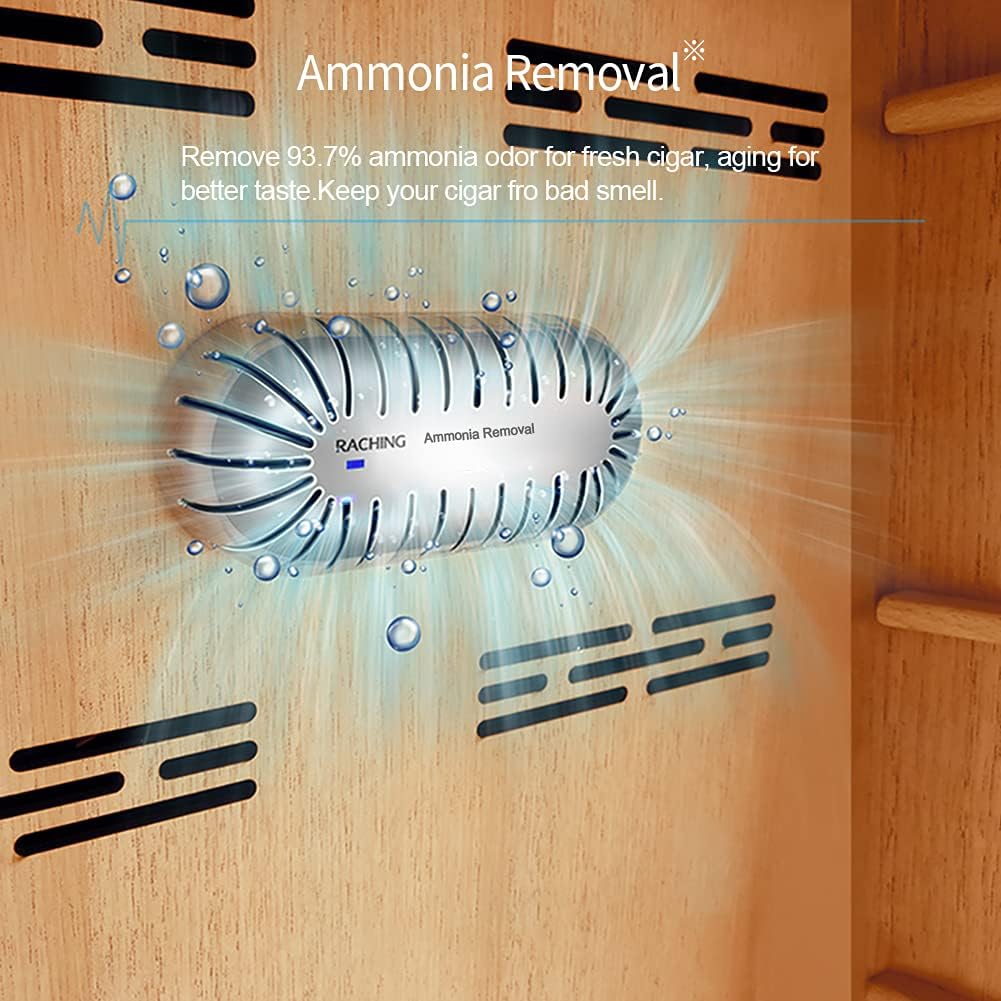

Close-up of the integrated ammonia removal system within the humidor, designed to purify the air and enhance cigar aging.

The humidor features an automatic ammonia removal system. This system operates continuously to neutralize ammonia odors that naturally occur during cigar production and aging, ensuring a clean and optimal environment for your cigars.

5.4 Cigar Placement

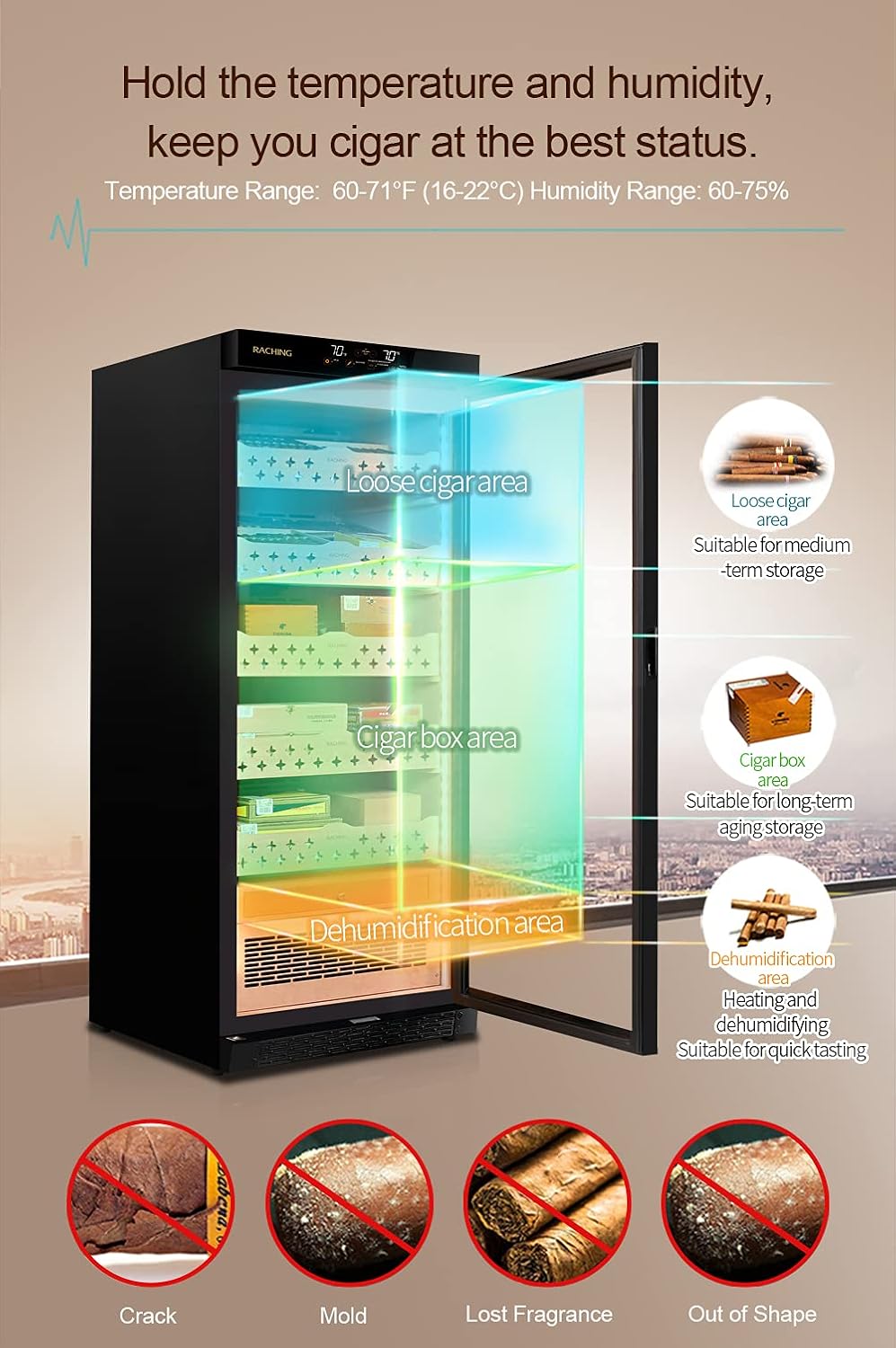

An illustrative diagram highlighting the distinct storage zones within the Raching MON1800: a top area for loose cigars, a central area for cigar boxes, and a lower dehumidification section for quick tasting.

The humidor is designed with distinct zones for different storage needs:

• Loose Cigar Area: Typically the upper sections, suitable for medium-term storage of individual cigars.
• Cigar Box Area: Central sections, ideal for long-term aging of cigars within their original boxes.
• Dehumidification Area: The lowest section, which can be used for cigars intended for quick tasting, where a slightly lower humidity might be preferred.

Ensure cigars are placed to allow for proper air circulation within the cabinet.

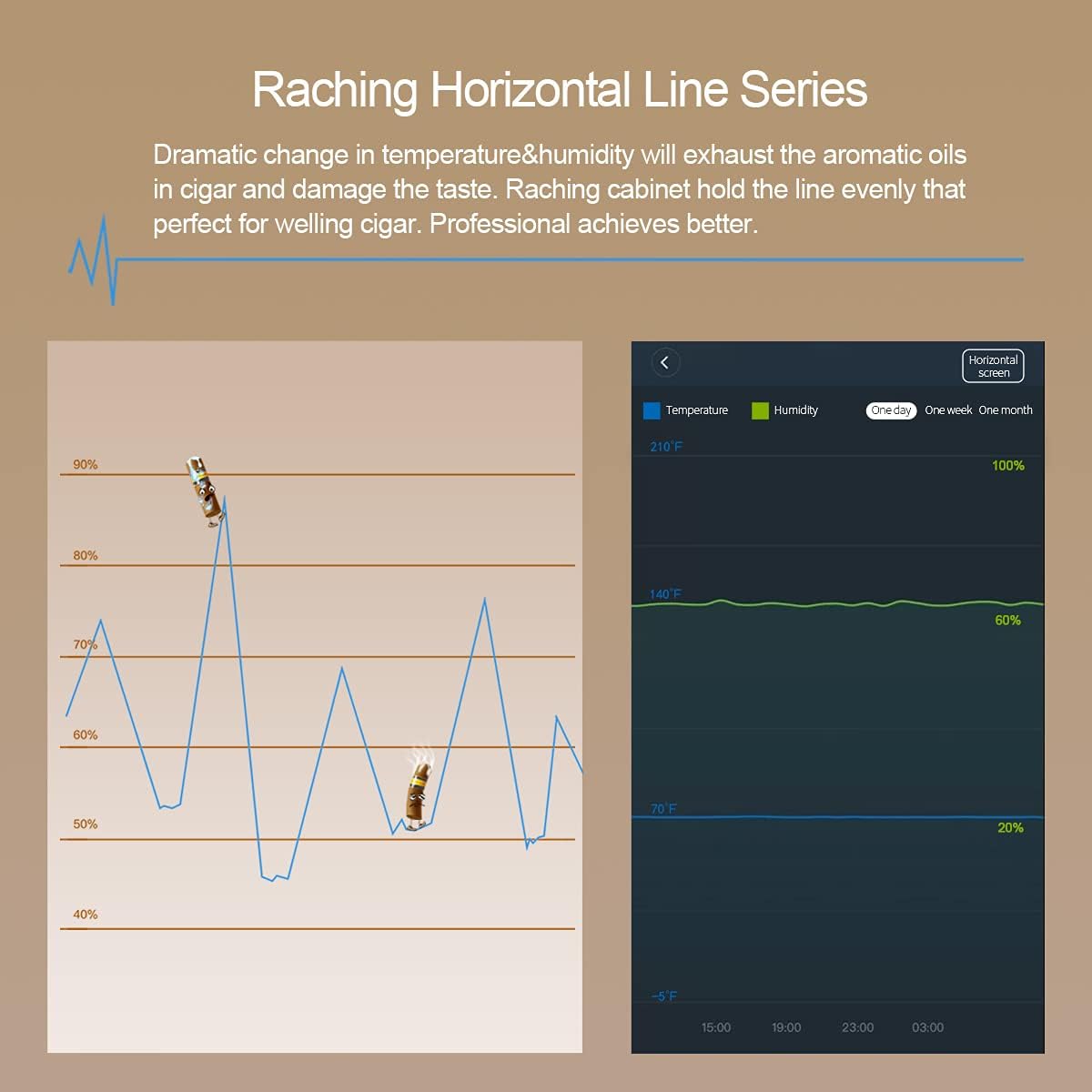

A graphical representation illustrating the consistent temperature and humidity levels achieved by the Raching MON1800, crucial for preserving cigar quality.

6. Maintenance

6.1 Cleaning the Interior

1. Unplug the humidor from the power outlet.
2. Remove all cigars and cedar trays.
3. Wipe down the interior surfaces and cedar trays with a clean cloth dampened with distilled water. Do not use soap or chemical cleaners, as these can impart odors that will affect your cigars.
4. Allow the interior to air dry completely before returning cigars and trays.

6.2 Cleaning the Exterior

Clean the exterior surfaces with a soft, damp cloth. For stubborn marks, a mild, non-abrasive cleaner can be used, followed by wiping with a clean, damp cloth. Avoid harsh chemicals that may damage the finish.

6.3 Water Reservoir Maintenance

Regularly clean the water reservoir to prevent mold or algae growth. Remove the reservoir, empty any remaining water, and clean it with a mild disinfectant solution or a mixture of water and white vinegar. Rinse thoroughly with distilled water before refilling and reinserting.

7. Troubleshooting

8. Specifications

• Model: MON1800
• Product Dimensions: 23.62 x 24.02 x 48.03 inches (L x W x H)
• Weight: 187.39 Pounds (empty)
• Capacity: 220 Liters (approx. 900+ cigars)
• Power Consumption: 130 watts
• Voltage: 110 volts AC
• Recommended Temperature Range: 60-71°F (16-22°C)
• Recommended Humidity Range: 60-75%
• Manufacturer: RACHING

9. Warranty and Support

For warranty information, technical support, or service inquiries, please contact the manufacturer, RACHING, or the authorized seller. You can find more information and contact details on the official RACHING brand store:

Visit the RACHING Brand Store

Please have your model number (MON1800) and purchase date available when contacting support.
