Important Safety Information
Please read and understand all instructions before beginning installation. Failure to do so may result in electric shock, fire, or other injuries that could be hazardous or fatal. Keep these instructions for future reference.
- WARNING: To avoid electric shock, disconnect power at the main fuse box or circuit breaker panel before installation or servicing.
- All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). Contact a qualified electrician if you are unfamiliar with proper electrical wiring connections.
- This fixture is rated for damp locations. Do not install in areas where it will be directly exposed to water.
- Professional installation is recommended for this product.
- Use only E26 Medium base bulbs, maximum 60W incandescent or equivalent LED. Bulbs are not included.
Setup and Installation
Before you begin, ensure all parts are present and undamaged. If any part is missing or broken, do not attempt to assemble or install the fixture. Contact customer service for replacement parts.
Included Components:
- Vanity Light Fixture
- Mounting Hardware
- Instruction Manual
Tools Required (Not Included):
- Phillips Head Screwdriver
- Flat Head Screwdriver
- Wire Strippers
- Electrical Tape
- Pliers
Installation Steps:
- Turn Off Power: Locate the circuit breaker that supplies power to the light fixture outlet box. Turn the breaker to the OFF position.
- Prepare Mounting: Remove the old fixture (if applicable). Attach the mounting bracket to the junction box using the provided screws. Ensure the bracket is securely fastened.
- Wire Connections: Connect the fixture's wires to the corresponding house wires. Connect the black wire (live) from the fixture to the black wire from the junction box. Connect the white wire (neutral) from the fixture to the white wire from the junction box. Connect the bare copper or green ground wire from the fixture to the green or bare copper ground wire from the junction box. Secure all connections with wire nuts and wrap with electrical tape.
- Attach Fixture: Carefully tuck the wires into the junction box. Align the fixture's backplate with the mounting bracket and secure it with the provided screws.
- Install Bulbs: Insert three E26 Medium base bulbs (not included) into the sockets. Do not exceed the maximum wattage of 60W per bulb.
- Attach Glass Shades: Carefully attach the glass shades to the fixture.
- Restore Power: Turn the circuit breaker back to the ON position. Test the light fixture.

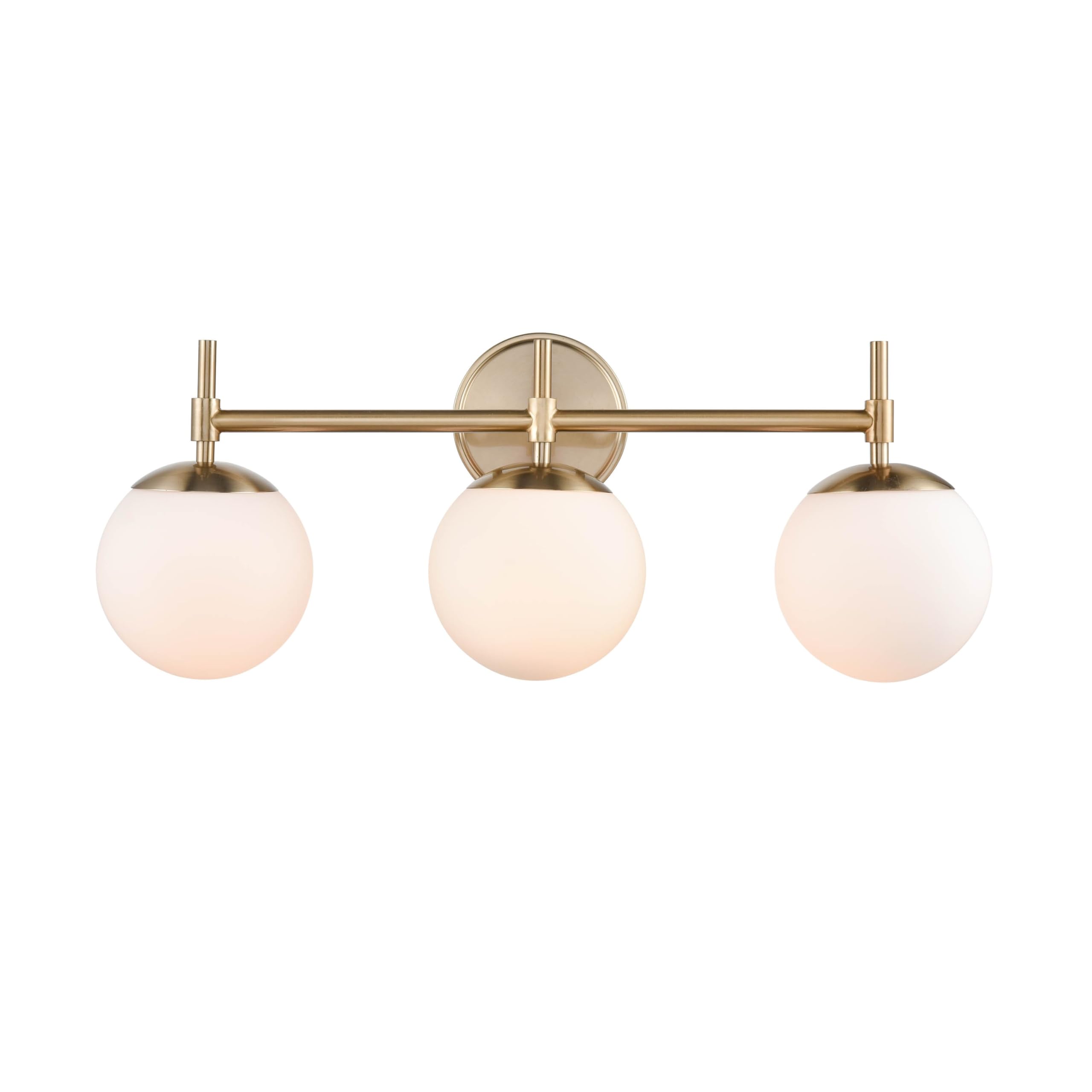

Figure 1: ML Lighting Redondo 3-Light Vanity Light, Modern Gold finish. This image shows the complete fixture with its three globe-shaped lights and modern gold finish, ready for installation.
Figure 2: Dimensions of the ML Lighting Redondo 3-Light Vanity Light. This diagram illustrates the fixture's width (24 inches), height (9 inches), and depth (7.75 inches), providing essential measurements for planning installation space.
Figure 3: Vanity Light Hanging Guide. This guide provides recommendations for optimal placement of vanity lights relative to mirror and vanity width, suggesting the light fixture should be approximately 3/4 of the mirror's width or slightly shorter than the vanity.
Operating Instructions
This vanity light fixture operates using a standard wall switch. Once properly installed and powered, simply toggle the wall switch to turn the light on or off.
- Dimmer Compatibility: The fixture is compatible with standard wall dimmers. Ensure that the bulbs installed are also dimmable if you intend to use a dimmer switch.
- Light Source: This fixture is designed for E26 Medium base bulbs. LED bulbs are recommended for energy efficiency.
Maintenance
Regular maintenance will help preserve the appearance and functionality of your ML Lighting vanity light.
- Cleaning: To clean the fixture, ensure power is off. Wipe with a soft, dry, or slightly damp cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish.
- Bulb Replacement: Before replacing bulbs, turn off power at the circuit breaker. Allow bulbs to cool completely. Unscrew old bulbs and replace with new E26 Medium base bulbs, ensuring they do not exceed 60W per bulb.
Troubleshooting
If you experience issues with your vanity light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power to the fixture. Loose wire connection. Faulty bulb. | Check the circuit breaker and wall switch. Ensure all wire connections are secure (turn off power first). Replace the bulb. |
| Light flickers. | Loose bulb. Incompatible dimmer switch. Loose wire connection. | Tighten the bulb. Ensure dimmer is compatible with bulbs and fixture. Check wire connections (turn off power first). |
| Bulbs burn out quickly. | Incorrect wattage bulb. Poor ventilation. | Ensure bulbs do not exceed 60W. |
If the problem persists after attempting these solutions, contact a qualified electrician or ML Lighting customer support.
Specifications
| Brand | ML Lighting |
| Model Number | 30303-MG |
| UPC | 842639027580 |
| Color / Finish | Modern Gold |
| Material | Metal |
| Dimensions (L x W x H) | 7.75" x 24" x 9" |
| Item Weight | 4 pounds |
| Number of Lights | 3 |
| Light Source | LED (compatible) |
| Bulb Base | E26 Medium |
| Max Wattage per Bulb | 60 watts (incandescent equivalent) |
| Voltage | 120 volts |
| Indoor/Outdoor Usage | Indoor |
| Location Rating | Damp Location Rated |
| Certifications | UL Listed, Meets CSA Standards |
| Installation Type | Semi Flush Mount |
Warranty Information
This ML Lighting product is covered by a 1-year limited manufacturer's warranty from the date of purchase.
The warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accident, misuse, abuse, or normal wear and tear.
For detailed warranty terms and conditions, or to make a warranty claim, please contact ML Lighting customer support.
Customer Support
If you have any questions regarding the installation, operation, or maintenance of your ML Lighting Redondo vanity light, please contact our customer support team.
- Online Support: Visit the ML Lighting Store on Amazon for more product information and resources.
- Contact Manufacturer: For direct assistance, please refer to the contact information provided on the product packaging or the ML Lighting official website.
