1. Introduction
Thank you for choosing the OHHO Stainless Steel 7-In-1 Air Fryer Grill. This versatile appliance combines the functions of an air fryer and an indoor grill, allowing you to prepare a wide variety of meals with less oil. Please read this manual thoroughly before first use to ensure safe and optimal operation.

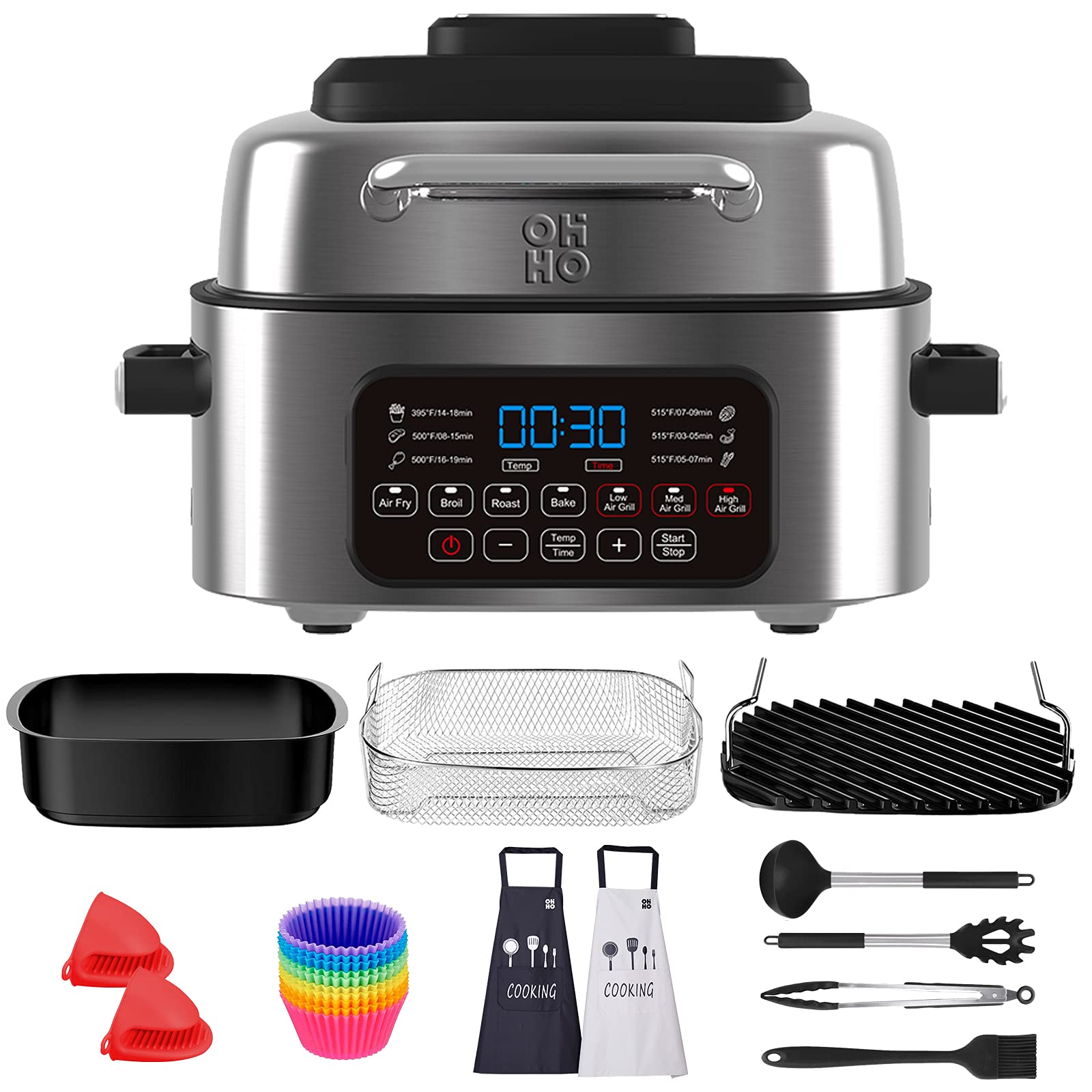

Image 1.1: The OHHO Stainless Steel 7-In-1 Air Fryer Grill.
2. Important Safety Instructions
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or the main unit in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.
- Do not use appliance for other than intended use.
3. Product Components
Familiarize yourself with the various parts of your OHHO Air Fryer Grill:
Image 3.1: Exploded view showing the Air Fryer Lid, Air Fryer Basket, Grill Grate, Inner Pot, and Stainless Steel Body.
- Air Fryer Lid: Contains the heating element and fan for air frying.
- Air Fryer Basket: Used for air frying, roasting, and baking.
- Grill Grate: Designed for grilling functions, providing char-grilled results.
- Inner Pot: Collects drippings and can be used for various cooking methods.
- Stainless Steel Body: The main unit housing the control panel and heating elements.
Additional accessories may include a ladle, spaghetti server, tongs, basting brush, silicone cupcake liners, and silicone mitts.
4. Setup
- Unpack: Carefully remove all packaging materials and accessories.
- Clean: Wash the inner pot, grill grate, and air fryer basket with warm, soapy water. Rinse and dry thoroughly. Wipe the main unit with a damp cloth.
- Placement: Place the appliance on a stable, heat-resistant surface, away from walls and other appliances to allow for proper air circulation. Ensure there is at least 6 inches of space around the unit.
- Power: Plug the power cord into a grounded electrical outlet.
5. Operating Instructions
5.1 Control Panel Overview
Image 5.1: Digital One Touch Control System with preset functions.
The control panel features a digital display for time and temperature, along with touch controls for various cooking functions and settings.
- Power Button: Turns the unit on/off.
- Temp/Time Button: Toggles between temperature and time adjustment.
- +/- Buttons: Adjust temperature and time settings.
- Start/Stop Button: Initiates or pauses the cooking process.
- Preset Functions: Dedicated buttons for Air Fry, Broil, Roast, Bake, Low Air Grill, Mid Air Grill, High Air Grill.
5.2 Cooking Functions
The OHHO Air Fryer Grill offers 7 primary cooking functions:
- Air Fry: Uses rapid hot air circulation for crispy results with little to no oil. Ideal for fries, chicken wings, and vegetables.
- Broil: High heat from above for browning and caramelizing food surfaces.
- Roast: Cooks food evenly with circulating hot air, suitable for meats and larger vegetables.
- Bake: Perfect for cakes, pastries, and other baked goods.
- Low Air Grill (Sausage): Gentle grilling for delicate items.
- Mid Air Grill (Chicken Breast): Medium intensity grilling for poultry.
- High Air Grill (Steaks): Intense grilling for searing meats.
The appliance also features Cyclonic Grilling Technology for surround searing and Smoke Control Technology for a virtually smokeless indoor grilling experience.
Image 5.2: Illustration of 1600W rapid heat air circulation for efficient cooking.
5.3 General Operation Steps
- Place the desired accessory (inner pot, air fryer basket, or grill grate) into the main unit.
- Add your food to the accessory.
- Close the lid securely.
- Press the Power button to turn on the unit.
- Select your desired cooking function (e.g., Air Fry, High Air Grill). The display will show default time and temperature settings.
- Use the Temp/Time button and +/- buttons to adjust the temperature and cooking time as needed.
- Press the Start/Stop button to begin cooking.
- The unit will beep when cooking is complete. Carefully remove food using heat-resistant utensils.
Image 5.3: Visual examples of various dishes prepared using the appliance's functions.
6. Cleaning and Maintenance
Proper cleaning ensures the longevity and performance of your OHHO Air Fryer Grill.
- Unplug and Cool: Always unplug the appliance and allow it to cool completely before cleaning.
- Removable Parts: The inner pot, air fryer basket, and grill grate are dishwasher safe. Alternatively, wash them with warm, soapy water and a non-abrasive sponge. Rinse thoroughly and dry.
- Main Unit: Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water or any other liquid.
- Heating Element: Gently wipe the heating element and interior of the lid with a damp cloth to remove any food residue. Avoid using harsh scrubbing pads.
- Storage: Store the clean and dry appliance in a cool, dry place.
Image 6.1: Removable components are dishwasher safe for easy cleaning.
7. Troubleshooting
If you encounter issues with your appliance, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on. | Not plugged in; power outlet malfunction; lid not properly closed. | Ensure the power cord is securely plugged into a working outlet. Check if the lid is fully closed and latched. |
| Food is not cooking evenly. | Overcrowding the basket/grate; incorrect temperature/time settings. | Avoid overcrowding; cook in smaller batches if necessary. Adjust temperature and time according to recipe or food type. Shake or flip food halfway through cooking. |
| Excessive smoke from the unit. | Grease buildup; fatty food. | Ensure the inner pot and grill grate are clean before use. Trim excess fat from food. The smoke control technology minimizes smoke, but some smoke may occur with very fatty foods. |
| Unit stops working during operation. | Overheating; internal malfunction. | Unplug the unit and let it cool down for at least 30 minutes. Plug it back in and try again. If the problem persists, contact customer support. |
8. Specifications
| Feature | Specification |
|---|---|
| Model Number | OH-AFG06-SS |
| Capacity | 6.5 Quarts (6 Liters) |
| Wattage | 1600 Watts |
| Control Method | Touch Control |
| Material | Stainless Steel |
| Dimensions (L x W x H) | 16.54 x 13.39 x 13.39 inches |
| Item Weight | 19.86 pounds |
| Special Features | Temperature Control, Nonstick Coating, Cyclonic Grilling Technology, Smoke Control Technology |
9. Warranty and Support
The OHHO Stainless Steel 7-In-1 Air Fryer Grill comes with a one-year manufacturer warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical support, or any questions regarding your product, please contact OHHO customer service. Keep your proof of purchase for warranty validation.
