Product Overview
The ALLILUYAA 360° Rotating Adjustable 3-Arm Garden Sprinkler is designed for efficient and uniform watering of lawns, gardens, and vegetable fields. It features a 3-arm rotating design with adjustable spray nozzles to cover a wide area, helping to conserve water while providing thorough irrigation.
This sprinkler system operates automatically using water pressure, requiring no additional power sources. Its durable ABS plastic and anti-rust polymer construction ensure long-lasting performance.

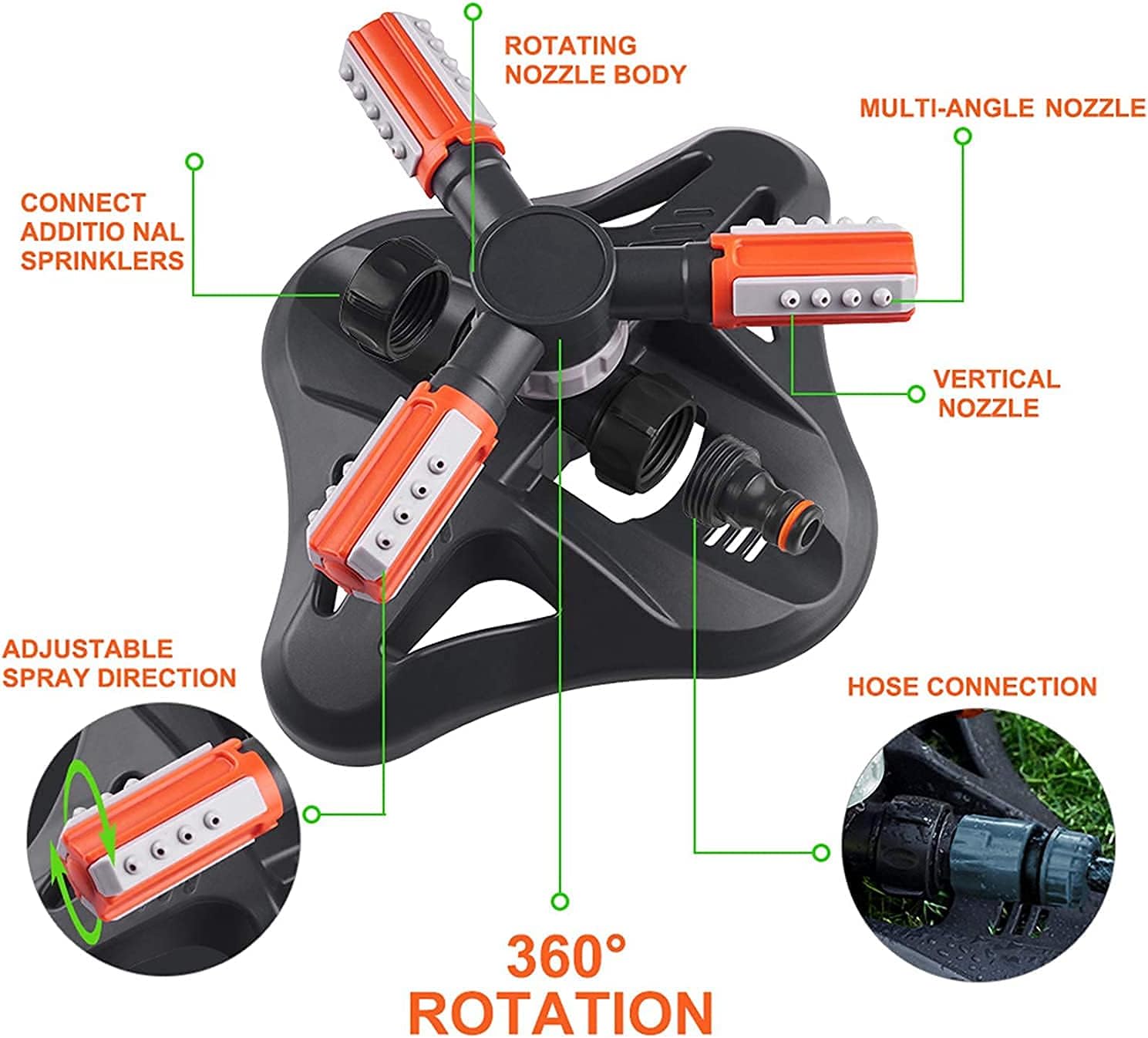

Image: The ALLILUYAA 3-Arm Garden Sprinkler, showcasing its main components and features like 360-degree rotation, multiple spray modes, and stable base design. It is shown on a green lawn.
Setup Instructions
Follow these steps to set up your ALLILUYAA Garden Sprinkler:
- Unpack Components: Carefully remove all items from the packaging. You should have 1 garden sprinkler, 2 hose connectors, and 2 nipple nozzles.
- Attach Sprinkler Head to Base: Install the nozzle body (the rotating 3-arm part) onto the base of the sprinkler. Tip: Do not overtighten this part.
- Connect to Water Source:
- For Hoses with Screw Thread: Connect your hose's screw thread directly to the sprinkler's inlet.
- For Traditional Rubber Hoses (without screw thread): Use one of the provided nipple nozzles. Install the nipple nozzle to the traditional water pipe, then connect the hose connector to the nipple nozzle, and finally connect the hose connector to the sprinkler inlet.
- Position the Sprinkler: Place the sprinkler in the desired area of your lawn or garden, ensuring it is on a stable, level surface for optimal performance.
Image: A visual guide illustrating two installation methods for the sprinkler: one for hoses with screw threads and another for traditional rubber hoses using a nipple connector.
Operating Instructions
The ALLILUYAA Garden Sprinkler is designed for simple operation:
- Turn on Water Supply: Slowly turn on your water tap. The sprinkler will begin to rotate automatically due to water pressure.
- Adjust Spray Nozzles: Each of the three arms features adjustable spray nozzles. You can rotate the nozzle heads to select different spray patterns (3-hole, 4-hole, or 5-hole modes) and adjust the spray angle. Experiment with these settings to achieve the desired coverage and water distribution for your specific area.
- Monitor Coverage: Observe the spray pattern to ensure all desired areas are being watered. The sprinkler provides 360-degree rotation for full coverage.
- Connect Multiple Sprinklers (Optional): The sprinkler features two water inlets, allowing you to connect multiple sprinklers in series to cover larger areas. Use additional hoses and connectors as needed.
- Turn off Water Supply: When watering is complete, turn off the water tap.

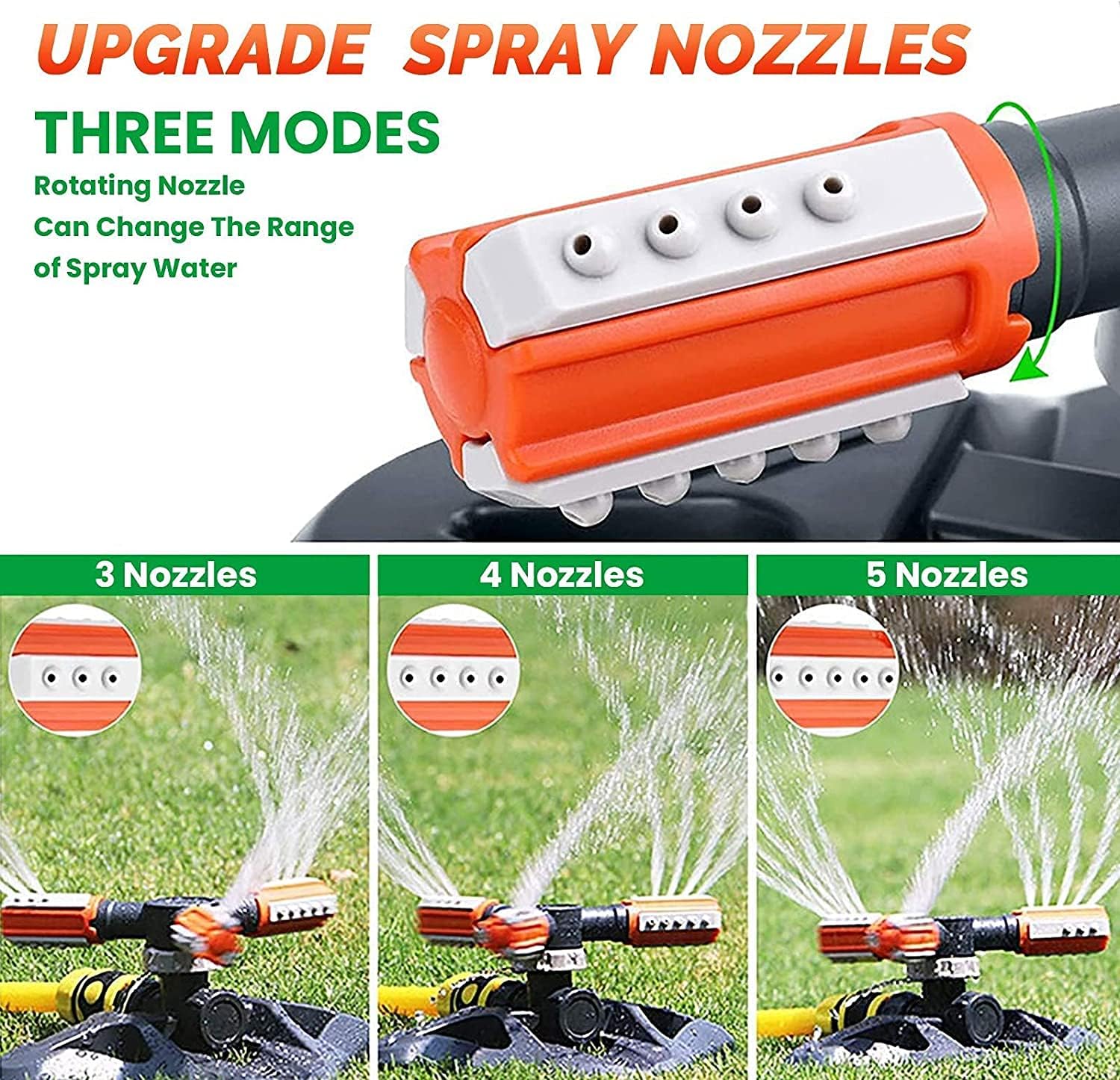

Image: A detailed view of the sprinkler's adjustable spray nozzles, demonstrating the three available spray modes (3-hole, 4-hole, and 5-hole) and how they affect water distribution.

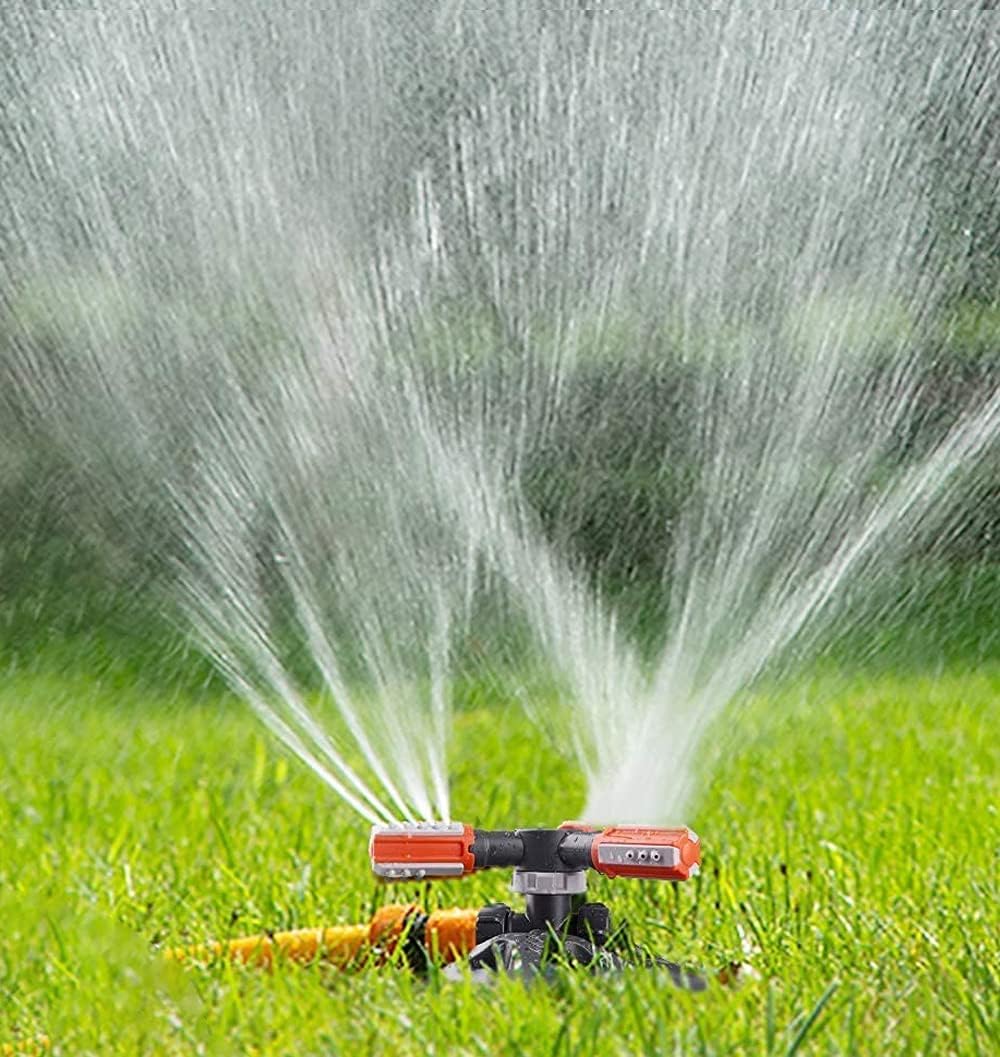

Image: The garden sprinkler actively watering a lawn, illustrating the wide and even spray pattern achieved during operation.
Maintenance
Proper maintenance will ensure the longevity and optimal performance of your sprinkler:
- Clean Nozzles: Periodically check the spray nozzles for any blockages from dirt, debris, or mineral deposits. Use a small brush or needle to clear any obstructions.
- Inspect Connections: Regularly inspect all hose connections for leaks or wear. Replace worn connectors as needed to maintain water pressure and prevent waste.
- Winter Storage: Before freezing temperatures, disconnect the sprinkler from the hose, drain all water, and store it in a dry, protected area to prevent damage from ice expansion.
- General Cleaning: Wipe down the sprinkler body with a damp cloth to remove any accumulated dirt.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Sprinkler not rotating or rotating slowly. | Low water pressure; clogged nozzles; obstruction in the rotating mechanism. | Ensure water tap is fully open. Check for kinks in the hose. Clean nozzles. Inspect the rotating mechanism for debris. |
| Uneven water distribution or reduced spray distance. | Clogged nozzles; incorrect nozzle setting; insufficient water pressure. | Clean nozzles. Adjust nozzle settings. Verify adequate water pressure. |
| Leaks at connections. | Loose connections; worn washers/gaskets; damaged hose or connector. | Tighten all connections. Replace worn washers or gaskets. Inspect and replace damaged hoses or connectors. |
Specifications
- Brand: ALLILUYAA
- Model: B093SNMP7T
- Material: ABS Plastic and Anti-rust Polymer
- Sprinkler Size: Approximately 25 x 20.8 x 8.5 cm (9.8 x 8.2 x 3.3 inches)
- Spray Pattern: 360-degree automatic rotation
- Nozzle Types: 3 adjustable arms, each with 3 types of spray (3-hole, 4-hole, 5-hole modes)
- Water Pressure Requirement: Operates via household water pressure
- Spray Range: Up to 32.8 - 49.2 feet diameter (under 80 PSI)
- Color: Black, Orange
- UPC: 748958784213
Safety Warnings
Please read and follow these safety warnings carefully:
- Use with caution.
- Keep out of reach of children.
- Avoid contact with eyes.
- Do not ingest any parts of the product.
- Ensure the sprinkler is stable during operation to prevent tipping and potential injury.
- Do not leave children unsupervised when playing with the sprinkler.
