FTVOGUE JLS-E-2S Variable Frequency Drive User Manual

1. Product Overview

The FTVOGUE JLS-E-2S Variable Frequency Drive (VFD) is a high-performance power converter designed for precise control of spindle motor speeds. This VFD operates with a 220V single-phase input and output, utilizing PAM (Pulse Amplitude Modulation) control for efficient and stable operation. Constructed from durable ABS material, it offers strong anti-interference capabilities and a fast start/stop response, making it ideal for various industrial applications, including assembly line conveyor belts.

Figure 1: FTVOGUE JLS-E-2S Variable Frequency Drive with its control panel.

2. Safety Information

⚠ WARNING:

• Always read this user manual thoroughly before attempting any operation or servicing.
• Risk of electrical shock. Ensure power is disconnected before installation, maintenance, or troubleshooting.
• Wait at least 10 minutes after removing power before servicing the unit to allow capacitors to discharge.
• Installation and wiring should only be performed by qualified personnel.

Figure 2: Warning label on the VFD unit emphasizing electrical safety.

3. Installation and Setup

3.1 Unpacking and Inspection

Carefully unpack the VFD and inspect it for any signs of damage during transit. Ensure all components are present as listed in the packing slip.

3.2 Mounting

Mount the VFD in a clean, dry, and well-ventilated area, away from direct sunlight, excessive dust, corrosive gases, or vibrations. Ensure adequate clearance around the unit for proper heat dissipation.

3.3 Wiring Connections

Refer to the wiring diagram below and the terminal labels on the unit for correct connections. Ensure all connections are secure and properly insulated.

• L1, L2: AC Power Input (220V Single Phase)
• U, V, W: Motor Output Terminals
• P, PB: Braking Resistor Terminals (if applicable)
• GND: Ground Terminal
• Control Terminals: For external control signals (e.g., start/stop, speed reference). Refer to the detailed wiring diagram on the unit or in the full product manual for specific functions of X1, X2, X3, X4, Y1, +12V, AM, AO, GND, 485+, 485-.

Figure 3: Top view of the VFD unit displaying power and control terminal blocks.

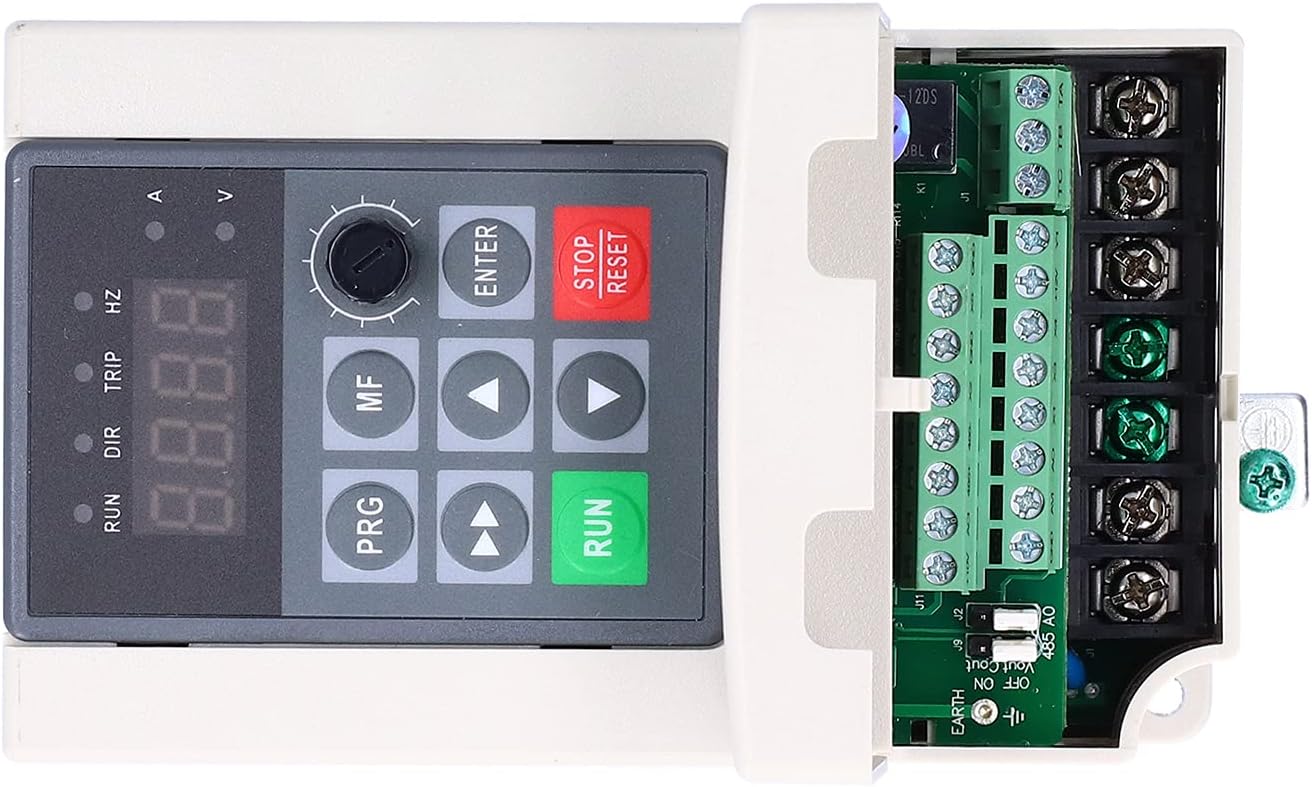

Figure 4: Overhead view of the VFD with the control panel in place, highlighting the accessible wiring terminals.

4. Operating Instructions

The JLS-E-2S VFD features an intuitive control panel for easy operation and parameter setting.

Figure 5: Close-up view of the VFD's control panel with buttons and display.

4.1 Control Panel Functions

• RUN: Initiates motor operation.
• STOP/RESET: Stops motor operation and resets any active fault codes.
• PRG (Program): Enters/exits parameter setting mode.
• MF (Multi-Function): Used for specific multi-function operations or menu navigation.
• ▲ / ▼ (Up/Down Arrows): Navigates through parameters or adjusts values.
• ENTER: Confirms parameter selection or value changes.
• Rotary Knob: Provides fine adjustment for frequency or other parameters.

4.2 Basic Operation Steps

1. Power On: Connect the VFD to the 220V single-phase power supply. The display will illuminate.
2. Set Frequency: Use the PRG button to enter parameter mode. Navigate to the frequency setting parameter (refer to the full manual for specific parameter codes). Use the arrow keys or rotary knob to set the desired output frequency. Press ENTER to confirm.
3. Start Motor: Press the RUN button. The motor connected to the VFD will start and accelerate to the set frequency.
4. Stop Motor: Press the STOP/RESET button. The motor will decelerate and stop.

For advanced parameter settings, such as acceleration/deceleration times, motor parameters, or control modes, please consult the comprehensive product manual.

5. Maintenance

Regular maintenance ensures the longevity and reliable operation of your FTVOGUE JLS-E-2S VFD.

• Cleaning: Keep the VFD unit clean and free from dust and debris. Use a soft, dry cloth for cleaning. Do not use liquid cleaners.
• Ventilation: Ensure that the ventilation openings are not obstructed to allow for proper airflow and heat dissipation. Periodically check the cooling fan for proper operation.
• Connection Checks: Periodically inspect all wiring connections for tightness and signs of wear or corrosion. Loose connections can lead to poor performance or damage.
• Environmental Conditions: Ensure the VFD operates within its specified environmental conditions (temperature, humidity) to prevent premature failure.

⚠ Important: Always disconnect power and wait 10 minutes before performing any maintenance or inspection to avoid electrical shock.

6. Troubleshooting

This section provides solutions to common issues you might encounter with your VFD. For more complex problems, contact technical support.

7. Specifications

Note: Product dimensions (0.39 x 0.39 x 0.39 inches) provided in source data appear to be incorrect. Please refer to the physical product for accurate dimensions.

8. Warranty and Support

8.1 Warranty Information

For detailed warranty terms and conditions, please refer to the warranty card included with your product or contact FTVOGUE directly. Keep your purchase receipt as proof of purchase for warranty claims.

8.2 Technical Support

If you encounter issues that cannot be resolved using the troubleshooting guide, or require further technical assistance, please contact your seller or the manufacturer, FTVOGUE, through their official support channels. Please have your product model number (JLS-E-2S) and purchase details ready when contacting support.

9. Official Product Videos

No official product videos from the seller are available for this model at this time.
