1. Product Overview
This ANBOO replacement kit provides a cartridge filter and foam sleeve designed for use with Shop-Vac 5-gallon and larger wet/dry vacuum cleaners. These components are essential for maintaining optimal vacuum performance for both wet and dry debris collection.
The kit includes one cartridge filter, two foam sleeve filters, and one cleaning brush. It is compatible with various Shop-Vac models, replacing original parts such as 90304, 90350, 90333, and 90585.
Image 1.1: Contents of the ANBOO replacement filter kit, showing the cartridge filter, two foam sleeves, and a small cleaning brush.

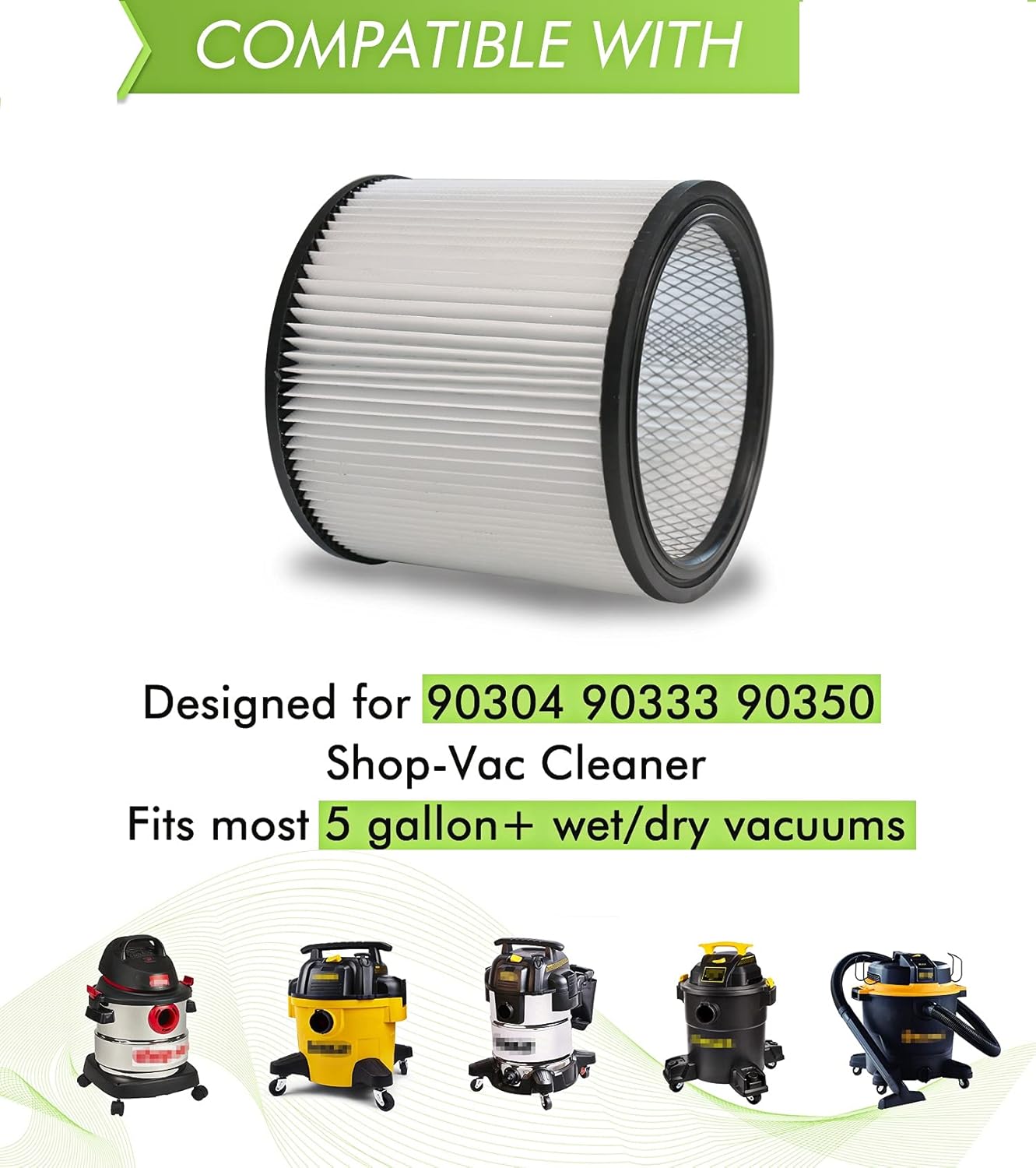

Image 1.2: Visual representation of several Shop-Vac wet/dry vacuum models that are compatible with this filter kit.
2. Setup and Installation
Proper installation of the filter components is crucial for effective vacuum operation and to prevent damage to the motor. Always ensure the vacuum is unplugged before performing any installation or maintenance.
2.1. Preparing Your Vacuum
- Unplug the Shop-Vac from the power outlet.
- Remove the power head assembly from the vacuum tank.
- Carefully remove any existing filter components. Dispose of old filters responsibly.
2.2. Installing the Cartridge Filter (for Dry Pickup)
The cartridge filter is designed for dry debris collection. Do not use the foam sleeve simultaneously with the cartridge filter.
- Slide the cartridge filter over the filter cage on the motor housing.
- Push down firmly until the filter seats securely against the base of the cage.
- Ensure the rubber gasket on the filter creates a tight seal.
Image 2.1: A detailed view of the pleated cartridge filter, highlighting its structure for dry filtration.
2.3. Installing the Foam Sleeve Filter (for Wet Pickup)
The foam sleeve filter is designed for wet debris collection. Do not use the cartridge filter simultaneously with the foam sleeve.
- Ensure the cartridge filter is removed from the vacuum.
- Carefully slide the foam sleeve over the filter cage on the motor housing.
- Ensure the foam sleeve covers the entire filter cage and fits snugly.
Image 2.2: An instructional graphic illustrating that the cartridge filter is for dry use and the foam sleeve is for wet use, with a clear warning against using both at the same time.
3. Operating Instructions
Always select the appropriate filter for the type of debris you are collecting to ensure efficient operation and prolong the life of your vacuum and filters.
3.1. Dry Pickup
- Use the cartridge filter for collecting dry dirt, dust, sawdust, and other dry debris.
- Ensure the foam sleeve is removed when using the cartridge filter.
3.2. Wet Pickup
- Use the foam sleeve filter for collecting liquids and wet debris.
- Ensure the cartridge filter is removed when using the foam sleeve.
4. Maintenance
Regular cleaning and timely replacement of your filters will ensure your Shop-Vac operates at its best and maintains strong suction.
4.1. Cleaning the Cartridge Filter
- Unplug the vacuum and remove the power head.
- Carefully remove the cartridge filter.
- Use the included cleaning brush or a stiff brush to gently brush off excess dirt and debris from the pleats.
- For deeper cleaning, the cartridge filter can be washed with water. Rinse from the inside out under running water until the water runs clear.
- Allow the filter to air dry completely before reinstallation. Do not use heat to dry.
4.2. Cleaning the Foam Sleeve Filter
- Unplug the vacuum and remove the power head.
- Carefully remove the foam sleeve.
- Rinse the foam sleeve thoroughly under running water to remove collected debris.
- Gently squeeze out excess water.
- Allow the foam sleeve to air dry completely before reinstallation.
4.3. Replacement Frequency
Filters should be cleaned regularly after heavy use. Replace filters annually or sooner if you notice a decrease in suction, visible damage, or if cleaning no longer restores performance.
5. Troubleshooting
If you encounter issues with your vacuum's performance after installing the ANBOO replacement filters, consider the following:
- Reduced Suction:
- Ensure the filter is clean and not clogged.
- Verify the filter is correctly seated and sealed against the motor housing.
- Check that only one filter type (cartridge or foam sleeve) is installed at a time, appropriate for the task.
- Filter Not Fitting Properly:
- Confirm your Shop-Vac model is compatible with replacement parts 90304 or 90585.
- Ensure the filter cage is free of obstructions or damage.
- Note: This product is designed for most 5-gallon and up Shop-Vac models but may not fit specific portable models like H87S or HangUp vacuums.
- Water Spraying During Wet Pickup:
- Ensure the foam sleeve is installed correctly and completely covers the filter cage.
- Verify the foam sleeve is not damaged or torn.
6. Specifications
| Feature | Detail |
|---|---|
| Brand | ANBOO |
| Model Number | ShopVac-90304-90585 |
| Item Weight | 12.6 ounces |
| Product Dimensions (Cartridge Filter) | 8.66"L x 7.87"W x 8.66"H |
| Material Type | Foam (for sleeve), Washable PP Compound (for cartridge) |
| Compatible Devices | Shop-Vac 5 Gallon+ Wet/Dry Vacuums (replaces Type U 9030400, Type X 9035000, Type W 9034000, 90585) |
| Reusability | Reusable (after cleaning) |
Image 6.1: Dimensional specifications for both the foam sleeve and the cartridge filter.
Image 6.2: A visual breakdown of the cartridge filter's components, highlighting the washable PP compound material, high-quality rubber, and metal mesh construction.
7. Warranty Information
For specific warranty details regarding your ANBOO replacement filters, please refer to the manufacturer's official website or the original purchase documentation. Warranty terms typically cover manufacturing defects.
8. Customer Support
If you require further assistance, have questions about compatibility, or need troubleshooting guidance not covered in this manual, please contact ANBOO customer support through the retailer's platform or the official ANBOO website.
