HOMCOM Swivel Bar Stools (Set of 2) Instruction Manual

1. Product Overview

Thank you for choosing HOMCOM Swivel Bar Stools. This set of two bar stools is designed for comfort and versatility, featuring adjustable height, 360-degree swivel, and a sturdy metal base with a footrest. They are suitable for various settings including kitchen counters, home bars, cafes, and reception areas.

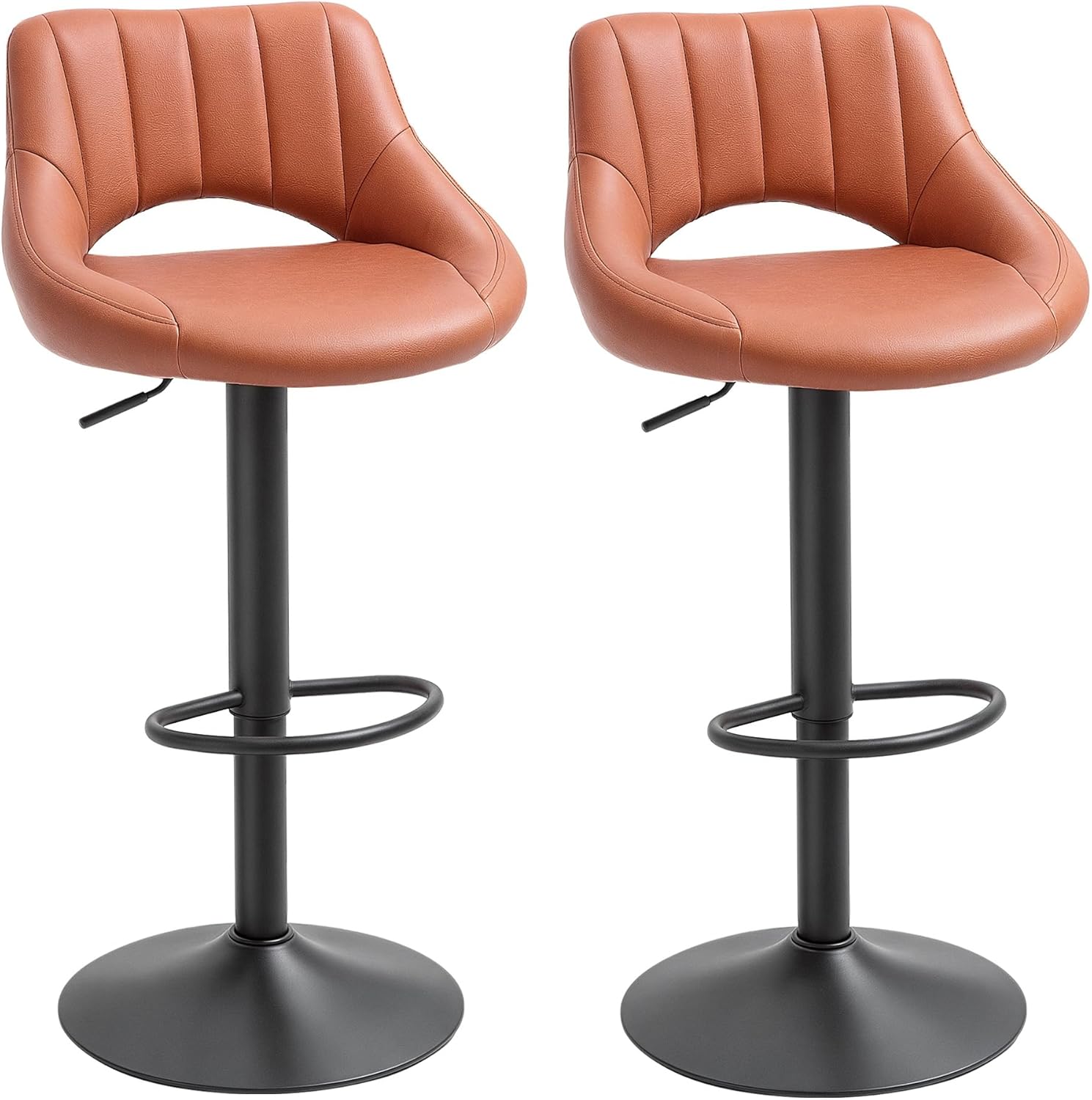

Image 1.1: Two HOMCOM brown swivel bar stools.

Image 1.2: Bar stools in a home bar setting.

2. Safety Information

Please read and understand all safety instructions before assembly and use. Failure to follow these instructions may result in injury or product damage.

• Do not exceed a maximum weight limit of 264 pounds (120 kg) per stool.
• Exercise caution when using the adjustable height and swivel features to prevent tipping hazards.
• Ensure children use the stool with proper adult supervision.
• Verify all connections are secure after assembly and periodically during use.
• Do not stand on the stool.

3. Package Contents

Please check the package to ensure all components are present and undamaged. If any parts are missing or damaged, contact customer support.

• Seat (2x)
• Base (2x)
• Gas Lift Cylinder (2x)
• Footrest (2x)
• Hardware Pack (screws, washers, Allen wrench)
• Instruction Manual

4. Assembly Instructions

Assembly is required. Please follow these general steps. Refer to the included assembly diagram for detailed illustrations.

1. Attach the footrest to the gas lift cylinder.
2. Insert the gas lift cylinder into the center hole of the base.
3. Secure the seat to the top of the gas lift cylinder using the provided hardware. Ensure all screws are tightened firmly.
4. Test the stability and functionality of the stool before regular use.

Image 4.1: Components of the stool including footrest and base.

5. Operating Instructions

5.1. Height Adjustment

To adjust the seat height, locate the lever under the seat. While seated, pull the lever up to lower the seat. To raise the seat, stand up and pull the lever up. The gas lift mechanism will smoothly adjust the height.

Image 5.1: Height adjustment mechanism.

5.2. Swivel Function

The stool features a 360-degree swivel function, allowing for easy rotation. Simply turn the seat in the desired direction.

Image 5.2: 360-degree swivel feature.

6. Maintenance and Care

• Cleaning: Wipe the stool with a damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these may damage the finish or upholstery.
• Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
• Placement: Avoid prolonged exposure to direct sunlight or extreme temperatures, which can cause fading or material degradation.

Image 6.1: Close-up of seat upholstery for care reference.

7. Troubleshooting

• Stool feels wobbly: Ensure all assembly screws are securely tightened. Check that the base is on a flat, even surface.
• Height adjustment not working: Verify that the gas lift cylinder is correctly installed and the lever mechanism is not obstructed. If the issue persists, the gas lift may need replacement.
• Squeaking during swivel: A small amount of lubricant applied to the swivel mechanism may resolve squeaking sounds.

8. Specifications

Image 8.1: Product dimensions diagram.

9. Warranty and Support

For warranty information or customer support, please refer to the documentation included with your purchase or contact HOMCOM customer service directly. Keep your purchase receipt for warranty claims.
