Introduction
Thank you for choosing the Doraimi Lighting 3-Light Semi-Flush Mount Ceiling Light. This fixture features a brushed nickel finish and clear glass shades, designed to enhance the ambiance of various spaces such as kitchens, entrance ways, and hallways. This manual provides essential information for safe installation, operation, and maintenance of your new lighting fixture.

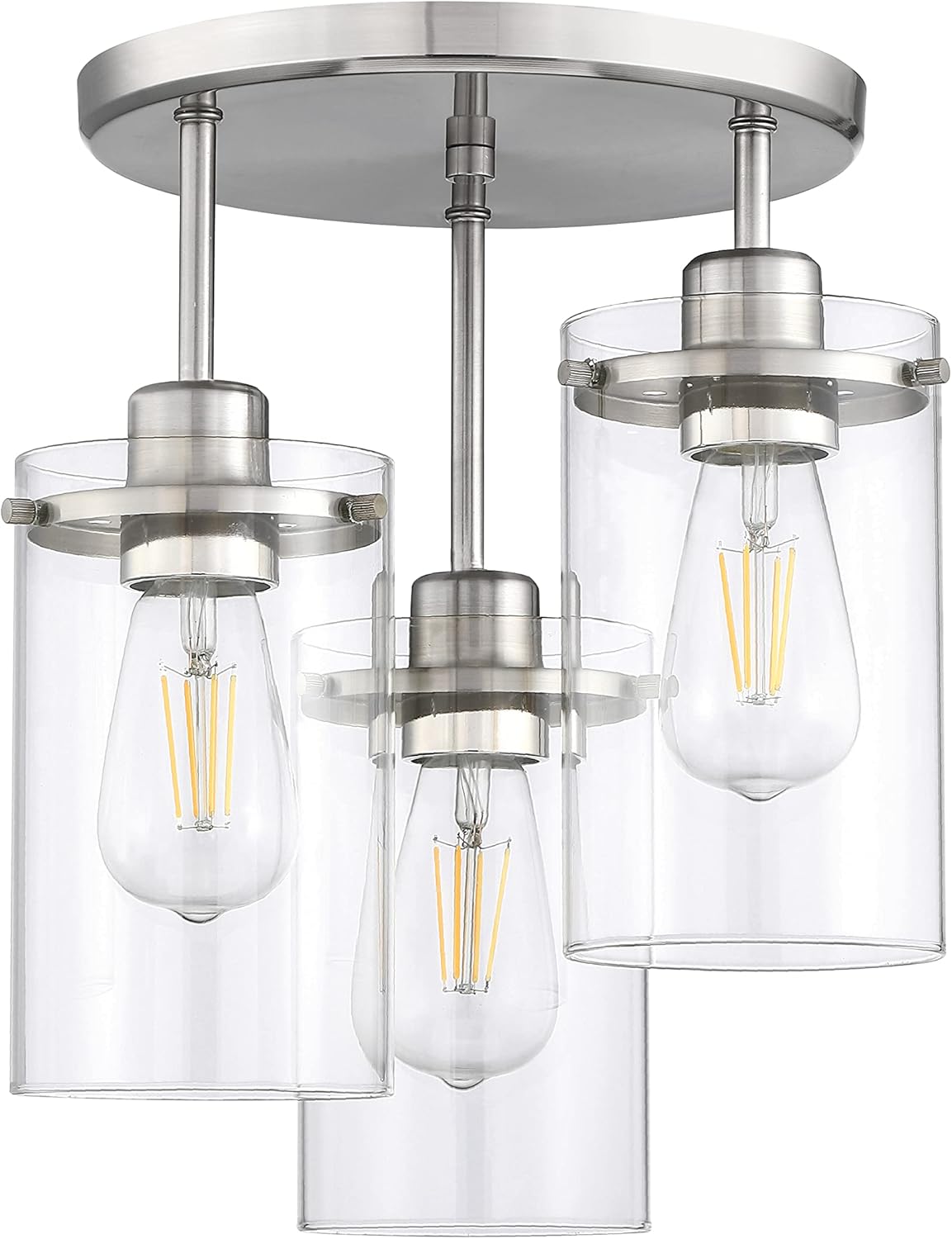

Figure 1: Doraimi Lighting 3-Light Semi-Flush Mount Ceiling Light (Model: 6055BX3ST3)
Safety Information
Please read all instructions carefully before beginning installation. Failure to do so may result in electric shock, fire, or other injuries that could be fatal or cause permanent damage.
- This product is UL Listed, ensuring compliance with safety standards.
- Always turn off the main power supply at the circuit breaker before installing or servicing the fixture.
- Consult a qualified electrician if you are unsure about the installation process.
- Do not exceed the maximum wattage specified for the bulbs.
- Handle glass components with care to prevent breakage.
- Ensure all electrical connections are secure and comply with local electrical codes.
- This fixture is designed for indoor use only.
Package Contents
Carefully unpack all components and inspect for any damage. Keep all packaging materials until you are satisfied with the product.
- Fixture Canopy with Socket Assembly
- Mounting Hardware (screws, wire nuts, mounting bracket)
- Glass Shades (3 pieces)
- Support Rods (for semi-flush mounting)
- User Manual
Note: Light bulbs are not included and must be purchased separately.
Installation Instructions
This fixture is designed for easy installation and is compatible with standard US junction boxes. Follow these steps carefully:
- Turn Off Power: Before starting, ensure the power supply to the junction box is turned off at the circuit breaker.
- Prepare Mounting Bracket: Attach the mounting bracket to the junction box using the provided screws. Ensure it is securely fastened.
- Wire Connections: Connect the fixture's wires to the corresponding wires from the junction box using the provided wire nuts.
- Connect the black wire (Live) from the fixture to the black wire from the junction box.
- Connect the white wire (Neutral) from the fixture to the white wire from the junction box.
- Connect the green or bare copper wire (Ground) from the fixture to the ground wire from the junction box or the ground screw on the mounting bracket.
- Mount Fixture: Carefully push the wired connections into the junction box. Align the fixture canopy with the mounting bracket and secure it with the provided screws or nuts.
- Attach Glass Shades: Carefully slide each clear glass shade over the bulb socket and secure it in place according to the fixture's design (e.g., using retaining rings or screws).
- Install Bulbs: Screw in the recommended E26 base bulbs (not included) into each socket. Do not exceed the maximum wattage of 60W per bulb.
- Restore Power: Once installation is complete and all components are secure, turn the power back on at the circuit breaker.
Operating Instructions
Your Doraimi Lighting fixture is designed for simple operation once installed.
Bulb Requirements
This fixture requires three (3) E26 base bulbs. The maximum compatible wattage for each bulb is 60 Watts. For optimal performance and energy efficiency, LED bulbs are recommended.
Dimming Capability
The fixture is fully dimmable, but this requires the additional purchase of a compatible dimmer switch and dimmable light bulbs. Ensure both the switch and bulbs are rated for dimming to avoid damage or malfunction.
Figure 2: Fixture installed in a living space, demonstrating light output.
Figure 3: Fixture with different bulb types, illustrating varied lighting effects.
Maintenance
Regular maintenance will help preserve the appearance and functionality of your light fixture.
- Cleaning: Always turn off the power to the fixture and allow it to cool before cleaning. Use a soft, dry cloth to wipe the brushed nickel finish. For glass shades, a damp cloth with a mild glass cleaner can be used, then dry thoroughly. Avoid abrasive cleaners or solvents that may damage the finish.
- Bulb Replacement: Ensure the power is off and bulbs have cooled before replacing. Unscrew old bulbs and screw in new E26 base bulbs, ensuring they do not exceed 60W.
Troubleshooting
If you encounter any issues with your fixture, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power to fixture; loose wire connection; faulty bulb; tripped circuit breaker. | Check circuit breaker. Ensure power is on. Verify all wire connections are secure. Test with a new, working bulb. |
| Flickering light. | Loose bulb; incompatible dimmer switch/bulb; unstable power supply. | Tighten bulb. Ensure dimmer and bulbs are compatible. Consult an electrician if power supply is suspected. |
| Glass shade is loose. | Retaining ring/screws not tightened. | Carefully tighten the retaining ring or screws securing the glass shade. |
Specifications
Detailed technical specifications for the Doraimi Lighting 3-Light Semi-Flush Mount Ceiling Light:
| Feature | Detail |
|---|---|
| Brand | Doraimi Lighting |
| Model Number | 6055BX3ST3 |
| Dimensions (L x W x H) | 12.8"L x 12.8"W x 14"H |
| Material | Glass, Metal (Brushed Nickel Finish) |
| Color | Brushed Nickel Clear Glass |
| Light Source Type | LED (Recommended) |
| Bulb Base | E26 |
| Number of Light Sources | 3 |
| Maximum Wattage per Bulb | 60 Watts |
| Voltage | 110 Volts (AC) |
| Installation Type | Semi Flush Mount |
| Indoor/Outdoor Usage | Indoor Use Only |
| Certification | UL Listed |
| Assembly Required | Yes |
Figure 4: Product dimensions and bulb recommendations.
Customer Support
For any questions, assistance, or to report damaged parts, please contact Doraimi Lighting customer support. Refer to your purchase documentation or the retailer's website for specific contact information.
If the product is damaged during transportation, please contact us through the Amazon message box and we will solve the problem for you as soon as possible.
