Leeppyton 2-in-1 Multifunctional Roller Skates User Manual

1. Introduction

Thank you for choosing Leeppyton 2-in-1 Multifunctional Roller Skates. These innovative skates are designed to offer both the functionality of roller skates and the convenience of regular walking shoes. This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your new skates.

Image: Leeppyton 2-in-1 Multifunctional Roller Skates. This image illustrates the product's design, highlighting its dual functionality and key features such as PU wheels, 90KG bearing capacity, double bearings, standard sizing, safety switch, retractable base, and comfortable, breathable material.

2. Safety Information

Your safety is paramount. Please read and adhere to all safety instructions before using the roller skates.

• Protective Gear: Always wear a helmet, knee pads, elbow pads, and wrist guards when skating.
• Adult Supervision: Children should always skate under direct adult supervision.
• Weight Limit: The skates are designed to support a maximum weight of 85 kg (187 lbs). Do not exceed this limit.
• Surface Conditions: Use skates on smooth, dry, and clean surfaces. Avoid uneven terrain, wet areas, or roads with traffic.
• Pre-Use Check: Before each use, ensure all wheels are securely attached and the locking mechanism for the retractable wheels functions correctly.
• Wheel Locking: Always ensure the wheels are fully locked in either the retracted (shoe) or deployed (skate) position before use. Do not force the switch.

3. Setup

3.1 Sizing

To ensure comfort and safety, select the appropriate size. Refer to the product's size chart for accurate measurements. If your feet are slightly wider or you prefer a looser fit, consider choosing one size larger.

3.2 Initial Inspection

Upon receiving your skates, inspect them for any signs of damage or manufacturing defects. Ensure all components are present and securely fastened.

4. Operating Instructions

These skates feature a retractable wheel mechanism for easy conversion between skates and shoes.

Image: Product Manual. This image provides a visual guide to the wheel deployment and retraction process, including safety notes and troubleshooting tips.

4.1 Deploying Wheels (Skate Mode)

1. Unlock: Locate the safety switch button at the heel of the shoe. Rotate the switch to ensure the arrow direction remains straight up.
2. Pop Out: With the arrow pointing straight up, press the switch button firmly. The wheel will automatically pop out.
3. Confirmation: Ensure the wheel bracket is fully opened and securely locked in place.
4. Important Tip: After pressing the switch to deploy the wheel, hold it for 2-3 seconds to prevent the wheel from bouncing back.

4.2 Retracting Wheels (Shoe Mode)

1. Confirm Upright: Ensure the safety button's arrow direction is straight up.
2. Press and Step: Press the safety button to its end while stepping vertically on the shoe.
3. Engage Pin: Use your hand to press the rear wheel connecting rod to ensure the positioning pin fully engages the card slot.
4. Confirmation: Verify that the positioning pin has fully entered the card slot. If not, try pedaling hard on the ground a few times to help it engage.

4.3 Locking Wheels

After deploying or retracting the wheels, it is crucial to lock them to prevent accidental changes.

• Lock: Rotate the safety button to any direction other than straight up. The button can be rotated 360 degrees. This action locks the wheels in their current position.
• Safety Note: For enhanced safety, it is recommended to rotate the arrow direction of the switch downward to a horizontal or vertical position when locked. Do not force the button if it feels stuck. Always check the switch direction before attempting to press it.

5. Maintenance

Regular maintenance will extend the life and performance of your skates.

5.1 Wheel Replacement

The grinding wheels are consumable parts and may need replacement over time, depending on usage and surface conditions.

Image: How to change wheels and wheel parts installation sequence. This diagram illustrates the steps for disassembling and reassembling the wheel mechanism, including identifying individual components.

1. Disassembly: Use two Allen wrenches to unscrew the screws simultaneously. Remove the old wheel, pull out the connecting rod, and use a piercing nail to remove all parts one by one. Keep all parts organized to avoid confusion during reassembly.
2. Reassembly (Installation Sequence): When installing new wheels, position the soles upwards. The heels should be built into the chest. The recommended installation sequence for parts is A-B-C-D-C-B-E, where:
   • A = Connecting rod piercing nail
   • B = Wheel
   • C = Small sleeve
   • D = Large sleeve
   • E = Screw
3. Important Notes for Installation:
   • Ensure the concave side of the wheel (B) faces outwards.
   • When installing the wheel, apply thread glue to reduce vibration and reinforce the screw.
   • Do not install parts in the wrong order or omit any parts.

5.2 Lubrication

Add lubricant to the wheel bearings periodically to reduce friction and ensure smooth gliding. This also helps maintain the wheel's good grip and anti-skid ability.

5.3 Cleaning

Clean the outer layer of the shoes with a damp cloth. The interior breathable net material is designed for ventilation and comfort, keeping your feet dry. Avoid submerging the skates in water.

6. Troubleshooting

• Wheels Not Popping Out:
  • Ensure the safety switch arrow is pointing straight up.
  • Press the switch firmly and quickly. If it still doesn't pop out, you may need to manually assist it by pulling the wheel out while pressing the switch.
  • If the switch is stuck, and the arrow is not upright, do not force it. Use a sharp tool to gently pry out the switch.
• Wheels Not Retracting Fully:
  • Ensure the safety switch arrow is pointing straight up.
  • Press the safety button to its end while stepping firmly on the shoe.
  • Manually press the rear wheel connecting rod to ensure the positioning pin fully engages the card slot. If necessary, try pedaling hard on the ground a few times.
• Switch Feels Stiff or Stuck:
  • Do not apply excessive force.
  • Check the arrow direction. If it's not upright, the switch is in a locked state. Rotate it to the upright position before attempting to press.
  • If the switch is difficult to rotate or press, ensure no debris is obstructing the mechanism.

7. Specifications

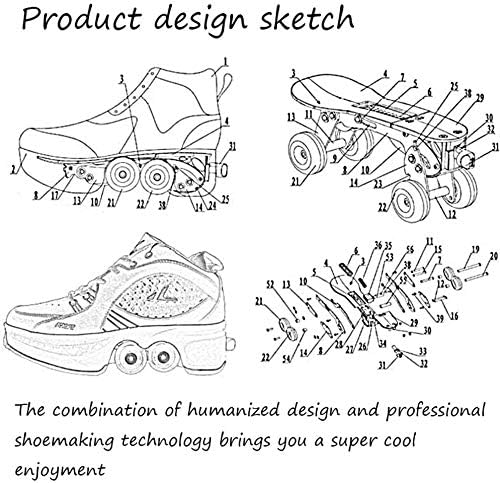

Image: Product design sketch. This illustration provides a detailed technical view of the skate's internal components and overall structure, emphasizing the combination of design and shoemaking technology.

8. Customer Support

We are committed to your satisfaction. If you encounter any issues with your Leeppyton 2-in-1 Multifunctional Roller Skates, or have questions regarding their use or maintenance, please contact our customer service. We aim to resolve any concerns within 24 hours.

Please refer to your purchase documentation or the retailer's website for specific contact details.
