Strongway Mini Electric Chain Hoist - 500-Lb. Capacity, 16.4ft. Lift User Manual

1. Safety Information

Read and understand all instructions before operating this electric chain hoist. Failure to follow these instructions may result in serious injury or property damage. Keep this manual for future reference.

General Safety Warnings:

• DO NOT exceed the rated load capacity of 500 lbs.
• DO NOT operate the hoist if it is damaged or malfunctioning.
• Ensure the hoist is securely mounted to a structure capable of supporting the hoist's weight plus the maximum rated load.
• Keep hands and body clear of moving parts and the load path.
• DO NOT use the hoist to lift people or objects over people.
• Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
• Inspect the hoist, chain, and hooks before each use for wear, damage, or deformation.
• Ensure the power supply matches the hoist's requirements (110V).
• DO NOT operate the hoist in hazardous environments without proper precautions.
• Avoid sudden starts and stops when lifting or lowering loads.

2. Product Overview

The Strongway Mini Electric Chain Hoist is designed for lifting and lowering loads up to 500 lbs. It features a durable construction and safety mechanisms for reliable operation.

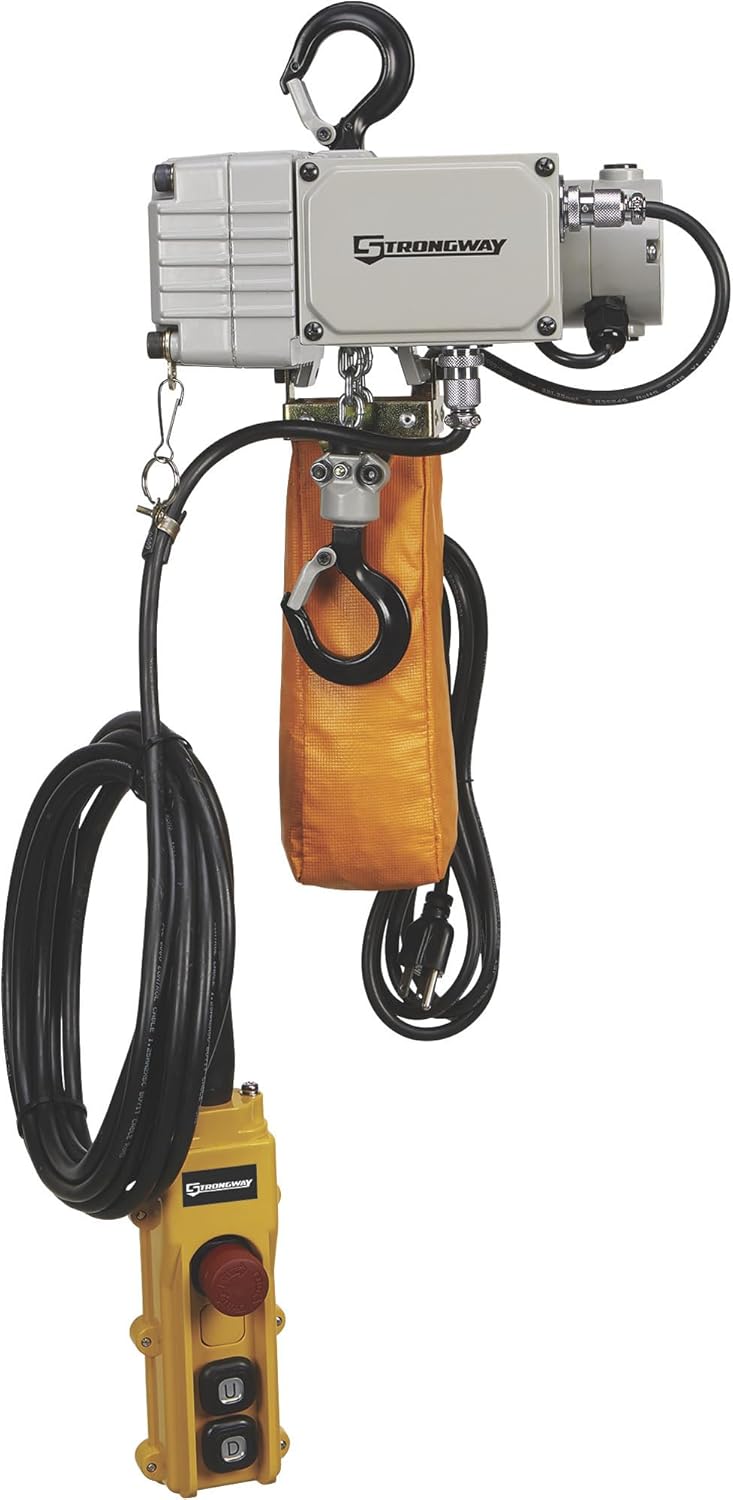

Figure 2.1: Strongway Mini Electric Chain Hoist (Model 4031681) showing the main unit, chain, hook, control pendant, and chain bag.

Key Features:

• Single phase carbon brush motor for efficient operation.
• High-performance durable friction clutch integrated with load brake to prevent overload and over-travel.
• Operates on standard 110V power for ease of use.
• Upper/lower limit switches to prevent over-travel of the hook.
• Built-in chain bag to protect the chain and keep it organized.
• 500-Lb. (227 kg) capacity with a 16.4 ft. (5 m) lift height.

Figure 2.2: Detailed view of the hoist's motor housing and electrical connections.

3. Specifications

4. Setup and Installation

Proper installation is crucial for safe operation. Ensure all components are present and undamaged before proceeding.

4.1 Unpacking:

• Carefully remove the hoist and all accessories from the packaging.
• Inspect for any shipping damage. If damage is found, do not use the hoist and contact the supplier.
• Verify all parts listed in the packing list are present.

4.2 Mounting the Hoist:

1. Select a mounting location that is structurally sound and capable of supporting at least 5 times the maximum rated load (500 lbs x 5 = 2500 lbs).
2. The mounting point should allow for clear operation of the hoist and unobstructed movement of the load.
3. Attach the hoist securely using appropriate hardware (not included) to an overhead beam, trolley, or other approved lifting structure. Ensure all connections are tightened to the manufacturer's specifications.
4. Verify that the hoist hangs vertically and is stable.

4.3 Electrical Connection:

• Ensure the power source is a standard 110V AC outlet.
• Connect the hoist's power cord to a grounded electrical outlet.
• DO NOT use extension cords unless absolutely necessary, and if used, ensure they are rated for the hoist's power requirements and are in good condition.

5. Operating Instructions

Before each operation, perform a pre-operational check as described in the Maintenance section.

5.1 Pre-Operation Checks:

• Confirm the hoist is securely mounted.
• Inspect the chain for kinks, twists, or damage.
• Check the hooks for deformation, cracks, or wear. Ensure safety latches operate freely.
• Verify the control pendant buttons (Up, Down, Emergency Stop) function correctly.
• Test the upper and lower limit switches by running the hook block to its extreme positions without a load.

5.2 Lifting a Load:

1. Attach the load securely to the hook. Ensure the load is balanced and the hook's safety latch is closed.
2. Stand clear of the load and the hoist.
3. Press the "UP" button on the control pendant to slowly raise the load. Observe the load for stability.
4. If the load is unstable, lower it immediately and re-secure it.
5. Lift the load only as high as necessary. Avoid sudden movements.
6. The hoist will automatically stop if the upper limit switch is activated.

5.3 Lowering a Load:

1. Ensure the area below the load is clear.
2. Press the "DOWN" button on the control pendant to slowly lower the load.
3. Guide the load if necessary, but keep hands and body away from pinch points.
4. The hoist will automatically stop if the lower limit switch is activated.

5.4 Emergency Stop:

• In case of an emergency or malfunction, immediately press the red "EMERGENCY STOP" button on the control pendant.
• To reset, twist the button clockwise and then release.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your Strongway Mini Electric Chain Hoist.

6.1 Daily/Before Each Use:

• Visual Inspection: Check the entire hoist for any visible damage, loose fasteners, or signs of wear.
• Chain Inspection: Look for kinks, twists, corrosion, or stretched links. Replace damaged chain immediately.
• Hook Inspection: Check for bending, twisting, cracks, or excessive wear. Ensure the safety latch functions correctly.
• Control Pendant: Verify all buttons operate smoothly and the emergency stop functions.
• Limit Switches: Test both upper and lower limit switches without a load.

6.2 Monthly/After Heavy Use:

• Lubrication: Lightly lubricate the chain with a non-acidic, non-alkaline lubricant suitable for chains.
• Electrical Connections: Inspect power cord and control cable for fraying, cuts, or damage. Ensure all connections are secure.
• Brake System: Check the brake for proper function. If the load slips or drifts, the brake may need adjustment or service by a qualified technician.

6.3 Storage:

• When not in use, store the hoist in a clean, dry location, protected from dust and moisture.
• Ensure the chain is clean and lightly lubricated before storage.

Note: Any repairs or internal adjustments should only be performed by qualified personnel.

7. Troubleshooting

This section addresses common issues you might encounter with your electric chain hoist. For problems not listed here, contact customer support.
