KUCHT Professional KRH3015-K
Kucht KRH3015-K Range Hood Instruction Manual
Model: KRH3015-K | Brand: KUCHT Professional
1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Kucht KRH3015-K Range Hood. Please read all instructions carefully before installation and use to ensure proper function and to prevent injury or damage.

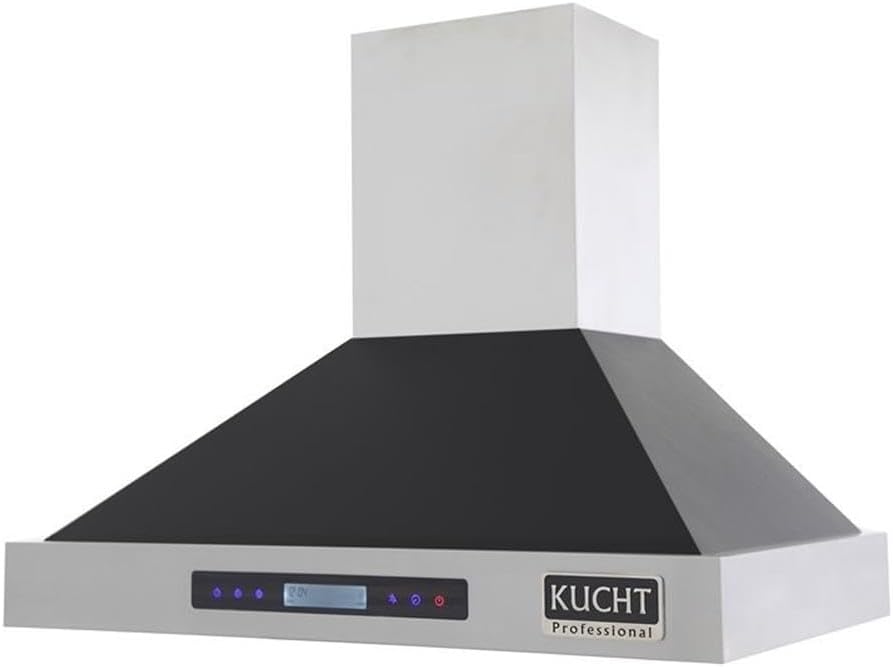

Image 1.1: Front view of the Kucht KRH3015-K Range Hood in black, showcasing its stainless steel and black pyramid design.
2. Key Features
The Kucht KRH3015-K Range Hood is designed with advanced features for optimal performance in a professional kitchen environment:
- High-Quality Construction: Made from 1.0 mm thickness 304 grade stainless steel for durability and a professional aesthetic.
- Powerful Airflow: Features blowers with up to 900 CFM (Cubic Feet Per Minute) capacity, offering four levels of airflow to effectively capture smoke and cooking odors.
- Quiet Operation: Engineered to provide powerful ventilation while maintaining a quiet operating noise level of approximately 46 dB.
- Intuitive Controls: Equipped with an LCD display and sensor touch controls for easy selection of fan speeds and settings.
- Easy Maintenance: Includes four stainless steel baffle filters that are dishwasher safe for convenient cleaning.
- Efficient Lighting: Integrated with 2 LED lights to illuminate the cooking surface.
3. Setup and Installation
The KRH3015-K is a wall-mounted canopy hood. Proper installation is crucial for safety and performance. It is recommended that installation be performed by a qualified professional.
3.1. Pre-Installation Checklist
- Verify all components are present, including the adjustable chimney.
- Ensure adequate electrical supply (120.0 Volts) is available at the installation site.
- Confirm proper ducting is in place or can be installed according to local building codes.
- Measure the installation area to ensure the hood fits the dimensions (approximately 13"D x 30"W x 23.5"H).
Image 3.1: Diagram showing the approximate dimensions of the Kucht KRH3015-K Range Hood: 23.5 inches in height, 13 inches in depth, and 30 inches in width.
3.2. Mounting
The unit is designed for wall mount installation. Securely fasten the hood to a structural support in the wall. The adjustable chimney allows for flexibility in ceiling height.
4. Operating Instructions
The KRH3015-K Range Hood features user-friendly touch controls for efficient operation.
4.1. Control Panel Overview
The front of the range hood features an LCD display and sensor touch buttons. These controls allow you to manage fan speed, lighting, and other functions.
Image 4.1: Close-up view of the range hood's control panel, featuring an LCD screen displaying time and illuminated touch buttons for various functions.
4.2. Fan Speed Control
The hood offers three fan speeds, providing up to 900 CFM of airflow. Use the touch controls to select the appropriate speed for your cooking needs:
- Low Speed: Ideal for simmering or light cooking.
- Medium Speed: Suitable for general cooking and moderate smoke/odor.
- High Speed: Recommended for heavy cooking, frying, or when significant smoke and odors are present.
4.3. Lighting
Press the light button on the control panel to turn the LED lights on or off, illuminating your cooking area.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your range hood.
5.1. Cleaning Baffle Filters
The stainless steel baffle filters are designed to trap grease and should be cleaned regularly, depending on cooking frequency. These filters are dishwasher safe for easy cleaning.
- To remove: Locate the handles or latches on each filter and pull them down or slide them out.
- Cleaning: Place filters in a dishwasher or wash by hand with hot, soapy water.
- To reinstall: Ensure filters are dry, then slide or snap them back into place securely.
Image 5.1: Underside view of the range hood, clearly showing the multiple stainless steel baffle filters and the two circular LED lights.
5.2. Exterior Cleaning
Clean the exterior stainless steel surfaces with a soft cloth and a non-abrasive stainless steel cleaner. Avoid harsh chemicals or abrasive pads that could scratch the finish.
6. Troubleshooting
This section provides solutions to common issues you might encounter. For problems not listed here, or if issues persist, please contact KUCHT Professional customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Hood does not turn on | No power supply; circuit breaker tripped; loose wiring. | Check power connection; reset circuit breaker; consult a qualified electrician. |
| Poor suction | Clogged filters; improper ducting; external air pressure. | Clean baffle filters; inspect ductwork for obstructions or leaks; ensure proper ventilation in the room. |
| Excessive noise | Loose components; motor issue; ducting obstruction. | Check for loose screws or parts; inspect ductwork; contact support if motor noise persists. |
| Lights not working | Bulb failure; electrical connection issue. | Check LED light connections; replace LED lights if necessary (consult manual for type); contact support. |
7. Product Specifications
Detailed technical specifications for the Kucht KRH3015-K Range Hood:
| Specification | Detail |
|---|---|
| Model Number | KRH3015-K |
| Brand | KUCHT Professional |
| Color | Black |
| Material | Stainless Steel |
| Mounting Type | Wall Mount |
| Air Flow Capacity | 900 Cubic Feet Per Minute (CFM) |
| Number of Speeds | 3 |
| Noise Level | 46 dB |
| Controls Type | Touch (LCD Display) |
| Lighting Type | LED |
| Filter Type | Baffle (Dishwasher Safe) |
| Voltage | 120.0 Volts |
| Annual Energy Consumption | 180 Watts |
| Item Weight | 57 Pounds |
| Product Dimensions (D x W x H) | 13 x 30 x 23.5 inches |
| Included Components | Adjustable Chimney |
| UPC | 640117892466 |
| Certification | cETL |
8. Warranty and Support
KUCHT Professional stands behind the quality of its products.
8.1. Warranty Information
- USA Warranty: 4-year warranty for parts and labor.
- CANADA Warranty: 2-year warranty for parts and labor.
Image 8.1: Kucht Professional warranty badge indicating a 2-year warranty for parts and labor in Canada, along with unlimited lifetime online support.
8.2. Customer Support
For technical assistance, troubleshooting, or warranty claims, KUCHT Professional offers lifetime video chat support with a Kucht specialist. Please refer to the official KUCHT Professional website for contact details and support resources.
9. Official Product Videos
No official product videos from the seller were found for this product in the provided data.
