Introduction
This manual provides detailed instructions for the assembly, usage, and maintenance of the Allewie King Size Platform Bed Frame, Model AK-JHH006. Please read carefully before assembly and use to ensure proper setup and longevity of your product.
This image shows the fully assembled Allewie King Size Platform Bed Frame in a bedroom setting, featuring its mahogany-finished headboard and footboard, and black metal frame.
Safety Information
WARNING:
- Do not exceed the 800 lbs weight capacity.
- Follow assembly instructions carefully to ensure stability.
- Use non-slip strips and foot plugs to prevent damage and noise.
- Be cautious when accessing under-bed storage space to avoid injury or pinching.
Package Contents
Before beginning assembly, ensure all parts are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Headboard components
- Footboard components
- Side rails
- Metal slats
- Support legs
- Assembly hardware (bolts, washers, nuts)
- Assembly tools (Allen wrench, box wrench)
Assembly Instructions
Assembly typically requires two adults. Please follow the steps below carefully.
- Unpack and Identify Parts: Lay out all components on a clean, soft surface to prevent scratches. Identify each part using the provided labels and the parts list in your package.
- Assemble Headboard and Footboard: Attach the wooden panels to the metal frames of the headboard and footboard using the specified hardware. Do not fully tighten bolts until all components are loosely assembled.
- Connect Side Rails: Attach the side rails to the assembled headboard and footboard. Ensure the connections are secure.
- Install Center Support Beam: Secure the center support beam and its legs.
- Install Slats: Place the metal slats across the frame. Ensure the non-slip strips on the slats are correctly positioned.
- Important Note on Tail Beam Connection: The iron piece on the tail beam must be tightly connected to the iron piece on the middle beam. If it does not connect properly, rotate the tail beam 180° horizontally and reattempt.
- Final Tightening: Once all parts are in place and aligned, systematically tighten all bolts using the provided tools. Do not overtighten.
- Attach Protective Pads: Ensure plastic foot plugs are securely attached to the bottom of all support legs to protect your floor.

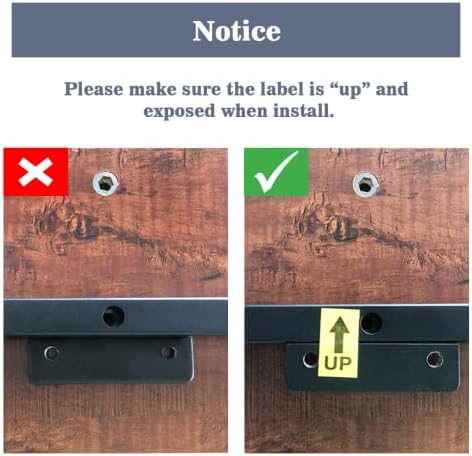

This image shows a crucial installation notice regarding the correct orientation of a part with an 'UP' label. Ensure the label is visible and facing upwards for proper assembly.
Usage Guidelines
- Mattress Compatibility: This bed frame is designed for King size mattresses with a recommended thickness of 10-14 inches. No box spring is needed.
- Under-Bed Storage: The frame provides approximately 12 inches of clearance for convenient under-bed storage.
- Noise Reduction: The embedded design, non-slip strips on slats, and plastic foot plugs are engineered to minimize noise and prevent mattress movement.
This image displays the Allewie bed frame with a mattress, highlighting the recommended mattress thickness range of 10-14 inches for optimal fit and appearance.
An image demonstrating the 12-inch under-bed clearance, suitable for storing items in baskets or containers, emphasizing the practical storage solution.
This composite image illustrates key features: the embedded design to prevent mattress slipping, the noise-free design with non-slip strips on slats, and protective pads on the legs to prevent floor scratches.
Care and Maintenance
- Cleaning: Wipe the bed frame with a dry cloth to remove dust and debris. Avoid using harsh chemicals or abrasive cleaners.
- Regular Inspection: Periodically check all bolts and connections to ensure they remain tight. Retighten as necessary to maintain stability and prevent noise.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Difficulty connecting tail beam to middle beam | Tail beam installed incorrectly. | Rotate the tail beam 180° horizontally and reattempt connection. Ensure the iron pieces align properly. |
| Bed frame makes noise (squeaking) | Loose connections or lack of non-slip strips. | Check and tighten all bolts. Ensure non-slip strips are properly installed on the slats. Verify plastic foot plugs are in place. |
| Mattress slides on the frame | Non-slip strips not effective or mattress is too light. | Ensure non-slip strips are correctly positioned on the slats. Consider adding additional non-slip material between the mattress and slats if the issue persists with a lighter mattress. |
Product Specifications

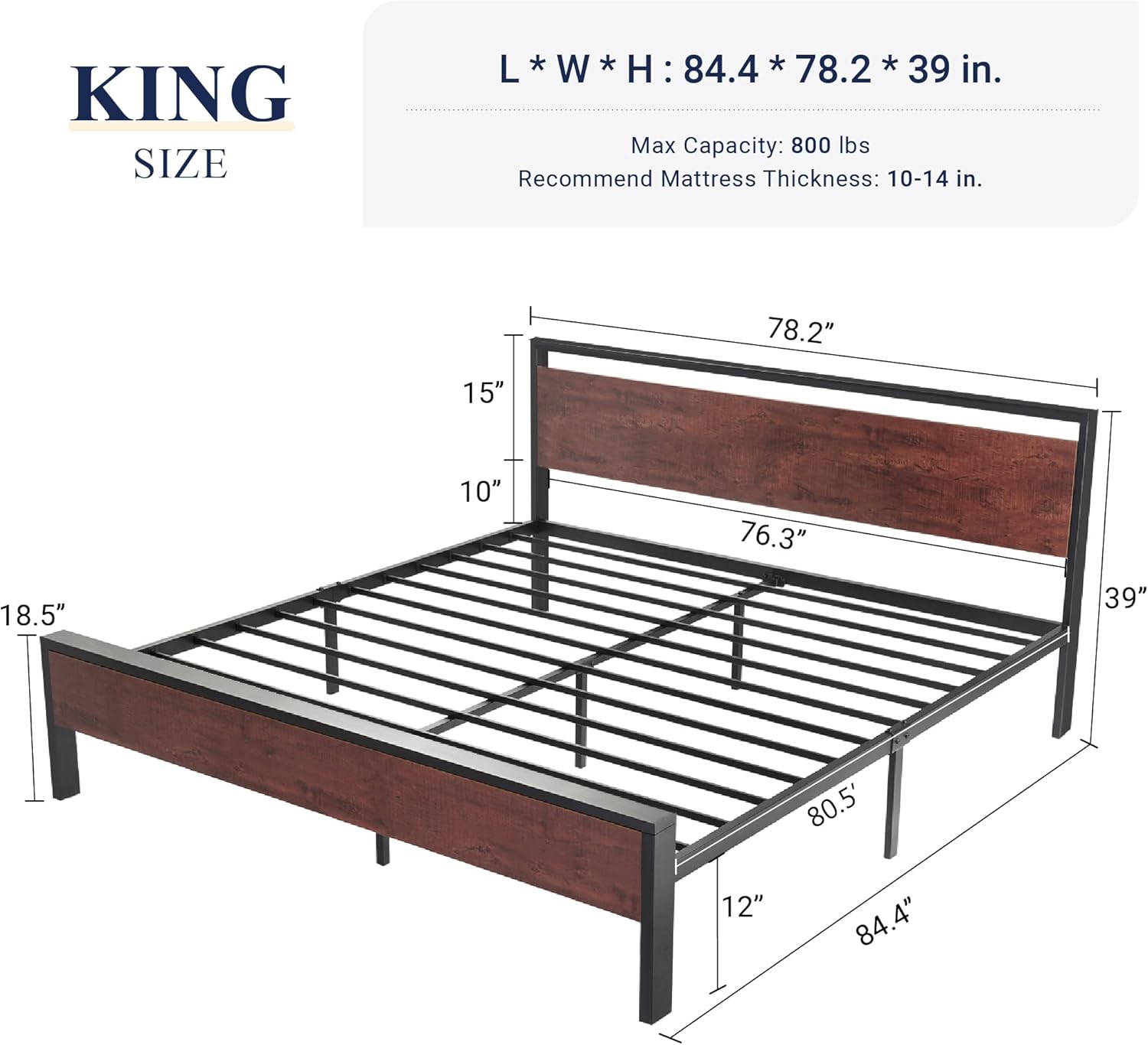

A technical diagram illustrating the dimensions of the King Size Allewie Platform Bed Frame, including length, width, height, and under-bed clearance. It also indicates a maximum capacity of 800 lbs and recommended mattress thickness of 10-14 inches.
| Brand | Allewie |
| Model Number | AK-JHH006 |
| Size | King |
| Product Dimensions (L x W x H) | 84.4" x 78.2" x 39" |
| Weight Capacity | 800 lbs |
| Recommended Mattress Thickness | 10-14 inches |
| Under-Bed Clearance | 12 inches |
| Color | Mahogany |
| Material | Metal & Wood board (Mahogany finish, Powder Coated Alloy Steel) |
| Assembly Required | Yes |
| Item Weight | 88.1 pounds |
| UPC | 749655396549 |
Customer Support
For assistance with assembly, missing parts, or any other inquiries, please contact Allewie customer support. Refer to your purchase documentation for specific contact details or visit the official Allewie website.
You can also visit the Allewie Store on Amazon for more information.
