VOUNOT 10x10 Pop Up Canopy Tent User Manual

Introduction

This manual provides essential information for the safe and effective use of your VOUNOT 10x10 Pop Up Canopy Tent. Please read these instructions carefully before setup, operation, or maintenance. Retain this manual for future reference.

Safety Information

IMPORTANT: This tent is not suitable to be left unsupervised or during periods of inclement weather. Be careful not to break the frame by accumulated rainwater when it rains.

• Always secure the canopy with included sandbags, ropes, and tent pegs.
• Do not use in strong winds, heavy rain, or snow.
• Ensure all frame connections are secure before use.
• Keep away from open flames and heat sources.
• Supervise children around the canopy.
• Avoid accumulating water on the canopy top to prevent frame damage.

Parts List

Before assembly, verify that all components are present and undamaged.

Figure 1: Exploded view of canopy tent components.

This image displays the complete set of components included with your VOUNOT 10x10 Pop Up Canopy Tent. It shows the foldable tent frame, the wheeled tent bag for transport, the main canopy roof, two window panels, one solid wall panel, one door panel, four sandbags for stability, four ground stakes, and four ropes for securing the tent.

Setup Instructions

The VOUNOT Pop Up Canopy Tent is designed for easy assembly. It is recommended that two people set up the tent for optimal safety and ease.

Step 1: Unpacking and Initial Frame Expansion

1. Remove the tent frame from the wheeled carry bag.
2. With two people, grasp opposite sides of the folded frame and slowly pull outwards to begin expanding the frame.

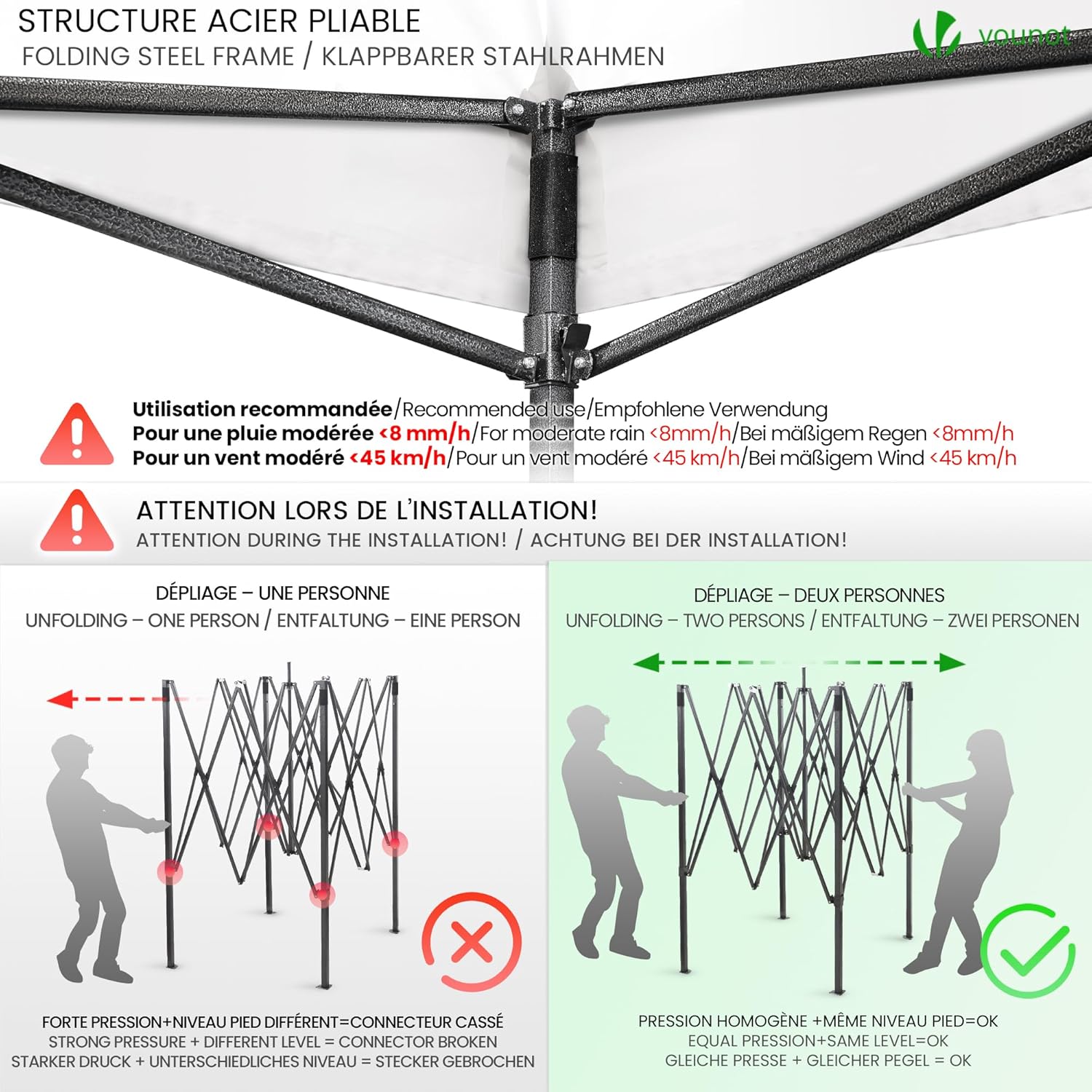

Figure 2: Proper two-person frame expansion for even pressure and stability.

This image highlights the importance of a two-person setup for the tent frame. The left side shows an incorrect one-person attempt, leading to uneven pressure and potential damage to connectors. The right side demonstrates the correct method with two people applying homogeneous pressure, ensuring a smooth and safe expansion of the frame.

Step 2: Attaching the Canopy Roof

1. Place the canopy roof over the partially expanded frame. Ensure the corners of the canopy align with the corners of the frame.
2. Secure the canopy to the frame using any integrated fasteners (e.g., Velcro straps) on the underside of the canopy.

Step 3: Fully Expanding the Frame and Adjusting Height

1. Continue to expand the frame until it is fully open and locked into place.
2. Extend the telescopic legs to the desired height by pressing the release buttons and pulling the inner leg sections upwards until they click into position.

Step 4: Attaching Sidewalls

1. Identify the window panels, solid wall panel, and door panel.
2. Attach the sidewalls to the canopy roof and frame legs using the integrated Velcro straps and zippers. The door panel features a zip-up entry.

Figure 3: Canopy tent with all sidewalls installed.

This image displays the VOUNOT canopy tent fully assembled with all four removable sidewalls in place. It shows the window panels, the solid wall panel, and the zippered door panel, illustrating how the tent can be fully enclosed for privacy or weather protection.

Step 5: Securing the Tent

1. Fill the four sand weight bags with sand or other heavy material and attach them to the tent legs for added stability.
2. Use the provided ground stakes to anchor the tent legs to the ground.
3. Utilize the ropes to further secure the tent by tying them from the canopy corners to ground stakes, pulling taut.

Figure 4: Key features and securing points of the canopy tent.

This image illustrates several key features of the VOUNOT canopy tent. It points out the waterproof and anti-UV properties of the roof, the design of the walls with windows, the inclusion of fixing ropes for stability, the four provided sandbags for weighting, and the ultra-reinforced steel frame that provides robust support.

Operating Instructions

Your VOUNOT Pop Up Canopy Tent is designed for versatile use in various outdoor settings.

General Use

• The canopy provides shade and protection from light rain.
• The removable sidewalls offer flexibility for different occasions, allowing for an open gazebo or an enclosed space.
• The zippered door panel provides easy access.

Weather Considerations

• The canopy is fully waterproof and offers UV protection.
• For moderate rain (less than 8 mm/h) and moderate wind (less than 45 km/h), the tent can be used with caution.
• WARNING: Do not use the tent in severe weather conditions, including heavy winds, torrential rain, or snow. Always take down the tent if adverse weather is expected.
• Ensure no water accumulates on the canopy roof during rain to prevent damage to the frame.

Figure 5: Versatile applications of the canopy tent.

This image showcases the versatility of the VOUNOT canopy tent in different outdoor settings. It illustrates its use for poolside relaxation, as a shaded area for outdoor dining, a cozy spot for evening gatherings around a fire pit, and as a functional market stall, demonstrating its adaptability for various events and activities.

Maintenance

Proper maintenance will extend the life of your canopy tent.

Cleaning

• Clean the canopy fabric with mild soap and water. Do not use harsh chemicals or abrasive cleaners.
• Rinse thoroughly and allow to air dry completely before folding and storing.
• Wipe down the steel frame with a damp cloth to remove dirt and debris.

Storage

• Ensure the canopy fabric and frame are completely dry before storage to prevent mold, mildew, and rust.
• Fold the tent frame carefully and place it back into the wheeled carry bag.
• Store the tent in a cool, dry place away from direct sunlight and extreme temperatures.

Troubleshooting

Common issues and their solutions.

Specifications

Figure 6: Detailed dimensions of the canopy tent.

This image provides a detailed dimensional diagram of the VOUNOT 10x10 Pop Up Canopy Tent. It shows the overall length, width, and height in both centimeters and inches, as well as the packed dimensions of the tent frame and bag, offering precise measurements for planning and storage.

Warranty and Support

Your VOUNOT Pop Up Canopy Tent comes with a manufacturer warranty. For specific warranty details and to register your product, please refer to the warranty card included in your package or visit the official VOUNOT website.

For customer support, technical assistance, or to inquire about replacement parts, please contact VOUNOT customer service through the following channels:

• Online Support: Visit the VOUNOT Store on Amazon for FAQs and contact options.
• Email: Refer to your product packaging or warranty card for direct email contact.

When contacting support, please have your model number (6548303282199) and purchase date available.
