L.B. White Forced Air Portable Liquid Propane Heater

1. Important Safety Instructions

Read and understand all safety warnings and instructions before using this heater. Failure to follow these instructions may result in fire, explosion, serious injury, or death.

• Ventilation: Always ensure adequate ventilation when operating this heater. Do not use in unventilated areas.
• Clearances: Maintain minimum clearances from combustible materials as specified in the setup section.
• Fuel: Use only liquid propane (LP) gas. Never use other fuels. Ensure LP tank is upright and secured.
• Carbon Monoxide: This heater produces carbon monoxide, which is an odorless, colorless gas that can cause death. Use a carbon monoxide detector.
• Electrical Connection: Connect to a properly grounded 120V AC outlet. Do not use extension cords unless absolutely necessary and ensure they are rated for outdoor use and the heater's power requirements.
• Supervision: Never leave the heater unattended while operating.
• Children and Pets: Keep children and pets away from the heater.
• Flammable Materials: Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this heater.

2. Product Overview

The L.B. White Forced Air Portable Liquid Propane Heater is designed for temporary heating of well-ventilated outdoor and semi-enclosed spaces. It features a direct spark ignition system and a unit-mounted thermostat for temperature control.

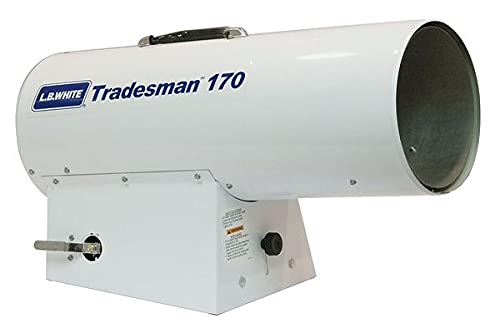

Image 2.1: L.B. White Forced Air Portable Liquid Propane Heater. This image shows the compact design of the heater, suitable for various outdoor and well-ventilated indoor applications.

Key Components:

• Heater Unit: Main body containing the burner, fan, and controls.
• Propane Hose and Regulator: Connects the heater to the LP gas supply.
• Power Cord: For electrical ignition and fan operation.
• Control Panel: Includes power switch, thermostat, and indicator lights.

3. Setup

Follow these steps to safely set up your heater.

1. Unpacking: Carefully remove the heater and all components from the packaging. Inspect for any shipping damage. Do not operate if damaged.
2. Placement: Place the heater on a firm, level, non-combustible surface. Ensure minimum clearances from combustible materials:
   • Front: 10 feet (305 cm)
   • Sides: 2 feet (61 cm)
   • Top: 3 feet (91 cm)
   • Rear: 2 feet (61 cm)
3. Propane Tank Connection:
   1. Ensure the LP tank valve is closed.
   2. Connect the regulator hose to the LP tank valve. Hand-tighten firmly.
   3. Connect the other end of the hose to the heater's gas inlet. Tighten securely with a wrench.
   4. Open the LP tank valve slowly and check all connections for leaks using a soap and water solution. Bubbles indicate a leak. If a leak is detected, close the tank valve immediately and tighten connections. Do not operate the heater with a leak.
   5. Use a minimum 100 lb (45 kg) LP cylinder.
4. Electrical Connection: Plug the heater's power cord into a grounded 120V AC, 60 Hz outlet.

4. Operating Instructions

Before operating, ensure all safety precautions and setup steps have been followed.

1. Starting the Heater:
   1. Ensure the LP tank valve is fully open.
   2. Turn the heater's power switch to the 'ON' position. The fan will start, and the direct spark ignition system will attempt to light the burner.
   3. The heater should ignite within a few seconds. If it does not ignite, the flame-out sensor may shut off the gas supply. Wait 5 minutes before attempting to restart.
2. Adjusting Heat Output: Use the unit-mounted thermostat to set the desired temperature. The heater will cycle on and off to maintain the set temperature.
3. Shutting Down the Heater:
   1. Close the LP tank valve completely.
   2. Allow the heater to run until all residual gas in the hose is consumed and the flame extinguishes (approximately 1-2 minutes).
   3. Turn the heater's power switch to the 'OFF' position.
   4. Unplug the power cord from the electrical outlet.

5. Maintenance

Regular maintenance ensures safe and efficient operation.

• Cleaning: Keep the heater clean and free from dust and debris. Use a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Air Inlet/Outlet: Ensure the air intake and exhaust grilles are clear of obstructions.
• Hose and Regulator: Inspect the propane hose and regulator for cuts, cracks, or damage before each use. Replace if damaged.
• Storage: When not in use, disconnect the LP tank and store the heater in a dry, safe place away from children and flammable materials.

6. Troubleshooting

7. Specifications

• Model: Forced Air Portable Liquid Propane Heater
• Fuel Type: Liquid Propane (LP)
• BtuH Output: 125,000 to 170,000
• Air Flow: 550 cfm (cubic feet per minute)
• Heating Area: Up to 42,000 sq ft
• Ignition Type: Direct Spark
• Ignition Power Source: Electric
• Thermostat: Unit-Mounted, Included
• Automatic Safety Shut-Off: Included
• Flame-Out Sensor: Included
• Minimum Cylinder Size: 100 lb (45 kg)
• Overall Height: 16 inches (40.6 cm)
• Overall Width: 9.5 inches (24.1 cm)
• Overall Depth: 24 inches (61 cm)
• Power Source: Corded Electric, Gas Powered
• Indoor/Outdoor Usage: Outdoor (or well-ventilated indoor spaces)

8. Warranty and Support

For warranty information and technical support, please refer to the documentation provided with your purchase or contact L.B. White customer service directly. Keep your purchase receipt and model number handy for faster service.

Note: Specific warranty terms and conditions may vary.
